TV Stand Base Front
(included)
Screw A x 2 Screw A x 2
TV Stand Support
(Left) (included)
TV Stand Support
(Right) (included)
L
R
Unpacking Guide
LT-42C550
2 people are required when unpacking your TV.
TV Stand BaseTV Stand Support (L) x 1
TV Stand Support (R) x 1
Accessories
Pack
TV
Instruction Book
& Quick Start Guide
Don't lift the TV from the top
When you remove the TV from its box lie it flat.
Don’t balance it on the sensor at the front of the TV.
Installing the Base Stand
1. Ensure the TV is switched off and not connected to the mains power supply.
2. Keep the protective bag on your TV, it will help to protect the TV. Lay the TV
down on a flat surface with the back side facing up, and ideally at the edge of
a table so that the base of the TV slightly overhangs on it. Please make sure
a soft cushioned material (such as a pillow or thick piece of foam) is placed
beneath the screen.
Remove the Protective Bag
If you don’t have a table big enough, you can use the TV box. Lie the box
flat, make sure you place the polystyrene back in the box first to give the
box some rigidity and strength.
• Keep the protective bag on your TV until you have attached the stand and
positioned the TV.
• The LCD display is very fragile, and must be protected at all times when installing
and removing the base stand. Be sure that no hard or sharp object, or anything
that could scratch or damage the LCD display, comes into contact with it. DO NOT
exert pressure on the front of the TV at any time because the screen could crack.
3. Fit the stand support onto the stand base. Ensure the stand support marking
position is in right position (L = left, R = right). Align with the screw holes
then screw the support by using 4 screws A supplied.
4. Rotate the stand assembly so the metal bar face to the front of the TV. Insert the stand
support under the bottom of the TV. The stand assembly will fit snugly into the TV.
Then screw the stand to the TV by using 4 screws B supplied.
MENU VOL- VOL+ CH- CH+
Screw B x 4
Table
Cushioned
Material
Protective
Bag

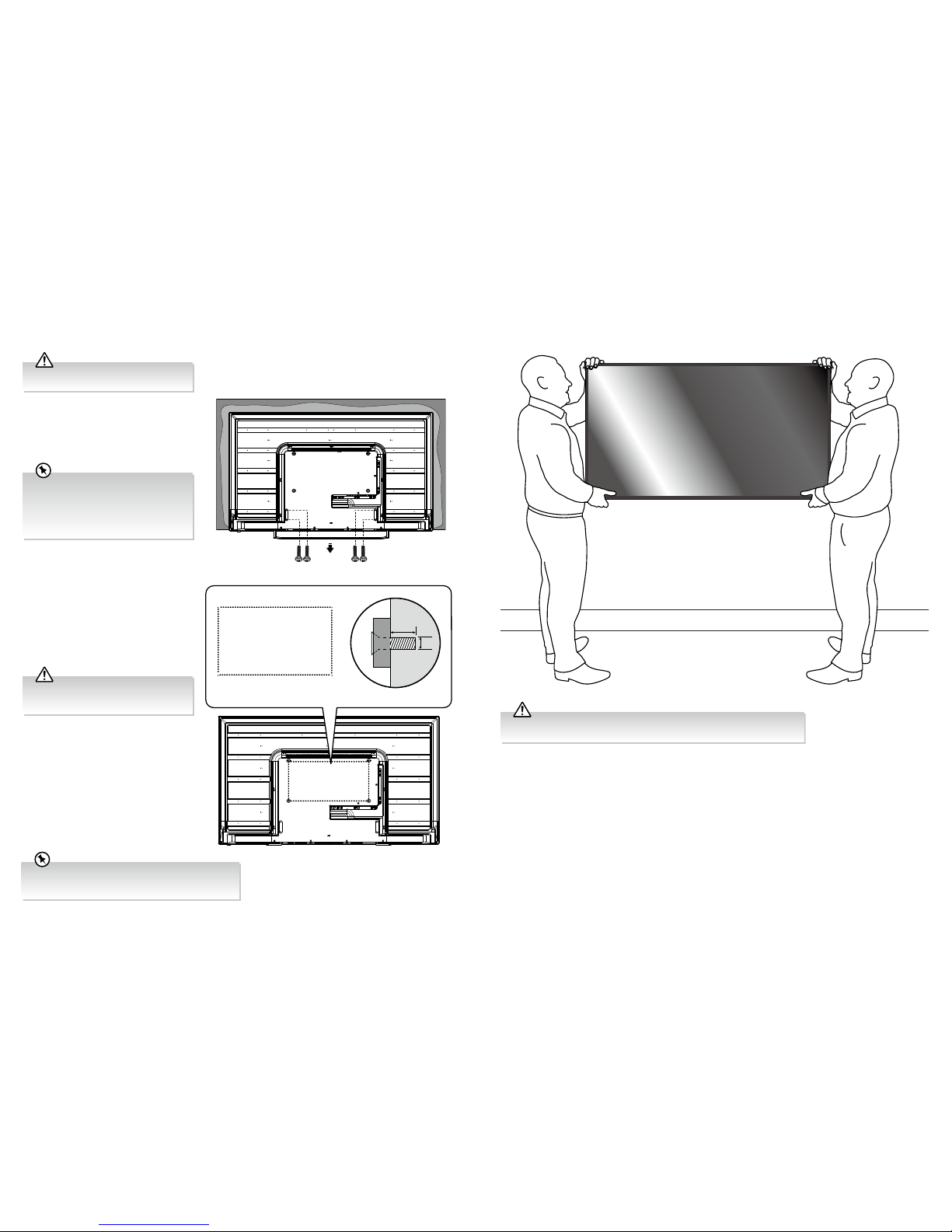

Mounting the TV to a Wall
Remove the stand assembly before mounting the
TV onto the wall.
1. To remove the stand assembly, lay the TV on a flat
surface with a cushioned material between the TV
and the surface, to prevent damage. The protective
bag can be used to cushion the TV. Untighten the
screws holding the stand assembly at the rear of the
TV. Remove the stand assembly.
TV Weight (Without Stand): 6.9kg
• If you don’t have a table big enough, you can
use the TV box. Lie the box flat, make sure you
place the polystyrene back in the box first to
give the box some rigidity and strength.
• Keep all the spare screws should you want to
use the stand assembly option.
2. This TV is designed to be wall-mounted with a
standard mounting kit (sold separately) designed
for flat-panel TVs. Mount this TV according to the
instructions included in the mounting kit. Due to
space restrictions, we recommend that you make all
connections before mounting on to the wall.
• If you require additional assistance:
For UK, please call our UK Call Centre on 0344 561 1234.
For Ireland, please call our Ireland Call Center on 1 890 818 575.
Always check the specifiacation of your wall
mount bracket to make sure its suitable for the
weight of your TV.
• 2 people are required when wall mounting large TVs.
• Make sure you hold the TV on the sides do not hold the screen, you may damage the screen.
(UG-LT-42C550-180209V3)
200 mm
100 mm
Four mounting holes
(size M6x8 screw)
M6
6-8mm
