JVC RS-840UD Guida all'installazione

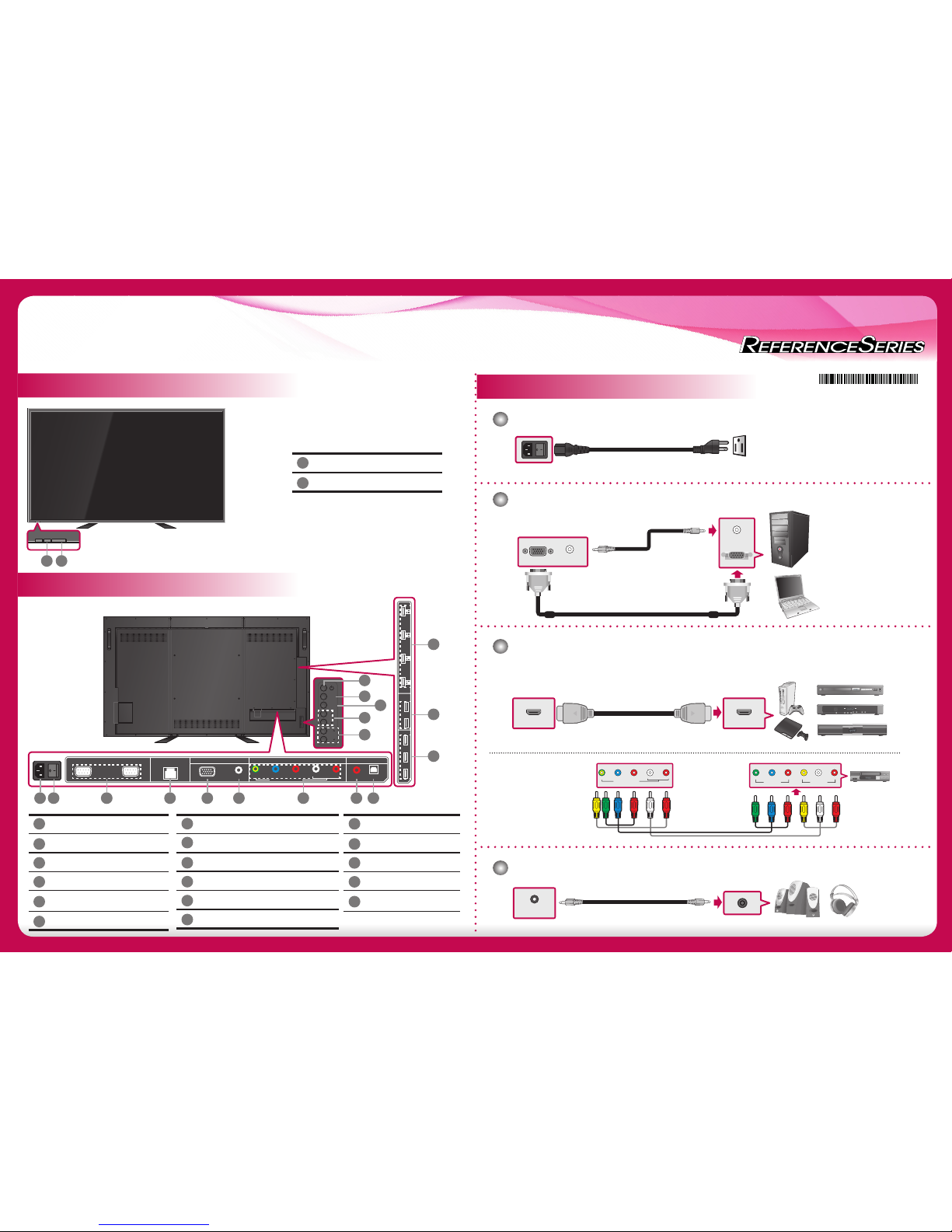

Front View

1Power indicator

2IR Receiver

Rear View

Making Connections

RS-840UD

7Component/Video Input ports

8Stereo Audio Line out

9Optical Audio out

10 HDMI ports

11 USB ports

12 HDMI-UHD60 ports

13 Power button

14 Input button

15 Menu button

16 Up/Down button

17 Volume button

Connect to Power

Connect to HD/UHD Devices (DVD/Blu-ray Player, Game

Console, Set-top Box)

Connect to Audio Systems/Headphones

Connect to Computer/Laptop

RGB (PC) PC

AUDIO IN

HDMI HDMI

AUDIO

OUT

Y/V RAUDIO

COMPOSITE [GOOD]

LPr/CrPb/Cb Y RAUDIOLPr/CrPb/Cb VIDEO

COMPONENT COMPOSITE

HDMI connection

Component/Video

connection

Power cord

VGA cable

(not included)

Component/Video

cable

(not included)

Audio cable

(not included)

4K Ultra HD LCD Display

Audio cable

(not included)

INPUT

VOL

RS-232 IN RS-232 OUTETHERNET PC / MUSICCOMPONENT / VIDEO AUDIO OUT

RGB (PC) PC

AUDIO IN AUDIO

OUT DPTICAL

Y/V RAUDIO

COMPOSITE [GOOD]

LPr/CrPb/Cb

HDMI

USB

UHD60

INPUT

VOL

3 4 5 7 8 96

1 2

AC Power Input connector

2AC switch

3RS-232C Serial ports

4RJ-45 port

5RGB port

6PC Audio Input port

HDMI cable

(not included)

192513015460

Daisy Chain Connection Using Remote Control

Input

Switch the input source.

Right

Incr• ease the values.

Enter the submenu.•

Change the options.•

Move• upward on the selection.

Cha• nge selected item.

Down

Move• downward on the

selection.

Change selecte• d item.

Display OSD (on-screen display)

menu.

Power

Turn the display on/off.

OSD Menus

Connect the RS-232C cable as shown in the illustration.

* The RS-232C protocol is used for communication between the PC and

display. You can turn the display on/off or adjust the OSD menu from your

PC.

OUTIN OUTIN OUTIN OUTIN

RS-232C cable

(not included)

PC Display 1 Display 2 Display 3 Display 4

Input menu

To change the settings on the OSD menu, use the buttons on the remote control or

control panel.

Enter• the submenu.

Conrmtheselection.•

RS-840UD

4K Ultra HD LCD Display

Left

Decrease the values.•

Change the options.•

Picture menu Audio menu Setup menu

Ethernet menu

Wide menu

Multimedia

Enter the multimedia mode.

Info

Display the input information.

Back

Return to the previous

menu/screen.

Audio Only

Only output audio from the display

speaker.

Wide

Change the display mode.

Exit

Exit OSD menu.

Mute

Mute the audio.

Numbers (0~9, -)

Input the number.

Stand Installation

Placethedisplayonaatsurfaceand

attach the foot stand.

Secure the stand with the included

screws.

1 2

Sleep Timer menu
