Küppersbusch IG6504 Manuale utente
IG6504
User Manual
EN
Dishwasher
CONTENTS
Safety information 2
Safety Instructions 3
Product description 5
Control panel 6
Programmes 7
Settings 7
Before first use 9
Daily use 10
Hints and tips 11
Care and cleaning 12
Troubleshooting 14
Technical information 15
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damages. Always keep the instructions with the appliance for
future reference.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and
other working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum)
must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
•Obey the maximum number of 12 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery basket
with the points down or in a horizontal position.
•Do not keep the appliance door open without supervision to
prevent to fall on it.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the appliance.
2
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door when
it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
SAFETY INSTRUCTIONS
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS
1362) fuse.
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
3
• The first time you use the appliance,
make sure that there is no leakage.

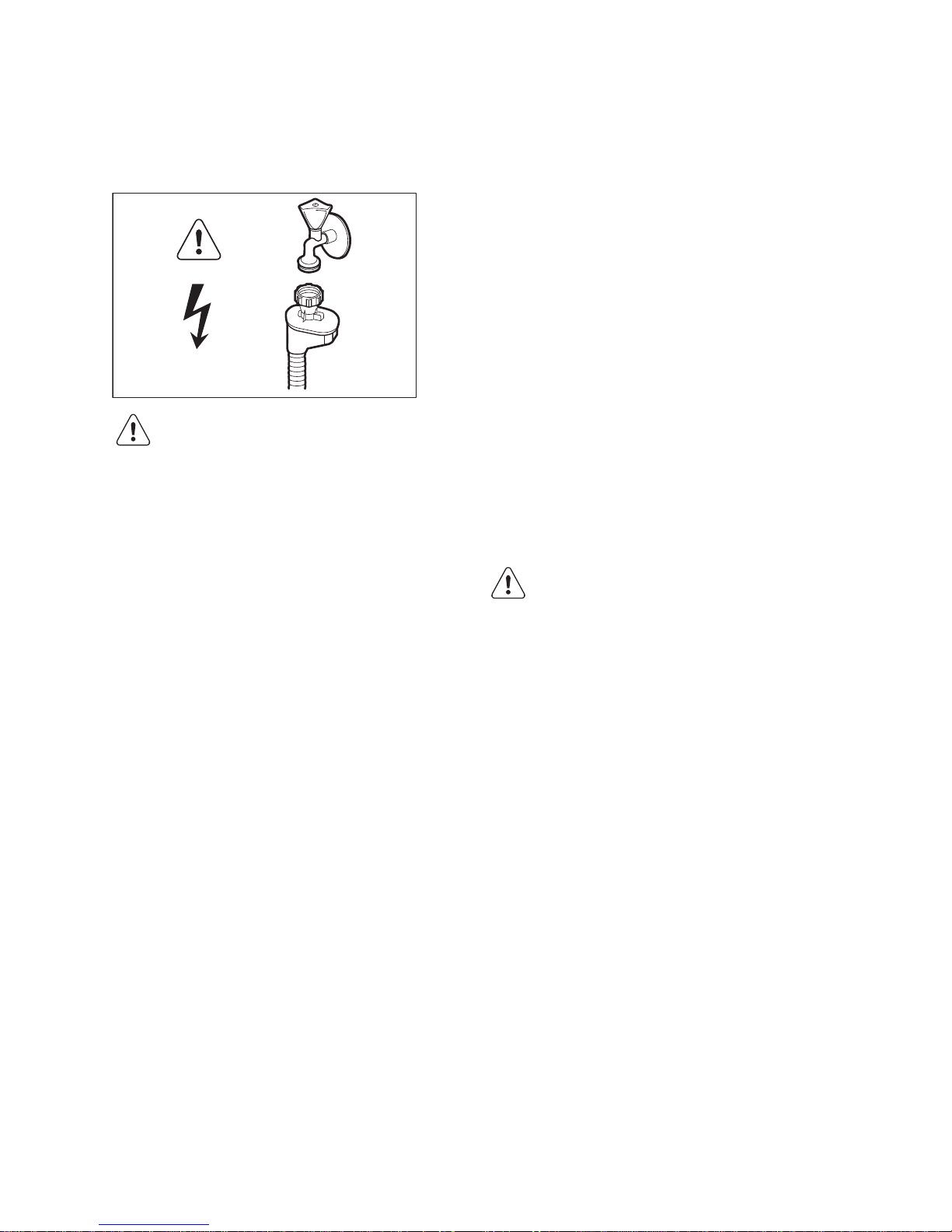

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
WARNING! Dangerous
voltage.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Service
• Contact the Authorised Service Centre
to repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised
Service Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
Serial Number :
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
4

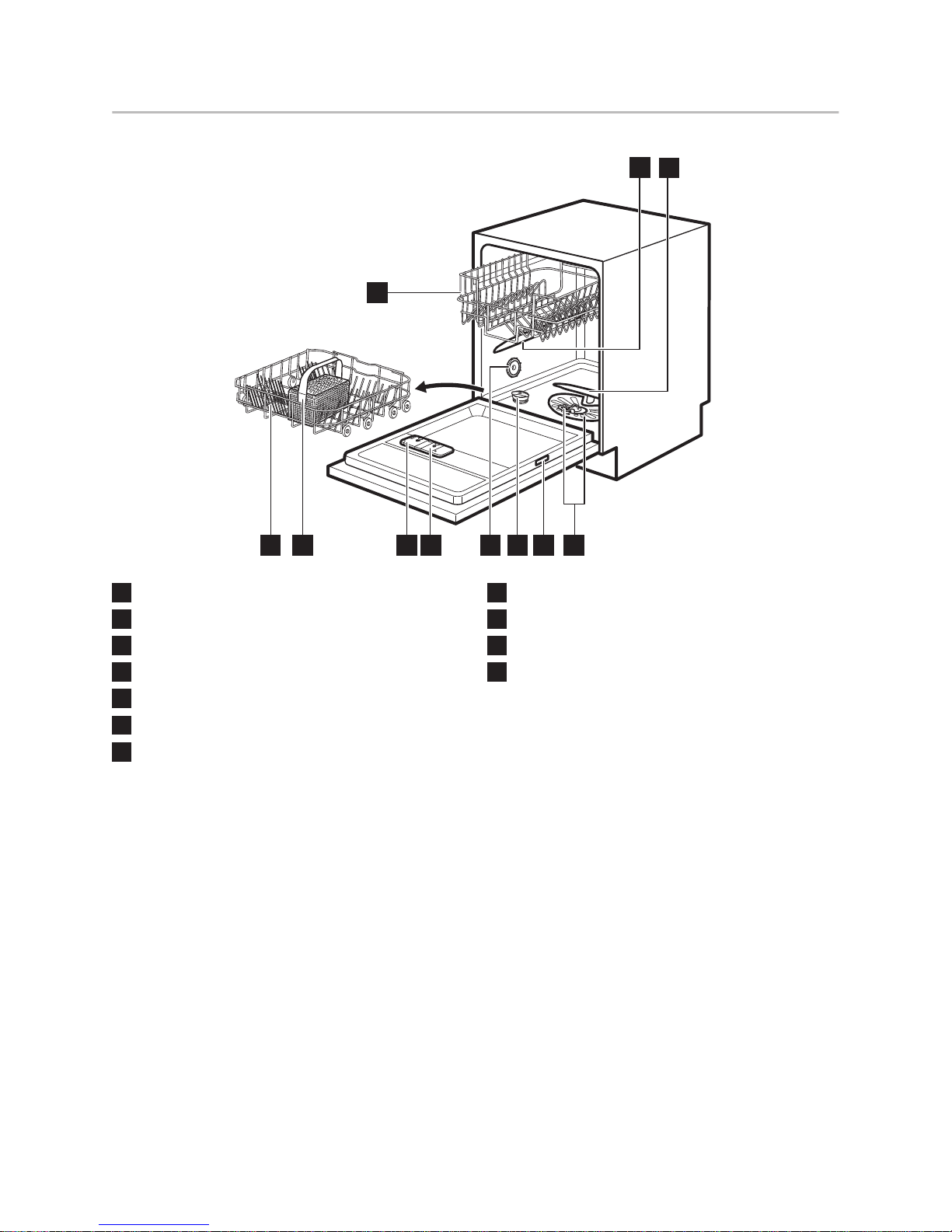

PRODUCT DESCRIPTION
43
7
9 8
10 56
11
12
1Upper spray arm
2Lower spray arm
3Filters
4Rating plate
5Salt container
6Air vent
7Rinse aid dispenser
8Detergent dispenser
9Cutlery basket
10 Lower basket
11 Upper basket
5

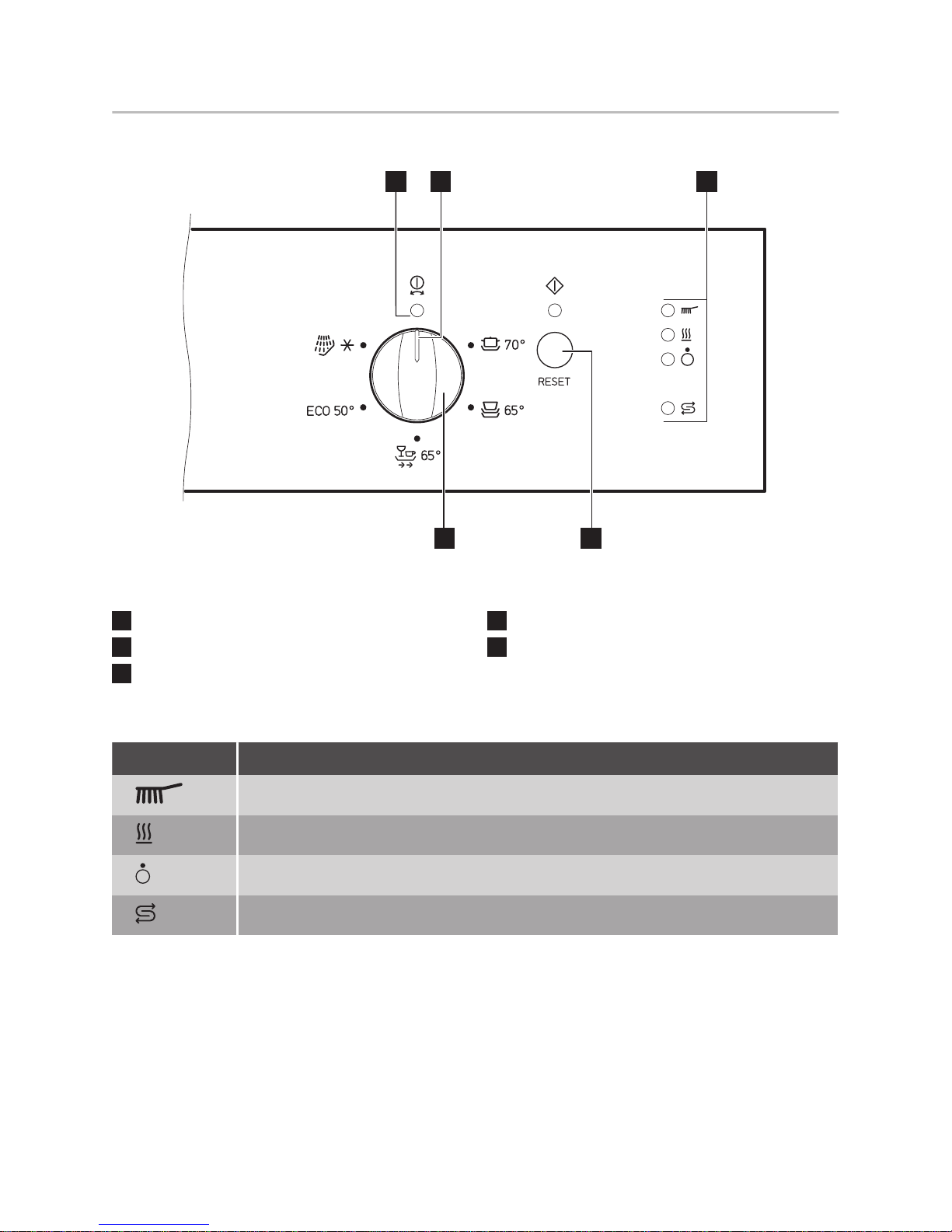

CONTROL PANEL
1 2 3
45
1On/off indicator
2Programme marker
3Indicators
4Start button
5Programme knob
Indicators
Indicator Description
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
Salt indicator. It is always off while the programme operates.
6
PROGRAMMES
Programme Degree of
soil
Type of load
Programme
phases
Consumption values
1)
Dura-
tion
(min)
Energy
(kWh)
Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.02 11
Heavy soil
Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
130 -
150
1.3 - 1.4 13 - 15
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
100 -
110
1.2 - 1.6 15 - 16
3) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.8 9
4) All • Prewash 14 0.1 4
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery
with normal soil. (This is the standard programme for test institutes).
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) Use this programme to quickly rinse the dishes. this prevents the remaining food to bond on the dishes and bad
odours to come out from the appliance. Do not use detergent with this programme.
Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC) that
is on the rating plate.
SETTINGS
Programme selection mode and
user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener according
to the water hardness.
These settings will be saved until you
change them again.
7
How to set the programme
selection mode
The appliance is in programme selection
mode when the on/off indicator comes on
and start indicator starts to flash.
When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:
Press and hold Start until the start indicator
starts to flash.
The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German de-
grees (°dH)
French de-
grees (°fH)
mmol/l Clarke de-
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. Make sure that the programme marker
on the knob is aligned with the indicator
on/off .
2. To enter the user mode, turn the knob
counterclockwise until the symbol of the
first programme is aligned with the
on/off indicator. Press and hold the
Start until the indicators start , on/off
and start to flash.
8
• The intermittent flashing of refers
to the current set level, e.g. 5 flashes
+ pause + 5 flashes = level 5.
3. Press the Start button again and again
to change the setting. Each time you
press the Start button the level number
increases. After level 10 you will start
again from level 1.
4. Turn knob to on/off position to confirm
the setting.
BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
When you start a programme, the
appliance can take up to 5 minutes to
recharge the resin in the water softener. It
seems that the appliance is not working.
The washing phase starts only after this
procedure is completed. The procedure will
be repeated periodically.
The salt container
CAUTION! Only use salt
specifically designed for
dishwashers.
The salt is used to recharge the resin in the
water softener and to assure good washing
results in the daily use.

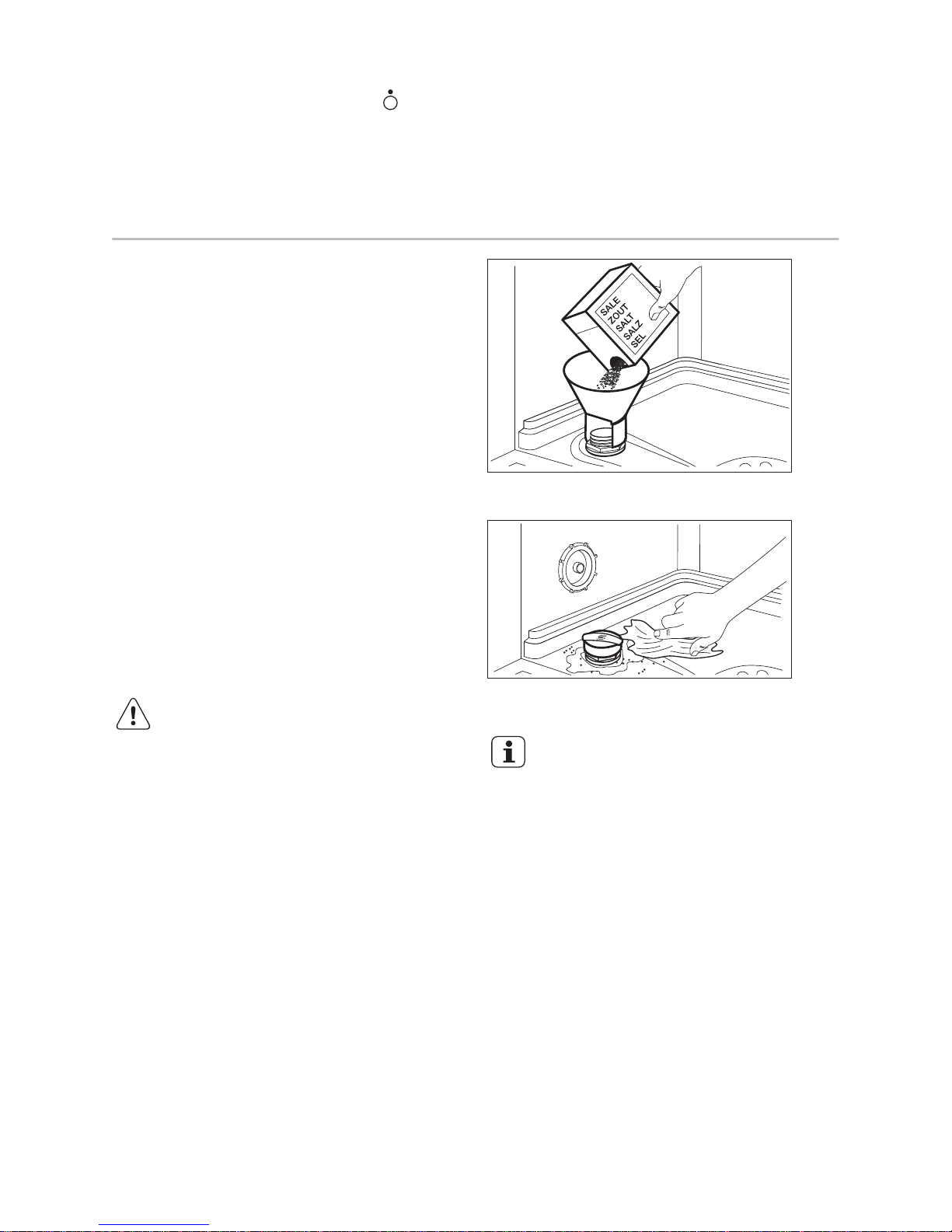

How to fill the salt container
1. Turn the cap of the salt container
counterclockwise and remove it.
2. Put 1 litre of water in the salt container
(Only for the first time).
3. Fill the salt container with dishwasher
salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap of the salt container
clockwise to close the salt container.
Water and salt can come out from
the salt container when you fill it.
Risk of corrosion. To prevent it,
after you fill the salt container,
start a programme.
9

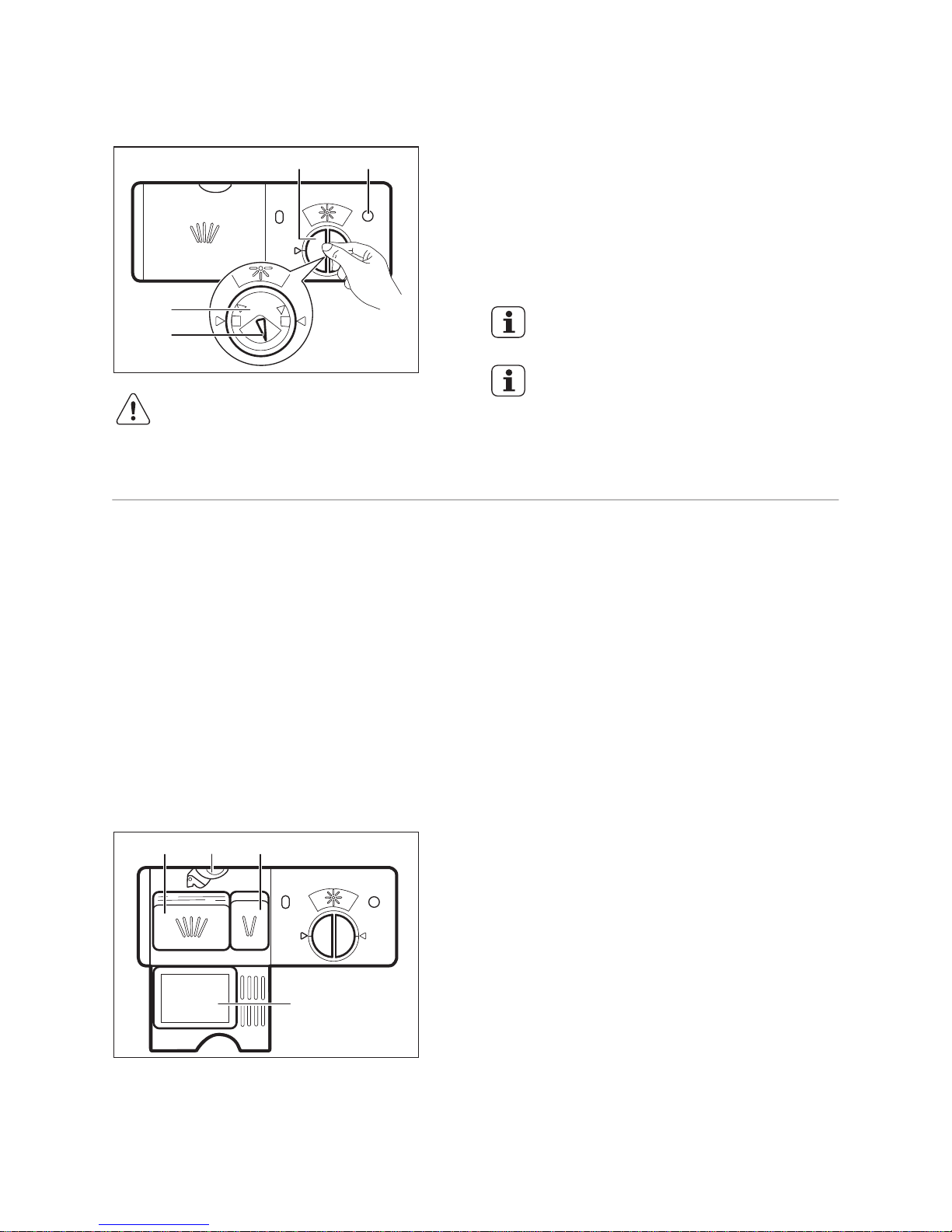

How to fill the rinse aid
dispenser
20
30
1
2
3
4
-+
M
A
x
A
B
C D
CAUTION! Only use rinse aid
specifically designed for
dishwashers.
1. Turn the cup (C) counterclockwise to
open the dispenser.
2. Pour the rinse aid in the dispenser (A)
until the liquid reaches the fill level
'max'.
3. Remove the spilled rinse aid with an
absorbent cloth to prevent too much
foam.
4. Put the cap in position and turn it
clockwise to close the dispenser.
Fill the rinse aid dispenser when
the indicator (D) becomes clear.
You can turn the selector of the
released quantity (B) between
position 1 (lowest quantity) and
position 4 or 6 (highest quantity).
DAILY USE
1. Open the water tap.
2. Turn the knob until the symbol of the
programme you want to set is aligned
with the on/off indicator. Set the correct
programme for the type of load and the
degree of soil.
• If the salt indicators is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Start the programme.
Using the detergent
20
30
BA D
C
1. Press the release button (B) to open the
lid (C).
2. Put the detergent, in powder or tablets,
in the compartment (A).
3. If the programme has a prewash phase,
put a small quantity of detergent in the
compartment (D).
4. Close the lid. Make sure that the release
button locks into position.
Using the multi-tablets
When you use tablets, that contain salt and
rinse aid, do not fill the salt container and
the rinse aid dispenser.
1. Adjust the water softener to the lowest
level.
2. Set the rinse aid dispenser to the lowest
position.
Setting and starting a
programme
Starting a programme
1. Open the water tap.
2. Close the appliance door.
3. Turn the knob until the symbol of a
programme you want to set is aligned
with the on/off indicator.
• On/off indicator comes on.
10
Indice
Altri manuali Küppersbusch Lavastoviglie
Küppersbusch
Küppersbusch IGV 459 Series Manuale utente
Küppersbusch
Küppersbusch IGV6507.1 Manuale utente
Küppersbusch
Küppersbusch Dishwasher Manuale utente
Küppersbusch
Küppersbusch Dishwasher Manuale utente
Küppersbusch
Küppersbusch IGV 643.4 Manuale utente
Küppersbusch
Küppersbusch IGV 645.2 Manuale utente
Küppersbusch
Küppersbusch IGV6504.0 Manuale utente
Küppersbusch
Küppersbusch IGV 457.2 Manuale utente
Küppersbusch
Küppersbusch Dishwasher Manuale utente
Küppersbusch
Küppersbusch IGV 658.0 Manuale utente
Küppersbusch
Küppersbusch Dishwasher Manuale utente
Küppersbusch
Küppersbusch IGVS 659 Manuale utente
Küppersbusch
Küppersbusch IGV 655.1 Manuale utente
Küppersbusch
Küppersbusch IGV 699 Manuale utente
Küppersbusch
Küppersbusch IGV 449.3 Manuale utente
Küppersbusch
Küppersbusch IGV 668.0 Manuale utente
Küppersbusch
Küppersbusch IGV 689.1 Guida rapida alla configurazione
Küppersbusch
Küppersbusch IGV 445.0 Manuale utente
Küppersbusch
Küppersbusch IGV 458.3 Guida rapida alla configurazione
Küppersbusch
Küppersbusch IGV 456.1 Manuale utente
