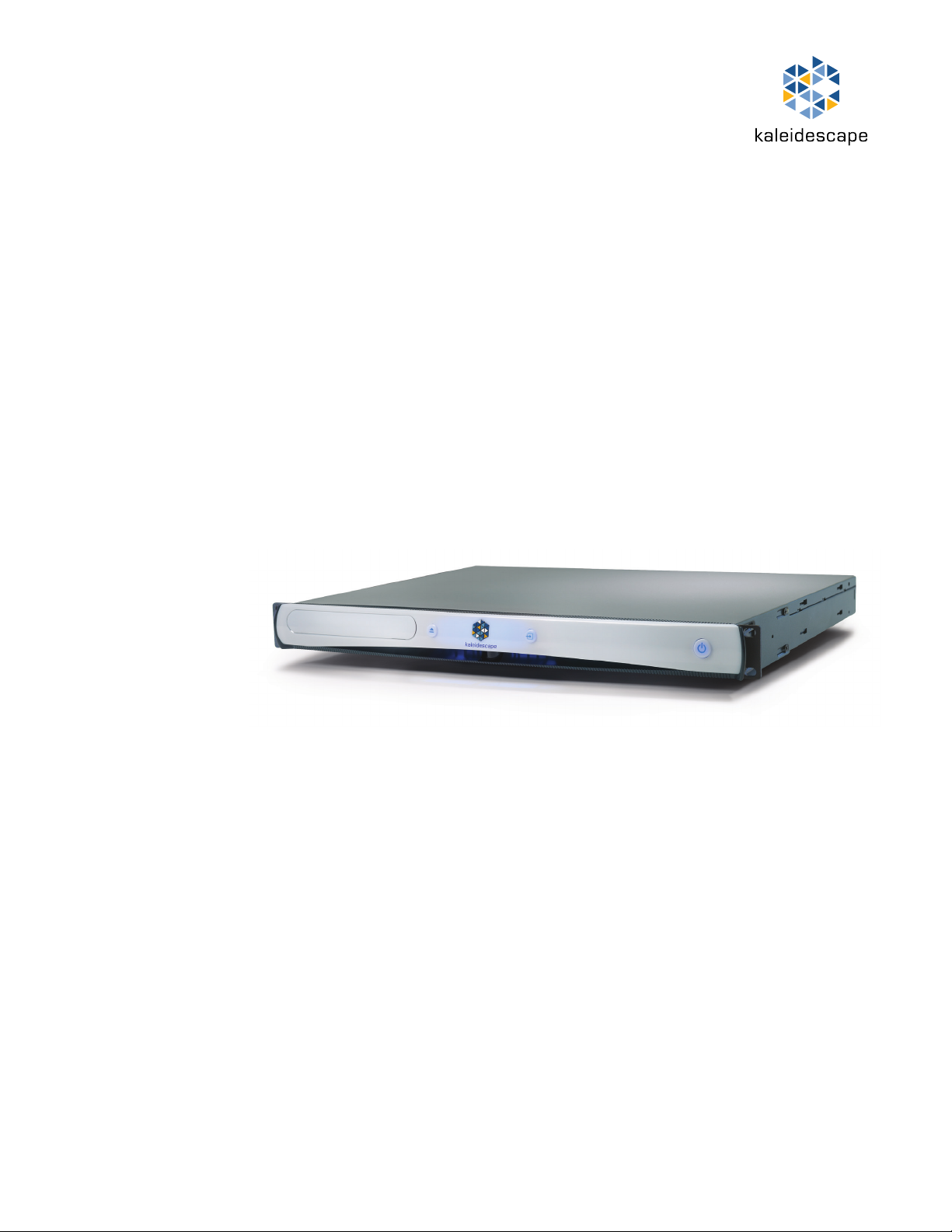

Kaleidescape 1080p Player
KPLAYER-6000
DVD and CD import and playback with 1080p video scaling
Compatible with popular control systems and remote
control devices
Ideal for adding another zone to a Cinema One
The 1080p Player creates beautiful high-definition
output from DVDs to provide a viewing experience
that rivals Blu-ray.
The 1080p Player copies your DVDs and CDs
onto your Kaleidescape server. The player can
play from the copies stored on the server or
a disc in the tray.
Movies and music are automatically organized
and cross-referenced. The Kaleidescape Movie
and Music Guide Service provides information
so you can find movies and music with a press
of a button.
Sort by title, actor, artist, director, genre, year
of release, or run time. The high resolution cover
art and award-winning user interface make
it easy to find and play a movie or album. Just
press Play to start a movie without trailers
or advertisements.
Organize your favorite movies and music into
personal collections, make your own mix albums
of favorite songs, or mark some of your favorite
movie scenes to play them instantly.
Automatic video configuration matches output to
the highest available resolution over an HDMI®
connection, for simple, straightforward installation.
The 1080p Player can zoom letterboxed movies
to fill a 16:9 display and subtitles can be relocated
for optimal viewing.
The 1080p Player and Kaleidescape Cinema One
have the same user interface which makes
this player ideal for adding another zone to
a Cinema One.
KPLAYER-6000 Specifications
Dimensions
• 17.5 in. × 1.7 in. × 13.8 in. (W × H × D)
(44.5 cm × 4.3 cm × 35.0 cm) without side panels
• 1 rack unit (rack ears included)
Weight
• 10.0 lb (4.6 kg)
Power
• 100–240 V, 50–60 Hz universal input
• 40 W typical consumption (28 W standby, 45 W max)
Network
• 100Base-TX Ethernet (RJ45)
Control
• Front panel IR receiver window
• IR input (1/8 in. mini-plug)
• Two-way control via TCP/IP
or RS-232 control port (DB-9 male)
• Kaleidescape Remote included
Environment
• Operating temperature: 41 to 86°F (5 to 30°C)
• Storage temperature: -4 to 140°F (-20 to 60°C)
• Relative humidity: 5 to 90% non-condensing
• Maximum operating altitude: 10,000 ft (3000 m)
• Heat output: 150 BTU/hr (45 W) max
• Airflow: 5 CFM (8 m³/hr) min
Ventilation
• Minimum 1 in. (2.5 cm) ventilation space
at the front
• Minimum 2 in. (5 cm) ventilation space
at the rear
Video Outputs
• HDMI
• Component YPbPr (BNC connectors)
• S-Video
• Composite (BNC connector)
Video Modes
• DVDs played in high-definition over HDMI
• 1080p60/50, 1080i60/50, 720p60/50, 576p,
576i, 480p, 480i
Audio Outputs
• HDMI
• Digital coaxial (BNC connector)
• Digital optical (TosLink connector)
• Analog stereo (RCA connectors)
Audio Formats
• Dolby* Digital
• DTS Digital Surround®
• MPEG Audio
• PCM
Disc Media
• CD Audio, CD-R, CD-RW, DVD, DVD-R, DVD-RW,
DVD+R, DVD+RW, DualDisc
Certifications
• CSA (IEC 60950-1:2001, CSA 60950-1-03)
• FCC Class B
• CE
• GOST R
• RoHS compliant
Limited Warranty
• 2 years (extendable)
www.kaleidescape.com
Copyright © 2008–2010 Kaleidescape, Inc. All rights reserved. Kaleidescape and the Kaleidescape logo are trademarks of Kaleidescape, Inc.
and are registered in the United States and certain other jurisdictions. HDMI is a trademark or registered trademark of HDMI Licensing LLC in the
United States and other countries. DTS and the Symbol are registered trademarks & the DTS logos are trademarks of DTS, Inc. *Dolby is a registered
trademark of Dolby Laboratories. Other trademarks and trade names are owned by third parties and may be registered in some jurisdictions.
Kaleidescape Part No. 111-0012-00 Rev 5
