5 Technical data

5.1 Product introduction

READy MTU is a one-to-one meter data transmission unit that connects to meters utilizing the Sensus UI1203 Encoded Output

protocol. Data from READy MTU is forwarded to the READy Manager MDM system via Kamstrup’s AMI system.

5.2 System overview

READy MTU connects to an encoded output meter and sends data to READy Collector and READy Manager.

5.3 Electrical data

Battery safety:

Fire, explosion and severe burn hazard.

Please follow these guidelines in order to avoid injury to yourself and others:

• If not disposed of properly, the battery may cause ﬁre or chemical burn

• Do NOT recharge, disassemble, crush, expose to water, heat above 212 °Fahrenheit (100 °Celsius), or

incinerate the battery

• Keep away from children

Do not disassemble the product as the IP68 sealing will be void, and do not tamper with the internal battery and

electronics.

Battery D-cell battery

Battery liftetime Up to 20 years at tBAT < 40 °F

Up to 16 years at tBAT < 55 °F

Up to 8 years at tBAT < 130 °F

5.4 Mechanical data

READy MTU is designed to operate at temperatures of -30 °C…65 °C (-22 °F…149 °F). Using the device outside the

intended operating temperature range may cause deterioration of battery life or in worst case operating failure.

Protection class IP68 rated (waterproof/submersible)

Weight Approx. 525 g / 1.15 Lbs incl. stub antenna

Dimensions Ø 91.6 mm x 106 mm (Ø 3.6” x 4.2”)

Ø 91.6 mm x 149.8 mm (Ø 3.6” x 5.9”) incl. antenna

Installation & operation guide

Kamstrup A/S • 55122662_C1_US_06.20208

READy MTU

5.5 Material

Housing Polyphenylene sulﬁde (PPS) with ﬁberglass (40 %) reinforcement

Top ring Polycarbonate (grey)

5.6 Communication

Wireless fallback reading

and conﬁguration 902 MHz – 928 MHz (license free)

Kamstrup AMI 450 – 470 MHz (FCC licensed)

Antenna External

Magnet sensor Activation of MTU radio and installation mode

5.7 Transmission interval

Must be installed to provide a separation distance of at minimum 20 cm from all persons.

Must NOT be co-located in conjunction with any other antenna or transmitter.

Meter reading interval Hourly top of the hour

Transmission Every 3 hours

5.8 Input

Single meter/register input Sensus UI-1203 3-wire encoded

Wire length 5 ft Nicor/Itron/ﬂying wire

5.9 Data security

READy MTU is part of the complete end-to-end data encryption of the READy suite.

Data is AES 128 bit end-to-end encrypted when in transit from READy MTU to READy Manager.

6 Before you begin

6.1 Precautions

The contents of this guide and the guide included with the device must be followed at all times when installing,

conﬁguring or handling the device in general. If this guide is not followed, Kamstrup cannot be held accountable

for any malfunctions or misuse of the product.

Do not try to modify or repair the device. Attempts to modify or repair will void the warranty.

Ensure that READy App and READy Manager are synchronized before you proceed with the installation.

Read the guide prior to installation and taking the device into use.

The product may only be installed by trained personnel.

NOTE: Kamstrup recommends using READy Bluetooth optical read-out head to activate the magnet sensor of READy MTU.

Magnet power 8.6 lbs/3.9 kg (N35).

Installation & operation guide

Kamstrup A/S • 55122662_C1_US_06.2020 9

READy MTU

6.2 What is in the box

The content of the box depends on the chosen accessories:

• READy MTU

• MTU mounting screw

• Quick guide

6.3 Accessories

READy MTU can be ordered with the following accessories:

• 5 ft cable with ﬂying wire, Nicor or Itron plug

• Wall antenna (packed separately)

• External stub antenna

• 3” pit antenna for installation in pit lids (packed separately)

• Wall/pit bracket

• Protection cover for installation in sun-exposed areas (packed separately)

Dimensions: 198 mm x 166 mm x 114 mm (7.8” x 6.5” x 4.5”)

6.4 Deployment process summary

1. Before ﬁeld deployment

- Import READy MTU(s) in READy Manager

- Import non-Kamstrup meters and customer information (optional)

- Create a group containing non-Kamstrup meters that will be retroﬁtted with READy MTU

- Charge READy Converter and mobile device

2. Field deployment of default or preconﬁgured MTU

a. Default conﬁgured MTU: install, activate, and conﬁgure READy MTU using READy App and READy Converter

b. Preconﬁgured MTU: install and activate READy MTU. No additional conﬁguration is required

3. The installation and conﬁguration are complete

7 Before ﬁeld deployment

Before ﬁeld deployment, make sure that your READy Manager system is prepared for collecting data from encoded meters via

READy MTU by following the steps in this section.

7.1 Import READy MTU from Kamstrup Encryption Key Service

READy MTU is automatically imported into READy Manager if you are logged in with your My Kamstrup account and the Import

new devices checkbox is ticked.

If not logged in, you can import READy MTUs directly from Kamstrup Encryption Key Service found in My Kamstrup.

Click the Import devices button on the start-up page of READy Manager.

More information can be found in the READy Manager guide under Automatically importing information for new devices or

Manually importing information for new devices.

7.2 Import non-Kamstrup meters and customer information in READy Manager

Kamstrup recommends that you import the ID/serial number that is sent on the encoded output as the meter

serial number in READy Manager. If not, you are required to overwrite the serial number of the encoded output

with the serial number imported in READy Manager for your speciﬁc device.

Import non-Kamstrup meters and customer information in READy Manager by selecting Import customers on the start-up

page of READy Manager.

More information on CIS import can be found in the READy Manager guide under Automatically importing customer data or

Manually importing customer data.

Installation & operation guide

Kamstrup A/S • 55122662_C1_US_06.202010

READy MTU

7.3 Create a group of non-Kamstrup meters for READy MTU installation

It is recommended to create a group of non-Kamstrup meters that will be retroﬁtted with READy MTU that can be synced with

READy App.

Create a group:

1. Select the Meters view in READy Manager.

2. Select New group. Name the group.

3. Select the meters that are to be part of the group and add the meters to the group.

Find more information in the READy Manager guide under Organizing meters in reading groups.

7.4 MTU modes and LED blinking scheme

7.4.1 MTU modes

7.4.1.1 Transport mode

When you receive READy MTU, the device is in transport mode. In transport mode, the radio is deactivated. The magnet sensor

for activating the MTU is active.

By inﬂuencing the magnet sensor for 3 seconds, the LED on the front of READy MTU turns on. The MTU checks if a meter is

connected on the encoded interface before turning on the radio. If no meter is connected, READy MTU remains in transport

mode.

Remember to enable transport mode when decommissioning READy MTU. See section 9.6 Decommissioning.

7.4.1.2 Installation mode

After activation, READy MTU starts up in installation mode. The LED turns on and a connection beacon is sent out every 4

seconds.

Installation mode is active for 5 minutes after activation.

After the installation mode period has ended, READy MTU enters normal mode.

When operating in normal mode, installation mode can be triggered by holding the magnet to the front of READy MTU. This will

also reactivate the LED.

7.4.1.3 Operation mode

In operation mode, READy MTU can at all times be accessed via READy App. A connection beacon is sent every 30 seconds

during normal operation. The LED is not active in normal mode.

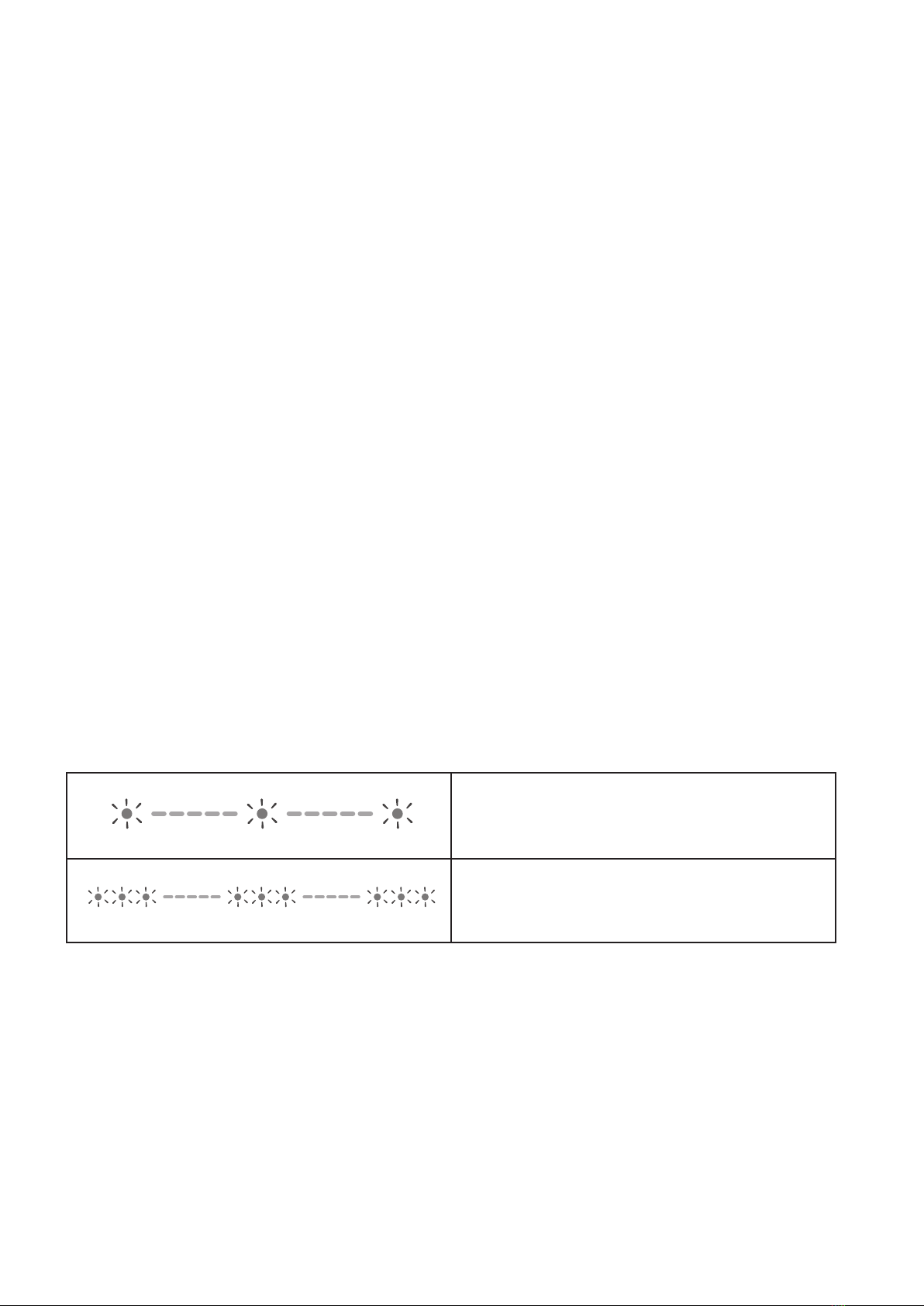

7.4.2 LED blinking scheme

1 time every 5 seconds Everything is OK.

READy MTU is reading the encoded output and sending data

via AMI.

3 times every 5 seconds Something is wrong.

READy MTU is not reading the encoded output or sending

data via AMI.

5 s5 s

Indice

Altri manuali Kamstrup Trasmettitore

Kamstrup

Kamstrup ULTRAFLOW 14 Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente

Excalibur

Excalibur SoundMaster FM Transmitter 144 Manuale utente
