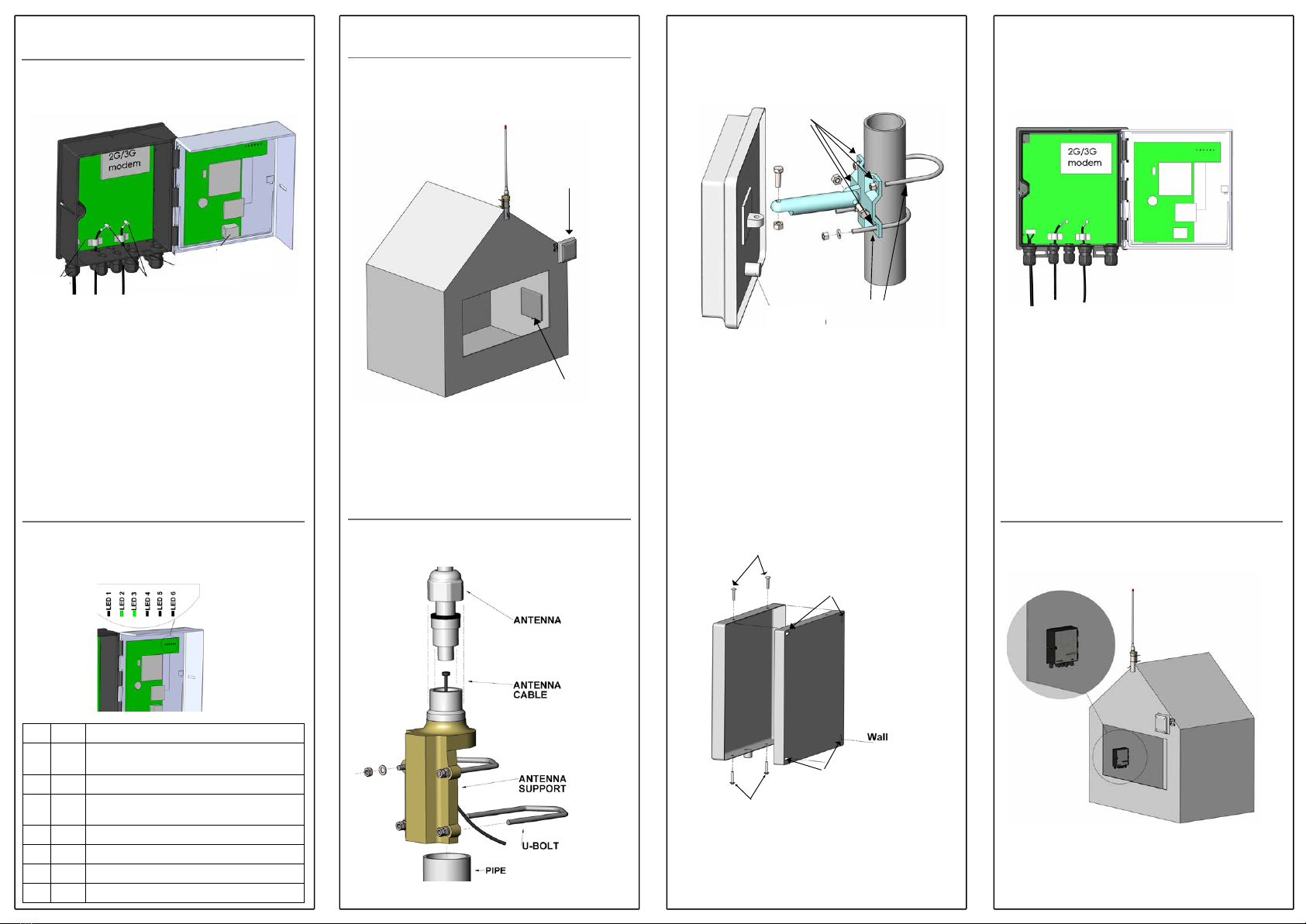

Kamstrup READy Concentrator Manuale utente
1 Inside the box
2 Succesfull installation
Concentrator is online and active when LED 2 & 3 are
green.
LED Color Description
1 Red Blinking red: Problem with sim-card or GSM modem
2 Green Blinking green: Concentrator is active
3 Green Concentrator is connected to Kamstrup
servers
4 Red Blinking red: NO ethernet connection
5 Green Toggles each time a M-BUS package is received
6 Not in use
1+4 Red Solid red: Out of function. Contact Kamstrup
3 Antenna placement
360° top antenna
Outdoor directional
panel antenna
Indoor directional
panel antenna
4 Antennas
Omni antenna
Outdoor directional panel antenna
Holes for mounting
Plugs for pipe mounting
Indoor directional panel antenna
Unscrew to open
Unscrew to open
Holes for mounting
Holes for mounting
Connect antennas
5 Final installation (typical)
Antennas
Power
supply
Network
Cable
Antenna
connection
Connect to
2G/3G modem
Indoor
READy Concentrator
Installation Guide
Kamstrup Hotline:
+45 89 93 11 10
Kamstrup A/S • 55121650_A1_GB_05.2015
6 Network connection
To access the network, the concentrator either
uses 2G/3G modem or network cable.
2G/3G modem
Connect antenna with modem.
Place antenna in open space
Network cable
Insert cable by taking out the middle part and make
a cut in the gasket. Put the cable through the hole,
and insert the gasket back in the box.
Insert through here
7 Connect power source
230 V
8 Verify installation
• Check LED’s to see if concentrator is installed
correctly (look at step 2)
Get the best radio coverage
- place antennas in open space
as high as possible.
Network cable
Network cable
Connect to
2G/3G modem
