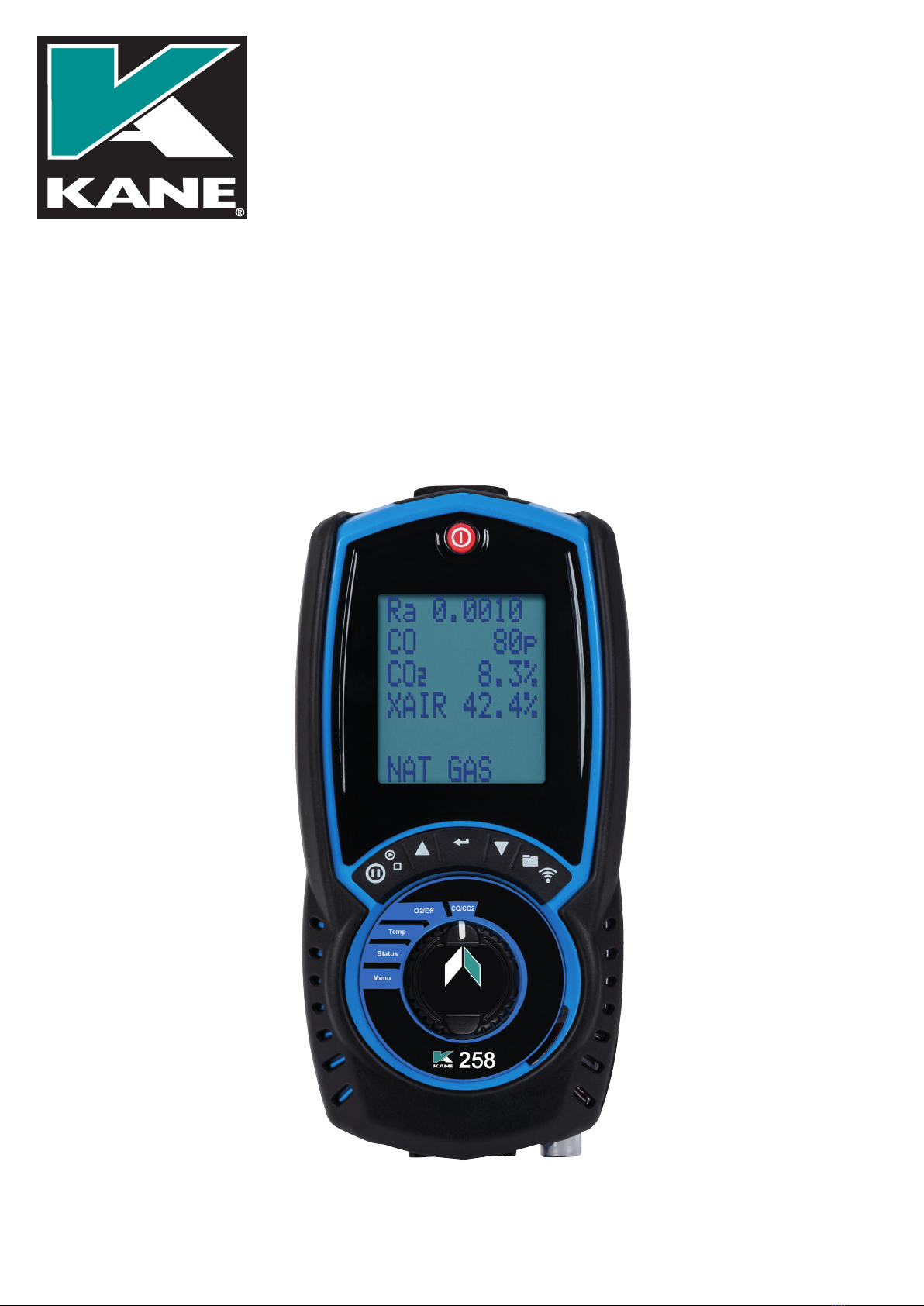

KANE 258
Flue Gas Analyser with direct CO, O2& CO
sensor protection
Stock No: MAN00100 Rev: 1.20720 JULY 2020
© Kane International Ltd
Kane International Ltd
Kane House, 11 Bessemer Road,
Welwyn Garden City, Hertfordshire, AL7 1GF, UK
UK: 0800 059 0800 Int: +44 (0) 1707 375550
Fax: +44 (0) 1707 393277 Email: [email protected]
www.kane.co.uk

2KANE 258 MANUAL
CONTENTS
Page No.
KANE 258 OVERVIEW 4
INSTRUMENT FEATURES & KEYPAD 5-8
KEYPAD BUTTONS 6
INSTRUMENT LAYOUT 7
BACK OF ANALYSER - PROBE ETC 8
BATTERIES 9
BATTERY TYPE 9
REPLACING BATTERIES 9
TIME & DATE 9
CHARGING NIMH BATTERIES 9
BATTERY DISPOSAL 9
GENERAL SAFETY 10
FIRST TIME USE 11
MENU LIST 11
GENERAL OPERATING PRINCIPLE 11-15
QUICK START 11
USER INTERFACE 11
STATUS 12
STATUS BAR 12
STATUS BAR LAYOUT 13
STATUS BAR MESSAGE ZONE 13
STATUS BAR ZONE 14
STATUS BAR ICONS 14
STATUS BAR MENU OPTIONS 15
STANDARD OPTIONS 15
USING THE MENU 15
MENU ITEMS 16
MEASURING FLUE GASSES 16-17

3KANE 258 MANUAL
PRINTING 17
KANE INFRARED PRINTER 17
CO PROTECTION PUMP OPERATION 18
TEMPERATURE SCREEN 18
CO/CO2 SCREEN 18
O2/EFF SCREEN 19
STORED MEMORY LOGS 19
MENU OPTIONS 19
VIEWING STORED LOGS 20
REPORT VIEW MENU OPTIONS 20
NAVIGATING STORED REPORTS 20
REPORT NAVIGATION MENU OPTIONS 21
TEMPERATURE TESTING 21
TEMPERATURE DISPLAY 21
VIEWING-PRINTING 22
PRINTOUTS 22
SPECIFICATIONS 23
EU DECLARATION OF CONFORMITY 24
SERVICE – CALIBRATE - RECERTIFY 25-29
KANE ASSET MANAGER (KAM) 26-27
GUARANTEED SAME DAY DESPATCH 28
WHERE TO SEND YOUR ANALYSER 29
COLD WEATHER PRECAUTIONS 29

4KANE 258 MANUAL
KANE 258 OVERVIEW
The KANE 258 combustion analyser measures:
● Carbon Monoxide (CO)
● Oxygen (O2)
● Temperature
● CO Over Range Protection
Depending on tted options the following parameters are calculated:
● CO/CO2 ratio
● Carbon Dioxide (CO2)
● Combustion Efficiency
● Losses
● Excess Air
● Differential Temperature
Your KANE258 has a protective rubber cover with magnets for
“hands-free” operation & is supplied with a ue probe with integral
temperature sensor.
Your KANE258 has a low ow detector system to switch o the
analyser’s pump if it detects an over lled water trap.
Your KANE258 has a large 6 line display showing data & test results
based on your actions. The display’s bottom line also highlights analyser
status at all times.
Your KANE258 stores up to 30 logs of any combination of Combustion &
Temperature test results.
Your KANE258 can send test readings to our optional KANE IRP-2
infrared printer or KANE’s wireless App if wireless is tted.
Two lines of 16 characters can be added to the header of the printouts.

5KANE 258 MANUAL
INSTRUMENT FEATURES & KEYPAD

6KANE 258 MANUAL

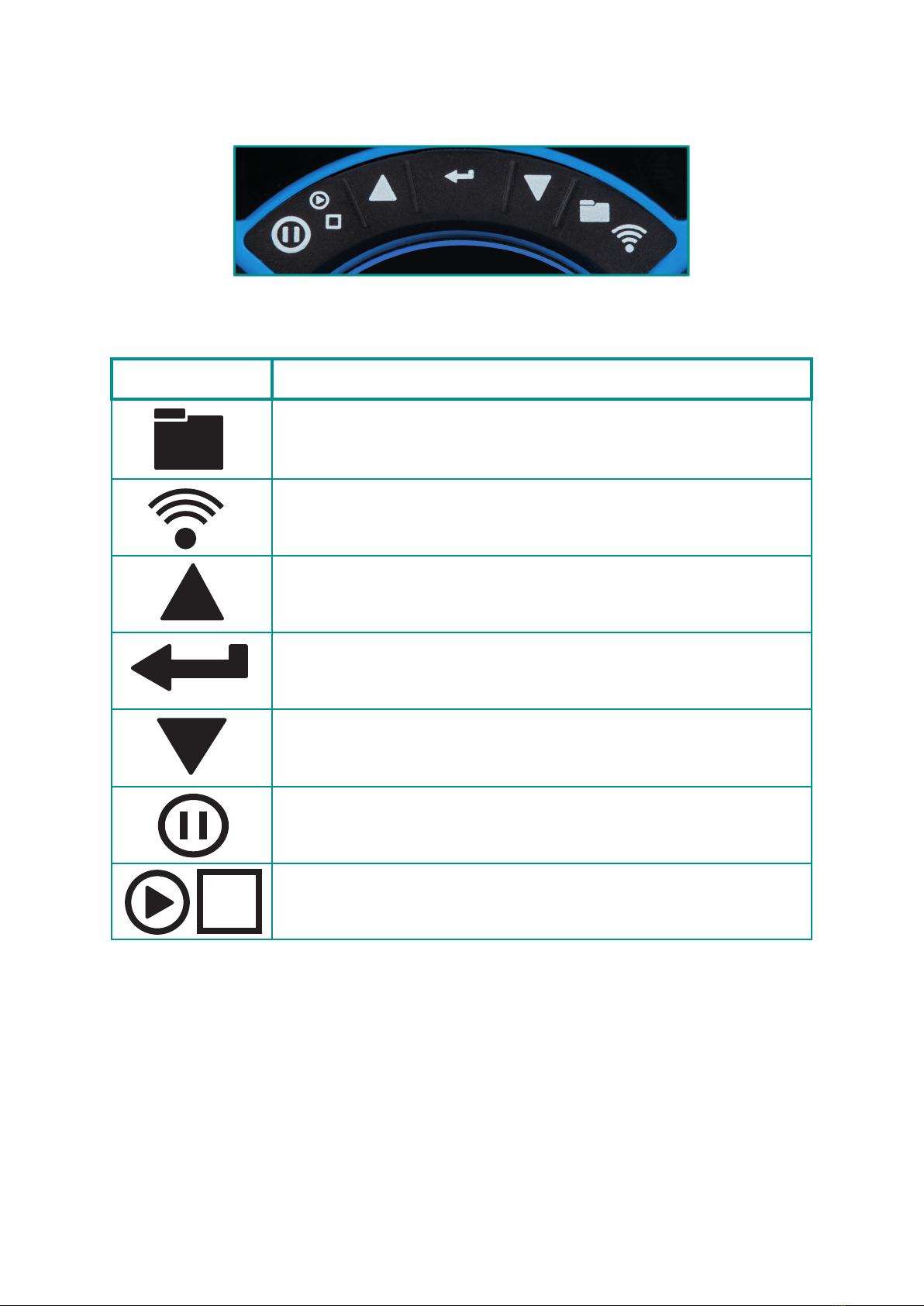

KEYPAD BUTTONS
ICON DESCRIPTION
Save log-long press to store data
Print report-short press to print a report (will enter a
print destination if both wireless & irda tted)
Navigate up-short press to scroll up
Enter key-used to select the current option
Navigate down-short press to scroll down
Data hold - short press to hold current data on screen
(see status bar section)
Pump toggle - long press to toggle pump on & o
Function keys

7KANE 258 MANUAL
INSTRUMENT LAYOUT
Battery
charger
Watertrap drain with
red plug
Flue probe
temperature T1
Inlet temperature T2
Flue gas
inlet
On / Off
Function keys –
see below
Water trap &
particle filter
Rotary switch
Red connector
– plugs into Flue
Gas Inlet
Flue Probe Temperature Plug –
into T1
Narrow (+ve) pin must be on
right side Flue probe hose

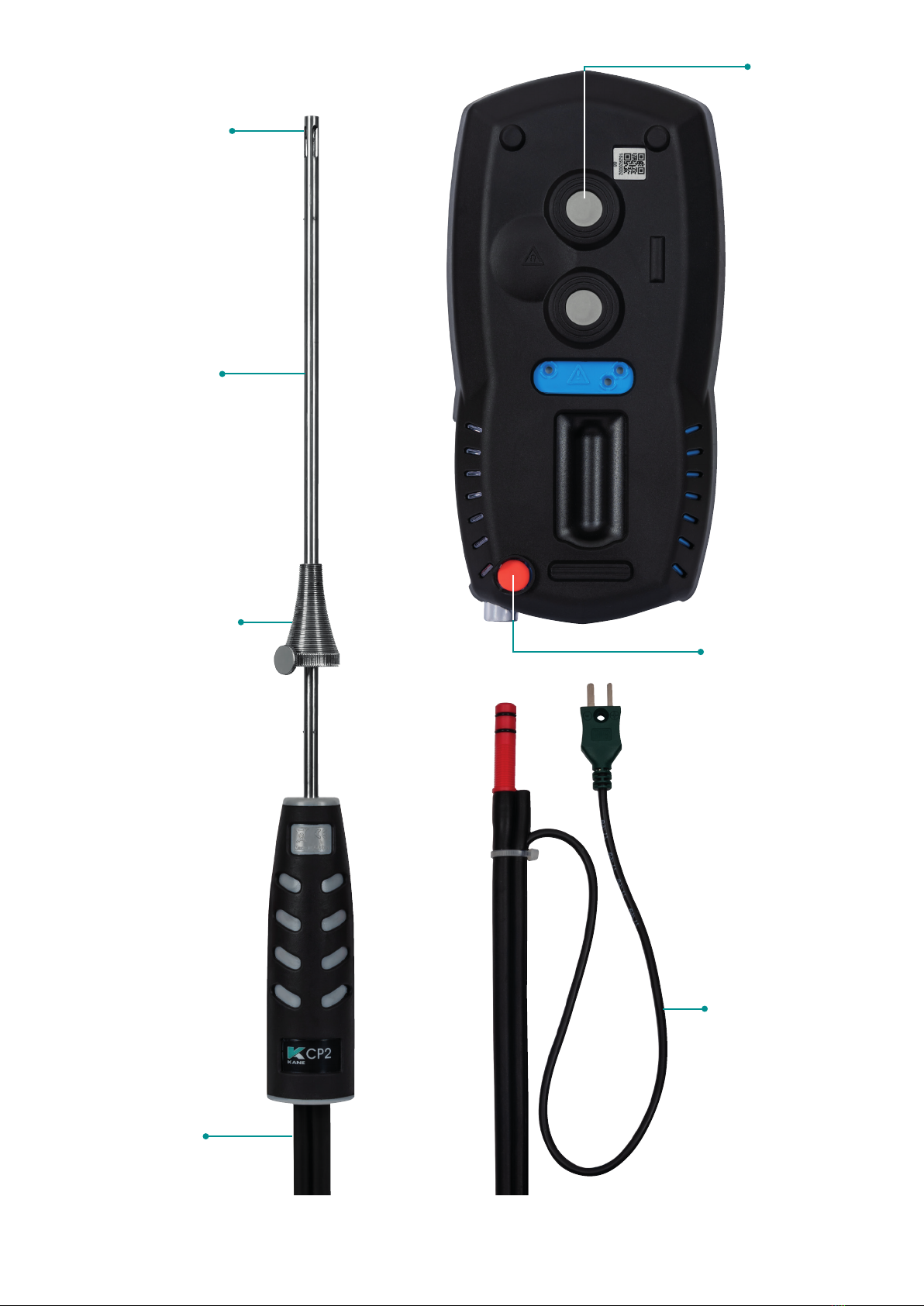

8KANE 258 MANUAL
Watertrap drain
with red plug
Thermocouple
Thermocouple
wire
Stainless steel
Shaft
Depth stop cone
Gas path
Magnets x2

9KANE 258 MANUAL
BATTERIES
BATTERY TYPE
Your KANE258 uses rechargeable Nickel Metal Hydride (NiMH) batteries.
- Using other battery types may void your KANE258’s warranty.
WARNING
Although you can use Alkaline batteries you must not charge your
KANE258 with Alkaline batteries tted.
Do not mix NiMH cells with dierent capacities or from dierent
manufacturers - All batteries must be identical.
REPLACING BATTERIES
Turn over your analyser & remove its protective rubber cover to nd the
battery compartment & t 3 NiMH “AA” rechargeable batteries ensuring
they are tted with correct battery polarity. Replace battery cover &
protective rubber cover.
TIME & DATE
After changing batteries reset your analyser’s time & date.
CHARGING NIMH BATTERIES
Your KANE258 uses a standard Micro USB connector - For best results
turn o then connect your charger. The charging indicator illuminates &
turns o when charging is over.
Your rst charge should be for 8 hours - Thereafter NiMH batteries can
be topped up any time, even for short periods.
If your batteries discharge so the analyser enters a low power shutdown,
1 hour’s charge provides approx 2 hours continuous use.
BATTERY DISPOSAL
Always dispose of depleted batteries using approved disposal methods
that protect the environment.

10 KANE 258 MANUAL
GENERAL SAFETY
SAFETY WARNING
Your KANE258 extracts combustion gases that may be toxic in low
concentrations. These gases are exhausted from the bottom of the
analyser. This analyser must only be used in well-ventilated locations by
trained & competent persons after due consideration of all the
potential hazards.
Portable gas detectors users should conduct “bump” tests before
relying on units to verify atmospheres are free from hazard.
A “bump” test is a way to check an instrument works within acceptable
limits by briey exposing it to known gas mixtures to change the output
of all sensors present.
NOTE: This is dierent from a calibration where your analyser is
also exposed to known gas mixtures but allowed to settle to a
steady gure with readings adjusted to the stated gas
concentration of the test gas.
Protection Against Electric Shock (In accordance with EN 61010-1:
2010):
This analyser is designed as Class III equipment & should only be con-
nected to SELV circuits. The battery charger is designated as:
● Class II equipment
● Installation category II
● Pollution degree 2
● Indoor use only
● Altitude to 2000m
● Ambient temperature 0°C-40°C
● Maximum relative humidity 80% for temperatures up to 31°C
decreasing linearly to 50%RH at 40°C
● Mains supply uctuations not to exceed 10% of the nominal voltage
WARNING
Your analyser’s protective cover is tted with strong magnets – magnetic
elds can cause damage to magnetic storage media. Certain electronic
devices are sensitive to magnetic elds & may be damaged
permanently if exposed to a strong magnetic eld.
