KanexPro HDBASE100POEL Manuale utente

HDBaseT100 Meter - HDMI®

Extender w/ Power over Ethernet

HDMI/IR/RS232/Ethernet Twisted Pair

Over Single Cable

Version: HDBaseT Pro Extender_2014V2.0

HDBASE100POEL Extender

NOTICE: Please read this user manual carefully before using this product.

Update History

Version

Date

Update Content

1.0

2014.02.22

First version.

2.0

2014.04.12

Update version.

This manual is only for operation instruction only, not for any maintenance usage.

The functions described in this version are updated till April 2014. Any changes of

functions and parameters since then will be informed separately. Please refer to

the dealers for the latest details.

permission..

HDBASE100POEL Extender

Table of Contents

1. Introduction ..................................................................................................................1!

1.1 Introduction to HDBaseT Pro Extender ..............................................................1!

1.2 Features .............................................................................................................1!

1.3 Package Contents ..............................................................................................1!

2. Introduction of Product Appearance ............................................................................3!

2.1 Product Appearance of HDMI Pro Transmitter...................................................3!

2.2 Product Appearance of HDMI Pro Receiver.......................................................4!

2.3 Twisted Pair Cable Connection ..........................................................................5!

3. System Connection .....................................................................................................5!

3.1 Usage Precautions .............................................................................................5!

3.2 System Diagram.................................................................................................6!

3.3 Connection Procedure........................................................................................6!

3.4 System Applications ...........................................................................................7!

4. Specification ................................................................................................................7!

5. Panel Drawing .............................................................................................................9!

6. Troubleshooting & Maintenance................................................................................10!

7. Safety Operation Guide .............................................................................................11!

8. After-sales Service.....................................................................................................12!

HDBASE100POEL Extender

1. Introduction

1.1 Introduction to HDBaseT Pro Extender

The KanexPro HDBASE100POEL is a transmitter - receiver set that enables you to

routes ultra high – definition signals up to 330 feet (100 meters) over single CAT6 cable

using HDBaseT Technology. This extender also features PoE – Power over Ethernet.

The Extender has an HDMI loop for local monitor out while extending 330’ to the

receiver side.

This extender set is fully compliant with the latest HDCP specifications and supports

EDID management for proper resolution output up to ultra HD 4K, 1080p/60 & 3D.

With its Ethernet ports, the extender also supports Internet access to work in a LAN.

1.2 Features

!HDBaseT technology.

!High Bandwidth: 10.2Gps.

!Support CEC.

!Support 3D.

!Support PoC

!HDMI/IR/RS232 signal transmitted over single CAT5e/CAT6 twist pair.

!Max transmission distance is up to 90 meters for 1080P signals.

!Max transmission distance is up to 35 meters for 4K×2K signals.

!Support Ethernet expanding.

!HDTV Compatible, use HDMI 1.4a and HDCP compliant.

!Support 1080P, 1080i, 720P, 576P, 576i, 480P, and 480i.

!High quality output video signal with 24bit/36bit deep color.

!Bi-directional RS232 controls.

!Bi-directional IR controls.

!LED indicators show work status.

!Wall/table-mountable aluminum enclosure

Note: Please use a CAT5e/6a cable with low impedance (Shielded twisted pair will be

better and should be well grounded)for good transmission effect.

1.3 Package Contents

"1 x HDBASET Transmitter

"1 x HDBASET Receiver

"4 x Mounting ears (Separated from HD Transmitter and HD Receiver)

"1 x Power adapter (DC 24V, 3A)

"2 x IR Emitter (MYS-003B Φ3.5mm plug, not included, buy it separately)

HDBASE100POEL Extender

"2 x IR receiver (TSMP1138 Φ3.5mm plug, not included, buy it separately)

"2 x RS232 cable

"8 x Screws (3*6mm)

"1 x User manual

Notes：Please confirm if the product and the accessories are all included, if not, please

contact with the dealers.

HDBASE100POEL Extender

2. Introduction of Product Appearance

2.1 Product Appearance of HD Transmitter

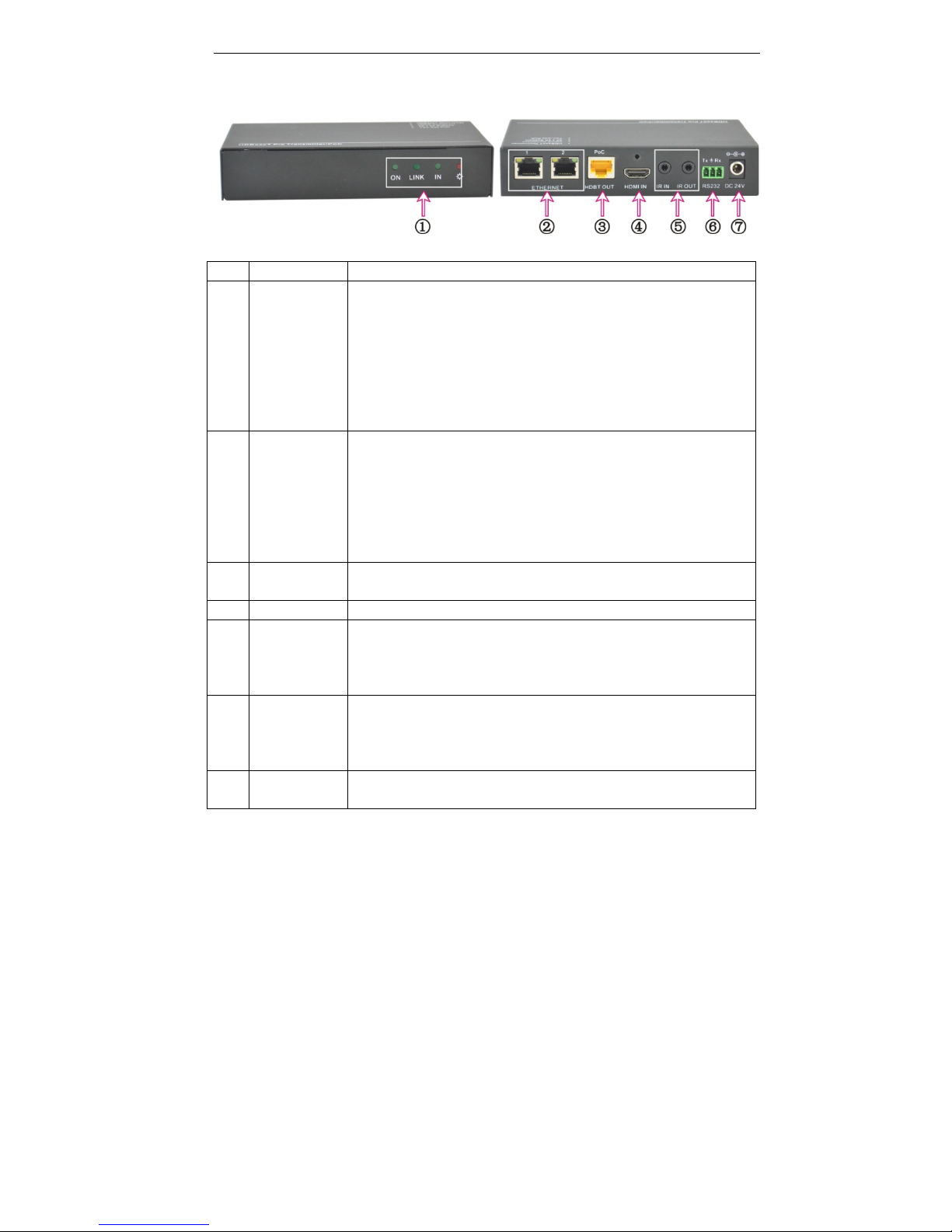

Figure 1 Interfaces of HDMI Pro Transmitter

No.

Name

Description

①

Link

Power

#On: Used to show the working status, blinks when in normal

working state, turns off when stop working.

#Link: Twisted Pair Link status indicator. It will keep on when

connection is successful.

#In: When connected with device, which supports HDCP and

works normally, this LED will keep on. If the device does not

support HDCP, the LED will blink.

#Power: Turns red and keep on when power on.

②

ETHERNET

Ethenet ports, when need to work in a local area network, one

of these 4 ports (both the Ethernet ports of HD Transmitter and

HD Receiver) should be used for internet access, and the

others can be connected with computers. If they are well

connected, the yellow LED indicators on the corresponding

ports will keep blink and the green ones will keep on when

working.

③

HDBT OUT

To connect with the HDBT IN port of HDMI Pro Receiver by

using a single CAT5e cable (90m length in max).

④

HDMI IN

HDMI input port, connect with an HDMI source device.

⑤

IR IN&OUT

#IN: Connect with IR receiver, the IR signal received from

this port can only send out in HD Receiver.

#OUT: Connect with IR Emitter, and the sending IR signal is

received from HDMI Pro Receiver.

⑥

RS232

Serial port, 3p captive screw connector, connect with the

control terminal to control the controlled terminal, supports

bi-directional RS232 control between the transmitter (HD

Transmitter) and the receiver (HD Receiver).

⑦

DC 24V

Connect with a DC 24V power adapter. (Not necessary if HDMI

Pro Receiver connects with power adapter)

HDBASE100POEL Extender

2.2 Product Appearance of HD Receiver

Figure 2 Interfaces of HDMI Pro Receiver

No.

Name

Description

①

Out

Link

Power

#Out: When connected with device, which supports HDCP

and works normally, this LED will keep on. If the device

does not support HDCP, the LED will blink.

#Link: Twisted Pair Link status indicator. It will keep on when

connection is successful.

#On: Used to show the working status, blinks when in normal

working state, turns off when stop working.

#Power: Turns red and keep on when power on.

②

ETHERNET

Ethenet ports, when need to work in a local area network, one

of these 4 ports (both the Ethernet ports of HD Transmitter and

HD Receiver) should be used for internet access, and the

others can be connected with computers. If they are well

connected, the yellow LED indicators on the corresponding

ports will keep blink and the green ones will keep on when

working.

③

HDBT IN

To connect with the HDBT OUT port of HD Transmitter by using

a single CAT5e cable (90m length in max).

④

HDMI OUT

HDMI output port, connect with an HDMI displaying device.

⑤

IR IN&OUT

#IN: Connect with IR receiver, the IR signal received from

this port can only send out in HDMI Pro Transmitter.

#OUT: Connect with IR Emitter, and the sending IR signal is

received from HD Transmitter.

⑥

RS232

Serial port, 3p captive screw connector, connects with the

control terminal to control the controlled terminal, supports

bi-directional RS232 control between the transmitter (HDMI

Transmitter) and the receiver (HD Receiver).

⑦

DC 24V

Connect with a DC 24V power adapter. (Not necessary if HD

Transmitter connects with power adapter)

HDBASE100POEL Extender

2.3 Twisted Pair Cable Connection

The twisted pair used in HDBASE100POEL Extender MUST be a straight-through cable.

The connectors can be T568A or T568B, but both sides must be the same.

3. System Connection

3.1 Usage Precautions

Please cut off the power of the HDMI source device and the output-displaying device

before accessing with Extender, as it may damage to Extender. Ensure that all

connections (including the power cord) are done before turning on the power to work

with Extender.

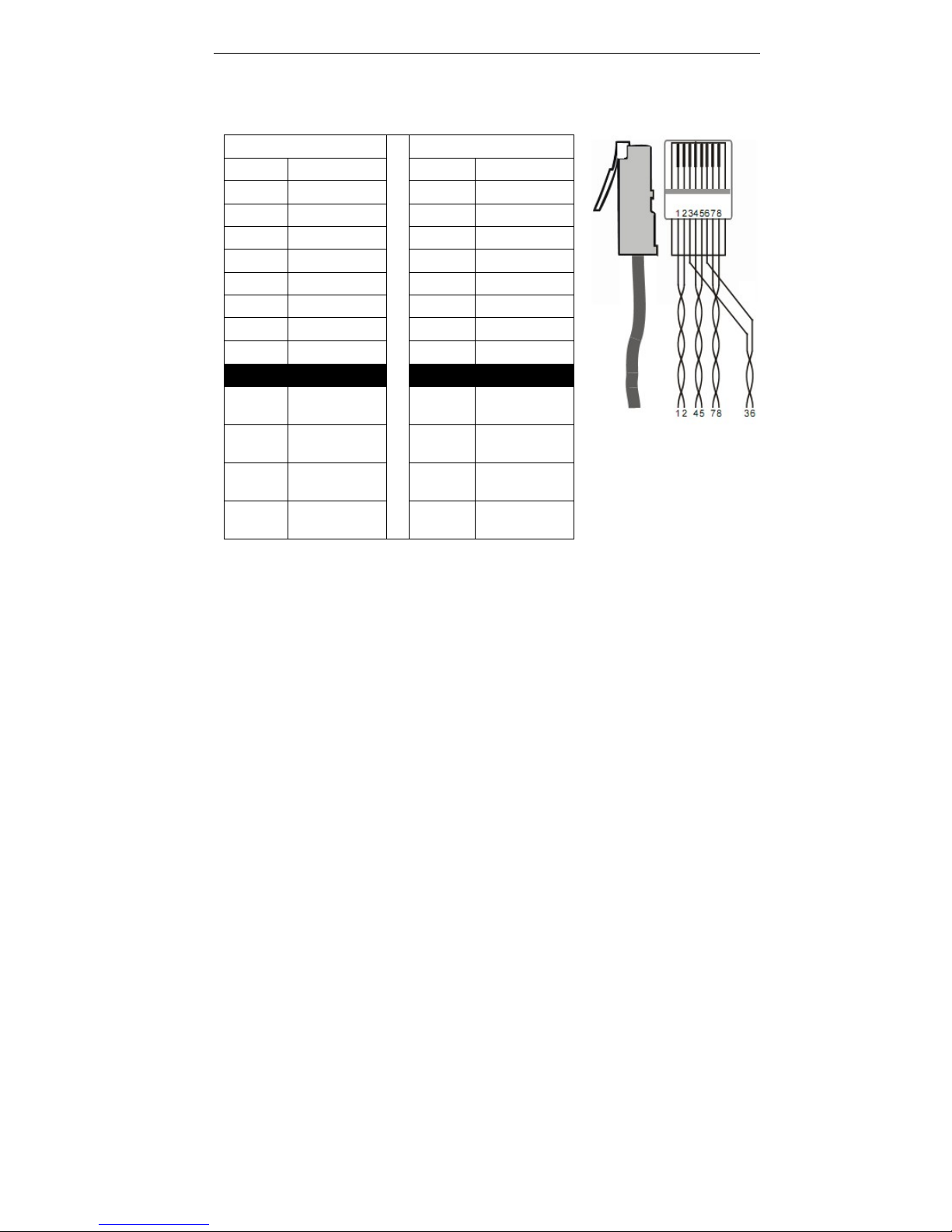

TIA/EIA T568A

TIA/EIA T568B

Cable color

green white

orange white

green

orange

orange white

green white

blue

blue white

orange

green

brown white

brown

1st

Ground

4--5

1st

Ground

4--5

2nd

Ground

3--6

2nd

Ground

1--2

3rd

Group

1--2

3rd

Group

3--6

4th

Group

7--8

4th

Group

7--8

HDBASE100POEL Extender

3.2 System Diagram

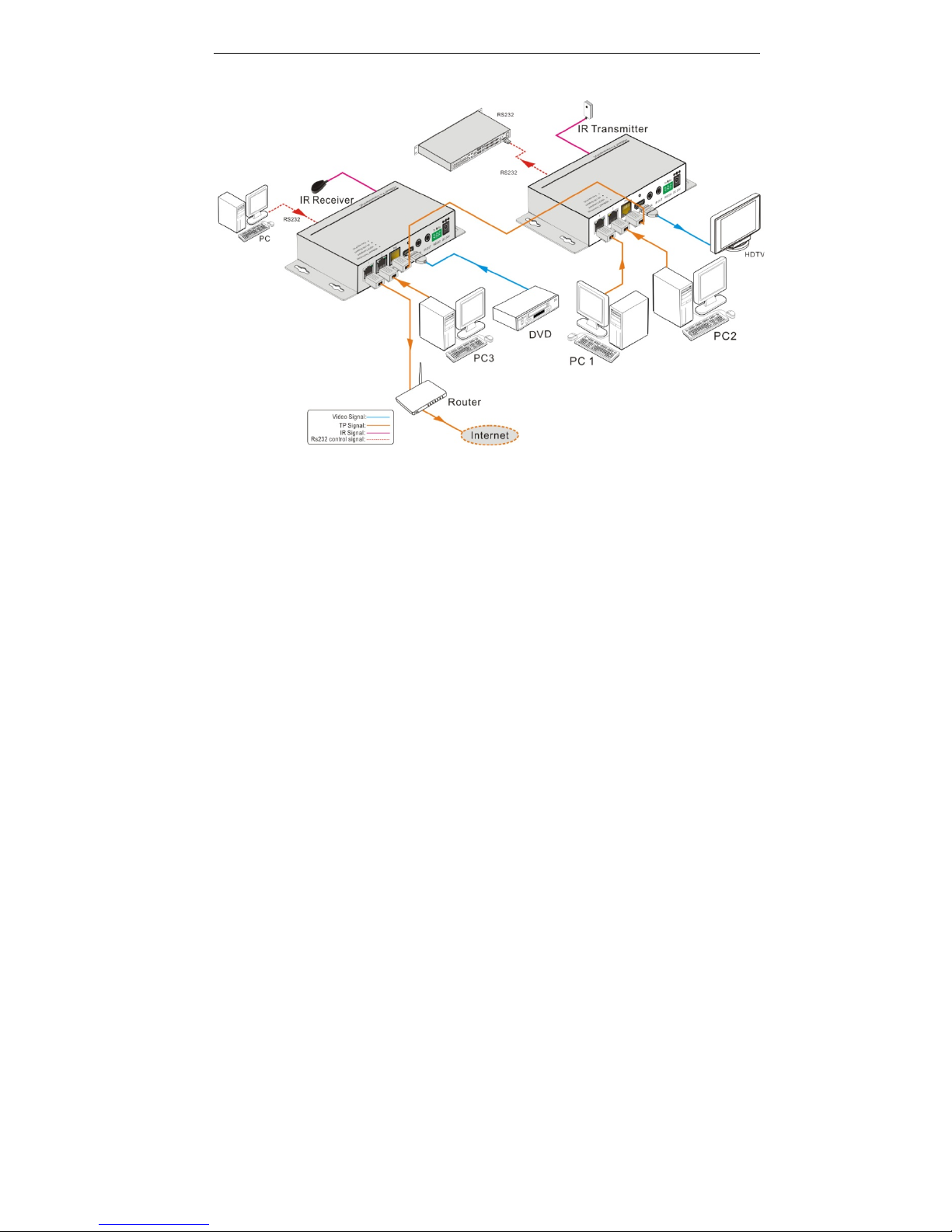

Figure 3 System Diagram

3.3 Connection Procedure

Step1. Connect HDMI source (such as DVD player) to HDMI IN port of the transmitter

with HDMI cable.

Step2. Connect HDBT OUT port of HD Transmitter and HDBT IN port of HD Receiver,

with single CAT5e cable.

Step3. Connect HDMI displayer (such as HDTV) to HDMI OUT port of HD Receiver with

HDMI cable.

Step4. Both HD Transmitter and HD Receiver have IR IN and OUT. When one model

use for IR signal receiver, the other model must send out the IR signal.

For example: When “IR IN” of HD Transmitter connects with an IR receiver, the

IR Emitter must be connected to “IR OUT” of HD Receiver.

Step5. To set as a LAN, one of the four ETHERNET ports of HD Transmitter and HD

Receiver should be used for Internet access, and the others can be connected

with computers.

Step6. Connect the RS232 port of the computer and the RS232 port of HD Transmitter

or HD Receiver (any one is able to work as the RS232 signal can be transmitted

bi-directionally) by using a RS232 cable.

Step7. Connect with DC24V power adaptor(s) (Any end of HD Transmitter and HD

HDBASE100POEL Extender

Receiver connecting with power adapter is enough with its POC function).

3.4 System Applications

As its good performance in control and transmission, HDBaseT Extender can be widely

used in computer realm, monitoring, large screen displaying, conference system,

education and bank securities institutions etc.

4. Specification

Model

Spec

HDBASE100POET

HDBASE100POER

Input

Input Signal

1xHDMI, 1xIR in, 1xRS232

1xIR in, 1xHDBaseT, 1 x

RS232

Input Connector

1xHDMI female

1x3.5mm mini jack for IR in

1x3P captive connector

1x3.5mm mini jack for IR in

1xRJ-45

1x3P captive connector

Video Signal

HDMI1.4a

Audio

Digital audio, transmit

through HDMI audio

Digital audio, transmit

through HDMI audio

Output

1xHDBaseT, 1xIR out,

1xRS232

1xHDMI, 1xIR out, 1xRS232

Output Connector

1xRJ-45

1x3.5mm mini jack for IR

out

1x3P captive connector

1xHDMI female

1x3.5mm mini jack for IR out

1x3P captive connector

Video signal

HDMI1.4a

Transmission Mode

•HDBaseT

Ethernet Port

Connector

2xRJ45

Ethernet

Transmission Speed

Adaptive 10M/100M (max), full duplex or half duplex.

General

Resolution Range

800x600 ~ 1920x1200 、3D、4K×2K

Transmission

Distance

Max distance 90m

Differential Phase

Error

±10° @ 135MHz_100M

SNR

>70dB@ 100MHz-100M

Gain

0dB ~ 10dB@100MHz

Indice

Altri manuali KanexPro Estensione

KanexPro

KanexPro HDEXT50M Manuale utente

KanexPro

KanexPro EXT-NETAVTX Manuale utente

KanexPro

KanexPro EXT-USB2100M Manuale utente

KanexPro

KanexPro VGAEXTX2 Manuale utente

KanexPro

KanexPro EXT-4KFIBERPRO Manuale utente

KanexPro

KanexPro HDBASE70POE Manuale utente

KanexPro

KanexPro VGAEXTX1 Manuale utente

KanexPro

KanexPro EXT-18GHDMIWL Manuale utente

KanexPro

KanexPro VGAEXTX8 Manuale utente

KanexPro

KanexPro EXT-HD60M Manuale utente

KanexPro

KanexPro HDBASE70POE Manuale utente

KanexPro

KanexPro EXT-HDBT150M Manuale utente

KanexPro

KanexPro EXT-HDBASE70E Manuale utente

KanexPro

KanexPro EXT-50M18G Manuale utente

KanexPro

KanexPro HDBase100M Manuale utente

KanexPro

KanexPro WP-EDUKIT4K Manuale utente

KanexPro

KanexPro EXT-HDBTKVM100 Manuale utente

KanexPro

KanexPro EXT-HDBT70C Manuale utente

KanexPro

KanexPro EXT-HDBT70M Manuale utente

KanexPro

KanexPro EXT-100SL18G Manuale utente

KanexPro

KanexPro EXT-70SL18G Manuale utente

KanexPro

KanexPro HDBASE100ME Manuale utente

KanexPro

KanexPro MPTP-T70S-H2 Manuale utente

KanexPro

KanexPro EXT-HDBASE70E Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
