KanexPro HDMX88-18G Manuale utente

HDMX88-18G

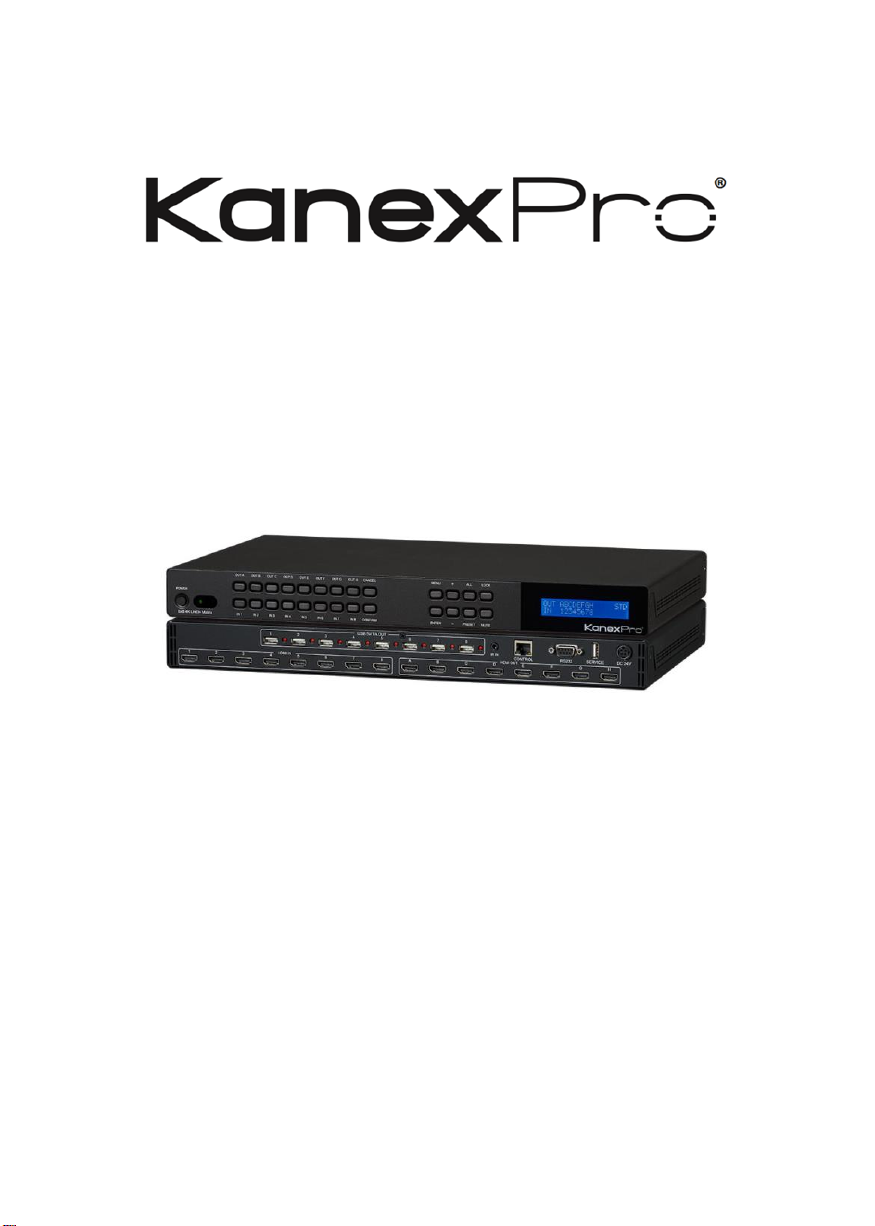

4K UHD+ 8×8 HDMI Matrix Switcher with USB Power Outputs

MPN# HDMX88-18G

HDMX88-18G

DISCLAIMERS

The information in this manual has been carefully checkedand is believed to

be accurate. KanexPro assumesno responsibility for any infringements of

patents or other rights ofthird parties which may result from its use.

KanexPro assumes no responsibility for any inaccuracies that may be contained in

this document. KanexPro also makes no commitment to update or to keep current

the information contained in this document.

KanexPro reserves the right to make improvements to this document and/or

product at any time and withoutnotice.

No part of this document may be reproduced, transmitted, transcribed, stored

in a retrieval system, or any of its parttranslated into any language or computer

file, in any form or by any means—electronic, mechanical, magnetic, optical,

chemical, manual, or otherwise—without express written permission and

consent from KanexPro.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document maybe trademarks of

the companies with which they are associated.

HDMX88-18G

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, installor operate this

equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

•

Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury topersons.

•

To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

•

Never spill liquid of any kind on or into thisproduct.

•

Never push an object of any kind into this product through any openings

or empty slots in the unit, as you may damageparts inside the unit.

•

Do not attach the power supply cabling to buildingsurfaces.

•

Use only the supplied power supply unit (PSU). Do not use thePSU if it is

damaged.

•

Do not allow anything to rest on the power cabling or allowany weight to

be placed upon it or any person walk onit.

•

To protect the unit from overheating, do not block any ventsor openings in

the unit housing that provide ventilation and allowfor sufficient space for air

to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE

SUMMARY OF CHANGE

RDV1

19/09/17

Preliminary release

VS1

20/12/17

Final technical review

VS2

16/01/18

Additional input selection modes &

Updated resolution support list

 HDMX88-18G


CONTENTS
Introduction ......................................................1
Applications ......................................................1
Package Contents ..............................................1
System Requirements ........................................2
Features............................................................2
Operation Controls and Functions ........................ 3
1 Front Panel .................................................. 3
2 Rear Panel.................................................... 4
3 Remote Control ........................................... 5
4 LCD Menu .................................................... 6
5 IR Cable Pin Assignments............................. 7
6 RS-232 Protocol........................................... 7
7 Telnet Control.............................................. 8
8 RS-232 and Telnet Commands .................... 9
9 WebGUI Control ........................................ 22
Connection Diagram ...........................................34
Specifications.....................................................35
1

Technical Specifications............................. 35
2

Video Specifications................................... 36
Acronyms...........................................................37













HDMX88-18G

1. INTRODUCTION

The KanexPro HDMX88-4K is a professional 8-input, 8-output HDMI matrix featuring

HDCP 2.2 with the latest HDMI 2.0 specifications supporting ultra HD resolutions up to

4K @60Hz. This matrix switcher supports switching speeds to less than 0.2 seconds and

also provides 8-additional USB 2.0 connectors to support video extension over HDMI

AOC cabling. The matrix can be fully controlled via RS-232, IR and Web based GUI using

Ethernet where end-users can switch, control and manage the matrix using graphical

and visual indicators right from the computer or touch-panel.

2. APPLICATIONS

•

Smart Home Control

•

Control Center

•

Function Room

•

Product Showroom

•

Ballroom

3. PACKAGE CONTENTS

•

1×8 by 8 HDMI Matrix with USB Power Outputs

•

1×24V/6.25A DC Power Adapter

•

1×Power Cord

•

1×IR Extender Cable

•

1×Remote Control (CR-177)

•

1×Rack Mount Ears (Set of 2)

•

1×Operation Manual

HDMX88-18G

4. SYSTEM REQUIREMENTS

•

HDMI source equipment such as media players, videogame

consoles or set-top boxes.

•

HDMI receiving equipment such as HDTVs, monitors or audio

amplifiers.

•

The use of “Premium High-Speed HDMI” cables is highly

recommended.

5. FEATURES

•Cross-switch 8HDMI inputs to 8 HDMI outputs with 4K @60Hz

•Eight independent USB 2.0 ports for AOC (Active Optical Cable) HDMI

extension

•Distribute 4Kx2K@60Hz signal up to 5m via HDMI port

•Supports standard 1080p & WUXGA resolutions up to 2560x1080@60Hz

•HDR, Dolby Vision & HDCP 2.2 Compliant

•Smart EDID DIP switch for proper display output

•Supports latest High-Speed HDMI 2.0 specifications

•Supports Dolby Digital, DTS, DTS-HD

•Control thru front-panel keys, IR, RS-232 & Web based GUI

•Front-panel LCD screen provides real-time I/O connection status

•Expedient firmware upgrade thru Micro USB port

•1U (19") rack mountable aluminum enclosure

•Universal RS-232 code compatible with any 3rd party control systems

•Locking HDMI & Power supply

•Internal Universal power for worldwide compatibility

HDMX88-18G

6. OPERATION CONTROLS AND FUNCTIONS

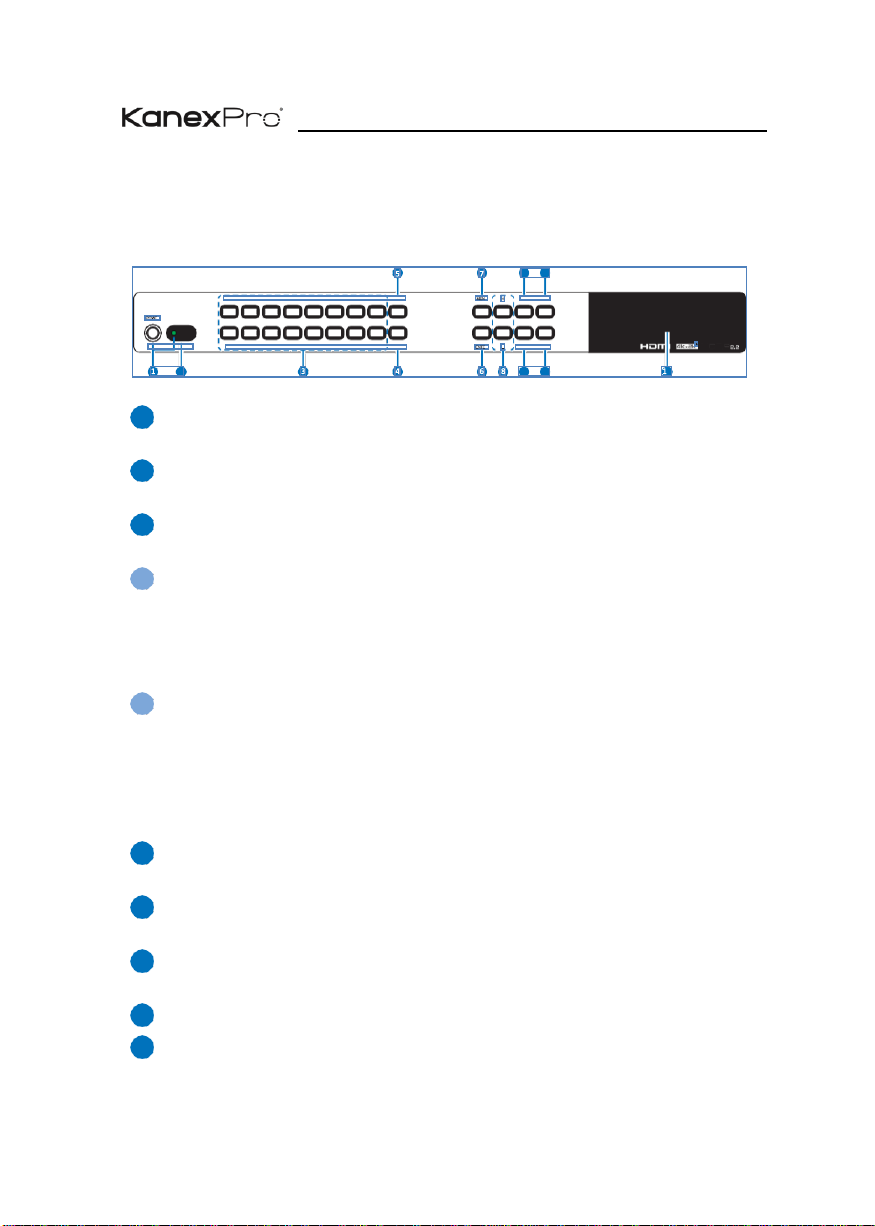

6.1 Front Panel

POWER: Press this button to power the unit on (green LED) or place

it into

stand-by mode (red LED).

IR WINDOW: Accepts IR signals from the included IR remotefor control of this

unit only.

IN 1~8 & OUT A~H: Press these buttons to configure the video routing.

Behavior depends on the selected Keypad Action Mode.

In Standard Mode: Press the “OUT” buttons (A~H) of the outputs you wish to

route a source to (the letters will flash in the LCD to indicate selection). Next,

press the “IN” button of the input (1~8)

you wish to route to the selected

outputs. Finally, press “CONFIRM” to confirm your selection and execute the

routing change.

In User Mode: Press the “OUT” button (A~H) of an output youwish to route a

source to (the letter will flash in the LCD to indicate selection). Next, press the

“IN” button of the input (1~8) you wish

to route to the selected output. Repeat this process as many times as needed

to select all new routes. Finally, press “CONFIRM” to confirm your selections

and execute the routing changes.

CONFIRM: Press this button to confirm newly made input/output

routing selections.

CANCEL: Press this button to cancel newly madeinput/output

routing selections before they have been confirmed.

ENTER: Press to confirm a selection within the LCD menu or to go

deeper into a menu item.

MENU: Press to enter the LCD menu, or to back out from menu items.

PLUS (+) & MINUS (−): Press to move up and down or adjust

selections within menus.

OUT A OUT B OUT C OUT D OUT E OUT F OUT G OUT H

CANCEL

ALL

LOCK

8x8 4K UHD+

Matrix

IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 IN 7 IN 8

CONFIRM

PRESET

MUTE

HDMX88-18G

ALL: Press this button to select all outputs simultaneously forrouting. Next, press

the “IN” key of the input (1~8) you wish to route to all

outputs. Finally, press

“CONFIRM” to confirm your selection and execute the routing change.

PRESET: Press to enter the preset recall menu in the LCDwindow. Press the

“+/-” buttons followed by the “ENTER” button to select and activate the

preferredpreset.

LOCK: Press to lock all button functions on the front panel.Press and hold for

3 seconds to release the lock function. The LCD will display “Lock” when the

function is active.

MUTE: The “MUTE” button functions as a blank audio/video source.

To use it, follow the standard matrix routing instructions, but use the “MUTE”

button as the input to blank out the selected outputs. When a “MUTE” input

is in use it will show up as “M” within the routing display.

LCD WINDOW: Displays the unit’s menu, settings andinformation.

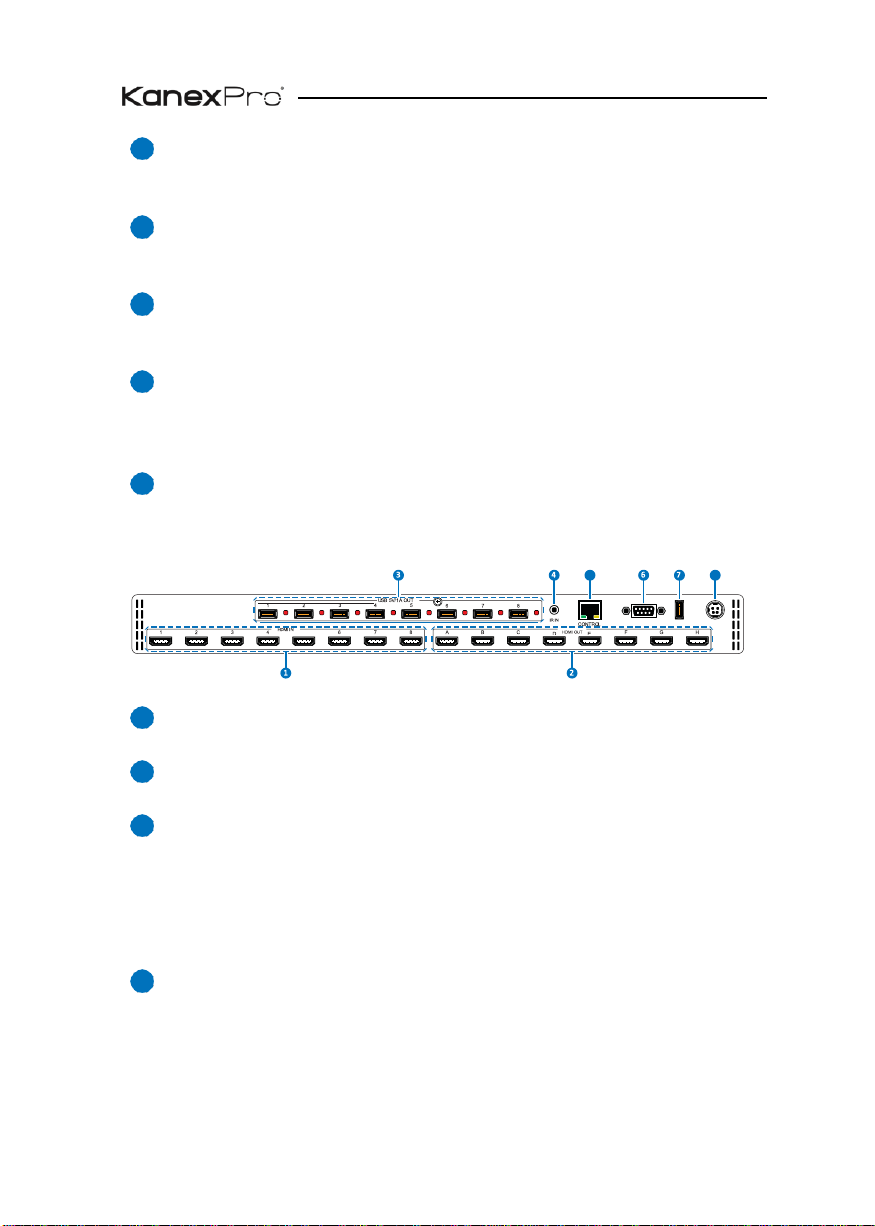

6.2 Rear Panel

HDMI IN 1~8: Connect to HDMI source equipment such asmedia

players, game consoles or set-top boxes.

HDMI OUT A~H: Connect the HDMI outputs to devices suchas

HDMI TVs, monitors or amplifiers for digital video and audio output.

USB POWER OUTPUT 1~ 8: Each USB port provides 5V/1A of power

intended for use with HDMI over AOC (Active Optical Cables) fiber optic

video extension cables. Power on each port may be individually

enabled/disabled.

Note: If a USB device requiring more than 1A is connected, the port will

automatically shut off to prevent an overload and thered LED will turn on.

IR IN: Connect to the provided IR Extender to extend the IR control range of the

unit. Ensure that the remote being used is within direct line-of-sight of the IR

Extender.

RS232 SERVICE DC24V

HDMX88-18G

CONTROL: Connect directly, or through a network switch, toyour PC/laptop to

control the unit via Telnet/WebGUI.

RS-232: Connect directly to a PC, laptop or other serialcontrol device to send

RS-232 commands to control the unit.

SERVICE: This slot is reserved for firmware update use only.

DC 24V: Plug the 24V DC power adapter into the unit and connect it to an AC

wall outlet for power.

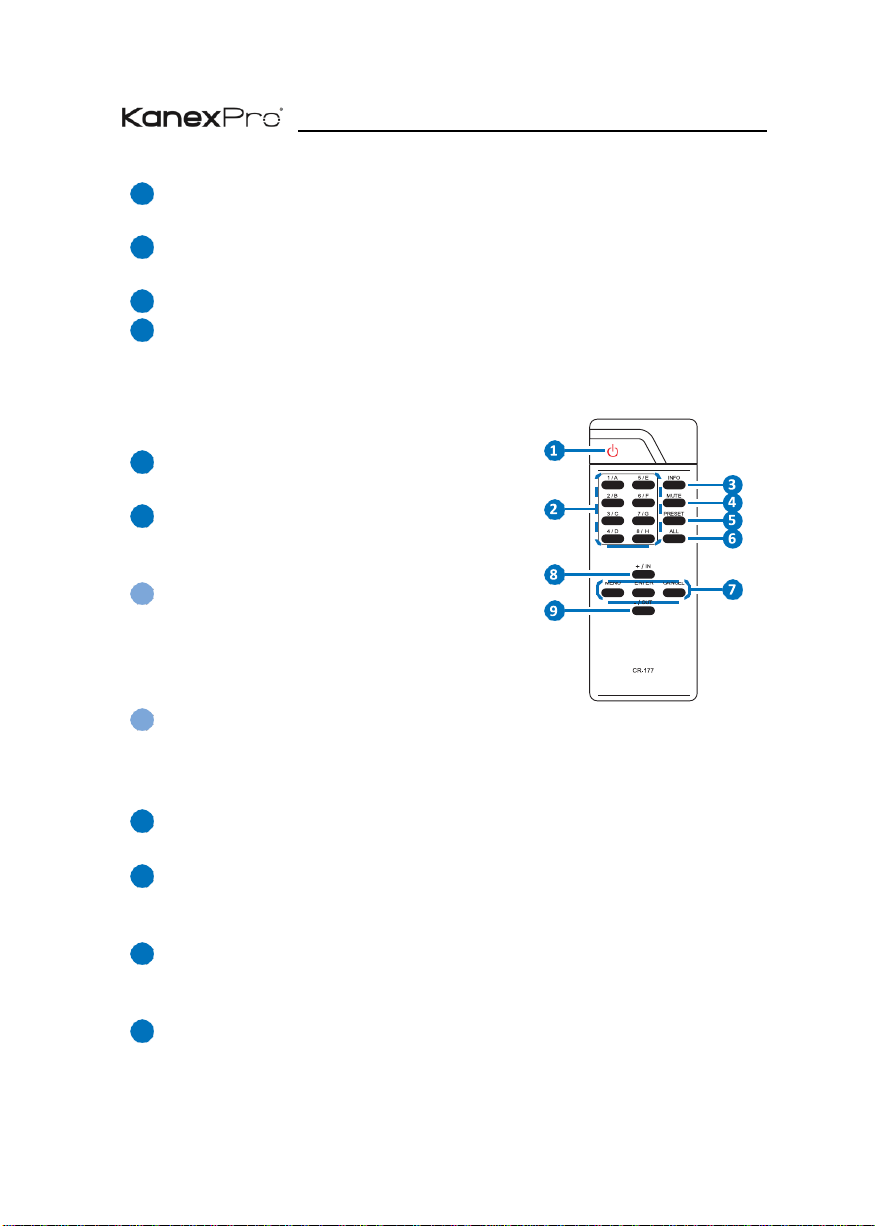

6.3 Remote Control

POWER: Press to power the unit on or place it into

stand-by mode.

1/A ~ 8/H: Press these keys to configure the video

routing. Behavior depends on the selected Keypad

Action Mode.

In Standard Mode: Press the “OUT” key followed

by the keys (A~H) of the outputs you wish to route

to. Next, press the “IN” key followed by the input

(1~8) you wish to route to the selected outputs.

Finally,press “ENTER” to confirm your selection.

In User Mode: Press the “OUT” key followed by the key (A~H) of the output

you wish to route to. Next, press the “IN” key followed by

the input (1~8) you

wish to route to the selected output. Repeat this process as many times as

needed. Finally, press “ENTER” to confirm your selection.

INFO: Switches the information displayed on each output’s OSD between the

user customized text and the current video/Ethernet details.

MUTE: The “MUTE” button functions as a blank audio/video source. To use it,

follow the standard matrix routing instructions, but use the “MUTE” button as

the input to blank out the selected outputs.

PRESET: Press to enter the preset call menu in the LCD window. Press the

“+/-” buttons followed by the “ENTER” button to select and activate the

preferredpreset.

ALL: Press this key to select all outputs simultaneously forrouting.

HDMX88-18G

Next, press the key of the input (1~8) you wish to route to all

outputs.

Finally, press “ENTER” to confirm your selectionand execute the routing

change.

MENU: Press to enter the LCD menu, or to back out from menu items.

ENTER: Press to confirm a selection within the LCD menu or to go

deeper into a menu item.

CANCEL: Press to cancel newly made input/output/preset routing

selections before they have been confirmed.

Plus (+)/IN: Press “+/IN” to navigate up within menus or to begin the

selection of an input for routing.

Minus (−)/OUT: Press “−/OUT” to navigate down within menus or to

begin the selection of outputs for routing.

6.4 LCD Menu

LEVEL 1

LEVEL 2

LEVEL 3

LEVEL 4

Video Setup

EDID Setup

EDID Mode

Appoint Mode

All Mode

Appoint Mode

EDID

IN1 ~ IN8

All Mode EDID

IN1 ~ IN8

Preset Setup

1 ~ 8

Downscale Setup

A ~ H

Drivers Setup

USB Power Supply

A ~ H

Temperature

[Info Display]

Fan Ctrl.

Auto Mode

Always On Mode

System Setup

Keypad Action

Mode

Standard Mode

User Mode

Firmware

[Info Display]

Firmware Update

Yes/No

Factory Reset

Yes/No

Network Status

[Info Display]

Altri manuali per HDMX88-18G

Indice

Altri manuali KanexPro Commutatore a matrice

KanexPro

KanexPro MX-HDBASE6X6-4K Manuale utente

KanexPro

KanexPro MX-HDBT8X818G Manuale utente

KanexPro

KanexPro 4K HDBaseT MX-HDBASE4X4-4K Manuale utente

KanexPro

KanexPro MX-HDBASE8X8-4K Manuale utente

KanexPro

KanexPro MX-HDBASE8X8-4K Manuale utente

KanexPro

KanexPro HDMX44-18G Manuale utente

KanexPro

KanexPro HDMX42-18G Manuale utente

KanexPro

KanexPro HDMX88-18G Manuale utente

KanexPro

KanexPro SW-HD4X24K Manuale utente

KanexPro

KanexPro SW-HDMX44CE Manuale utente

KanexPro

KanexPro SW-SDI8X8 Manuale utente

KanexPro

KanexPro HDMX88A-18G Manuale utente

KanexPro

KanexPro EXT-PROCTRL Manuale utente

KanexPro

KanexPro HDMX44-4K Manuale utente

KanexPro

KanexPro HDMMX1616-4K Manuale utente

KanexPro

KanexPro HDMX88-4K Manuale utente

KanexPro

KanexPro SW-HD4X24K Manuale utente

KanexPro

KanexPro HDMX42A-18G Manuale utente

KanexPro

KanexPro HDMX44-18G Manuale utente

KanexPro

KanexPro 4K HDBaseT MX-HDBASE4X4-4K Manuale utente

KanexPro

KanexPro HDMX44A-18G Manuale utente

KanexPro

KanexPro SW-HDMX44DS Manuale utente

KanexPro

KanexPro HDC-MXB42AC Manuale utente

KanexPro

KanexPro SW-HDSC42D4K Manuale utente

Manuali Commutatore a matrice popolari di altre marche

Broadcast Tools

Broadcast Tools SS 8.2 Manuale utente

Altimium

Altimium MATF32 Manuale utente

ALFAtron

ALFAtron ALF-MUK44N Manuale utente

Monoprice

Monoprice Blackbird 15377 Manuale utente

Kramer

Kramer XL 3216VS Manuale utente

PTN

PTN FMX12 Manuale utente

CYP

CYP nT15GX01 Manuale utente

Kramer

Kramer VP-2x2 Manuale utente

Kramer

Kramer Sierra Video 6432V5xl Manuale utente

TESmart

TESmart HMA0402A40 Manuale utente

Octava

Octava HD4XSTPMX Manuale utente

Intelix

Intelix FLX-88 Istruzioni operative

Kramer

Kramer LASSEN XL 3232S Manuale utente

Roland

Roland XS-1HD Manuale utente

Kramer

Kramer VS-66HDCPxl Manuale utente

Atlona

Atlona AT-HDMI-22M Manuale utente

Link

Link HD8X8 Manuale utente

AMX

AMX AVS-OP-2020-117 Istruzioni e ricette
