Kanguru Databank Manuale utente

FCC COMPLIANCE STATEMENTS

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the Distance between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

TRADEMARKS

MS-DOS, Windows, Windows 98/NT/2000/ME/XP are trademarks of Microsoft Corporation.

Macintosh and Mac are trademarks of Apple Computer

*All of the third-party brands and names are the property of their respective owners.

TABLE OF CONTENTS

1. INTRODUCTION ............................................................................................................................................................................................ 2

2. SYSTEM REQUIREMENTS ............................................................................................................................................................................... 3

3. HARDWARE INSTALLATION........................................................................................................................................................................... 3

USB2.0 PCI Card / Combo Hub ........................................................................................................................................................................... 3

Installing USB 2.0 Drivers ................................................................................................................................................................................ 3

Installing USB 2.0 drivers in Windows 98........................................................................................................................................................ 3

Finalizing USB 2.0 Hi-Speed hardware settings............................................................................................................................................... 5

Connecting the Kanguru DataBank....................................................................................................................................................................... 6

Labeling your Kanguru Disks ............................................................................................................................................................................... 6

4. DRIVER INSTALLATION................................................................................................................................................................................... 6

4.1WINDOWS 98SE ............................................................................................................................................................................................ 6

4.2 WINDOWS ME/2000/XP............................................................................................................................................................................... 7

4.3 Mac OS............................................................................................................................................................................................................ 8

5. OPERATING THE KANGURU DATABANK.................................................................................................................................................... 9

5.1 Connecting your Kanguru DataBank: ............................................................................................................................................................. 9

5.2 Disconnecting your Kanguru DataBank: ........................................................................................................................................................ 9

5.2.1 Windows 98:............................................................................................................................................................................................. 9

5.2.2 Windows 2000:......................................................................................................................................................................................... 9

5.2.3 MAC OS................................................................................................................................................................................................. 10

Inserting/Removing Drives ................................................................................................................................................................................. 10

Windows 98:.................................................................................................................................................................................................... 10

Windows 2000/ME/XP ................................................................................................................................................................................... 10

6. PARTITIONING AN INDIVIDUAL KANGURU DISK FROM YOUR KANGURU DATABANK............................................................. 11

6.1 Partition under Windows 98/ME................................................................................................................................................................... 11

6.2 Partition under Windows 2000 ...................................................................................................................................................................... 12

Tech Support............................................................................................................................................................................................................ 13

Call 1-508-663-0105 or................................................................................................................................................................................... 13

1. INTRODUCTION

The KanguruData Bank is a first of its kind, patent pending, storage device designed to simplify network data storage. Functioning as

either a network attached or direct attached storage device, the KanguruData Bank offers true plug and play ability with little or no need

for special configurations to connect it to your network. Just plug it into an existing USB or USB2.0 port!

Each KanguruData Bank starts with 80GB of internal drive space, which can easily be increased by inserting various capacity

KanguruDisks. Add massive amounts of storage with each KanguruDisk you insert.

Note1: In order to reach USB 2.0 speed, you must have a computer or host adapter card that has USB 2.0

support. This device will automatically sense the speed of your USB port and adjust between USB 1.1

and USB 2.0 speed. If you do not have USB 2.0 support, the device will work at USB 1.1 speeds.

Your Kanguru DataBank comes supplied with a PCI USB2.0 card. This card must be installed before

you use your DataBank if you want to reach maximum transfer speeds.

Note2: Kanguru DataBanks can be custom built to include CDRW, DVDRW, and Card Reader drives. If

your Databank has one of these custom drives, then follow the instructions for operating that

particular drive. If not, then disregard the custom drive instructions.

Note3: Depending on your system’s configuration, your Kanguru DataBank may conflict with your current

networked drives and cause the drives’ paths to be changed. For example, you computer connects to

drives E and F on your network, and when you plug in your DataBank these networked drives get

bumped to J and K. To avoid this change the Drive Letter and Path for each of the Kanguru Disks.

For example, change drives E:F:G:H to W:X:Y:Z. This ensures that networked drives E:F:G:H will

remain unchanged, and the Kanguru Disks will always show up as W:X:Y:Z.

2. SYSTEM REQUIREMENTS

Hardware:

Notebook or desktop computer with USB or USB2.0 port supported.

Operation system:

Win98SE, Win-ME, Win2000, Win XP, Mac OS 8.6 or above.

3. HARDWARE INSTALLATION

USB2.0 PCI Card / Combo Hub

Every DataBank comes supplied with a USB2.0 PCI card that is required to meet USB2.0 speeds. However, if you already have a

USB2.0 connection, then there is no need to install the supplied card. First insert your USB2.0 PCI card into a free PCI slot, and then

follow the Driver instructions below.

Installing USB 2.0 Drivers

Once the card is installed and the computer has restarted, Windows will detect the board

and attempt to load the drivers for it.

Installing USB 2.0 drivers in Windows 98

• Windows will detect a “NEC USB

Open Host Controller”. Click “Next.”

• Select “Search for the best driver for

your device.” Click “Next.”

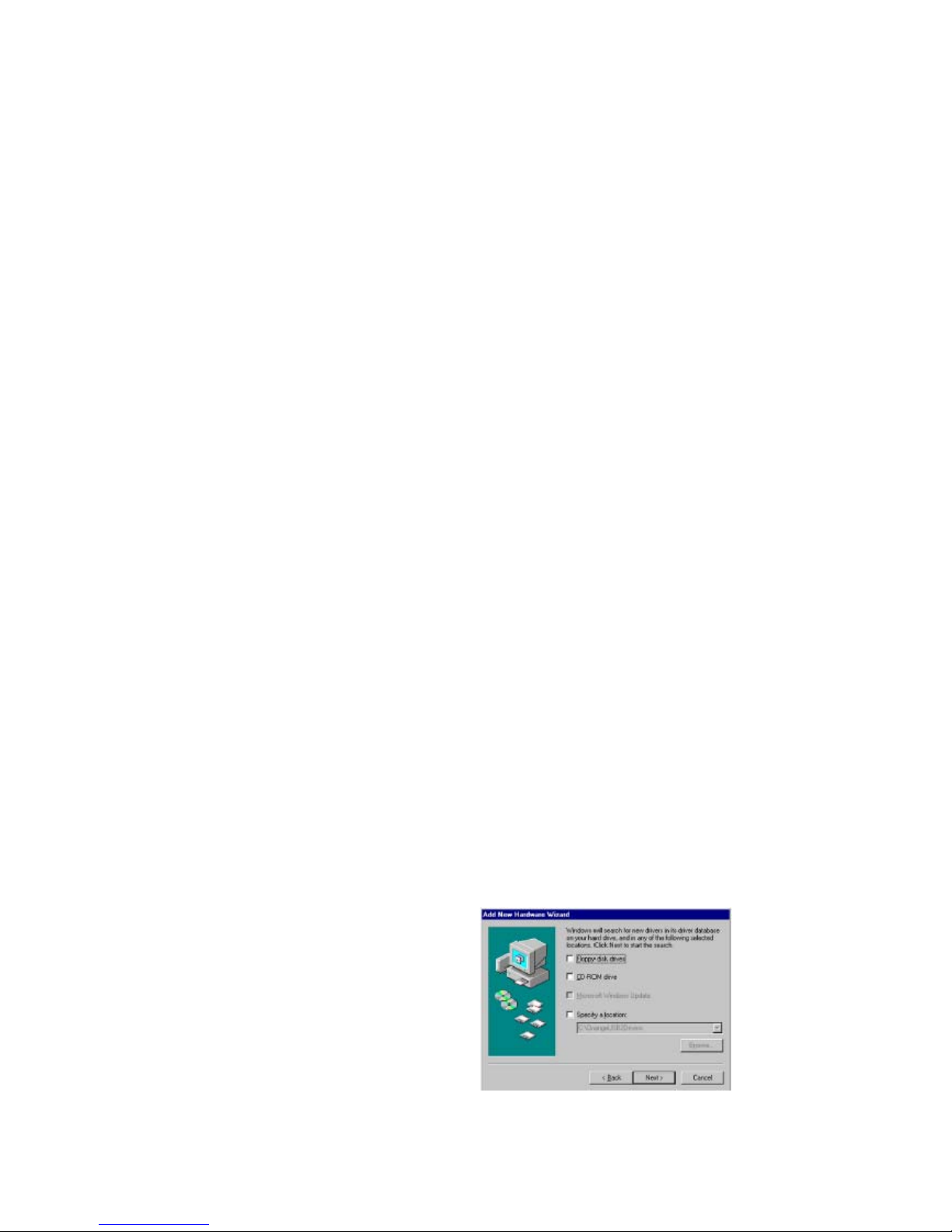

• Uncheck all boxes in Figure 1. Click

“Next.”

• Windows has found an updated driver

for this device. Click “Next.” Then

Click “Next” again.

Figure 1

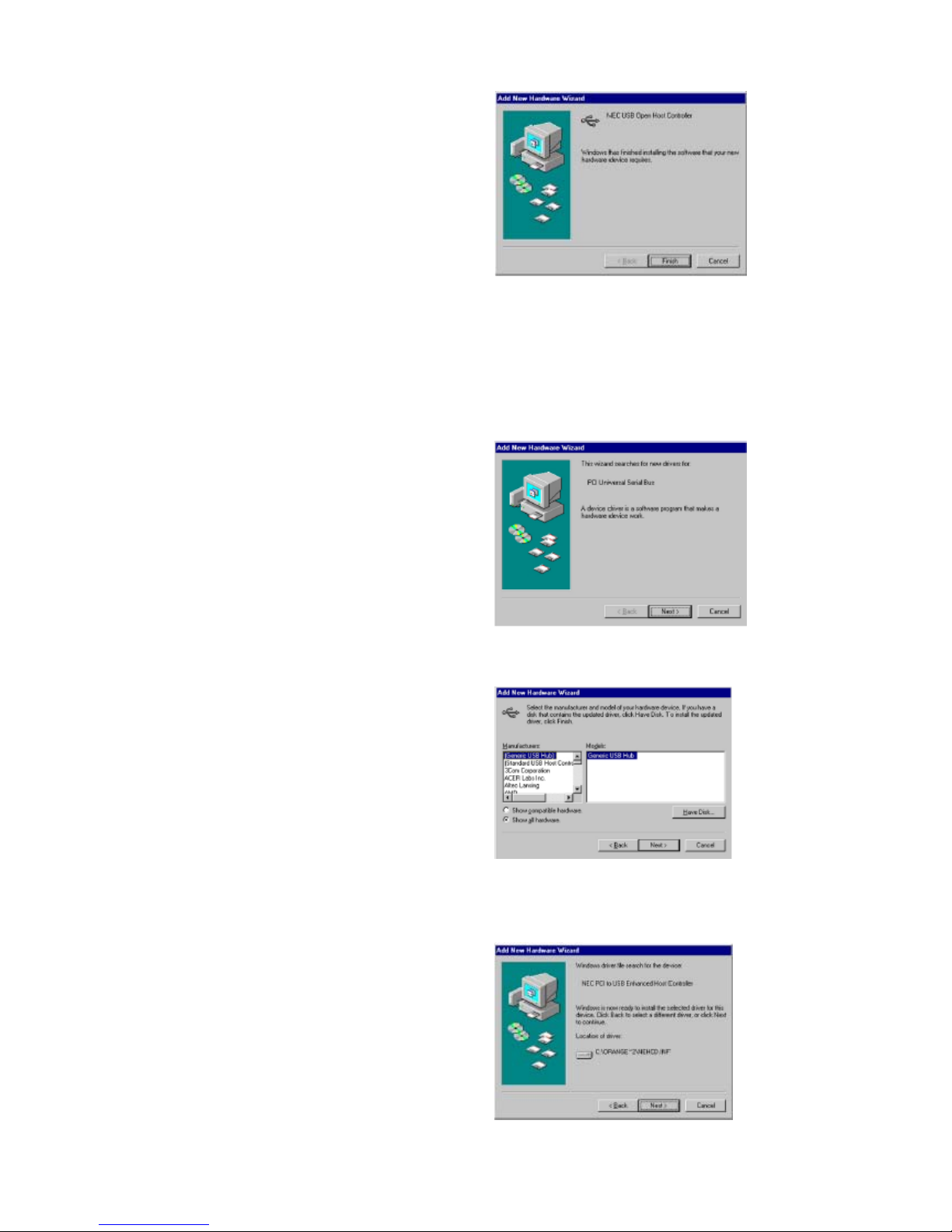

• The “Windows has finished installing

the software that your new hardware

device requires” dialog appears. Click

“Finish.”

• Repeat the above process for the

second NEC USB Open Host

Controller.

Figure 2

• After you have installed the two NEC

USB Open Host Controllers, Windows

will find a “PCI Universal Serial Bus”

device. Click “Next” to continue.

• Another dialog will appear. Select

“Display a list of all the drivers in a

specific location, so you can select the

driver you want”. Click “Next.”

• In the dialog that appears, highlight

“USB Controllers”. Click “Next.”

Figure3

• Click on the “Have Disk” button as

shown in figure 4.

• In the dialog that appears, click on the

“Browse” button.

• Navigate to the folder that contains

the USB 2.0 drivers. Click “OK.”

• A dialog will appear with “NEC PCI to

USB Enhanced Host Controller”

highlighted, click “Next” to continue.

Figure 4

• The “Windows driver file search for

the device” dialog appears with the

location of the driver. Click “Next” to

continue.

• The “Window has finished installing

the software that your new hardware

device requires” dialog appears. Click

“Finish.”

• Restart Windows. Figure 5

Finalizing USB 2.0 Hi-Speed hardware settings

USB 2.0 Hi-Speed products that use an NEC chipset have 3 USB host controller engines on

board. Two of the host controller engines handle USB 1.1 transactions. One of the host

controllers engines handle, USB 2.0 transactions.

USB data traffic is automatically routed to the proper host controller engine depending on the

speed of the device that is plugged into the USB 2.0 port. This essentially creates 3 concurrent

USB buses. These USB buses allow devices to run in a less congested traffic environment. This

helps devices such as color printers, scanners, video cameras and mass storage devices, which

require a high bandwidth, to work well together.

The NEC PCI to USB Enhanced Host Controller driver handles USB 2.0 Hi-Speed (480 Mbits/s)

traffic. The two NEC PCI to USB Open Host Controllers handle Full-Speed (12 Mb/s) and Low-

Speed (1.5 Mb/s) traffic.

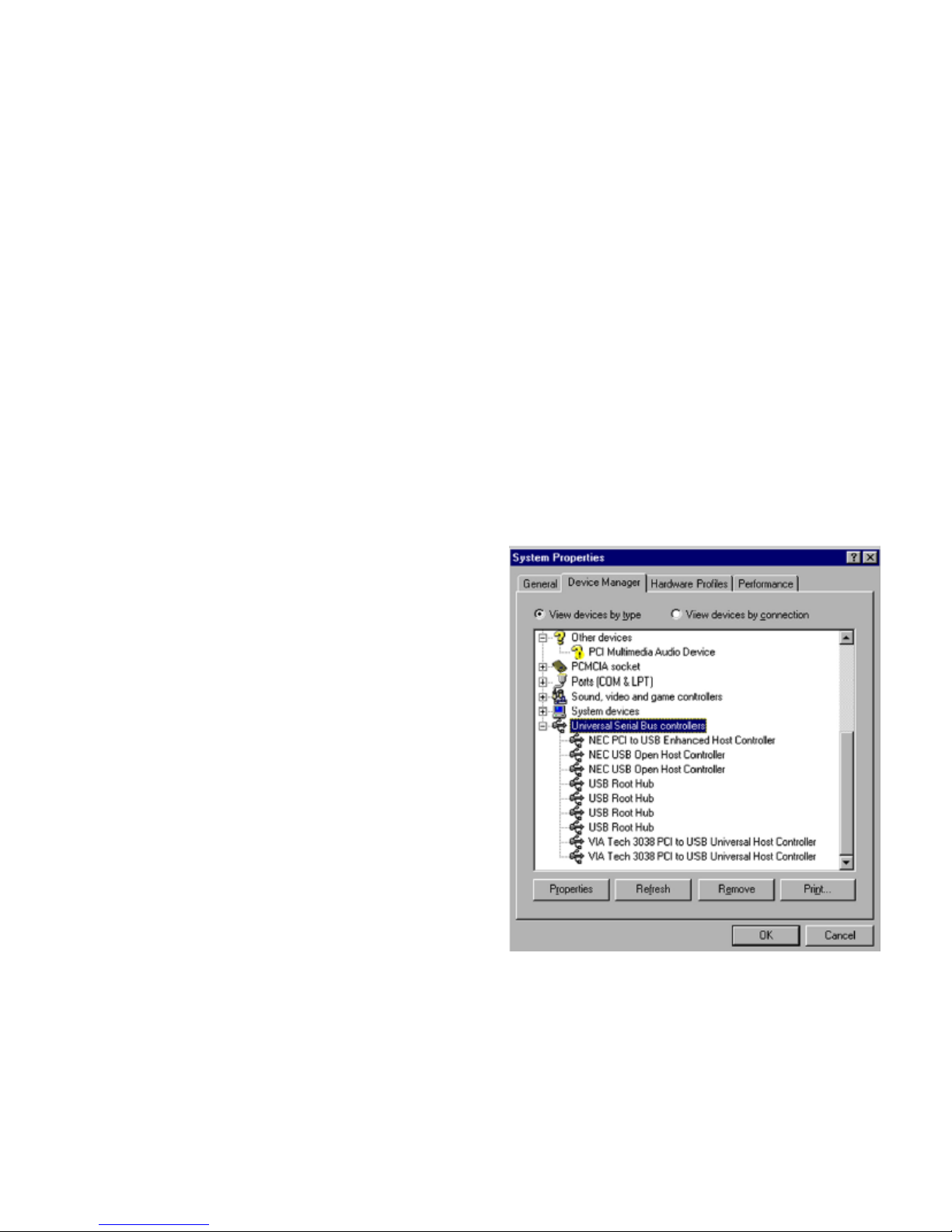

Check your Windows System/Device Manager to confirm proper

installation of USB 2.0 Hi-Speed drivers:

NEC PCI to USB Enhanced Host Controller

NEC PCI to USB Open Host Controller

USB Root Hub

Connecting the Kanguru DataBank

1.) Boot-up your computer and make sure the USB / USB2.0

port device driver has been installed and is available in operating system.

2.) Plug the USB2.0 cable into the USB2.0 Port of computer.

3.) Plug the AC power cord to the inlet of your Kanguru DataBank and

power on the DataBank. Your Kanguru DataBank will be ready to use.

4.) Follow the Software Installation as seen below.

NOTE:

Labeling your Kanguru Disks

One of features of the Kanguru DataBank is that the Kanguru Disks are hot swappable. This feature allows you to

take any of the Kanguru Disks out while the DataBank is still operating, and replace it at a later time. When you

want to remove a disk you have to disconnect it from the OS first. We highly recommend that users label their

Kanguru Disk both internally and externally. By internally we are suggesting that you change the label of the

drive. You can change a drive’s label by going into DEVICE MANAGER, and then into DISK MANAGEMENT.

From here you can right click on the drive that you want to rename, then select PROPERTIES. This is where

you can change the name of the drive. For example, if you were using a Kanguru Disk as an email backup, you

may want to rename the drive “EMAIL.” So after renaming your drives internally you need a way to tell which

Kanguru Disks are which. For this we suggest labeling the Kanguru Disks separately with the labels that are

provided with the DataBank.

This labeling system is very important for Kanguru Disk management. Without both labels, drives can easily be

mistaken for one another, which could result in removing the wrong KanguruDisk from the DataBank. This

could be especially undesirable in a network environment if someone is accessing the drive which is being

removed.

4. DRIVER INSTALLATION

4.1WINDOWS 98SE

If this is the first time you are installing the Kanguru

DataBank, you have to run the TPPINST.EXE

from the Drivers CD before you connect your

Kanguru DataBank to your computer.

1. Insert your Drivers CD in your CD-ROM drive.

2. Open the folder labeled “701 Kanguru Data Bank”.

3. Next open the “Drivers” folder.

4. Followed by the “USB Drivers” folder

5. Then open the “USB WinME-98-2000-XP” folder

6. Run the “TPPINST.EXE” to install drivers for

the Kanguru DataBank.

7. Choose the language that you use and click “OK”.

A dialog box appears as shown, Click “NEXT

8. Choose “Typical” and click “NEXT”.

6. After the needed files are copied onto your

hard drive, the installation is complete.

You can connect your Kanguru DataBank to the computer now.

After you have installed the drivers, double click on

My Computer, and you will see a new 80GB drive

(if a 80GB drive was included with you unit),

plus any additional Kanguru Disks you have purchased.

A green Unplug or Eject hardware icon

will appear in system tray at the bottom of your screen.

Double click this icon and click stop before unplugging

the USB cable to prevent data loss.

Please note: the Kanguru DataBank Hard Drives come pre-partitioned FAT32 and formatted on

Windows 98.

4.2 WINDOWS ME/2000/XP

Step1 If you are plugging the Kanguru DataBank

into your computer for the first time, the system

will detect USB2.0 Storage Device and install

thedriverof[USB Mass Storage Device ]

fromsystemfilesautomatically.

Step2 Once these drivers have been installed you can

double click “My Computer” and find your Kanguru

DataBank drives there.

This Kanguru DataBank is supported by the Mass Storage Device drivers in WIN ME/2000/XP systems directly .You don’t need to

install any drivers. If the Kanguru DataBank has been repartitioned by the user, please refer to the Partition the Kanguru DataBank

chapter to prepare your unit.

4.3 Mac OS

Step1

After the system boots up, insert the

Drivers CD in your CD-ROM.

Open the folder labeled “701 Kanguru Data Bank”.

Next open the “Drivers” folder.

Followed by the “USB Drivers” folder

Then open the “USB Mac OS” or the “USB Mac OS X” folder (depending on you OS)

Double click the “USB2.0 SETUP” icon, and

double click “USB installer” icon.

Step2 Click on “OK” when finished.

Step3 Restart your computer to finish

the driver installation .

Step4 After the restart, locate the USB

port for your Macintosh.

Step5 Connect the USB cable to your Macintosh.

Step6 Connect the USB cable to your Kanguru DataBank USB 2.0 External Drive.

Step7 The icon of USB2.0 drive will now be shown on your desktop screen and the drive

is now ready for use.

Tips:

The Kanguru DataBank USB 2.0 can be used to share information on both Windows and

Macintosh platforms. To set up your drive for cross-platform use, make sure you have the latest version of File Exchange Running on

MAC.

5. OPERATING THE KANGURU DATABANK

Once the DataBank has been installed you can connect or disconnect individual Kanguru Disks at anytime without powering down the

DataBank or your system. Please follow the steps below when you want to remove a drive while the DataBank is still running:

5.1 Connecting your Kanguru DataBank:

Step1 Plug the USB cable into the back of your Kanguru DataBank.

Step2 Plug the USB cable into the USB 2.0 port of computer.

Plug the AC power cord to the INLET of your Kanguru DataBank and

turn on the power switch on your Kanguru DataBank

Step3 If you have properly installed the drivers, your computer will recognize the built in 80GB hard drive plus

any additional Kanguru Disks in your DataBank.

NOTE: Make sure you have properly inserted the Kanguru Disks into your DataBank. To do so push the Kanguru Disks

firmly into the DataBank until you feel it snap into place. Also you shouldn’t move the Kanguru Disks from side to side while

they are in the DataBank, as this may cause them to disconnect from the system.

5.2 Disconnecting your Kanguru DataBank:

5.2.1 Windows 98:

Step1 Click the green Unplug or Eject hardware

icon in system tray and click the device that

you want to remove.

Step2 When the system prompts

‘You may safely remove this device’.

Unplug the USB cable from the USB port

of computer.

5.2.2 Windows 2000:

Step1 Double-click on the

[Unplug or Eject Hardware]

iconinsystemtray.

Dialog box appears as seen to right.

Step2 Highlight the [USB Mass Storage Device]

in the dialog box, click on [Stop], choose

the Kanguru DataBank USB 2.0 External Drive that you want

to disconnect, then click on [OK].

Step3 Wait for few seconds, the system prompts

“You may safely remove this device”.

Unplug the USB cable from the USB port of computer.

5.2.3 MAC OS

When disconnecting your Kanguru DataBank USB 2.0 External Drive from computer, close all windows and quit all running applications

that are stored on the Kanguru DataBank USB 2.0 External Drive. Drag the Kanguru DataBank USB 2.0 External Drive’s icon into

“Trash” to dismount it from the Desktop prior to unplugging the Kanguru DataBank USB 2.0 External Drive from the USB port.

Failure to do so may result in a loss of data or possible file corruption.

CAUTION !!

Do not unplug the Kanguru DataBank from the USB port of your computer or HUB while copying files to or from the device or

while files or applications stored on the Kanguru DataBank are in use.

DOING SO MAY RESULT IN LOSS OF DATA.

Inserting/Removing Drives

Your Kanguru DataBank allows for removal of any individual Kanguru Disk without having to shutdown your DataBank. You can

also re-connect a Kanguru Disk into any bay at any time. If you have properly removed a Kanguru Disk, then it can be reconnected at

any time without any installation process. Simply follow the instructions below for REMOVING Kanguru Disks:

Windows 98:

Step1 Click the green Safely Remove Storage Device icon

icon in system tray and click the device that

you want to remove.

Step2 When the system prompts

‘You may safely remove this device’.

Click OK, and remove the KanguruDisk from the DataBank.

Windows 2000/ME/XP

Step1 Click on the Unplug or Eject Hardware

Located on your icon bar.

Step2 Click on the Stop USB Mass Storage Device – Drive [x]

With Drive [x] being the drive that you want to disconnect.

Step3 Wait for few seconds, the system prompts:

“The ‘USB Mass Storage’ device can now be safely removed from the system”

Click OK, and remove the KanguruDisk from the DataBank.

NOTE: Refer back to the “LABELING YOUR KANGURU DISKS” section to correctly remove and connect the

correct Kanguru Disks.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kanguru Hardware di rete

Kanguru

Kanguru iNAS-100 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
