KAP TC2018-180413 Manuale utente
www.kaptrade.com
Korea Auto Parts
Instruction Manual
D A T E .
MODEL.
D A T E .
MODEL.
TOYOTA CAMRY 2018 PATD
Video Interface + CarPlay
for PANASONIC + CarPlay
2019.01.14
NV17-AV_MODULE_C_V001
2019.01.18
TC2018-180413
TOYOTA CAMRY 2018 PANASONIC + CarPlay

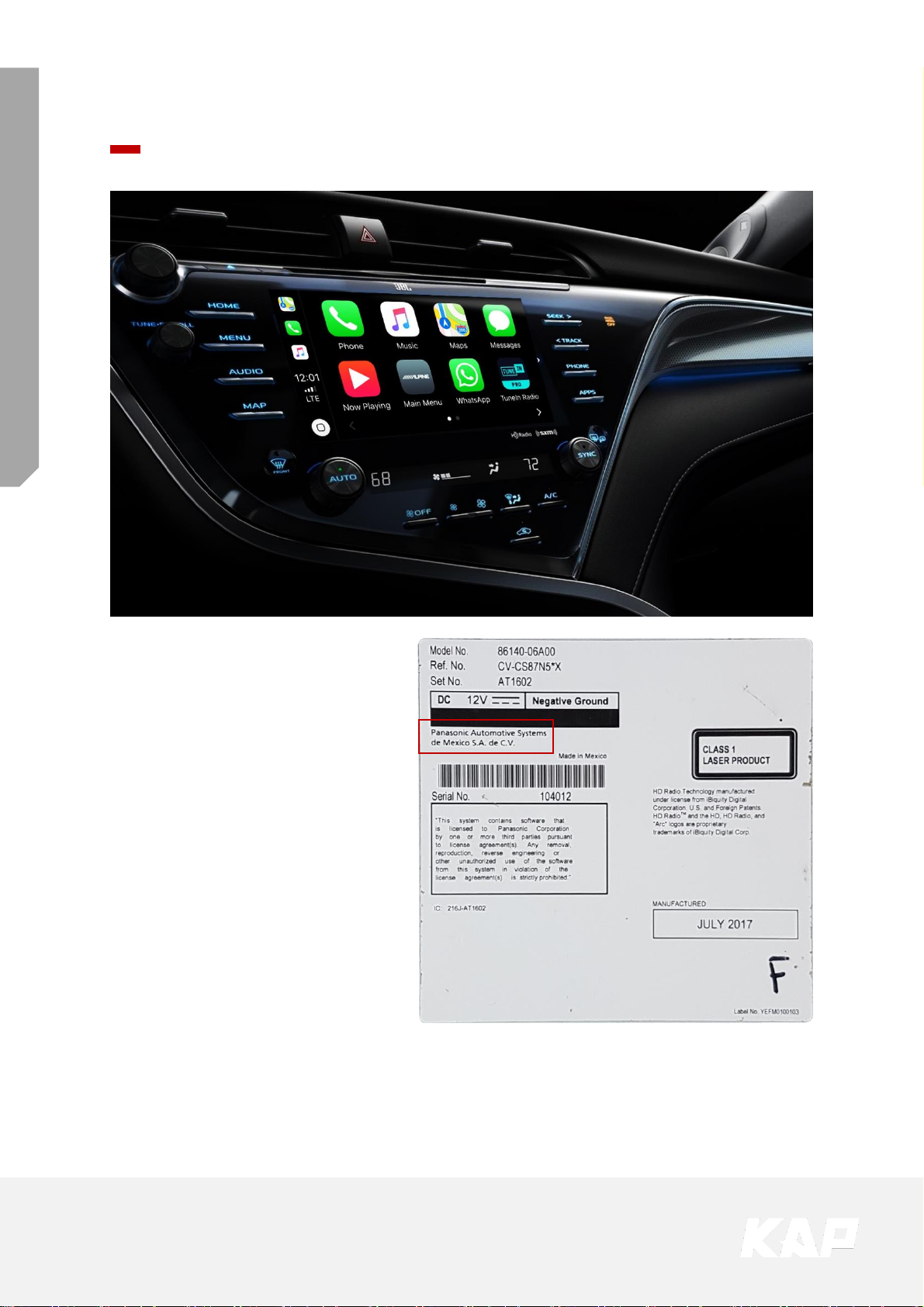

Serviceable Model
PANASONIC HEADUNIT
TOYOTA Camry
(2018~2019)
Panasonic 8” Model
TOYOTA CAMRY 2018 PANASONIC + CarPlay
Spec
1. Input Spec. (MULTI VIDEO INTERFACE)
Interface
•1 x Digital RGB Input (Navigation System source)
•1 x Analog RGB Input (Navigation System source)
•1 x CVBS(REAR CAMERA) Input. (Rear camera source)
•1 x CVBS(FRONT CAMERA) Input. (Front camera source)
CarPlay
•1 x USB Input
•1 x Microphone Input
•1 x Real Analog Touch Input
2. Output Spec.
Interface
•1 x LCD Output (LCD Operation)
•1 x Virtual Analog Touch (Navigation System source)
•1 x Uart Digital Touch (Navigation System source)
CarPlay
•1 x LVDS(HDMI Connector) Output
•1 x Audio L/R (3.5Ф Stereo Jack) Output
•1 x Mono Speaker
3. Power Spec.
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
4. Switch Input Mode
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
TOYOTA CAMRY 2018 PANASONIC + CarPlay

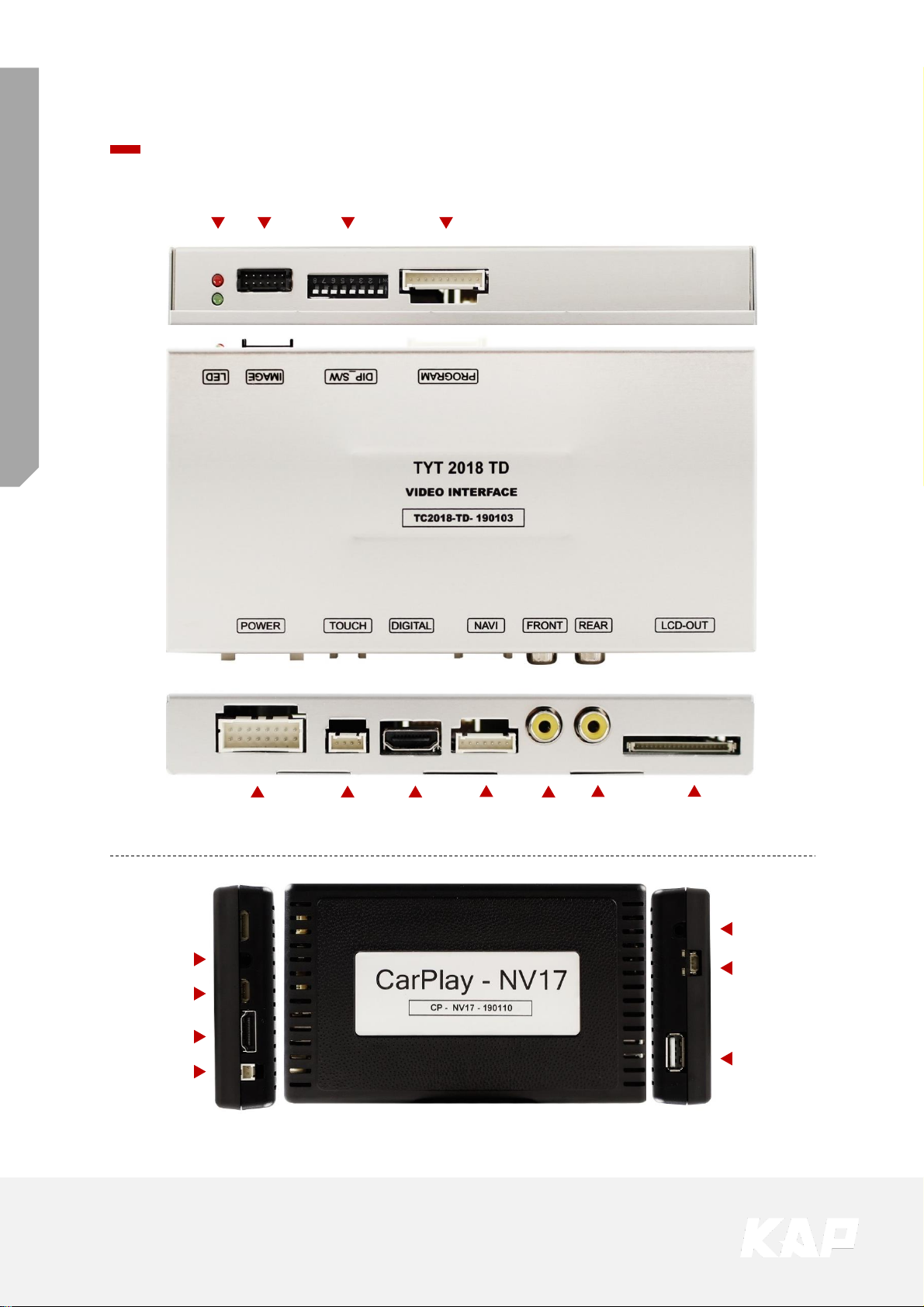

External Appearance
Interface + CarPlay
PROGRAMDIP S/WIMAGELED
Power/CAN R-Touch Digital
RGB
Analog
RGB
Video Rear
Camera
LCD-OUT
Smartphone
Connection
Made Switch
To Enter Setting
Microphone In
AUX
Touch
LVDS&UART OUT
POWER/CAN
TOYOTA CAMRY 2018 PANASONIC + CarPlay

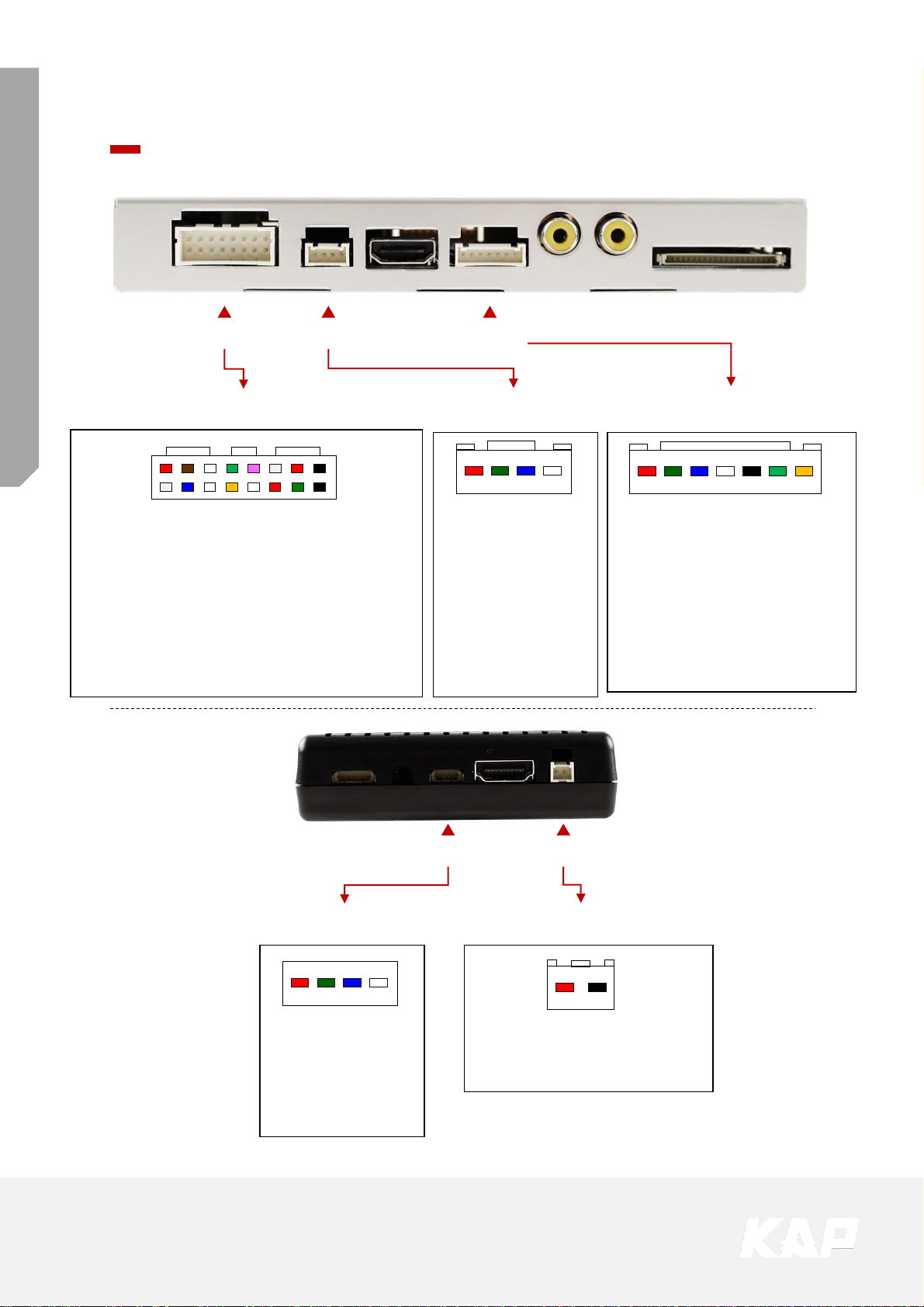

Connector Pin Assignment
Interface + CarPlay
Power/CAN R-Touch Analog
RGB
①R DATA (Red)
②G DATA (Green)
③B DATA (Blue)
④SYNC (White)
⑤GND (Black)
⑥DVB-T IR (Green)
⑦DVD IR (Orange)
①②③④⑤⑥⑦
①Y-
②X-
③Y+
④X+
① ② ③ ④
1. ACC (Red)
2. N.C
3. Rear-DET (Brown)
4. Front-DET (Blue)
5. N.C
6. N.C
7. N.C
8. N.C
115
2 16
9. KEY (Pink)
10. N.C
11. ACC (Red)
12. Rear-VCC (Red)
13. Front-VCC (Red)
14. Mode (Green)
15. GND (Black)
16. GND (Black)
Touch Connect
POWER Connect NAVI Connect
①ACC
②GND
① ②
①Y-
②X-
③Y+
④X+
① ② ③ ④
Touch Connect POWER Connect
Power/CANR-Touch
TOYOTA CAMRY 2018 PANASONIC + CarPlay

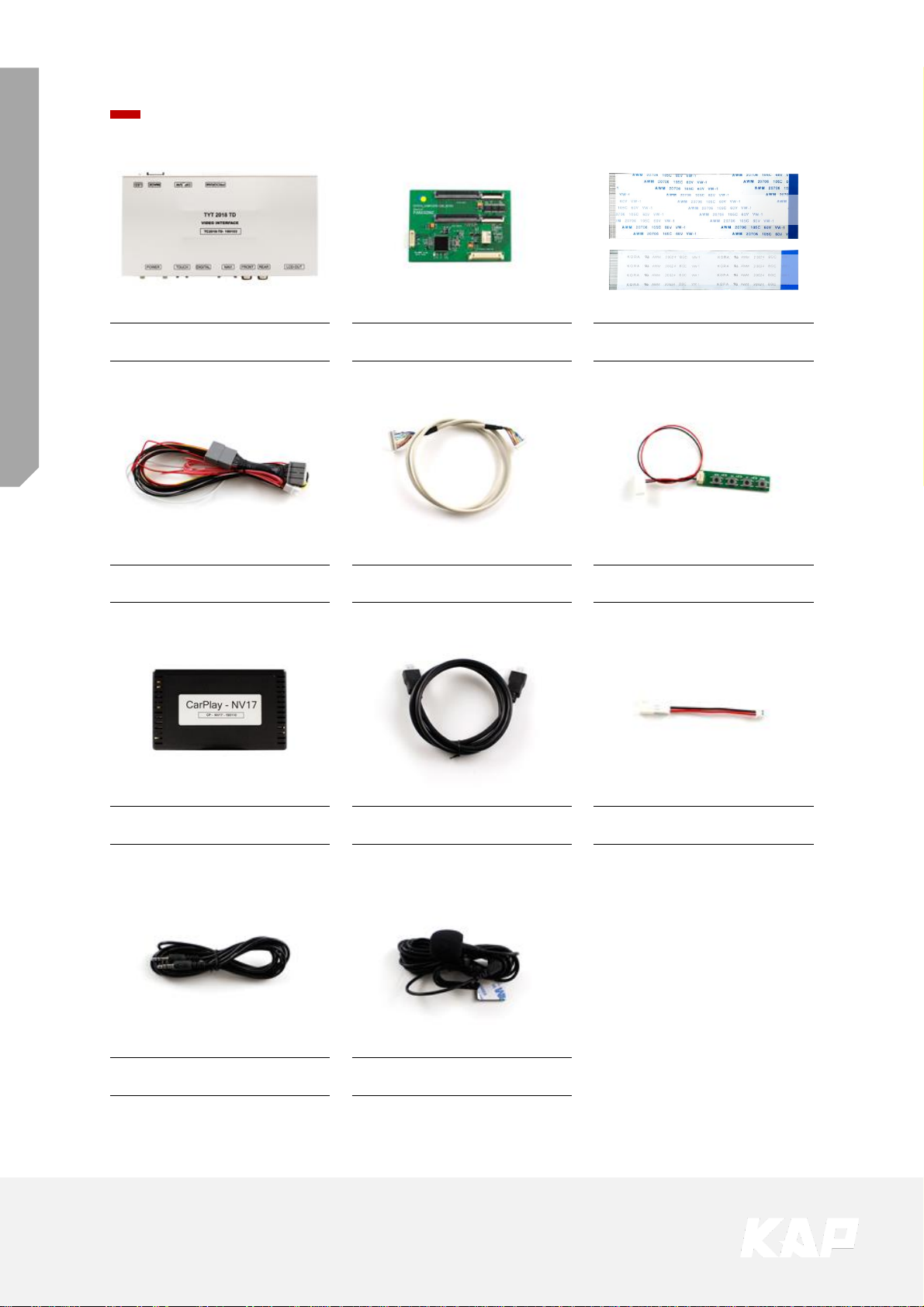

Product Composition
Interface SUB Board (REV00) LVDS FFC Cable
Power Cable LVDS Cable(800mm) OSD Board
CarPlay HDMI Cable CarPlay Power Cable
AUX Cable MIC
68*100*0.5*P6 Reverse
30*100*0.5*P6 Reverse
TOYOTA CAMRY 2018 PANASONIC + CarPlay

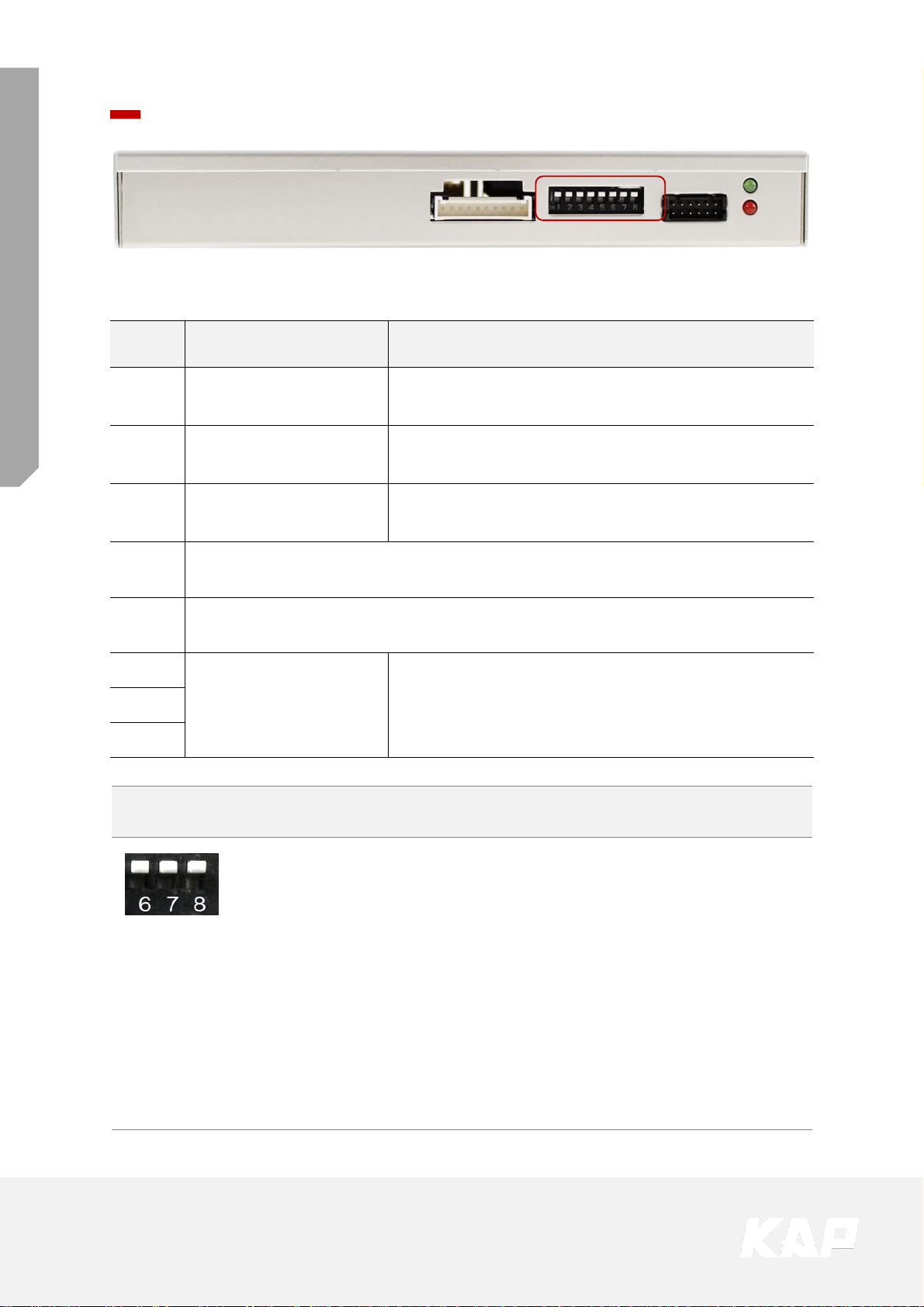

Car Type Select
Dip Switch Setting
PIN FUNCTION DIP S/W Selection
1 NAVI ON : Not Used
OFF : Used
2 DVB-T(AV1) ON : Not Used
OFF : Used
3 DVD(AV2) ON : Not Used
OFF : Used
4 N.C
5 N.C
6
Car Type Select Bottom Picture7
8
OFF : ▲UP
ON : ▼DOWN
CAMRY(2018 - 2019)
Panasonic 8”
TOYOTA CAMRY 2018 PANASONIC + CarPlay
Mode Change (to Interface)
Mode Change Button
HOME / MAP
•Long press to switch to interface screen
•Short press to switch to OEM screen
•If there is no navigation option (No MAP Button), you can change the mode only with the
"HOME" button
•To use the Steering button You must select the “HOME" or “MAP" button in the menu.
•To use both the “HOME” and “MAP” buttons, select all.
•Select "OFF" when not in use.
Mode Change Button
BACK
•Long press to switch to interface screen
•Short press to switch to OEM screen
•To use the Steering Button You should select "ON" in the above menu.
•Select "OFF" when not in use
Mode Change Sequence
OEM NAVI
(CarPlay)
AV1
(DVBT)
AV2
(DVD)
OEM
TOYOTA CAMRY 2018 PANASONIC + CarPlay
23
3
2
1
Mode Change (to OEM)
•To use transient transitions "ON" must be selected in the above menu (SrcChg-Btn).
•Select "OFF" when not in use
PWR·VOL
•Display OEM screen for 4 seconds and return
1
TUNE·SCROLL / SEEK> / <TRACK
•Display OEM screen for 2 seconds and return
2
MENU / AUDIO / PHONE / APPS
•Display OEM screen for 2 seconds and return
3
TOYOTA CAMRY 2018 PANASONIC + CarPlay

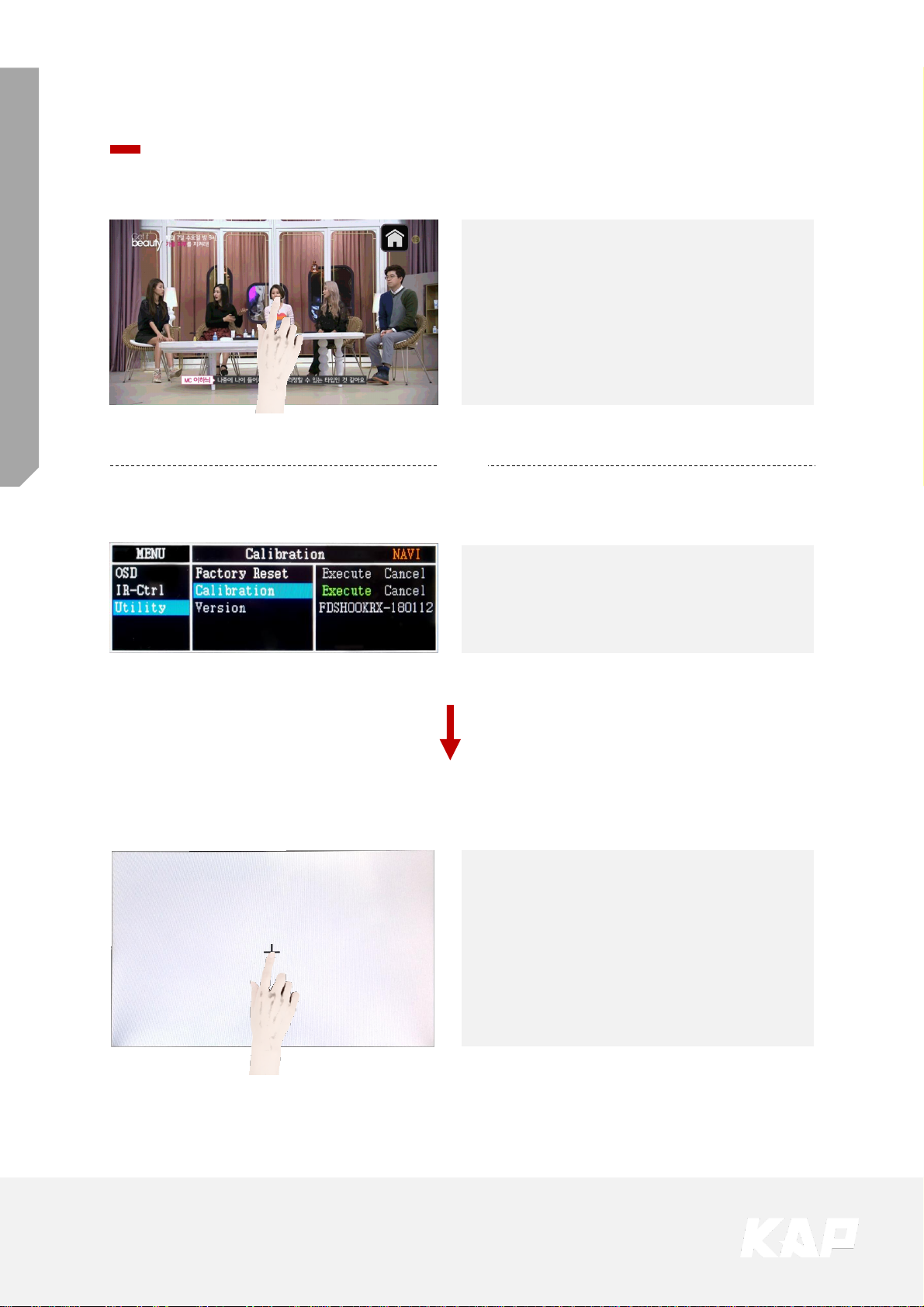

Touch Control
Touch Calibration
•Press and hold for more than 11
seconds on NAVI, DVB-T, DVD screen.
•(Note that it only works the first time
after switching screens)
•OSD menu ▶Utility ▶Calibration
Method 1
Method 2
OR
•+ Touch according to the
shape coordinates.
Touch Calibration
