Karma Latte Express 402 Manuale utente
MODEL 402
Latté Express
ELECTRICAL:
120V, 60HZ, 5AMP, 600 WATTS
DIMENSIONS:
7 5/8”W X 11 5/8”D X 15 1/2” H
UNIT WEIGHT 18 lbs APPROXIMATE SHIPPING WEIGHT 25
Hopper capacity: 1 pound (16 oz) of powder
Drink capacity: four 8 oz serving between water tank refills
SPECIFICATIONS
P.O. BOX 433
WATERTOWN, WI 53094 USA
920-261-1424
800-558-9565
FAX 920-261-3302
INTERNET WEB PAGE
Http://www.karma-inc.com
E-mail karma@karma-inc.com
Producers of dependable dispensing equipment
for the food and beverage industries.
KARMA dispensers are covered by one or more U.S. patents and applications and corresponding foreign patents and applications
START UP & OPERATION MANUAL
For technical help & spare parts call 1 800 558 9565 and ask for Customer Service
START UP AND OPERATION
Lift off top right cabinet cover and set aside.
This will expose product hopper for filling
Remove hopper cover and fill product hopper
Replace hopper cover and cabinet cover
Pour four cups of water into water tank
Plug dispenser’s power cord into 115 volt
grounded outlet
Position power switch (middle switch) to up
position which is ON position. NOTE: Pilot
light will come on and then go out (unit is
working). Water will start to heat and reach
temperature in 16 minutes
Position whipper motor switch (bottom switch)
to up position which is ON (if using freeze dried
coffee in this unit, position this switch to the
OFF position)
Place cup under dispense spout and push and
hold dispense switch (top switch) for two
seconds. This will prime product hopper
NOTE: WHEN PILOT LIGHT COMES ON,
WATER TANK MUST BE REFILLED
2
CAUTION: Do not pour
more then 4 cups (32 ozs)
of water into unit at Start
Up and when the Red Refill
Light comes On.
CLEANING PRODUCT HOPPER
1. When refilling hopper, inspect auger spring and inside of hopper for a “crust”
buildup.
2. When necessary, disassemble hopper and wash all parts in a mild
dishwashing soap and warm water.
3. Rinse parts and allow to completely dry.
4. Reassemble product hopper.
5. Fill product hopper and install in dispenser.
6. Place a cup under the dispenser spout. Dispense and discard a serving to
prime the system.
NOTE: when placing hopper back into unit, align the U shaped clevis at the back
of the hopper with the motor Crossbar on the back wall of hopper compartment.
DELIME WATER TANK
1. Place the ON/OFF master switch to (off) position.
2. Remove compartment cover and the product hopper.
3. Pour 4 ounces of a non-toxic deliming solution into the tank. Turn power
switch to ON position. (white vinegar can be used for deliming)
4. Wait 2 hours
5. Turn Whipper motor switch to the Off position.
6. Empty the water tank by pushing dispense switch until tank is empty.
7. Refill with cold water.
8. Empty water tank by pushing dispensing switch until tank is empty.
9. Refill water tank. Plug in the electrical cord
10. Turn Whipper motor switch to the ON position
11.Install product hopper and compartment cover.
12.Dispense a serving to prime .
3
DAILY CLEANING
1. Remove product hopper
2. Push and hold dispense switch to flush mixing system with hot water
3. Replace product hopper
4. Rinse drip tray and insert with soap and hot water
WEEKLY CLEANING (SANITIZING)
1. Remove cabinet cover

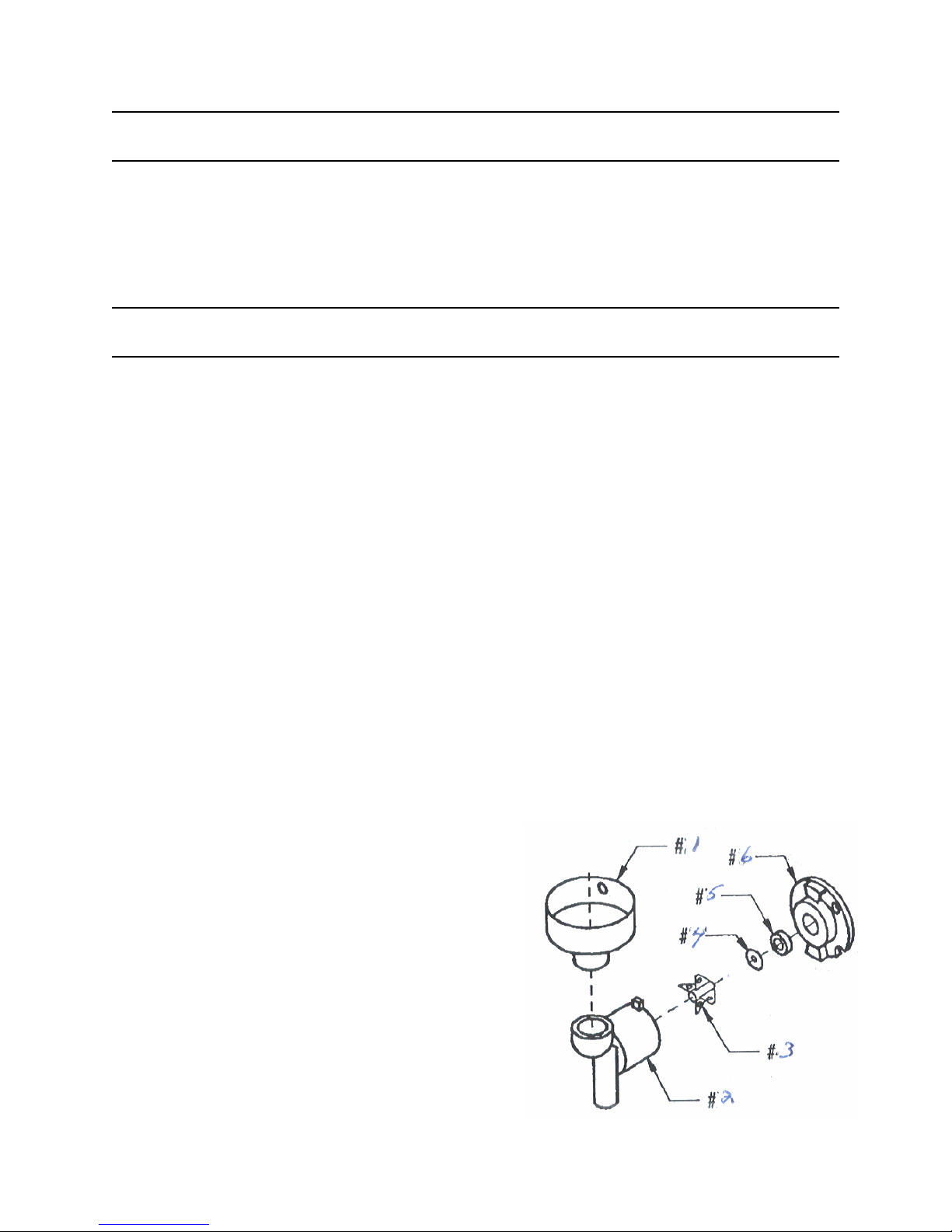

2. To remove the funnel, grasp the funnel (#1) in your right hand, pull towards
you and at the same time rotate the funnel 1/4 turn to the left.
3. Remove the blender housing (#2) by turning 1/4 turn clockwise and pulling
away from the blender base.
4. Mix one ounce of a mild dishwashing soap, such as Ivory Liquid or the
equivalent, with one gallon of 110°F warm water.
5. Wash all parts from mixing system
6. Using a bottle brush, completely clean the blender base (#6)
7. Pull the whipper blade (#3) off the motor shaft
8. Slide the washer (#4) off the motor shaft. Remove the blender seal (#5) from
the blender base (#6).
9. Mix 1/5 ounce of U.S. CHEMICAL sanitizer or the equivalent which will
equal 100 parts per million of chlorine when mixed with 100°F WATER
10.Submerge all parts in sanitizing solution for 3 minutes. Allow parts to air dry.
11.With a clean bottle brush and the sanitizing solution, completely clean the
blender base (#6).
12.Reassemble
**Wipe dispenser off with damp cloth.
4
WARRANTY
Karma warrants, except as hereinafter provided, as follows:
1. That each product sold hereunder which is manufactured by KARMA shall be
free of defects in materials or workmanship for a period of 1 year after shipment
thereof. This warranty is void in cases of damage in transit, negligence, faulty
installation, abuse, abnormal usage, misuse, accidents or failure to maintain the
product according to the instruction manual provided. This warranty does not
cover malfunctions due to dirty or clogged waterlines, lime-related conditions or
other conditions, related to the local water supply. THERE IS NO OTHER
EXPRESS WARRANTY; KARMA HEREBY DISCLAIMS ALL IMPLIED
WARRANTIES INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FO ANY PARTICULAR PURPOSE
INDICATED BY PURCHASER TO KARMA.
2. The sole obligation of KARMA hereunder shall be limited to repair or
replacement, at the option of KARMA, of any defective products expressly
warranted under the terms of the Agreement. This obligation does not include
the cost or expense of travel time by service personnel, but does include the cost
or expense of actual time spent to remove and replace a defective part or product.
This obligation shall be conditioned upon receipt of KARMA of written notice
specifically describing any defect or defects promptly after discovery. KARMA
reserves the right to inspect products claimed to be defective and covered by
warranty, either at Purchaser’s location or at KARMA’s principal place of
business in Watertown, Wisconsin, freight pre-paid; the place of such inspection
to be determined solely at the option of KARMA. Final determination as to
whether a product is actually defective rests with KARMA. A defective product
shall not be otherwise returned to KARMA unless specifically authorized by
KARMA.
3. KARMA will not assume responsibility, pay expenses or accept invoices for
unauthorized service, repairs, or replacement with respect to its products, even if
defective. KARMA assumes no liability for labor charges incidental to the
adjustment, service, repairing, removal or replacement of its products, or for the
expense of repairs or any other direct or indirect costs incurred by Purchase with
respect to such products, except when approved in advance by KARMA.
LIMITATION OF LIABILITY
NO CLAIM MADE HEREUNDER BY THE PURCHASER, WHETHER AS TO
GOODS DELIVERED OR FOR NONDELIVERY SHALL BE GREATER THAN
THE PURCHASE PRICE OF THE GOODS IN RESPECT OF WHICH SUCH
CLAIM IS MADE. KARMA SHALL UNDER NO CIRCUMSTANCES BE
LIABLE FOR ANY LOSS OF PROFITS OR ANY OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR FOR DAMAGES IN THE NATURE OF
PENALTIES 5
