KAT KT3 Manuale utente

Digital Drum Set

Owner’s Manual

PERCUSSION

Bedienungshandbuch

Manual de Utilizador

Mode d'emploi

Manual de instrucciones

INFORMATION FOR YOUR SAFTEY!

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired opera-

tion.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential install-

ation. This equipment generates, uses and can radiate radio

frequency energy and if not used in accordance with the

instructions, may cause harmful interference to radio comm-

unications and there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or more

of the following measures: reorient or relocate the receiving

antenna, increase the separation between the equipment

and receiver, connect the equipment into an outlet on a

circuit dierent from that of the receiver. Consult the dealer

or an experienced radio/TV technician if help is needed with

interference.

NOTE:

FMIC will not be responsible for unauthorized equipment

modications that could violate FCC rules, and/or void product

safety certications.

CAUTION:

The normal function of the product may be disturbed by

Strong Electro Magnetic Interference. If so, simply reset

the product to resume normal operation by following the

owner’s manual. In case the function could not resume,

please use the product in other location.

PRECAUTIONS:

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

Power Supply:

Please connect the designated AC adaptor to an AC outlet of

the correct voltage.

Do not connect it to an AC outlet of voltage other than that for

which your instrument is intended.

Unplug the AC power adaptor when not using the instrument,

or during electrical storms.

Connections:

Before connecting the instrument to other devices, turn o the

power to all units. This will help prevent malfunction and/or

damage to other devices.

Location:

Do not expose the instrument to the following conditions to

avoid deformation, discoloration, or more serious damage:

• Direct sunlight

• Extreme temperature or humidity

• Excessively dusty or dirty location

• Strong vibrations or shocks

• Close to magnetic elds

Interference with other electrical devices:

Radios and televisions placed nearby may experience

reception interference. Operate this unit at a suitable distance

from radios and televisions.

Cleaning:

Clean only with a soft, dry cloth. Do not use paint thinners,

solvents,cleaninguids,orchemical-impregnatedwipingcloths.

Handling:

Do not apply excessive force to the switches or controls.

Do not let paper, metallic, or other objects into the instrument.

If this happens, unplug the AC adaptor from the wall outlet.

Then have the instrument inspected by qualied service per-

sonnel.

Disconnect all cables before moving the instrument.

CAUTION:

Changes or modications not expressly approved by the

party responsible for compliance could void the user’s au-

thority to operate the equipment.

CONTENTS

QUICK START ADVANCED USE APPENDICES

PANEL & DISPLAY DESCRIPTION

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Rear & Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

QUICK START

SETUP

Connecting Pads and Pedals . . . . . . . . . . . . . . . . . . . .6

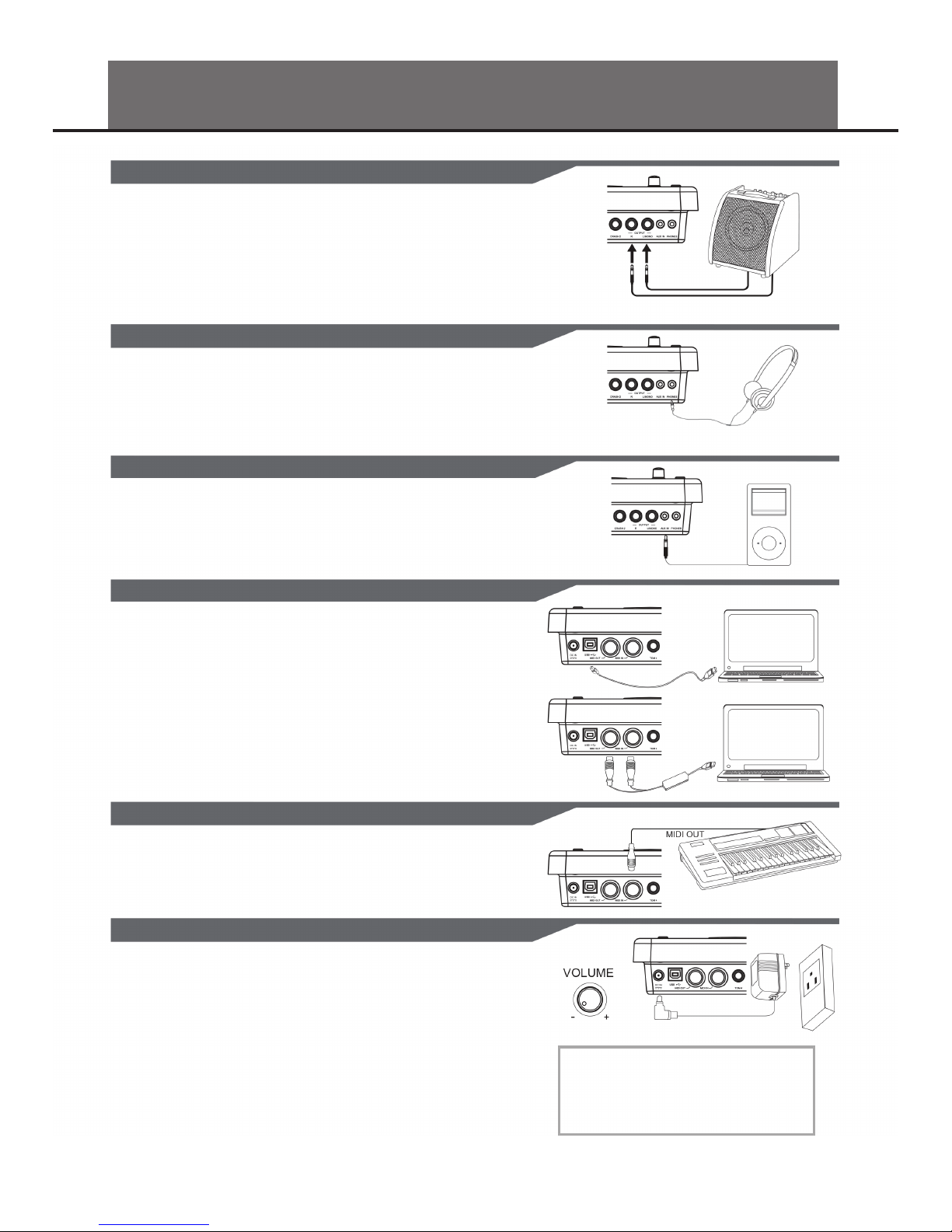

CONNECTIONS

Connecting Audio Equipment . . . . . . . . . . . . . . . . . . .7

Connecting a set of Headphones . . . . . . . . . . . . . . . . .7

Connecting an MP3/CD Player . . . . . . . . . . . . . . . . . . .7

Connecting a Computer . . . . . . . . . . . . . . . . . . . . . . .7

Connecting a Midi Keyboard . . . . . . . . . . . . . . . . . . . .7

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PERFORMING

Selecting a Drum Kit . . . . . . . . . . . . . . . . . . . . . . . . .8

Playing the Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Adjusting the Sensitivity of a Pad . . . . . . . . . . . . . . . . .9

Using the Metronome/Click Feature . . . . . . . . . . . . . . .9

Adjusting the Tempo . . . . . . . . . . . . . . . . . . . . . . . . .9

EDITING AND SAVING A DRUM KIT

Adjusting the Volume of a Drum Kit . . . . . . . . . . . . . . 10

Switching Reverb On/O and Setting EQ . . . . . . . . . . . 10

Selecting the Drum Instrument of the Pad . . . . . . . . . . 10

Adjusting the Volume, Pan and Pitch of the Pad . . . . . . .10

Setting the Pads to Play Songs . . . . . . . . . . . . . . . . . .10

Saving the Edited Kit . . . . . . . . . . . . . . . . . . . . . . . . 10

PLAYING ALONG WITH SONGS

Selecting and Playing Back a Song . . . . . . . . . . . . . . . 11

Adjusting the Volume of the Accompaniment and Drum

. . . . . . . .11

Muting the Drums in Songs . . . . . . . . . . . . . . . . . . . .11

Using the Pads to Play Songs . . . . . . . . . . . . . . . . . . . 11

RECORDING YOUR PERFORMANCE

Recording Your Performance Quickly . . . . . . . . . . . . . 12

Playing Back Your Recorded Performance. . . . . . . . . . .12

Making the Settings for Recording . . . . . . . . . . . . . . . 12

PRACTICING WITH PATTERNS

Selecting a Pattern and Practicing with it . . . . . . . . . . . 13

Scoring Your Practice . . . . . . . . . . . . . . . . . . . . . . . .13

Playing Back Your Recorded Practice . . . . . . . . . . . . . .13

ADVANCED USE

CREATING YOUR OWN DRUM KIT

About the Drum Kits . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting a Drum Kit . . . . . . . . . . . . . . . . . . . . . . . . 14

Overall Drum Kit Setting. . . . . . . . . . . . . . . . . . . . . .14

Selecting the Pad to Edit. . . . . . . . . . . . . . . . . . . . . .14

About the Drum Instruments. . . . . . . . . . . . . . . . . . .15

Selecting the Instruments . . . . . . . . . . . . . . . . . . . . .15

Drum Instrument Setting . . . . . . . . . . . . . . . . . . . . . 15

Settings For Other Functions . . . . . . . . . . . . . . . . . . .15

Saving to a User Drum Kit . . . . . . . . . . . . . . . . . . . . . 15

MAKING THE SETTINGS FOR PADS

About Settings of Pads. . . . . . . . . . . . . . . . . . . . . . .16

Adjusting the Pad Sensitivity . . . . . . . . . . . . . . . . . . . 17

Setting the Pad Threshold. . . . . . . . . . . . . . . . . . . . .17

Eliminating Crosstalk Between Pads . . . . . . . . . . . . . . 17

Selecting the Pad Curve . . . . . . . . . . . . . . . . . . . . . . 17

Setting Rim Sensitivity on Pads . . . . . . . . . . . . . . . . . 18

Adjusting the Hi-Hat Pedal Splash Sensitivity . . . . . . . . 18

Saving Setting of Pads . . . . . . . . . . . . . . . . . . . . . . . 18

SETTING THE METRONOME

About Click . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Switching the Click On/O . . . . . . . . . . . . . . . . . . . . 19

Adjusting the Click Tempo . . . . . . . . . . . . . . . . . . . . 19

Setting the Time Signature . . . . . . . . . . . . . . . . . . . . 19

Setting the Interval . . . . . . . . . . . . . . . . . . . . . . . . . 19

Adjusting the Click Volume . . . . . . . . . . . . . . . . . . . . 19

Selecting the Click Sound . . . . . . . . . . . . . . . . . . . . . 19

PLAYING BACK SONGS

About Songs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Selecting a Song . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Playing Back a Song. . . . . . . . . . . . . . . . . . . . . . . . .20

Adjusting the Accompaniment Volume . . . . . . . . . . . . 20

Adjusting the Drum Volume . . . . . . . . . . . . . . . . . . . 20

Muting the Drums in Songs . . . . . . . . . . . . . . . . . . . .20

RECORDING A SONG

About Recording. . . . . . . . . . . . . . . . . . . . . . . . . . .21

Recording Pad Performances. . . . . . . . . . . . . . . . . . .21

Recording Performances Accompanied with a Song

. . . . . . 21

Playing Back Your Recorded Performance. . . . . . . . . . .21

Recording Standby . . . . . . . . . . . . . . . . . . . . . . . . . 21

PRACTICING IN LEARNING MODE

About Learning Mode . . . . . . . . . . . . . . . . . . . . . . . 22

Practicing with Beats . . . . . . . . . . . . . . . . . . . . . . . . 22

Practicing with Rhythms. . . . . . . . . . . . . . . . . . . . . .23

Practicing with Patterns . . . . . . . . . . . . . . . . . . . . . . 23

Recording and Scoring Your Practice . . . . . . . . . . . . . .24

Playing Back Your Recorded Practice . . . . . . . . . . . . . .24

MAKING THE SETTING FOR MIDI

About MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Making the MIDI Settings . . . . . . . . . . . . . . . . . . . . . 25

Connecting with an External Sound Device . . . . . . . . . 26

Using the Digital Drum as a Sound Module. . . . . . . . . .26

APPENDICES

Prompt Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Kit/Voice/Song/Pattern/Parameter List . . . . . . . . . . 29-39

MIDI Implementation Chart. . . . . . . . . . . . . . . . . . . .40

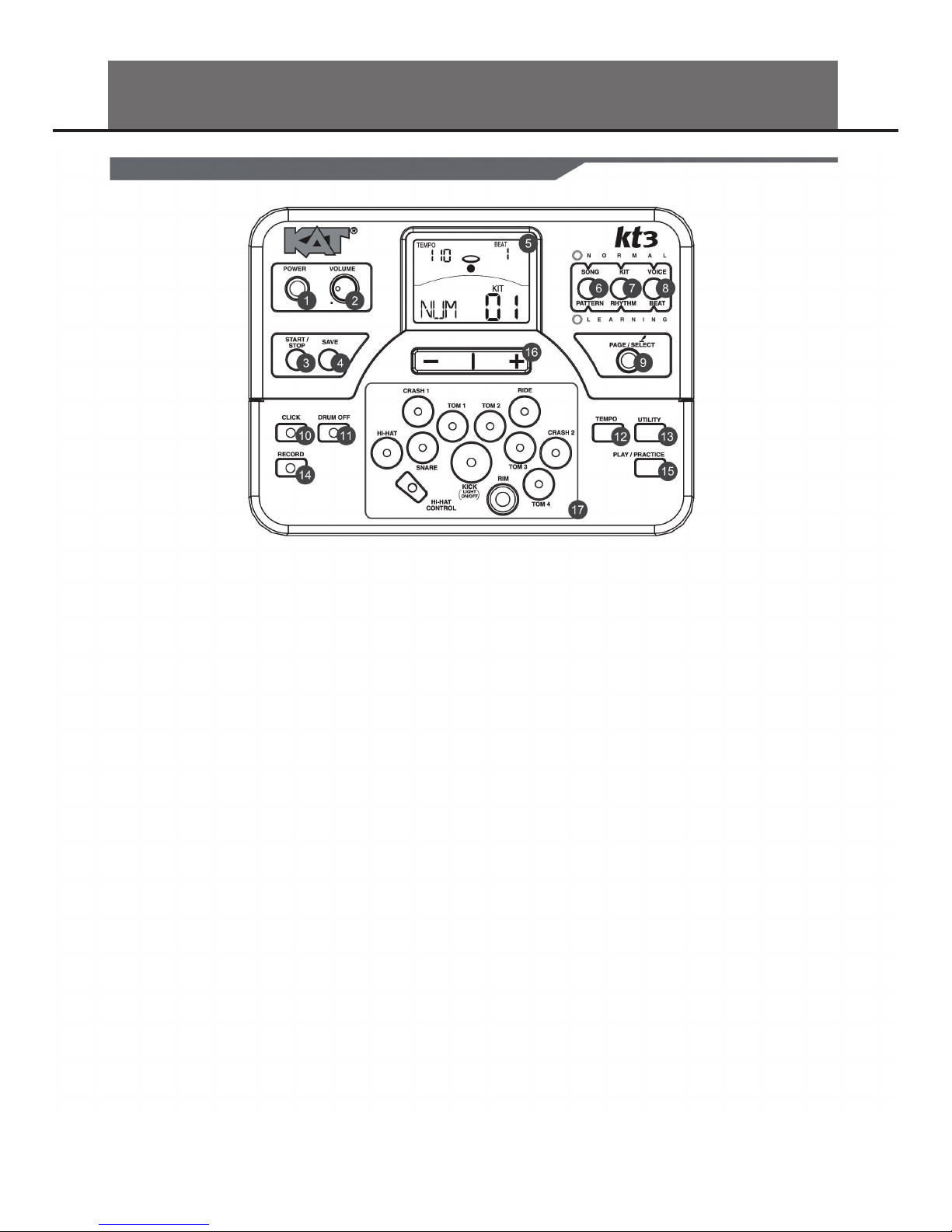

1. POWER Button

This button turns the power on and o.

2. VOLUME Knob

Adjust the volume of phone and line output.

3. START/STOP Button

Start or stop playing.

4. SAVE Button

This button is used to save the current kit settings in a

user kit and save the trigger settings under the Utility

menu pages.

5. LCD Display

Please refer to the LCD Display section.

6. SONG/PATTERN Button

Enter the Song menu in NORMAL mode or enter the Pat-

tern Practice menu in LEARNING mode.

7. KIT/RHYTHM Button

Enter the Kit menu in NORMAL mode or enter the

Rhythm Practice menu in LEARNING mode.

8. VOICE/BEAT Button

Enter the Voice menu in NORMAL mode or enter the Beat

Practice menu in LEARNING mode.

9. PAGE/SELECT Button

Scroll through the menu pages. Press and hold it for 1

second to switch modes between NORMAL and LEARN-

ING.

10. CLICK Button

Turn the metronome on or o and enter the Click menu in

NORMAL mode.

11. DRUM OFF Button

Mute the drum part of the pattern.

12. TEMPO Button

Adjust the current tempo.

13. UTILITY Button

Enter the Utility menu in NORMAL mode.

14. RECORD Button

Enter the Record menu in NORMAL mode.

15. PLAY/PRACTICE Button

Play back your recording in NORMAL mode. Start practicing

following sample practice patterns in LEARNING mode. Press

and hold it for 1 second to play back your practice in LEARN-

ING mode.

16. [ + ] Button and [ - ] Button

Pressing the [ + ] button increases and pressing [ - ] button

decreases the current parameter.

17. PAD/SELECT Buttons

These buttons play the pad voices of the current kit. In Voice

menu and Utility menu, they select the pad to be edited.

PANEL DESCRIPTION

FRONT PANEL

PANEL DESCRIPTION

18. PHONES Jack(1/8")

This stereo jack is used to connect headphones to the unit.

19. AUX IN Jack(1/8”)

This stereo input jack is for an external sound source, such as an MP3

or CD player.

20. LINE OUTPUT Jacks(1/4”)

Stereo output connection to an audio system or drum amplier.

21. CRASH 2 Jack(1/4”)

Input connection for Crash 2.

22. TOM 4 Jack(1/4”)

Input connection for Tom 4.

23. MIDI Connectors (IN, OUT)

These ports allow communication with other products equipped

with a MIDI interface.

24. USB Connector

This port is used to connect to a computer (MIDI In/Out via USB).

25. DC IN Jack

Connect the included DC 9V power adaptor.

26. PAD Connectors

Input connections for Kick, Snare, Tom, Cymbal pads and Hi-Hat con-

trol pedal.

1. TEMPO/MEASURE

2. HITTING INDICATOR

3. BEAT COUNT

4. INDICATORS FOR LEARNING

5. INDICATORS FOR MENUS

SUCH AS UTILITY, REC, ETC.

6. CURRENT MODE AND PARAMETER DISPLAY

REAR & SIDE PANEL

LCD DISPLAY

SET-UP INSTRUCTIONS

FRONT PANEL

CAUTION!

TO PREVENT ELECTRIC SHOCK AND DAMAGE TO THE DEVICE, MAKE SURE THE POWER IS SWITCHED “OFF” ON

THE DRUM AND ALL RELATED DEVICE BEFORE MAKING ANY CONNECTION.

STANDARD: KICK, SNARE, TOM1-3, CRASH1, RIDE, HIHAT, HIHAT CONTROL PEDAL

EXTENDED: CRASH2, TOM4

Using the provided cable harness, connect with kick, snare, tom1-tom3, ride, crash, hi-hat, hi-hat control triggers. Snare, tom,

crash1, crash2 and ride pads are stereo input and support double triggering; crash 1, crash2, ride cymbal, Hi-hat control pedal

is stereo input.

NOTE:

For details on assembling the drum stand, attaching the digital drum and connecting pads, please refer to the Assembly

Instructions. - Bass drum pedal NOT included on some models.

CRASH1

CRASH2

RIDE

HIHAT

SNARE

DRUM

MODULE

HIHAT PEDAL

KICK

TOM1 TOM2

TOM3

TOM4

When using an amplier, connect the Output L/MONO and R jacks on the rear panel

to the input of the amplier.

NOTE:

For mono playback, use the L/MONO jack. For stereo playback, connect both L/

MONO and R jacks. The line output volume is controlled by the VOLUME knob.

CONNECTING AUDIO EQUIPMENT

CONNECTING A SET OF HEADPHONES

CONNECTING AN MP3/CD PLAYER

CONNECTING A COMPUTER

CONNECTING A MIDI KEYBOARD

POWER SUPPLY

An optional set of stereo headphones can be connected to the PHONES jack locat-

ed on the side of the drum module.

The headphones output volume is controlled VOLUME knob, too.

Connect the audio output of an MP3/CD player or other audio source to the stereo

AUX IN jack on the rear panel.

The input signal is mixed with the drum signal, allowing you to play along.

VIA THE USB CONNECTOR:

This receives and transmits MIDI messages.

VIA THE MIDI CONNECTORS:

- MIDI IN Connector: This receives MIDI messages transmitted from an

external MIDI device or a computer.

- MIDI OUT Connector: Pad performance data is transmitted from this

connector to connected computer or MIDI device.

If you’re using an external MIDI keyboard or pads to control the digital

drum, make connections as shown. Here, it is used as a sound module.

Make sure the power is turned OFF. Connect the power adaptor to the DC

IN jack on the side panel. After conrming that all connections have been

completed, rotate the volume knob to the left (minimum volume level)

before powering on the module. Press the [POWER] button to turn on the

module. The KIT indicator on LCD will light up and the display will show

kit number 001.

NOTE:

Make sure the power is turned OFF when connecting the drum module

with external devices.

The module will automatically turn o if there aren’t any

operations for about 30 minutes except during playing

song or metronome, record, MIDI in via USB port from

computer and strike pads. Please press [UTILITY] button

repeatedly and enter “POW” menu for the setting.

HINT:

CONNECTIONS

PERFORMING

SELECTING A DRUM KIT

PLAYING THE PADS

After powering up, the digital drum will be in KIT menu (KIT indicator

ON). The display should look like this:

1. Use the [ - ] and [ + ] buttons to select the active kit. There are 45 kits in the

digital drum:

• 45 preset kits (Kits 01-45)

• 25 user kits (Kits 46-70), the parameter display area will display as

“U46-U70” with an additional letter “U”.

2. Pressing the Pad Select buttons allows you to preview the current kit (xed

velocity).

3. Hit the pads to play the current kit.

Similar to an acoustic drum kit, the digital drum responds dierently to vari-

ous playing techniques and dynamics. All the pads are velocity sensitive. And

some voices change timbre depending on the striking force.

DRUM PAD HEAD OR RIM SHOT

The digital drum pad detects head and rim shots (rim shots trigger the rim

voice).

CYMBAL TRIGGER AREAS

The digital drum crash cymbals detect Bow and Edge triggering. Both crash

cymbals detect cymbal edge choke as well. Choking the crash edge with the

hand immediately after striking the crash will mute the crash sound. The ride

cymbal detects Bow triggering and bell triggering. The edge is not active

and does not have the choke function. The Hi-hat detects bow triggering but

does not have a choke function.

HIHAT: The Hi-Hat sound varies depending on the posi-

tion of the Hi-Hat pedal:

OPEN HIHAT: Strike the Hi-Hat pad without pressing the pedal.

HALFOPEN HIHAT: Strike the Hi-Hat pad with the pedal pressed

halfway down.

CLOSED HIHAT: Strike the Hi-Hat pad with the pedal pressed

completely down.

PEDAL CLOSE: Press the pedal completely down without strik-

ing the pad.

SPLASH: Press the pedal completely down and release it

immediately.

HEAD

RIM

PERFORMING

You can switch the click sound on and o by pressing [CLICK] button. When the

click plays at the current Time Signature and Tempo (displayed in the top left

corner of the LCD), the beat indicators will swing accordingly. You can set the

time signature and interval, adjust the click volume and select the click sound

in the CLICK menu.

1. Press the [CLICK] button.

Start the metronome with click sound.

2. Press the [PAGE] button to select the click menu pages and press the [ - ] or

[+ ] button to adjust the parameters.

3. Press the [CLICK] button again.

Stop the metronome and exit the click menu.

You may wish to adjust the sensitivity of the pads according to your playing

style and desired dynamic range.

1. Press the [UTILITY] button

The UTILITY indicator appears.

2. Strike a pad or press a pad select button to select the one whose sensi-

tivity is to be adjusted. The PAD indicator shows the current selected pad.

3. Press the [ - ] or [ + ] button to adjust the sensitivity.

4. Press the [SAVE] button to save the current setting.

For details on pad adjustments, refer to Advanced Use.

You can adjust the tempo of the Metronome, the current song, and the current

learning pattern. The current tempo always displays in the top left corner of

the LCD.

1. Press the [TEMPO] button.

2. Press the [ - ] or [ + ] button.

Adjust the current tempo.

3. Press both [ - ] and [ + ] buttons at the same time, reset the current tem-

po to its default value.

NOTE:

If there’s no operation, it will return to the previous menu page automatically

after 3 seconds.

ADJUSTING THE SENSITIVITY OF A PAD

USING THE METRONOME/CLICK FEATURE

ADJUSTING THE TEMPO

EDITING AND SAVING A DRUM KIT

ADJUSTING VOLUME OF A DRUM KIT

1. Press the [SAVE] button.

The number of user kit will be ashed.

2. Press the [ - ] or [ +] button.

Select a user kit to save your settings. (No. 46-70)

3. Press the [SAVE] button again.

Save the setting to the selected user kit.

1. Press the [KIT] or [PAGE] button.

Select the Kit Volume page.

2. Press the [ - ] or [ +] button.

Adjust the kit volume.

1. Press the [KIT] or [PAGE] button.

Select the Global Reverb page and EQ pages.

2. Press the [ - ] or [ + ] button.

Switch Reverb ON or OFF.

Set the gain of three-band EQ (high, middle, low)

1. Press the [VOICE] button.

Select the Pad Voice page.

2. Press the [ - ] or [ +] button.

Select the drum instrument of the selected pad. Please refer to Drum Instru-

ment List.

1. Press the [VOICE] or [PAGE] button.

Select the Pad Volume, Pad Pan, and Pad Pitch pages.

2. Press the [ - ] or [ +] button.

Adjust the corresponding parameter.

1. Press the [VOICE] or [PAGE] button.

Select the Pad Song and Song Number pages.

2. Press the [ - ] or [ + ] button.

Switch the Pad Song function ON or OFF. Select the Song that begins playing

when the following pad is struck.

IN KIT MENU, YOU CAN MODIFY THE PARAMETERS AS YOU LIKE AND SAVE TO THE SELECTED USER KIT.

SWITCHING REVERB ON/OFF AND SETTING EQ

SELECTING THE DRUM INSTRUMENT OF THE PAD

ADJUSTING VOLUME, PAN AND PITCH OF PAD

SETTING PADS TO PLAY SONGS

SAVING THE EDITED KIT

HINT:

If the edited kit isn’t saved before selecting another kit,

powering down the digital drum, the changes will be

lost.

Indice

Altri manuali KAT Tamburo

KAT

KAT multipad KTMP1 Manuale utente

Manuali Tamburo popolari di altre marche

Yamaha

Yamaha RX-21 Manuale utente

Roland

Roland TD-9K Manuale utente

Sudoku

Sudoku LEXUS Manuale utente

Roland

Roland CR-80 Manuale utente

V-Drums

V-Drums V-Tour TD-9KX2 Manuale utente

Yamaha

Yamaha DTXPLORER Manuale utente

Cherub

Cherub WRW-206 Manuale utente

Opti-Med

Opti-Med JM-D1 Series Manuale utente

Roland

Roland CR-80 Manuale utente

Yamaha

Yamaha DTS70 Manuale utente

Yamaha

Yamaha DTXPRESS Manuale utente

Roland

Roland RM-2 Manuale utente

ATV

ATV aD5 Manuale utente

Alesis

Alesis DM Pro Kit Manuale utente

Roland

Roland TR-808 Manuale utente

Roland

Roland SPD-20 Manuale operativo e di manutenzione

Koma Elektronik

Koma Elektronik RH 301 Manuale utente

Roland

Roland TR-8 Manuale utente
