Keebox W150NR Manuale utente
1
User Manual
KEEBOX
W150NR
Wireless N 150 Home Router
2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in
any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their
respective companies. They are used for identification purpose only. Specifications are subject
to be changed without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against radio interference in a commercial environment. This equipment can
generate, use and radiate radio frequency energy and, if not installed and used in accordance
with the instructions in this manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference, in which case
the user, at his own expense, will be required to take whatever measures are necessary to
correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
The specification is subject to change without notice.
3
Table of Contents
Chapter 1 Introduction ........................................................................... 4
1.1 Packing List ................................................................................. 4
1.2 Spec Summary Table ................................................................. 5
1.3 Hardware Configuration............................................................. 7
1.4 LED indicators............................................................................. 8
1.5 Button Definition.......................................................................... 8
1.6 Procedure for Hardware Installation........................................ 9
Chapter 2 Getting Start........................................................................ 11
Chapter 3 Making Configuration ........................................................ 17
3.1 Login to Configure from Wizard.............................................. 18
3.2 System Status ........................................................................... 22
3.3 Advanced ................................................................................... 22
3.3.1 Basic Setting .......................................................................... 22
3.3.2 Forwarding Rules .................................................................. 37
3.3.3 Security Settings.................................................................... 41
3.3.4 Advanced Settings ................................................................ 55
3.3.5 Toolbox.................................................................................... 65
Appendix A FAQ and Troubleshooting ............................................. 68
What can I do when I have some trouble at the first time? ...... 68
How do I connect router by using wireless? ............................... 70
4
C
C
Ch
h
ha
a
ap
p
pt
t
te
e
er
r
r
1
1
1
I
I
In
n
nt
t
tr
r
ro
o
od
d
du
u
uc
c
ct
t
ti
i
io
o
on
n
n
Congratulations on your purchase of this outstanding Wireless Broadband Router. This
product is specifically designed for Small Office and Home Office needs. It provides a
complete SOHO solution for Internet surfing, and is easy to configure and operate even for
non-technical users. Instructions for installing and configuring this product can be found in this
manual. Before you install and use this product, please read this manual carefully for fully
exploiting the functions of this product.
1.1 Packing List
items Description Contents Quantity
1 Wireless N150 Home
Router
1
3 Power adapter 5V 1A
1
4 CD
1
zWireless N 150 Home Router unit
zInstallation CD-ROM
zPower adapter
5
1.2 Spec Summary Table
Device Interface
Ethernet WAN RJ-45 port, 10/100Mbps,
auto-MDI/MDIX 1
Ethernet LAN RJ-45 port, 10/100Mbps,
auto-MDI/MDIX 4
Antenna 2 dBi fixed antenna 1
WPS
Button/Wireless On
For WPS connection and Enable
“Wireless Function” 1
Reset Button Reset to Factory Default setting 1
LED Indication Status / WAN / LAN1 ~ LAN4/ WiFi ●
Power Jack DC Power Jack, powered via external
DC 5V/1A switching power adapter 1
Wireless LAN (WiFi)
Standard IEEE 802.11b/g compliance ●
SSID SSID broadcast or in stealth mode ●
Channel Auto-selection, manually ●
Security WEP, WPA, WPA-PSK, WPA2,
WPA2-PSK
●
WPS WPS (Wi-Fi Protected Setup) ●
WMM WMM (Wi-Fi Multimedia) ●
Functionality
Ethernet WAN PPPoE, DHCP client, Static IP ●
WAN Connection Auto-reconnect, dial-on-demand,
manually
●
One-to-Many NAT Virtual server, special application, DMZ,
Super DMZ(IP pass-through)
●
NAT Session Support NAT session 10000
SPI Firewall IP/Service filter, URL blocking. ●
DoS Protection DoS (Deny of Service) detection and
protection
●
Routing Protocol Static route, dynamic route (RIP v1/v2) ●
Management SNMP, UPnP IGD, syslog, DDNS ●
Administration Web-based UI, remote login,
backup/restore setting
●
Performance NAT up to 90Mbps and Wireless up
6
to70Mbps
Environment & Certification
Package
Information
DC 5V/1A power adapter, Quick
Installation Guide
Device dimension (mm)
Package dimension (246x210x62mm)
SP/MP/ZP 156x110x22
Package dimension (214x146x69mm)
PP
●
Package
Information
Package dimension (290x234x100mm)
AP
○
Operation Temp Temp.: 0~40oC, Humidity 10%~90%
non-condensing
●
Storage Temp Temp.: -10~70oC, Humidity: 0~95%
non-condensing
●
EMI Certification CE/FCC compliance ●
RoHS RoHS compliance ●
*Specifications are subject to change without prior notice.
7
1.3 Hardware Configuration
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of WAN
and LAN when connecting to Ethernet
Reset Button
Antenna
Power Jack
8

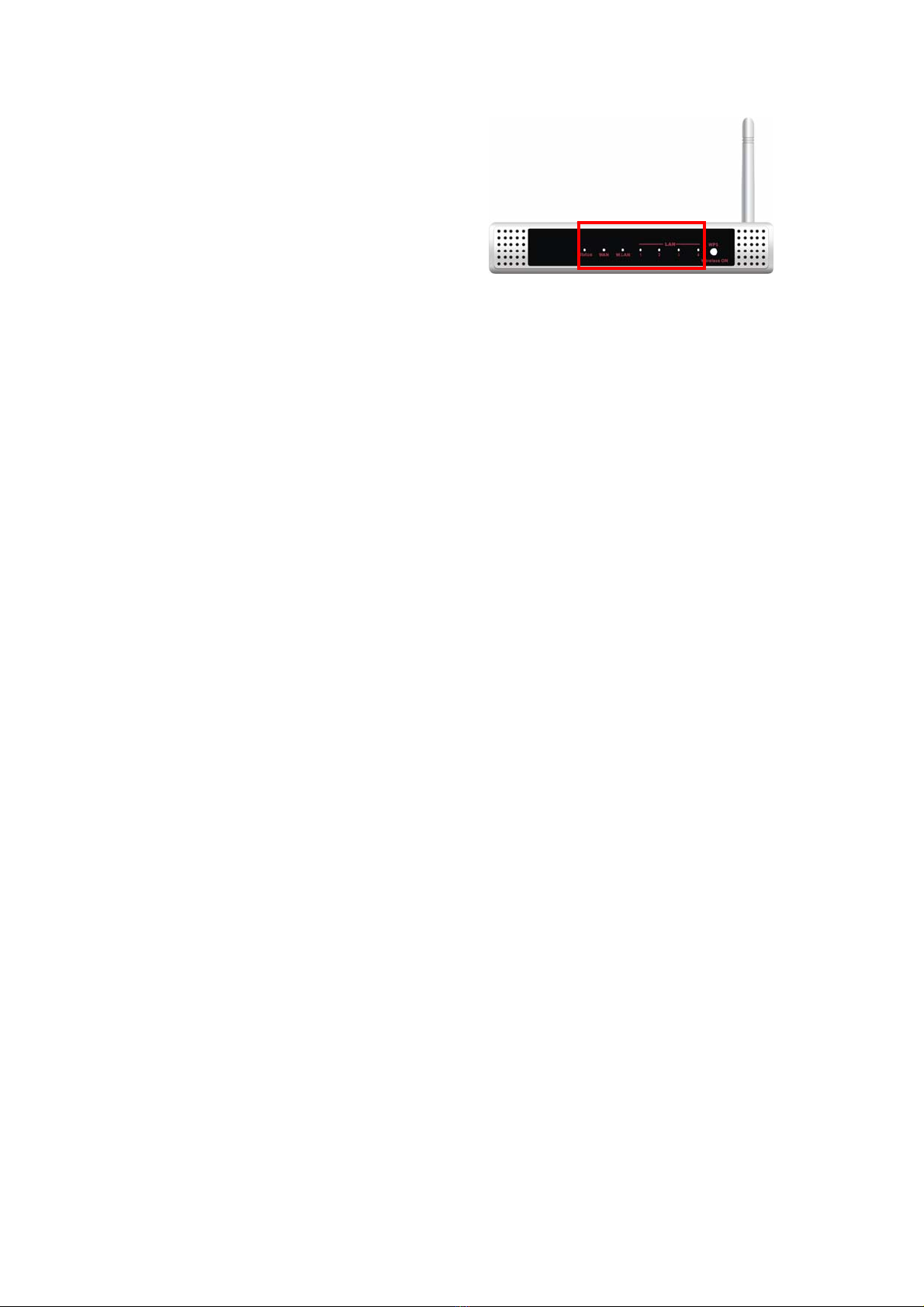

1.4 LED indicators
LED status Description
Status Green in flash Device status is working.
Green RJ45 cable is pluggedWAN LED
Green in flash Data access
Green RJ45 cable is plugged
LAN LED
Green in flash Data access
Green WLAN is on
Green in flash Data access
Green in fast flash Device is in WPS PBC mode
WiFi LED
Green in dark Wi-Fi Radio is disabled
1.5 Button Definition
LAN1~LAN4
LEDs
Wi-Fi
LED
WAN
LED
2 in1 Button
1. WPS
2. Wireless On
Status
LED
9
Description
Enable
“Wireless”
and WPS
1. When Wireless is off, press this button (about 1 sec) to enable
"Wireless Radio".
2. When Wireless is On, press this button (about 1 sec)to execute
WPS function.
Reset Press (6) sec to reset to default when the device works
simultaneously.
1.6 Procedure for Hardware Installation
Step 1 Insert the Ethernet cable into LAN
Port:
Insert the Ethernet patch cable into LAN port
on the back panel of Router, and an available
Ethernet port on the network adapter in the
computer you will use to configure the unit.
Step 2 Insert the Ethernet patch cable into
Wired WAN port:
Insert the Ethernet patch cable form DSL
Modem into Wired WAN port on the back panel
of Router.
Step 3 Power on Router:
Connect the power adapter to the receptor on
the back panel of your Router.
10
Step 5. Complete the setup.
When complete, the Status LED will flash.
