Ken A Vision Digital CoreScope 2 T-17541C Manuale utente

Digital C reSc pe 2

Instruction Manual

T-17541C

Table f C ntents

Introduction 2

Packing Contents 2

Microscope Set-up Guide 3

Specifications 5

Troubleshooting 6

Intr ducti n

Thank you for purchasing the Digital CoreScope 2. This ¾-sized

digital compound microscope is specifically designed to have all the

components of our full-sized digital microscope powered by a USB 2.0

cable that is ideal for classroom and field use. The Digital CoreScope

2 allows users to view microscopic specimens with a 2.07 megapixel

digital camera with our high-quality objective lenses that will magnify

40-400 times. Combined with Ken-A-Vision’s Applied Vision™ Software,

this microscope is a powerful product allowing the user to take digital

pictures, annotate images, to make measurements, and record full

length or time-lapse videos that add to the classroom and educational

experience.

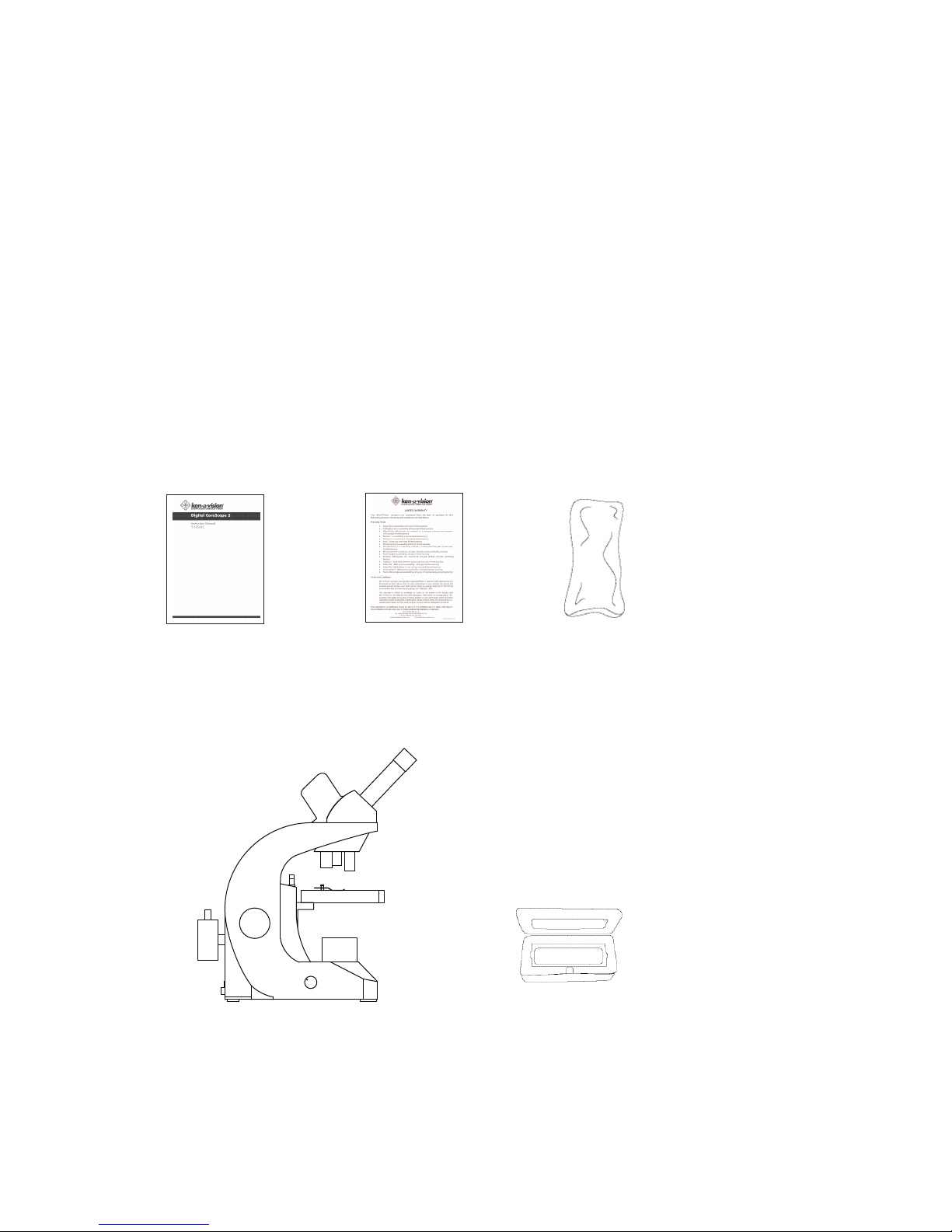

Packing C ntents

Warranty SheetInstruction

Manual

Microscope

Cover

Digital CoreScope 2 Slide Micrometer

Micr sc pe Set-up Guide

The Digital CoreScope 2 compound microscope can be set up in

a matter of minutes. To get the most out of this amazing teaching

tool, follow these step-by-step instructions:

1. After unpacking the box, take the Applied Vision™

Software CD and insert it into your computer to

install.

NOTE: For a complete instruction manual of Applied Vision

Software, refer to the .pdf version on www.ken-a-vision.com.

2. Follow the directions to install the software. Once

completed, an Applied Vision icon should appear

on your desktop.

3. Remove the Applied Vision CD from your

computer.

4. Remove the Digital CoreScope 2 from the plastic

bag and remove the protective coverings from the

objective lenses and the eyepiece.

5. Place the microscope on a flat, firm surface next to

the computer with the installed Applied Vision

Software.

6. Check the coarse focus knob on either side of the

main body support. The coarse focus knobs should

turn easily.

NOTE: The stage should move freely up and down the main body

support when focusing. When you release the knob, the stage

should remain stationary, and not slide down the post on its own.

7. The Digital CoreScope 2 is powered two (2) ways:

a. by the USB 2.0 cable when plugged into a

computer’s USB port.

b. by the USB power adapter that fits on the

end of the USB plug inserted into an

electrical outlet or a Ken-A-Vision®

multicharger.

NOTE: The microscope batteries will not charge when connected

to a computer via USB. To recharge the batteries, connect the USB

cable to the USB power adapter and plug the adapter into a power

outlet.

c. Once finished charging, store the USB cord

and the USB power adapter in the charging

docking area on the back of the

microscope.

8. Reboot your computer and insert the USB plug of

the digital microscope and insert it into the USB port

of the computer with Applied Vision™ Software

installed.

9. Place a prepared slide on the stage and move it into

position for viewing.

10. Start with the 4x objective by raising the stage with

the coarse focus knobs until it will go no higher.

11. Lower the stage slowly to bring it into focus using

the coarse focus knobs

12. To sharpen the image, adjust with the fine focus

knobs.

13. Once the computer is rebooted, launch the Applied

Vision Software.

14. The image that is being viewed through the

eyepiece of the microscope should be displayed on

the computer screen.

15. Once the image appears on the computer screen,

simply turn the nosepiece to the next higher

objective lens and do minor adjustments with the

fine focus knobs.

NOTE: If the image on the screen is flickering, reduce the amount

of light entering through the iris diaphragm and rheostat (light

dimmer).

16. After obtaining focus of the specimen on the

computer screen, adjust the diopter on the eyepiece

tube for individual eye correction when viewing

through the microscope.

Specificati ns

Product configuration T-17541C

Stand/Frame

SC601C PrepScope 2 - Coarse focus stand 3 hole nose piece

SC1002C CoreScope 2 - Coarse and fine focus stand 3 hole nose piece X

SC1022C CoreScope 2 - Coarse and fine focus stand 4 hole nose piec

Standard Features

Charger Docking Area X

Built-in Handle X

Green Battery™ X

Cordless Rechargeable X

COOL LIGHT™ illumination X

3/4 size Microscope X

3 hole reversed nose piece X

4 hole nose piece

Heads

SC1002MH Monocular Head with 10x eyepiece Student Proofed

SC1002DH Dual Viewing Head 10x eyepieces Student Proofed

SC1002BH Binocular Head with 10x eyepieces Student Proofed (slide)

SC1002CMH Monocular Head with built in digital 2.07 megapixel camera X

Stage

SC601SS Prep/Core Standard Stage with 5 hole disc Diaphram

SC1001FS Prep/Core Floating Stage with built in Condensing Lens X

SC1001MS Prep/Core Mechanical Stage with Abbe Condenser

Detail Individual Configurations

Eyepieces

SC100EP5 5x

SC100EP10 10X X

SC100EP15 15x

SC100EP20 20x

Objectives

SC1001OB4 4x X

SC1001OB10 10x X

SC1001OB40 40x X

SC1001OB60 60x

SC1001OB100 100x

Optional

SCGN061 Multicharger 2

KAVCOVER Dust Cover

AV NET

Tr ublesh ting

This section provides many useful tips on how to solve common problems

while setting up or using the Digital CoreScope 2 compound

microscope:

I can’t see an image. I can only see a partial image.

• Check to see if the USB plug is in the USB port of the

computer with Applied Vision™ Software, the power

supply is plugged into an outlet, or the battery is charged

if using cordless.

• Check to see if the objective lens is clicked into place.

• Check to see if the LED lights are turned on by switching

the power button on the back of the microscope. A red

indicator light should glow if the LED lights are on.

• Check to see if the dimmer switch (rheostat) is turned

clockwise to allow the intensity of light to increase.

• Close Applied Vision and then reboot Applied Vision to

activate the camera.

It is difficult to get an image in focus.

• Adjust the coarse focus knobs slowly.

• Turn the objective lens until you hear it click into

place.

• If the image is focused on the computer screen, adjust

the diopter on the eyepiece tube to focus for the user’s

individual vision when viewing through the eyepiece.

• Check to see if the there has been damage to the

objective lenses and eyepiece. If the lens/eyepiece is

dirty, use lens paper and distilled water to rub gently

clean.

NOTE: ever rub the lens/eyepiece when it is dry. This can cause static

charge that will attract dirt.

C rp rate Headquarters

Ken-A-Visi n Mfg. C ., Inc.

5615 Raytown Road

Kansas City, MO 64133 U.S.A.

Tel.: +1-816-353-4787

Fax: +1-816-358-5072

[email protected]

INS-SC1002C

owners. No art of the contents of this ublication may be re roduced or transmitted in any form without the

written ermission of Ken-A-Vision Mfg. Co., Inc.

Ken-A-Vision Mfg. Co., Inc. reserves the right to make design im rovements and other changes in

accordance with the latest technology. There is no obligation to make changes in roducts already

manufactured.

www.kenavisi n.c m

Internati nal Office

Ken-A-Visi n Internati nal GmbH

Alte Bohle 33

D-50321 Brühl, Germany

Tel.: +49-2232-28197

Fax: +49-2232-200897

[email protected]
