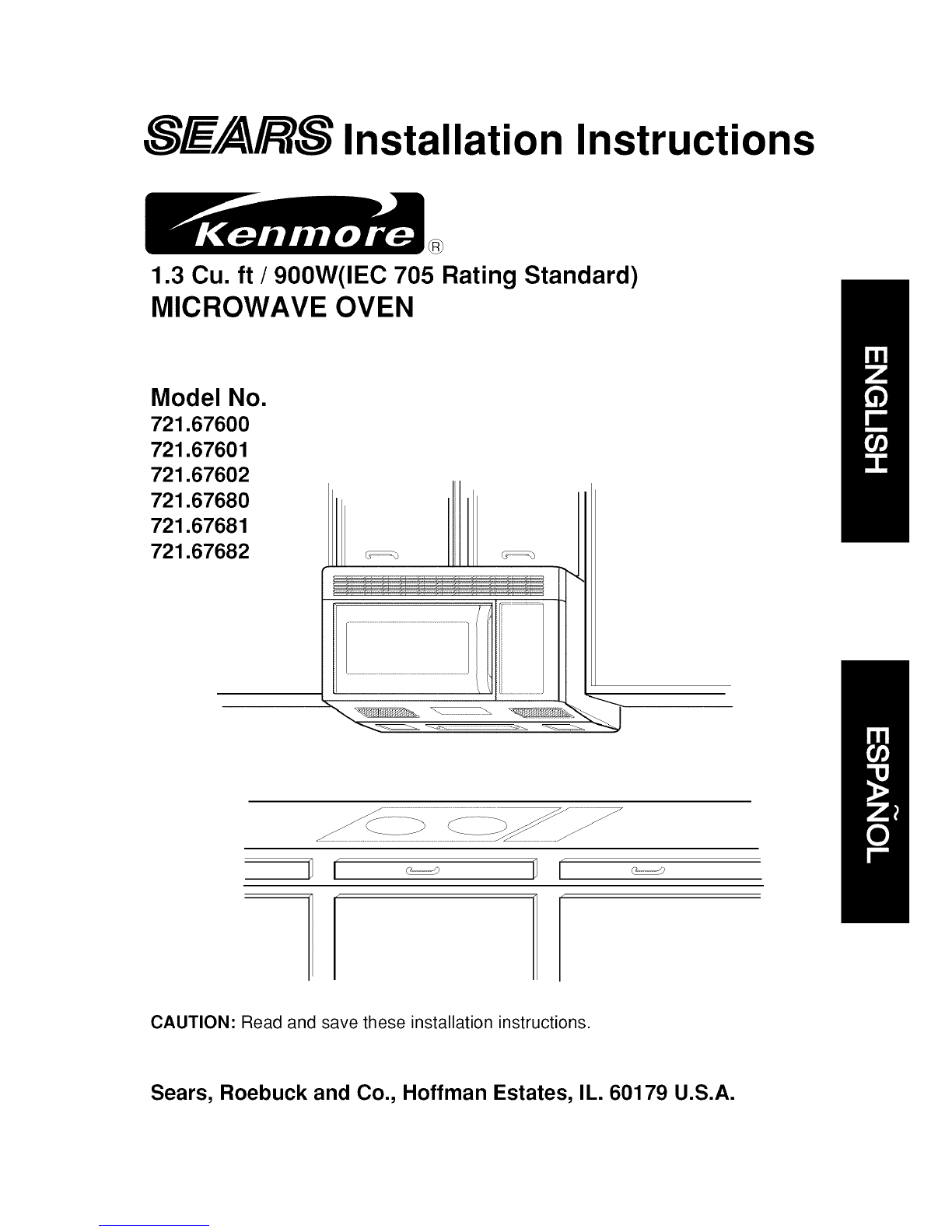

SEARS Installation Instructions

1.3 Cu. ft /900W(IEC 705 Rating Standard)

MICROWAVE OVEN

Model No.

721.67600

721.67601

721.67602

721.67680

721.67681

721.67682

m]_l / ___ _l j _

CAUTION: Read and save these installation instructions.

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

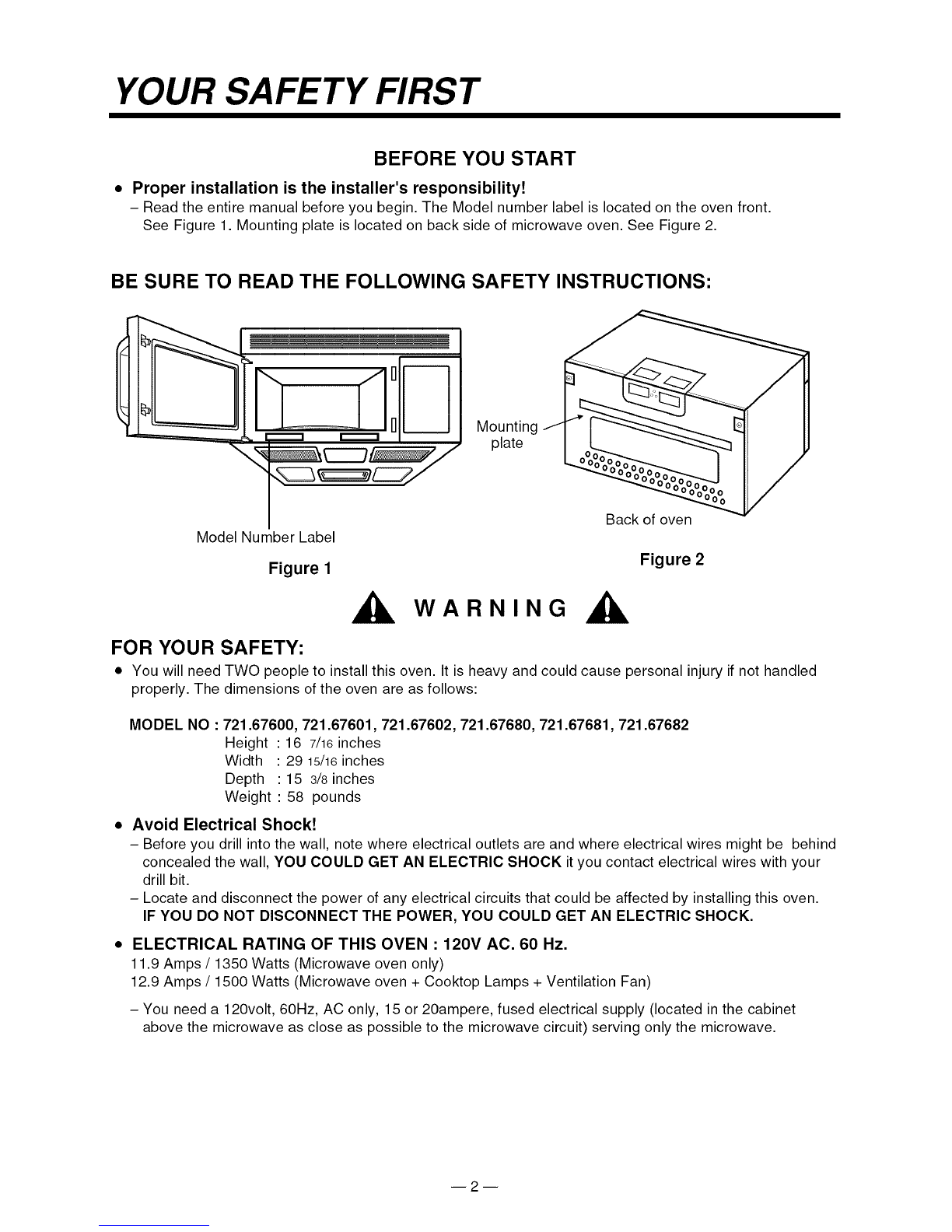

YOUR SAFETY FIRST

BEFORE YOU START

•Proper installation is the installer's responsibility!

- Read the entire manual before you begin. The Model number label is located on the oven front.

See Figure 1. Mounting plate is located on back side of microwave oven. See Figure 2.

BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:

Model Number Label

Figure 1

Mounting

plate

Back of oven

Figure 2

WARNING

FOR YOUR SAFETY:

• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled

properly. The dimensions of the oven are as follows:

MODEL NO : 721.67600, 721.67601,721.67602, 721.67680, 721.67681,721.67682

Height :16 7/16inches

Width : 29 16/16inches

Depth : 15 3/8 inches

Weight : 58 pounds

•Avoid Electrical Shock!

- Before you drill into the wall, note where electrical outlets are and where electrical wires might be behind

concealed the wall, YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires with your

drill bit.

- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.

IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.

•ELECTRICAL RATING OF THIS OVEN : 120V AC. 60 Hz.

11.9 Amps /1350 Watts (Microwave oven only)

12.9 Amps /1500 Watts (Microwave oven + Cooktop Lamps + Ventilation Fan)

- You need a 120volt, 60Hz, AC only, 15 or 20ampere, fused electrical supply (located in the cabinet

above the microwave as close as possible to the microwave circuit) serving only the microwave.

YOUR SAFETY FIRST

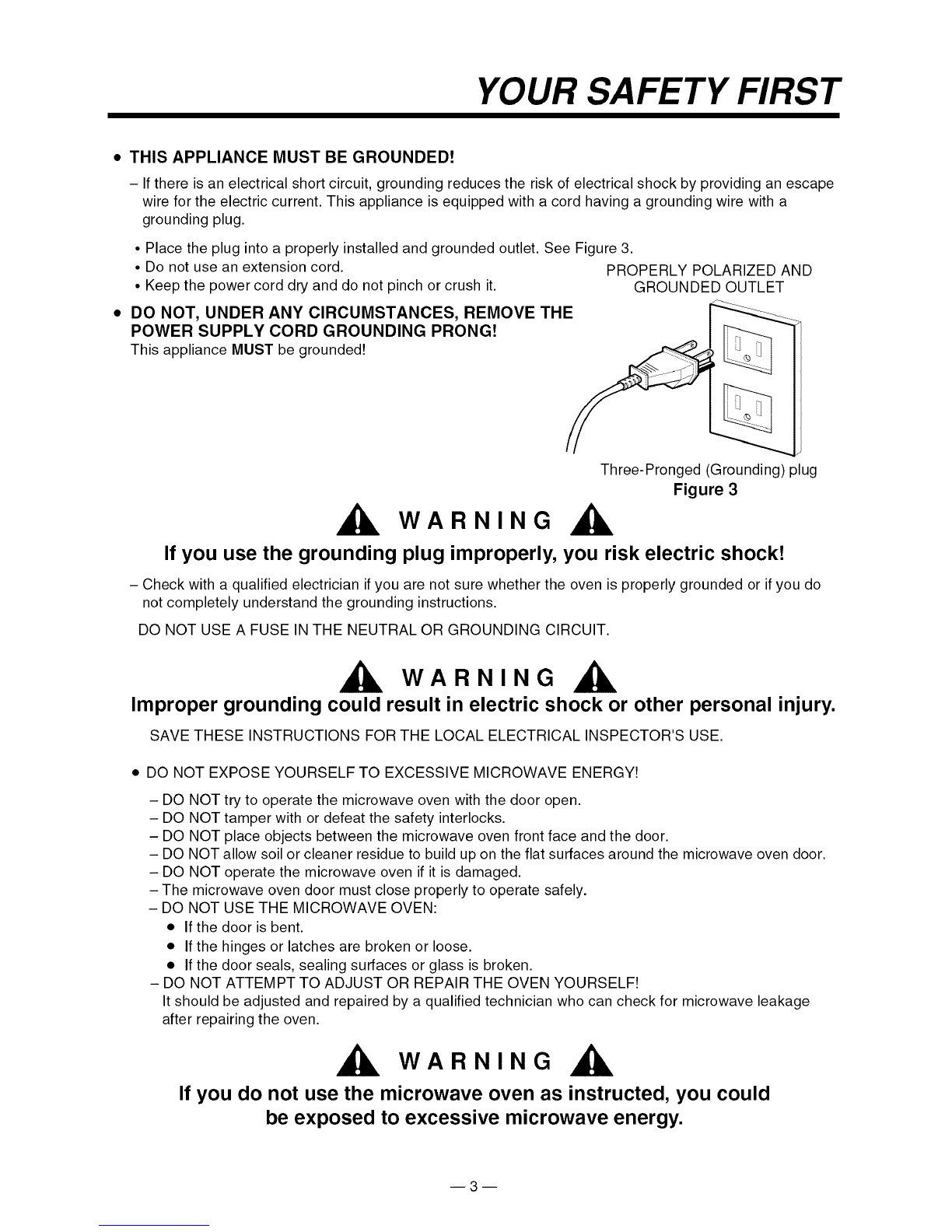

• THIS APPLIANCE MUST BE GROUNDED!

- Ifthere is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape

wire for the electric current. This appliance is equipped with a cord having a grounding wire with a

grounding plug.

• Place the plug into a properly installed and grounded outlet. See Figure 3.

• Do not use an extension cord. PROPERLY POLARIZED AND

• Keep the power cord dry and do not pinch or crush it. GROUNDED OUTLET

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE __

POWER SUPPLY CORD GROUNDING PRONG!

This appliance MUST be grounded?

Three-Pronged (Grounding) plug

Figure 3

_, WARNING _,

If you use the grounding plug improperly, you risk electric shock!

- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do

not completely understand the grounding instructions.

DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.

WARNING

Improper grounding could result in electric shock or other personal injury.

SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

• DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY?

- DO NOT try to operate the microwave oven with the door open.

- DO NOT tamper with or defeat the safety interlocks.

- DO NOT place objects between the microwave oven front face and the door.

- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.

- DO NOT operate the microwave oven if it is damaged.

- The microwave oven door must close properly to operate safely.

- DO NOT USE THE MICROWAVE OVEN:

• If the door is bent.

• If the hinges or latches are broken or loose.

• If the door seals, sealing surfaces or glass is broken.

- DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF?

It should be adjusted and repaired by a qualified technician who can check for microwave leakage

after repairing the oven.

WARNING

If you do not use the microwave oven as instructed, you could

be exposed to excessive microwave energy.

YOUR SAFETY FIRST

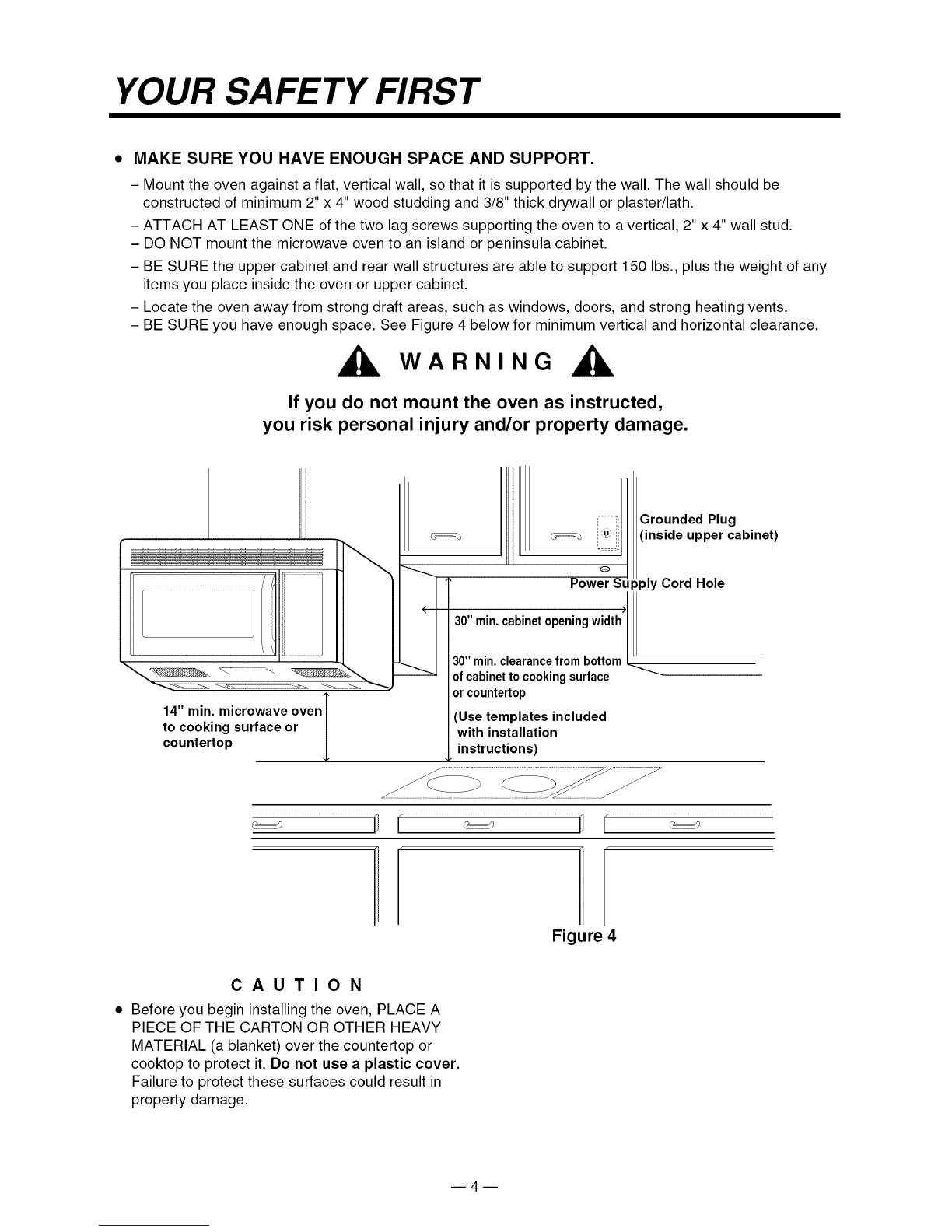

•MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.

- Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be

constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.

- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.

- DO NOT mount the microwave oven to an island or peninsula cabinet.

- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of any

items you place inside the oven or upper cabinet.

- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

- BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.

WARNING

If you do not mount the oven as instructed,

you risk personal injury and/or property damage.

ii Grounded Plug

_-b i,,,, i (inside upper cabinet)

Power St I ply Cord Hole

)

30"min.cabinetopeningwidth

30"min. clearancefrom bottom

of cabinetto cooking surface

orcountertop

(Use templates included

with installation

instructions)

[........................................................................................................................................................................................................................................

Figure 4

CAUTION

• Before you begin installing the oven, PLACE A

PIECE OF THE CARTON OR OTHER HEAVY

MATERIAL (a blanket) over the countertop or

cooktop to protect it. Do not use a plastic cover.

Failure to protect these surfaces could result in

property damage.

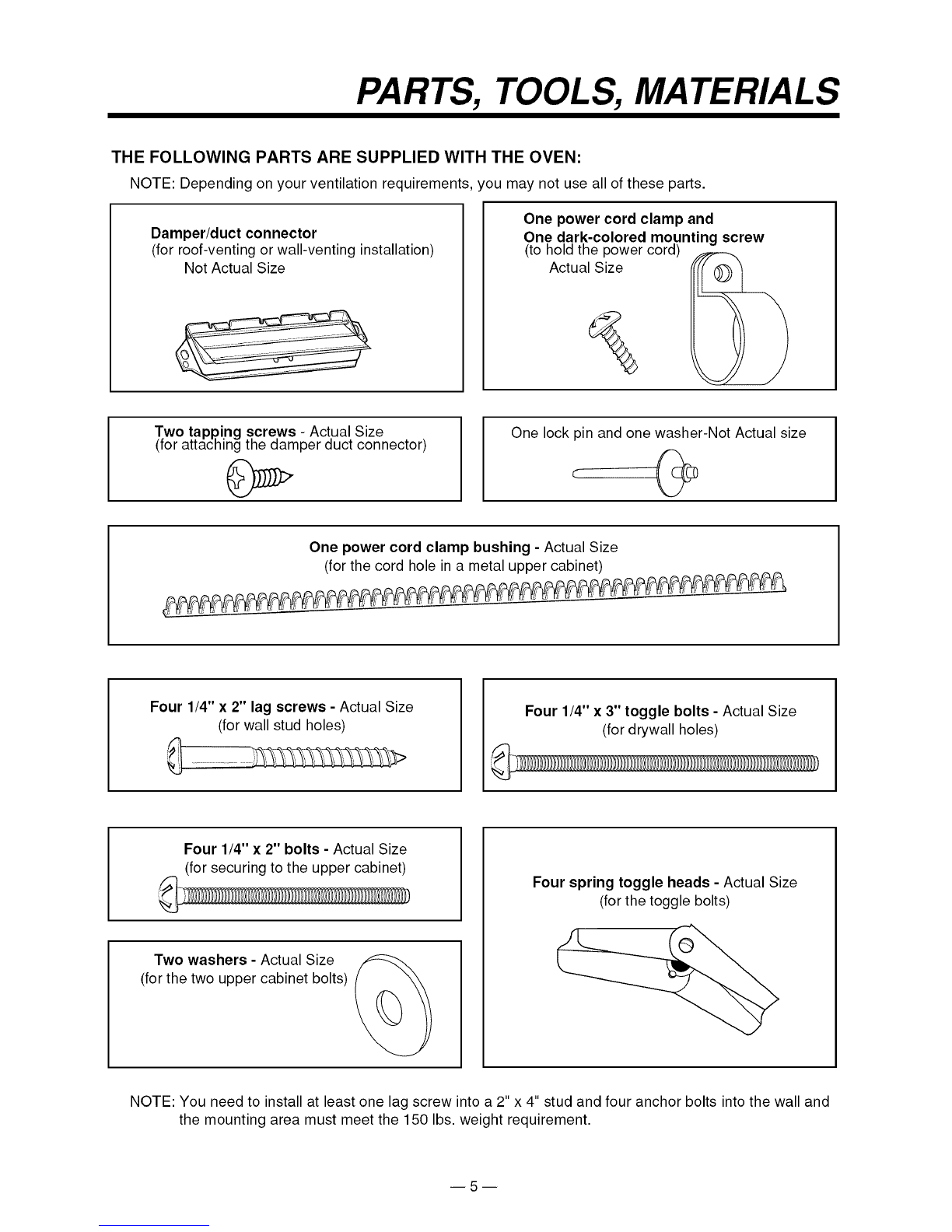

PARTS, TOOLS, MATERIALS

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:

NOTE: Depending on your ventilation requirements, you may not use all of these parts.

Damper/duct connector

(for roof-venting or wall-venting installation)

Not Actual Size

One powercord clamp and

Onedark-colored mounting screw

(to hold the power cord)

Actual Size

Two tapping screws - Actual Size

(for attaching the damper duct connector) One lock pin and one washer-Not Actual size

One power cord clamp bushing - Actual Size

(for the cord hole in a metal upper cabinet)

Four 1/4" x 2" lag screws - Actual Size

(for wall stud holes) Four 1/4" x 3" toggle bolts - Actual Size

(for drywall holes)

Four 1/4" x 2" bolts - Actual Size

(for securing to the upper cabinet)

Two washers - Actual Size

(for the two upper cabinet bolts)

Four spring toggle heads - Actual Size

(for the toggle bolts)

NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall and

the mounting area must meet the 150 Ibs. weight requirement.

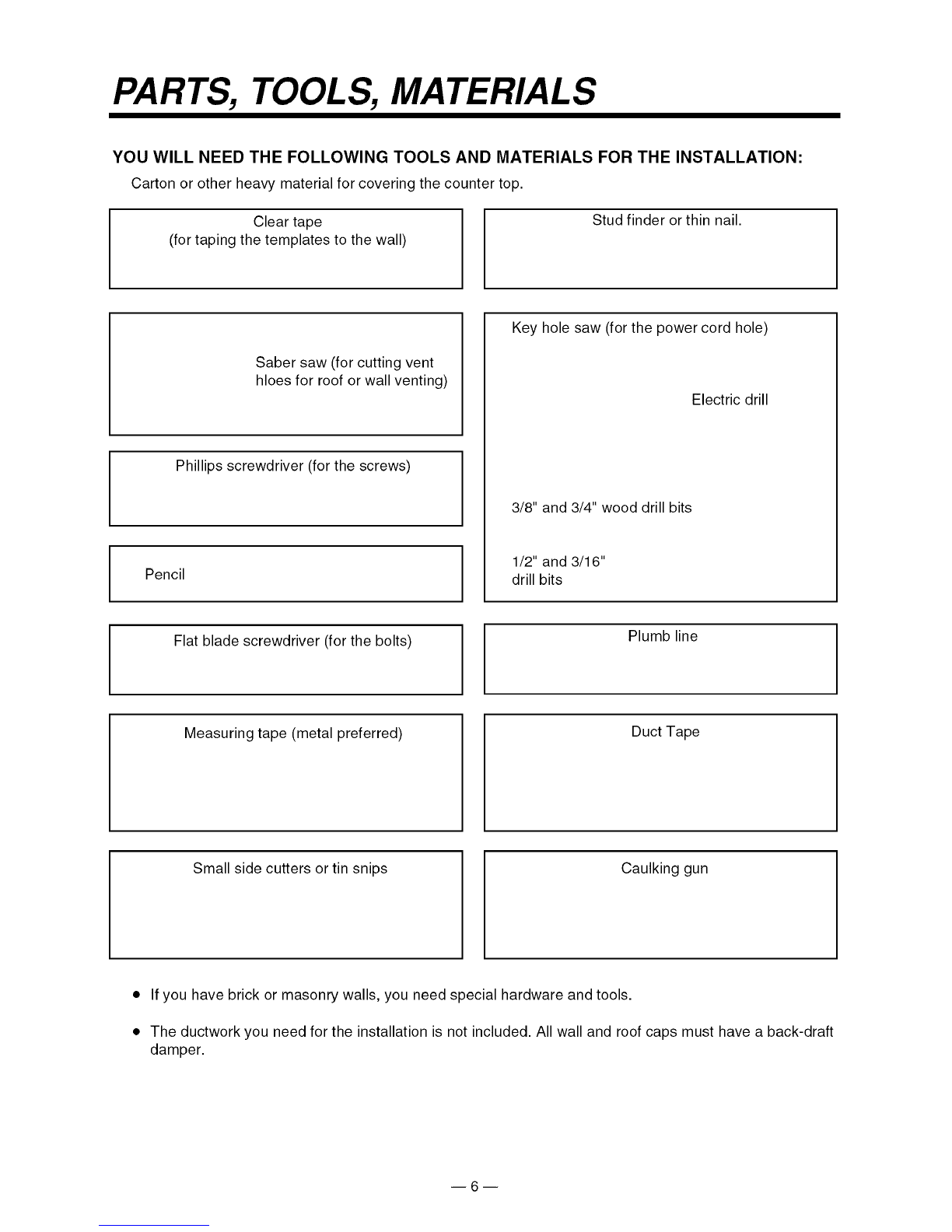

PARTS, TOOLS, MATERIALS

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:

Carton or other heaw material for covering the counter top.

Clear tape

(for taping the templates to the wall) Stud finder or thin nail.

Key hole saw (for the power cord hole)

Saber saw (for cutting vent

hloes for roof or wall venting)

Phillips screwdriver (for the screws)

Pencil

Flat blade screwdriver (for the bolts)

Measuring tape (metal preferred)

Electric drill

3/8" and 3/4" wood drill bits

1/2" and 3/16"

drill bits

Plumb line

Duct Tape

Small side cutters or tin snips Caulking gun

• If you have brick or masonry walls, you need special hardware and tools.

• The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft

damper.

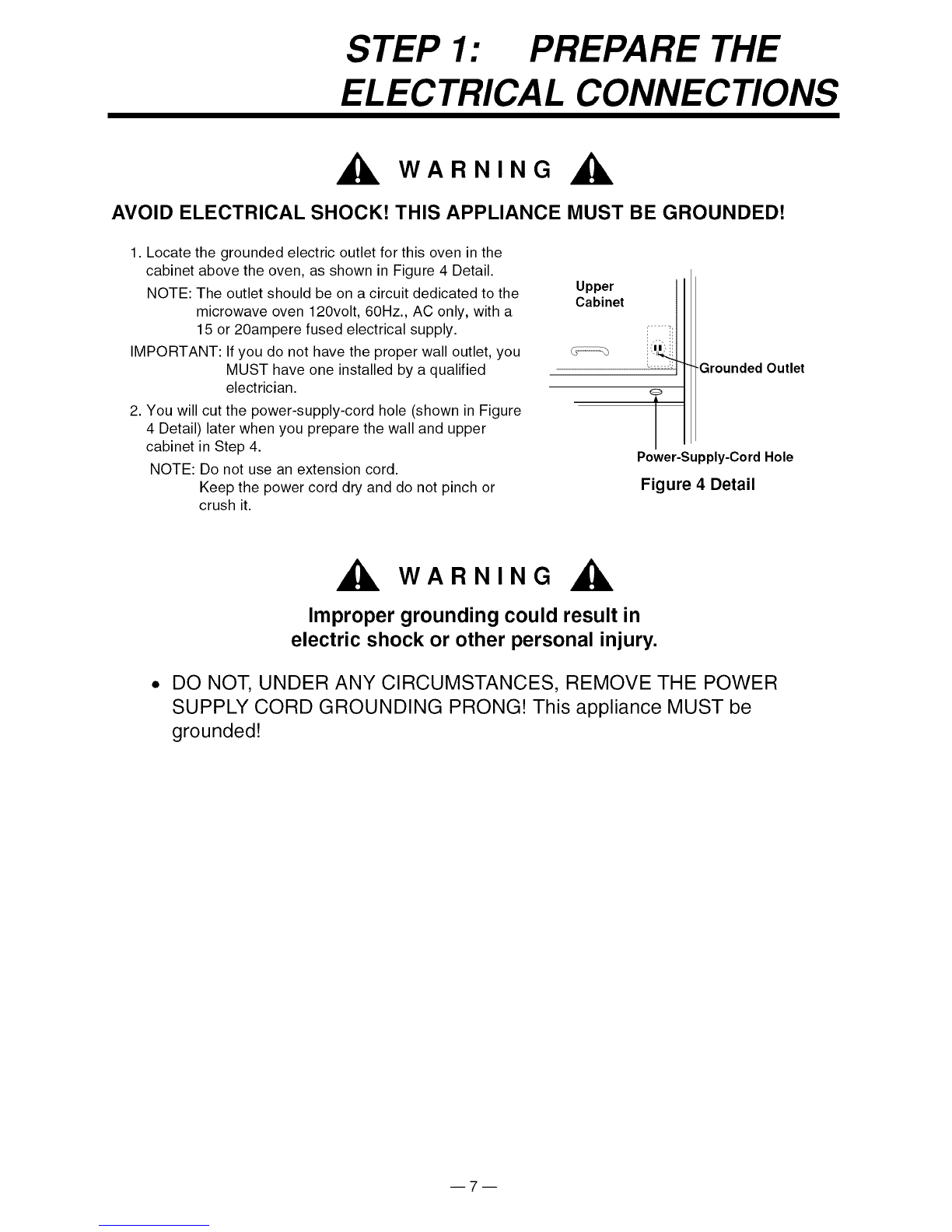

STEP 1: PREPARE THE

ELECTRICAL CONNECTIONS

_k, WARNING _k,

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

1. Locate the grounded electric outlet for this oven in the

cabinet above the oven, as shown in Figure 4 Detail.

NOTE: The outlet should be on a circuit dedicated to the

microwave oven 120volt, 60Hz., AC only, with a

15 or 20ampere fused electrical supply.

IMPORTANT: If you do not have the proper wall outlet, you

MUST have one installed by a qualified

electrician.

2. You will cut the power-supply-cord hole (shown in Figure

4 Detail) later when you prepare the wall and upper

cabinet in Step 4.

NOTE: Do not use an extension cord.

Keep the power cord dry and do not pinch or

crush it.

Upper

Cabinet

-Grounded Outlet

Power-Supply-CordHole

Figure 4 Detail

_k, WARNING

Improper grounding could result in

electric shock or other personal injury.

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER

SUPPLY CORD GROUNDING PRONG! This appliance MUST be

grounded!

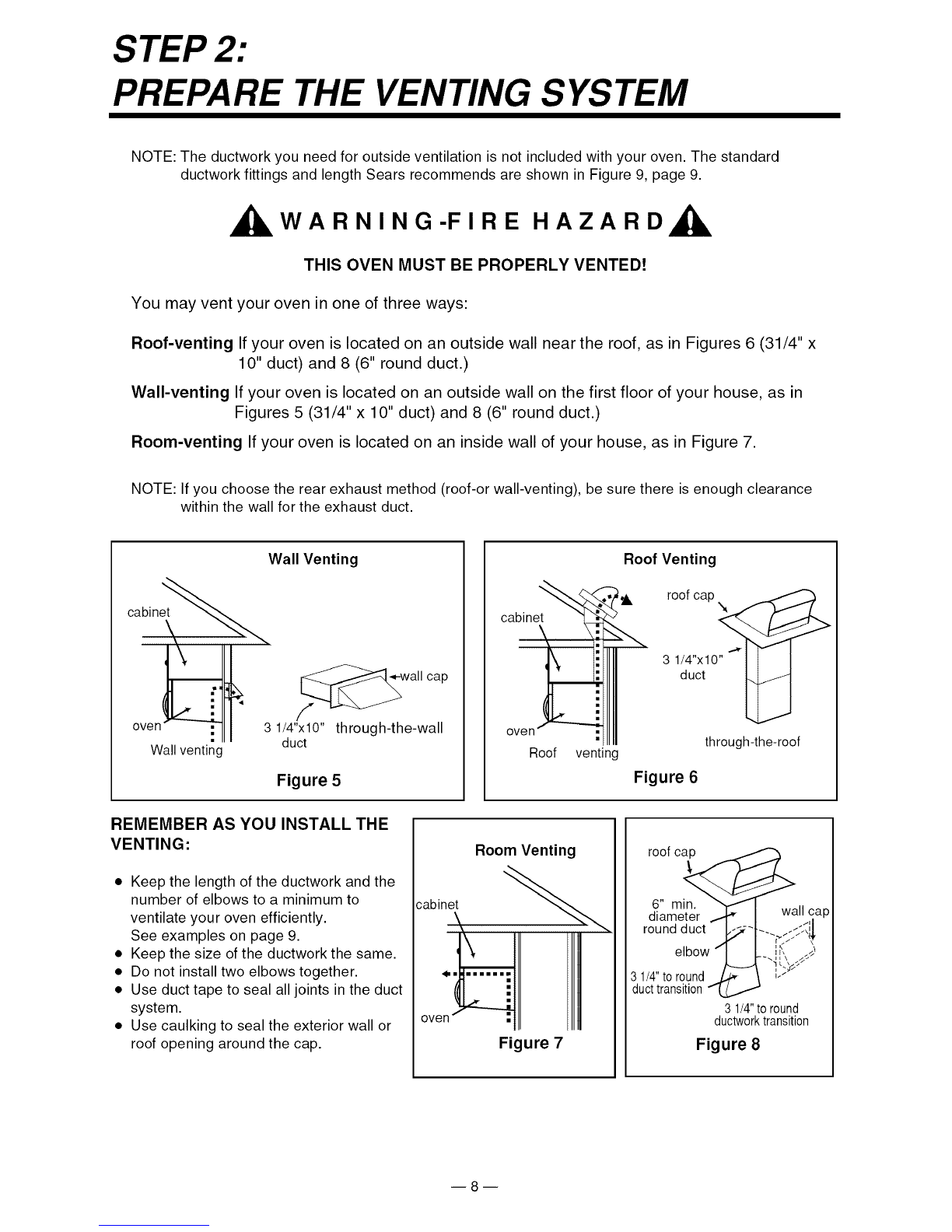

STEP 2:

PREPARE THE VENTING SYSTEM

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard

ductwork fittings and length Sears recommends are shown in Figure 9, page 9.

WARNING-FIRE HAZARD

THIS OVEN MUST BE PROPERLY VENTED!

You may vent your oven in one of three ways:

Roof-venting If your oven is located on an outside wall near the roof, as in Figures 6 (31/4" x

10" duct) and 8 (6" round duct.)

Wall-venting If your oven is located on an outside wall on the first floor of your house, as in

Figures 5 (31/4" x 10" duct) and 8 (6" round duct.)

Room-venting If your oven is located on an inside wall of your house, as in Figure 7.

NOTE: If you choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance

within the wall for the exhaust duct.

cabinet

Wall venting

Wall Venting

3 1/4"x10"

duct through-the-wall

Figure 5

cabinet

O_,

Roof venting

Roof Venting

duct _

through-the-roof

Figure 6

REMEMBER AS YOU INSTALL THE

VENTING:

• Keep the length of the ductwork and the

number of elbows to a minimum to

ventilate your oven efficiently.

See examples on page 9.

• Keep the size of the ductwork the same.

• Do not install two elbows together.

• Use duct tape to seal all joints in the duct

system.

• Use caulking to seal the exterior wall or

roof opening around the cap.

cabinet

OV_

RoomVenting

Figure 7

roof cap

6" min.

diameter wall cap

round duct

elbow

3 1/4"to round

ducttransition

3 1/4"toround

ductworktransition

Figure 8

STEP 2:

PREPARE THE VENTING S YSYTEM

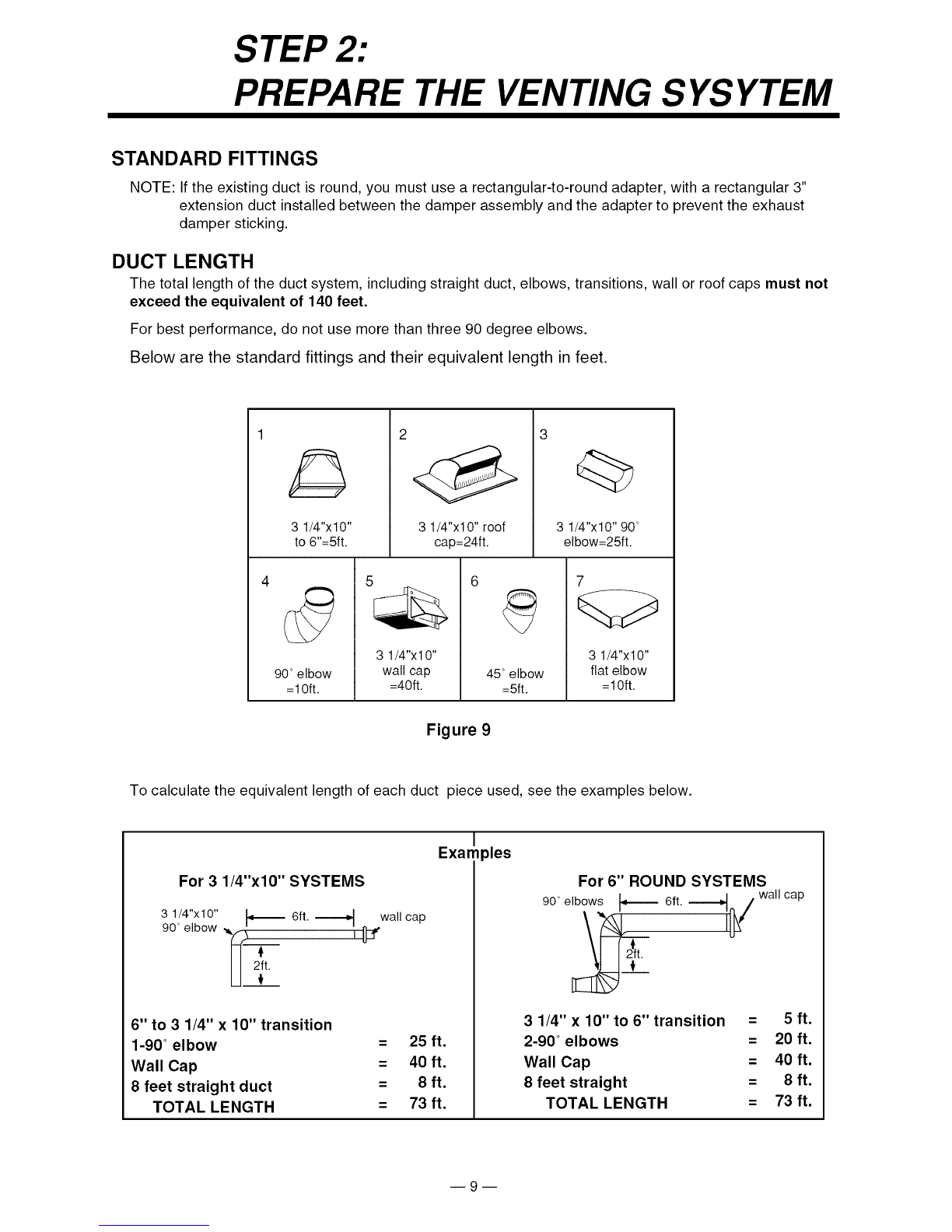

STANDARD FITTINGS

NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"

extension duct installed between the damper assembly and the adapter to prevent the exhaust

damper sticking.

DUCT LENGTH

The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not

exceed the equivalent of 140 feet.

For best performance, do not use more than three 90 degree elbows.

Below are the standard fittings and their equivalent length in feet.

3 1/4"x10"

to 6"=5ft. 3 1/4"x10" roof

cap=24ft.

3 1/4"x10" 90°

elbow=25ft.

90°elbow

=1Oft.

3 1/4"x 10"

wall cap

=40ft.

45° elbow

=5ft.

3 1/4"x10"

flat elbow

=lOft.

Figure 9

To calculate the equivalent length of each duct piece used, see the examples below.

For 3 1/4"x10" SYSTEMS

3 1/4"x10" 14----- 6ft. _ _wall cap

90 ° elbow ,_],__

I1_

2ft.

6" to 3 1/4" x10" transition

1-90°elbow = 25 ft.

Wall Cap =40 ft.

8feet straight duct -- 8 ft.

TOTAL LENGTH -- 73 ft.

Examples

For 6" ROUND SYSTEMS

-- wall

90° elbows _------ 6ft. ----_ [_/

cap

31/4" x10" to 6" transition = 5 ft.

2-90°elbows = 20 ft.

Wall Cap =40 ft.

8feet straight -- 8 ft.

TOTAL LENGTH -- 73 ft.

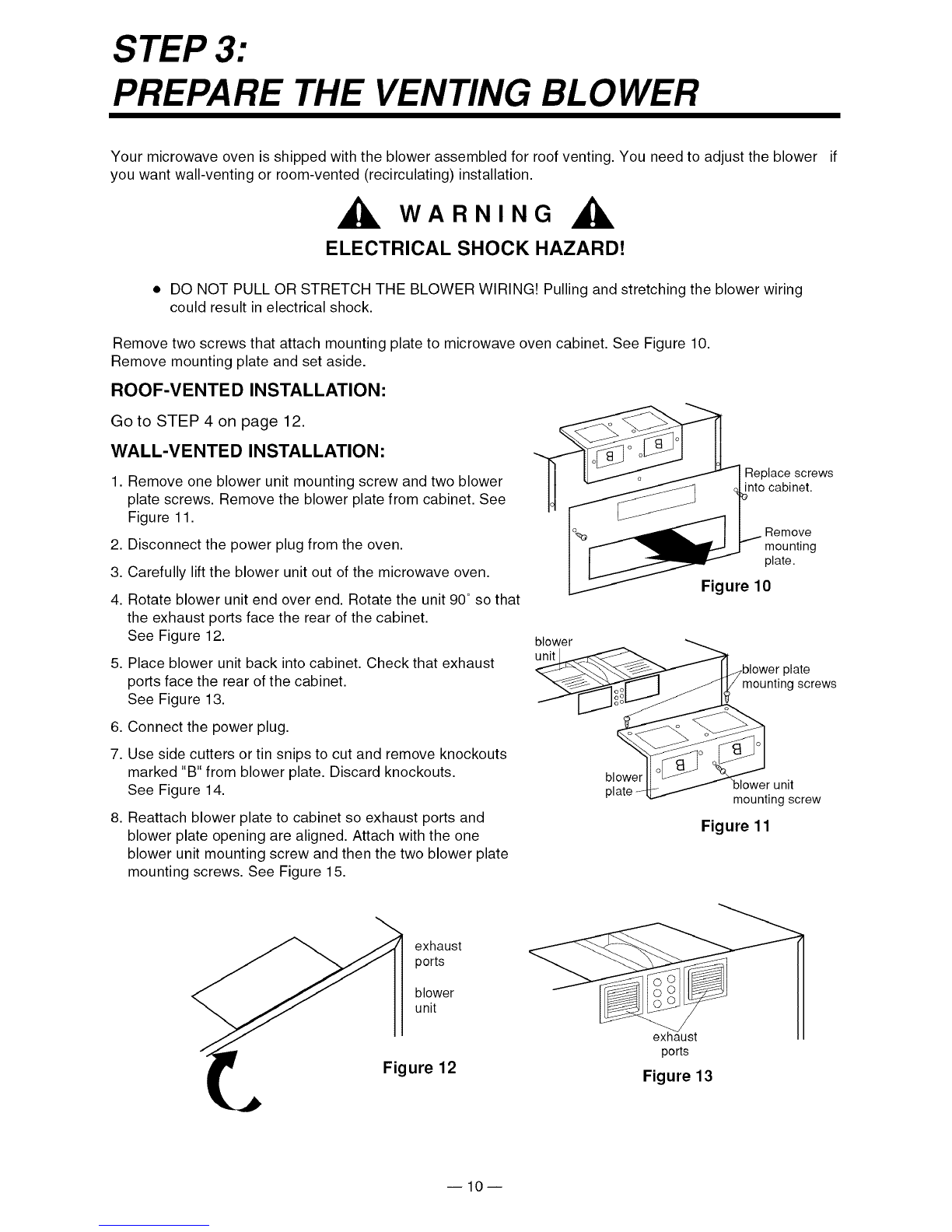

STEP 3:

PREPARE THE VENTING BLOWER

Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower

you want wall-venting or room-vented (recirculating) installation.

WARNING

ELECTRICAL SHOCK HAZARD!

•DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring

could result in electrical shock.

Remove two screws that attach mounting plate to microwave oven cabinet. See Figure 10.

Remove mounting plate and set aside.

ROOF-VENTED INSTALLATION:

Goto STEP 4 on page 12.

WALL-VENTED INSTALLATION:

1. Remove one blower unit mounting screw and two blower

plate screws. Remove the blower plate from cabinet. See

Figure 11.

2. Disconnect the power plug from the oven.

3. Carefully lift the blower unit out of the microwave oven.

4. Rotate blower unit end over end. Rotate the unit 90° so that

the exhaust ports face the rear of the cabinet.

See Figure 12.

5. Place blower unit back into cabinet. Check that exhaust

ports face the rear of the cabinet.

See Figure 13.

6. Connect the power plug.

7. Use side cutters or tin snips to cut and remove knockouts

marked "B" from blower plate. Discard knockouts.

See Figure 14.

8. Reattach blower plate to cabinet so exhaust ports and

blower plate opening are aligned. Attach with the one

blower unit mounting screw and then the two blower plate

mounting screws. See Figure 15.

blower

Replace screws

into cabinet.

Remove

mounting

plate.

Figure 10

plate

mounting screws

blower _lower unit

plate mounting screw

Figure 11

exhaust

ports

blower

unit

Figure 12

exhaust

ports

Figure 13

ilOi

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kenmore Forno a microonde

Kenmore

Kenmore 721.66102 Manuale utente

Kenmore

Kenmore 79048902000 Manuale utente

Kenmore

Kenmore 6790 - Elite 1.5 cu. Ft. Convection... Manuale utente

Kenmore

Kenmore Elite 79048883112 Manuale utente

Kenmore

Kenmore 27" (68.8) Manuale utente

Kenmore

Kenmore Microwave hood combination 721.80802 Manuale utente

Kenmore

Kenmore 6428 - 1.0 cu. Ft. Countertop Microwave Manuale utente

Kenmore

Kenmore 721.66339 Manuale utente

Kenmore

Kenmore Microwave hood combination 665.61601 Manuale utente

Kenmore

Kenmore 665.60639 Manuale utente

Kenmore

Kenmore 401.8505 Manuale utente

Kenmore

Kenmore 565. 66480 Manuale utente

Kenmore

Kenmore 721.80882 Manuale utente

Kenmore

Kenmore 767. 8591000 Manuale utente

Kenmore

Kenmore 721.80032 Guida rapida

Kenmore

Kenmore 401.8505 Manuale utente

Kenmore

Kenmore 204.23069610 Manuale utente

Kenmore

Kenmore 767. 8505 Manuale utente

Kenmore

Kenmore 721.62223 Manuale utente

Kenmore

Kenmore ELITE 721. 7920 Manuale utente

Kenmore

Kenmore 665.60682 Manuale utente

Kenmore

Kenmore 721.62349 Manuale utente

Kenmore

Kenmore H108XKA Manuale utente

Kenmore

Kenmore 66993 - Pizza Maker & Microwave Combo Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente
