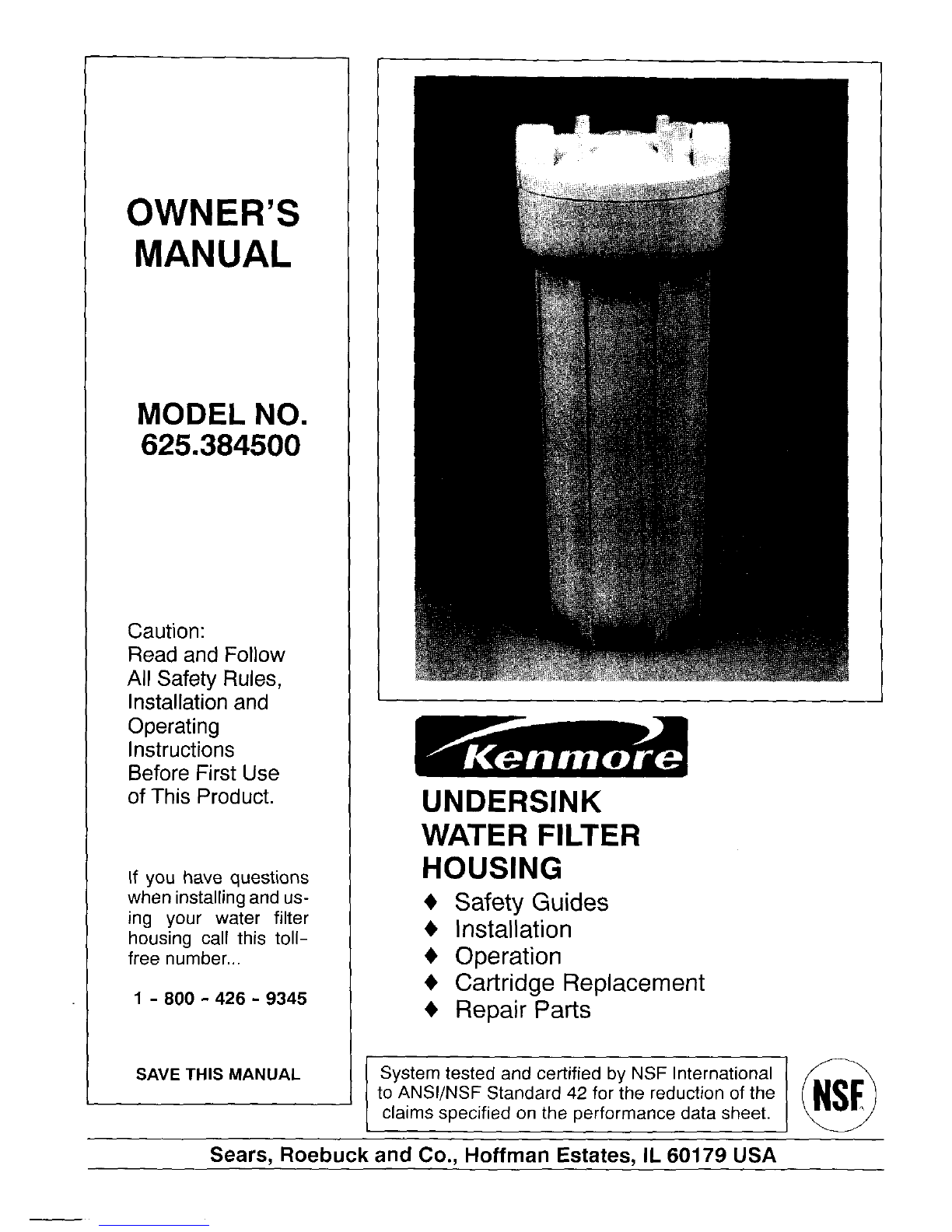

OWNER'S

MANUAL

MODEL NO.

625.384500

Caution:

Read and Follow

All Safety Rules,

Installation and

Operating

Instructions

Before First Use

of This Product.

If you have questions

when installing and us-

ing your water filter

housing call this toll-

free number...

1 - 800 -426- 9345

UNDERSINK

WATER FILTER

HOUSING

• Safety Guides

• Installation

• Operation

• Cartridge Replacement

• Repair Parts

SAVE THIS MANUAL

I System tested and certified by NSF International

to ANSI/NSF Standard 42 for the reduction of the

claims specified on the performance data sheet.

Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 USA

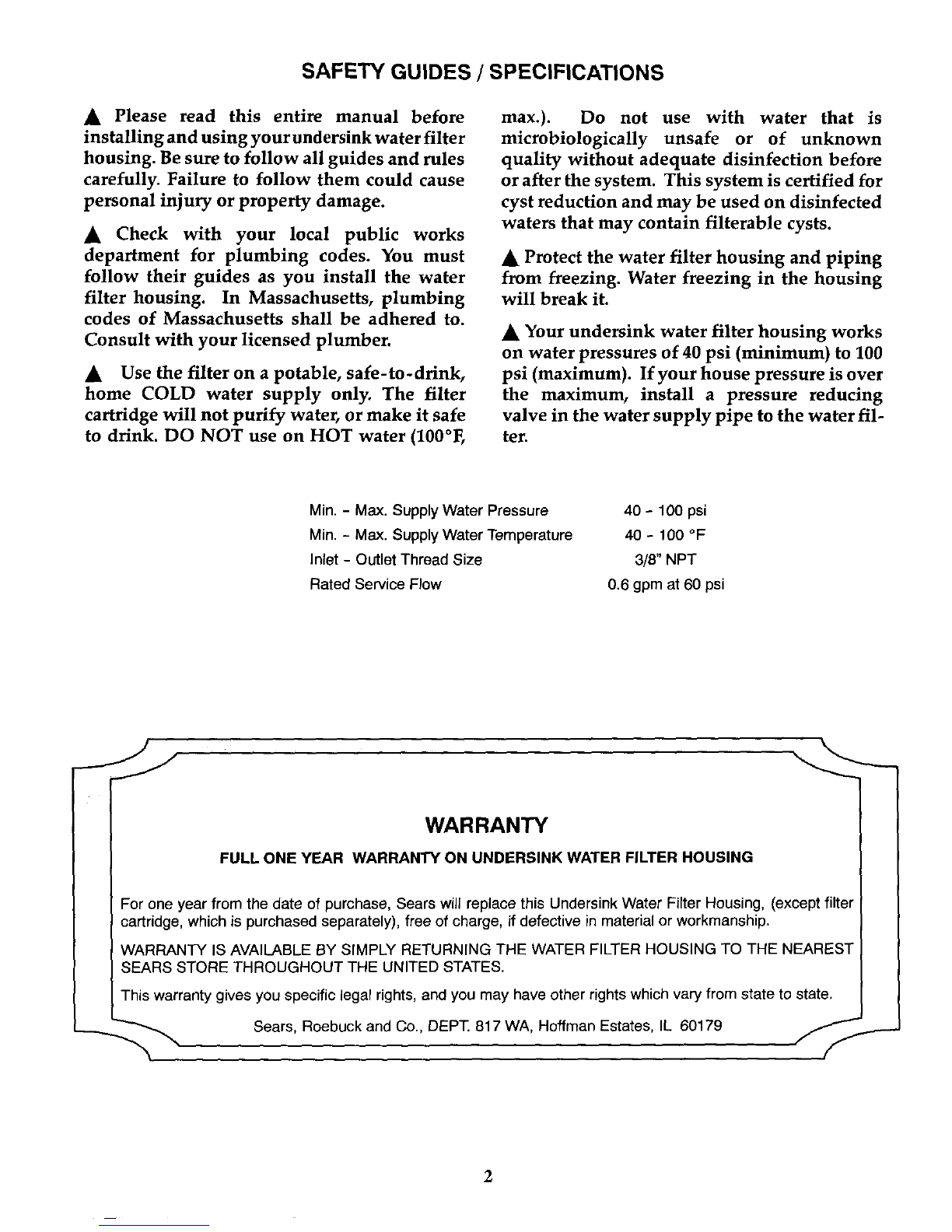

SAFETY GUIDES /SPECIFICATIONS

•Please read this entire manual before

installing and using your undersink water filter

housing. Be sure to follow all guides and rules

carefully. Failure to follow them could cause

personal injury or property damage.

•Check with your local public works

department for plumbing codes. You must

follow their guides as you install the water

filter housing. In Massachusetts, plumbing

codes of Massachusetts shall be adhered to.

Consult with your licensed plumber.

•Use the filter on a potable, safe-to-drink,

home COLD water supply only. The filter

cartridge will not purify water, or make it safe

to drink. DO NOT use on HOT water (100°F,

max.). Do not use with water that is

microbiologically unsafe or of unknown

quality without adequate disinfection before

or after the system. This system is certified for

cyst reduction and may be used on disinfected

waters that may contain filterable cysts.

•Protect the water filter housing and piping

from freezing. Water freezing in the housing

will break it.

•Your undersink water filter housing works

on water pressures of 40 psi (minimum) to 100

psi (maximum). If your house pressure is over

the maximum, install a pressure reducing

valve in the water supply pipe to the water fil-

ter.

Min. - Max. Supply Water Pressure

Min. - Max. Supply Water Temperature

Inlet - Outlet Thread Size

Rated Service Flow

40 - 100 psi

40 - 100 OF

3/8" NPT

0.6 gpm at 60 psi

WARRANTY

FULL ONE YEAR WARRANTY ON UNDERSINK WATER FILTER HOUSING

For one year from the date of purchase, Sears will replace this Undersink Water Filter Housing, (except filter

cartridge, which is purchased separately), free of charge, if defective in material or workmanship.

WARRANTY IS AVAILABLE BY SIMPLY RETURNING THE WATER FILTER HOUSING TO THE NEAREST

SEARS STORE THROUGHOUT THE UNITED STATES.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state,

___...._ Sears, Roebuck and Co., DEPT. 817 WA, Hoffman Estates, IL 60179

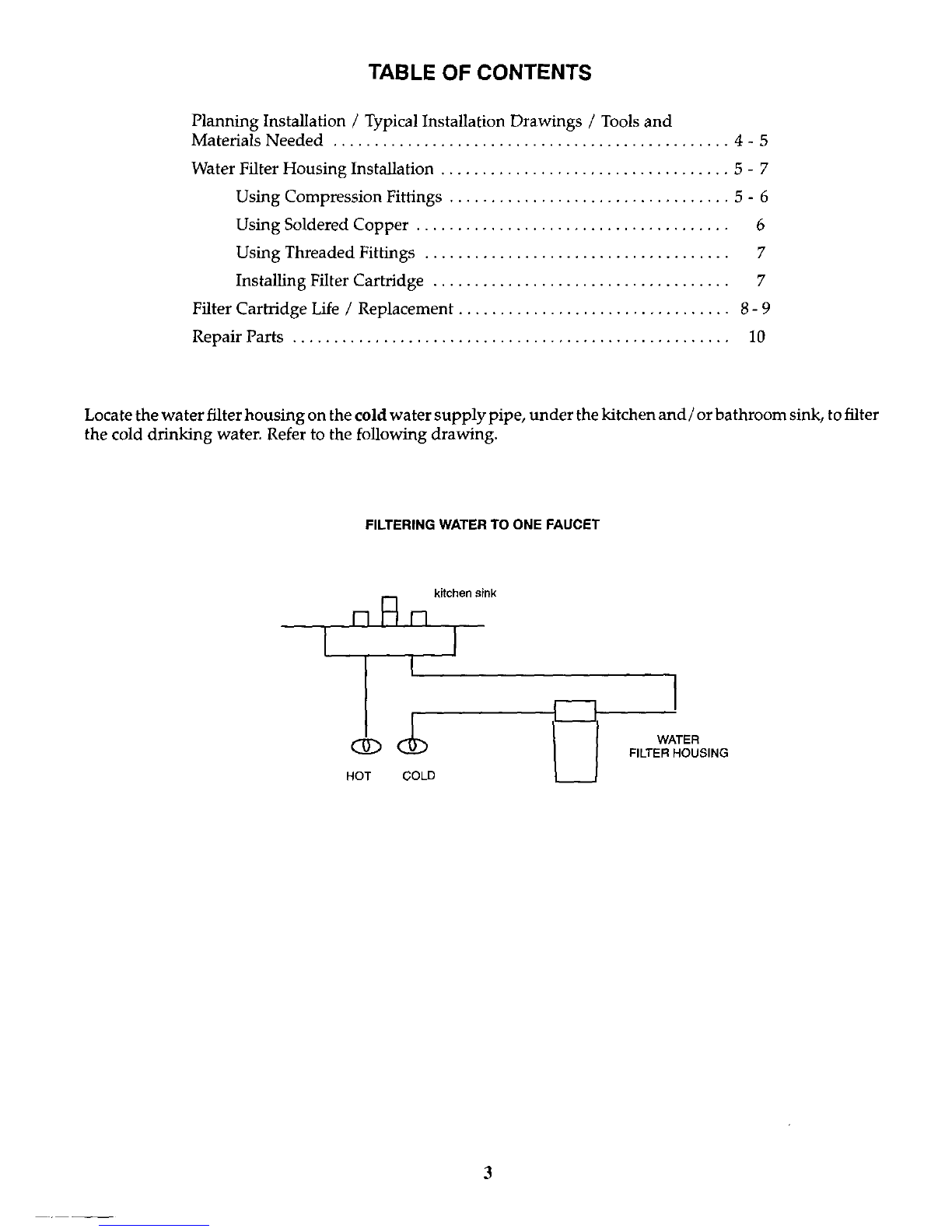

TABLE OF CONTENTS

Planning Installation 7Typical Installation Drawings /Tools and

Materials Needed ................................................ 4 - 5

Water Filter Housing Installation ................................... 5 - 7

Using Compression Fittings .................................. 5 - 6

Using Soldered Copper ...................................... 6

Using Threaded Fittings ..................................... 7

Installing Filter Cartridge .................................... 7

Filter Cartridge Life /Replacement ................................. 8 - 9

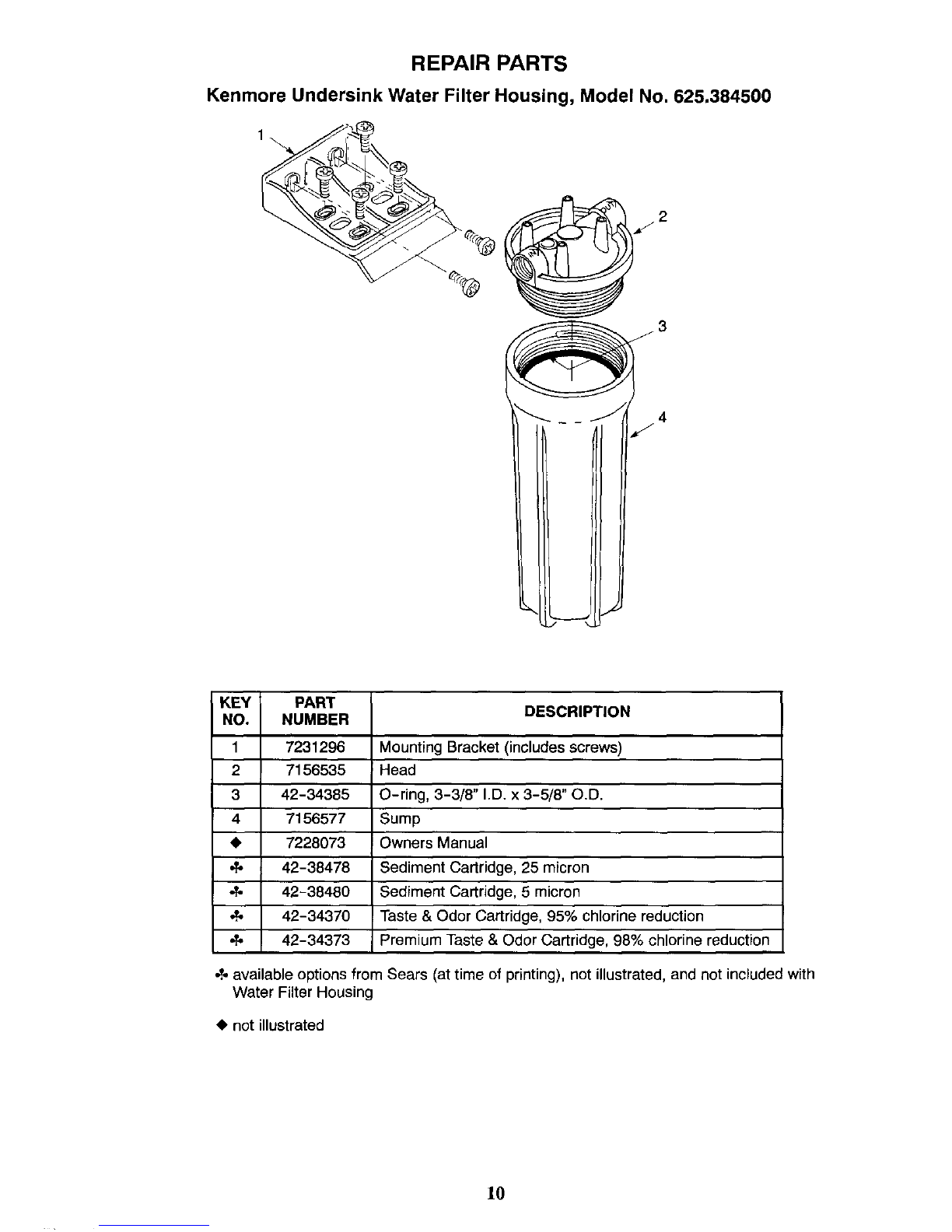

Repair Parts ..................................................... 10

Locate the water filter housing on the cold water supply pipe, under the kitchen and /or bathroom sink, to filter

the cold drinking water. Refer to the following drawing.

FILTERING WATER TO ONE FAUCET

kffchen sink

i I

HOT GOLD

WATER

FILTER HOUSING

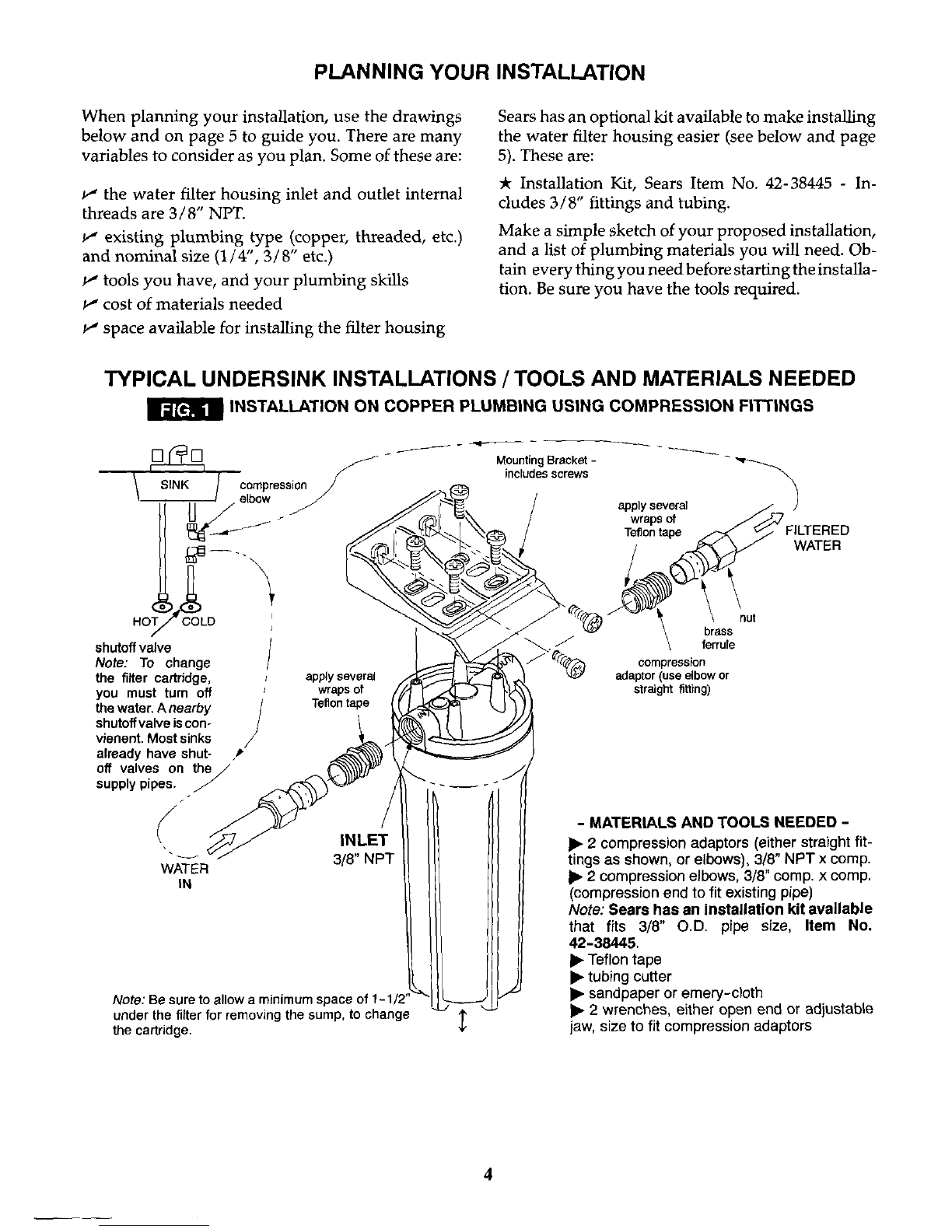

PLANNING YOUR INSTALLATION

When planning your installation, use the drawings

below and on page 5 to guide you. There are many

variables to consider as you plan. Some of these are:

_" the water filter housing inlet and outlet internal

threads are 3/8" NPT.

_," existing plumbing type (copper, threaded, etc.)

and nominal size (1/4", 3/8" etc.)

_" tools you have, and your plumbing skills

_" cost of materials needed

_" space available for installing the filter housing

Sears has an optional kit available to make installing

the water filter housing easier (see below and page

5). These are:

:k Installation Kit, Sears Item No. 42-38445 - In-

cludes 3/8" fittings and tubing.

Make a simple sketch of your proposed installation,

and a list of plumbing materials you will need. Ob-

tain every thing you need before starting the installa-

tion. Be sure you have the tools required.

TYPICAL UNDERSINK INSTALLATIONS /TOOLS AND MATERIALS NEEDED

INSTALLATION ON COPPER PLUMBING USING COMPRESSION FITTINGS

shutoff valve

Note: To change

the filter cad'ridge,

you must turn off

the water, A nearby

shutoffvalve iscon-

vienent. Most sinks

already have shut-

off valves on the/

supply pipes.

(

WA- R

/apply several

wraps of

Teflon tape

INLET

3/8" NPT

- Mounting Brack_-

incrudes screws

Note: Be sure to allow aminimum space of

under the filter for removing the sump, to change

the cartridge.

apply several

wraps of

WATER

nut

brass

ferrule

compression

adaptor (use elbow or

straight fitting)

-MATERIALS AND TOOLS NEEDED -

•2compression adaptors (either straight fit-

tings as shown, or elbows), 3/8" NPT x comp.

•2 compression elbows, 3/8" comp. x comp.

(compression end to fit existing pipe)

Note: Sears has an installation kit available

that fits 3/8" O.D. pipe size, Item No.

42-38445.

• Teflon tape

• tubing cutter

• sandpaper or emery-cloth

• 2 wrenches, either open end or adjustable

jaw, size to fit compression adaptors

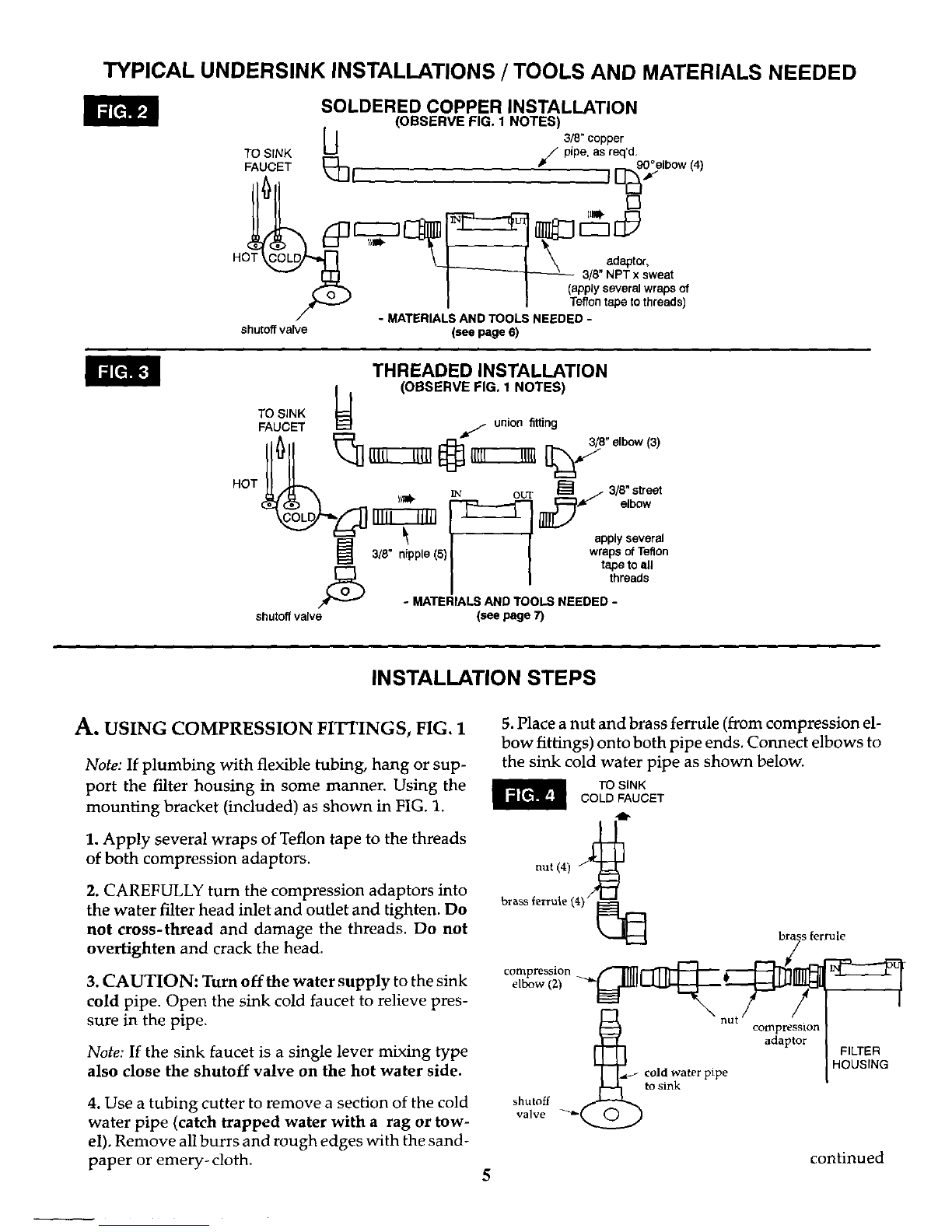

TYPICAL UNDERSINK INSTALLATIONS /TOOLS AND MATERIALS NEEDED

SOLDERED COPPER INSTALLATION

(OBSERVE FIG. 1 NOTES)

3/8" copper

TO S,NK LJ /pipe. as req'd.

FAUCET _. __ 90°elbow (4)

.oWo -LL_ l\ °0ap,e ,

-- .F_ I _-_--"_(e;_Sy"_NvPeTr axlS'Wae;ts°f

F.MA,ER,A'S , g;,_oo,ape,o,h eads,

shutoffvalve (see page 6)

THREADED INSTALLATION

I } (OBSERVE FIG, 1 NOTES)

TO S NK I_l

FAUCET _ _,- union fitting

HOT H rL_

J__ Ilmk IN or.rr _ /3/8" street

__[] _ w_PaP'sYoS_;ee_a'n

]3(8" nipple (5) IIP

r_l I ] tape to ell

IIthreads

- MATERIALS AND TOOLS NEEDED -

shutoff valve (see page 7)

INSTALLATION STEPS

A. USING COMPRESSION FITTINGS, FIG, 1

Note: If plumbing with flexible tubing, hang or sup-

port the filter housing in some manner. Using the

mounting bracket (included) as shown in FIG. 1.

1. Apply several wraps of Teflon tape to the threads

of both compression adaptors.

2. CAREFULLY turn the compression adaptors into

the water filter head inlet and outlet and tighten. Do

not cross-thread and damage the threads. Do not

overtighten and crack the head.

3. CAUTION: Turn offthe water supply to the sink

cold pipe. Open the sink cold faucet to relieve pres-

sure in the pipe,

Note: If the sink faucet is a single lever mixing type

also close the shutoff valve on the hot water side.

4. Use a tubing cutter to remove a section of the cold

water pipe (catch trapped water with a rag or tow-

el), Remove all burrs and rough edges with the sand-

paper or emery-cloth.

5. Place a nut and brass ferrule (from compression el-

bow fittings) onto both pipe ends, Connect elbows to

the sink cold water pipe as shown below.

TO SINK

COLD FAUCET

nut (4) ,_

brass ferrule (4)

[_f co dp'p

-_ to sink

brass ferrule

FILTER

HOUSING

5continued

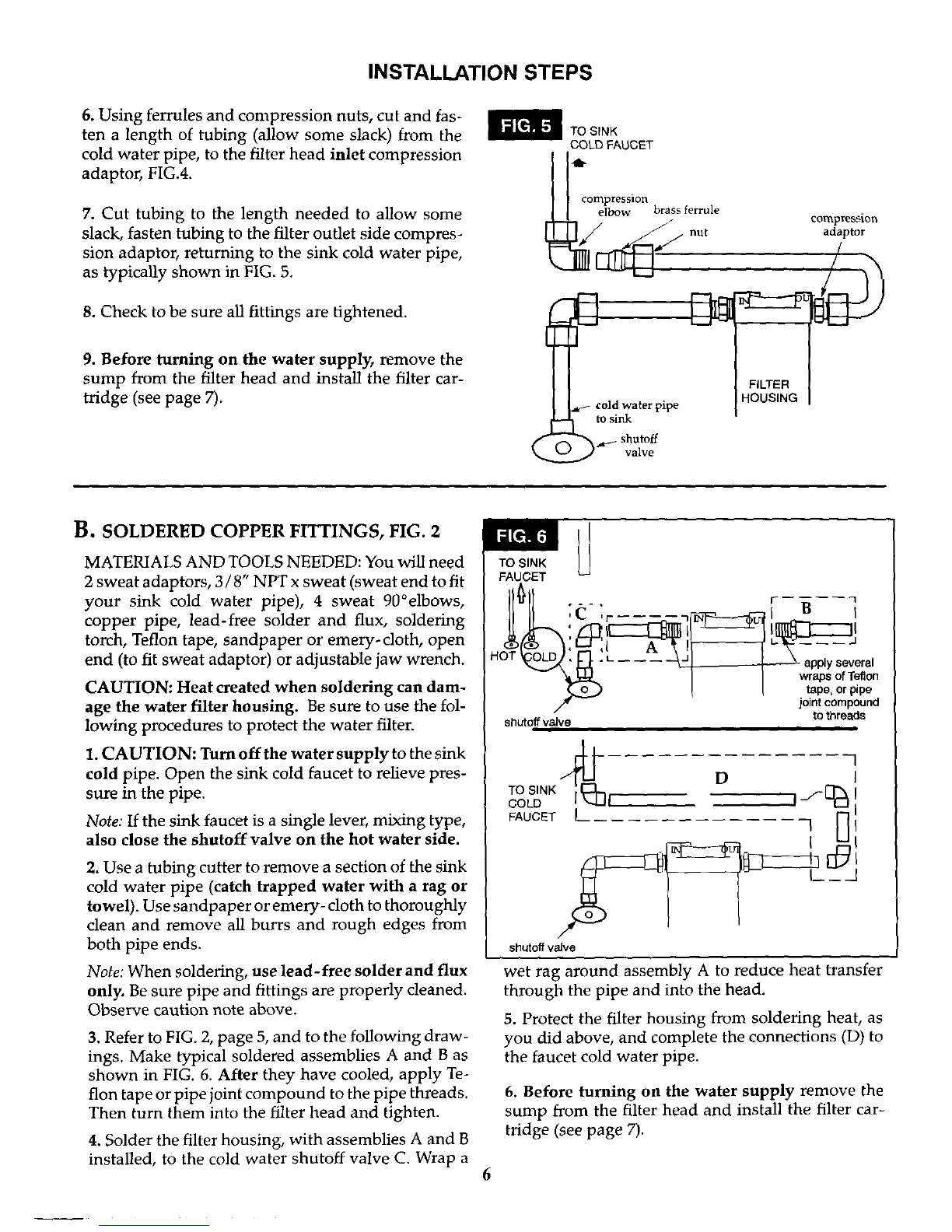

INSTALLATION STEPS

6. Using ferrules and compression nuts, cut and fas-

ten a length of tubing (allow some slack) from the

cold water pipe, to the filter head inlet compression

adaptor, FIG.4.

7. Cut tubing to the length needed to allow some

slack, fasten tubing to the filter outlet side compres-

sion adaptor, returning to the sink cold water pipe,

as typically shown in FIG. 5.

8. Check to be sure all fittings are tightened.

9. Before turning on the water supply, remove the

sump from the filter head and install the filter car-

tridge (see page 7).

TO SINK

COLD FAUCET

compression

elbow brass ferrule

/ cold water pipe

to sink

_.a_- shutoff

Jvalve

FILTER

HOUSING

compression

adaptor

B. SOLDERED COPPER FITTINGS, FIG. 2

MATERIALS AND TOOLS NEEDED: You will need

2 sweat adaptors, 3/8" NPT x sweat (sweat end to fit

your sink cold water pipe), 4 sweat 90°elbows,

copper pipe, lead-free solder and flux, soldering

torch, Teflon tape, sandpaper or emery-cloth, open

end (to fit sweat adaptor) or adjustable jaw wrench.

CAUTION: Heat created when soldering can dam-

age the water filter housing. Be sure to use the fol-

lowing procedures to protect the water filter.

1. CAUTION: Turn offthe water supply to the sink

cold pipe. Open the sink cold faucet to relieve pres-

sure in the pipe.

Note: If the sink faucet is a single lever, mixing type,

also close the shutoff valve on the hot water side.

2. Use a tubing cutter to remove a section of the sink

cold water pipe (catch trapped water with a rag or

towel). Use sandpaper or emery- cloth to thoroughly

dean and remove all burrs and rough edges from

both pipe ends.

Note: When soldering, use lead-free solder and flux

only. Be sure pipe and fittings are properly cleaned.

Observe caution note above.

3. Refer to FIG. 2, page 5, and to the following draw-

ings. Make typical soldered assemblies A and B as

shown in FIG. 6. After they have cooled, apply Te-

flon tape or pipe joint compound to the pipe threads.

Then turn them into the filter head and tighten.

4. Solder the filter housing, with assemblies A and B

installed, to the cold water shutoff valve C. Wrap a

TO SINK

FAUGET

I_ .- _I" B 1

II II ,C 'r .... lr_-----_al I

III

.OT -; pl era,

I I wrapsofT?tlon

I t tape, or pipe

/" joint compound

shutoff valve to threads

TO SINK

COLO I

FAUCET l

shutoff valve

D I

I_ L__J

wet rag around assembly A to reduce heat transfer

through the pipe and into the head.

5. Protect the filter housing from soldering heat, as

you did above, and complete the connections (D) to

the faucet cold water pipe.

6. Before turning on the water supply remove the

sump from the filter head and install the filter car-

tridge (see page 7).

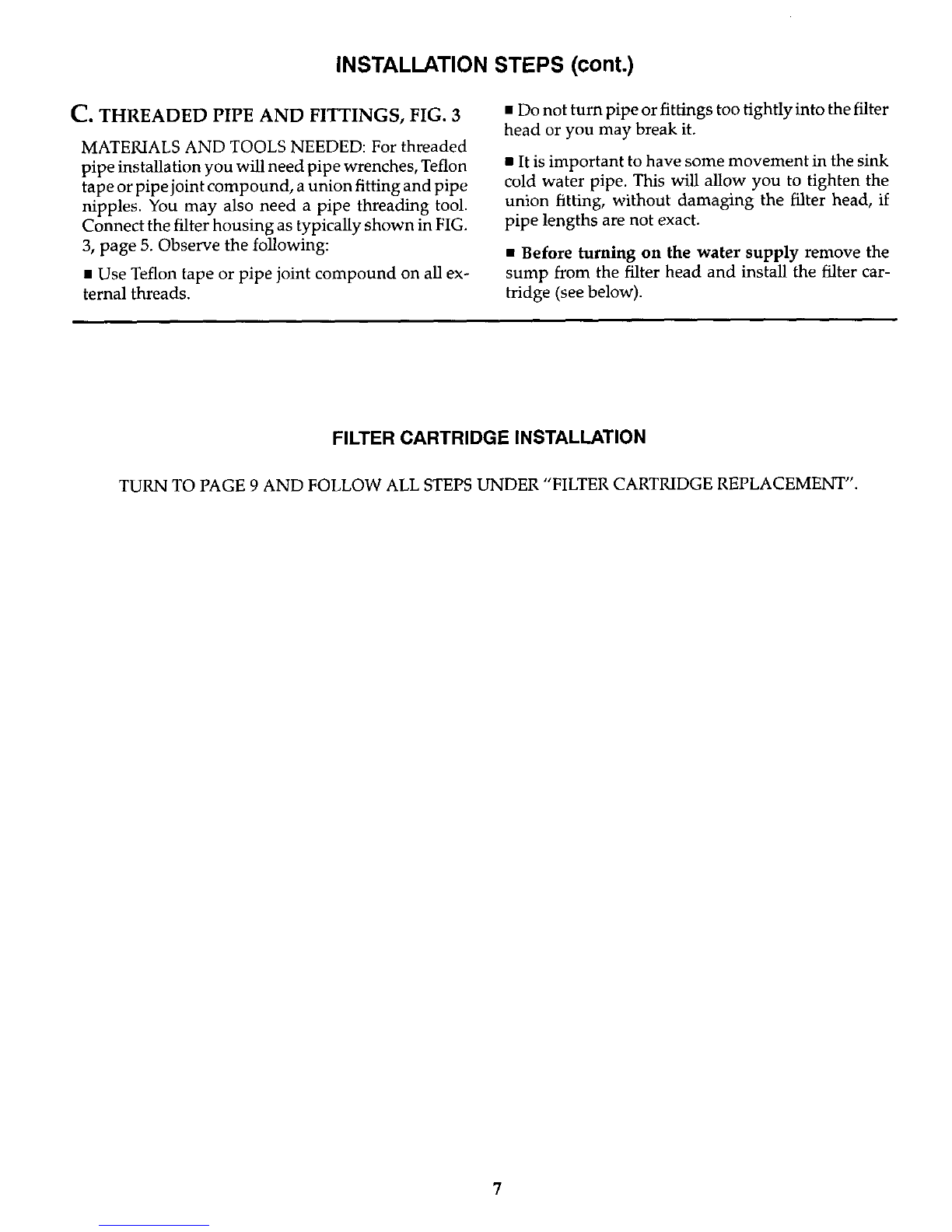

INSTALLATION STEPS (cont.)

C. THREADED PIPE AND FITTINGS, FIG. 3

MATERIALS AND TOOLS NEEDED: For threaded

pipe instanation you will need pipe wrenches, Teflon

tape or pipe joint compound, a union fitting and pipe

nipples. You may also need a pipe threading tool.

Connect the filter housing as typically shown in FIG.

3, page 5. Observe the following:

• Use Teflon tape or pipe joint compound on all ex-

ternal threads.

• Do not turn pipe or fittings too tightly into the filter

head or you may break it.

•It is important to have some movement in the sink

cold water pipe. This will allow you to tighten the

union fitting, without damaging the filter head, if

pipe lengths are not exact.

•Before turning on the water supply remove the

sump from the filter head and install the filter car-

tridge (see below).

FILTER CARTRIDGE INSTALLATION

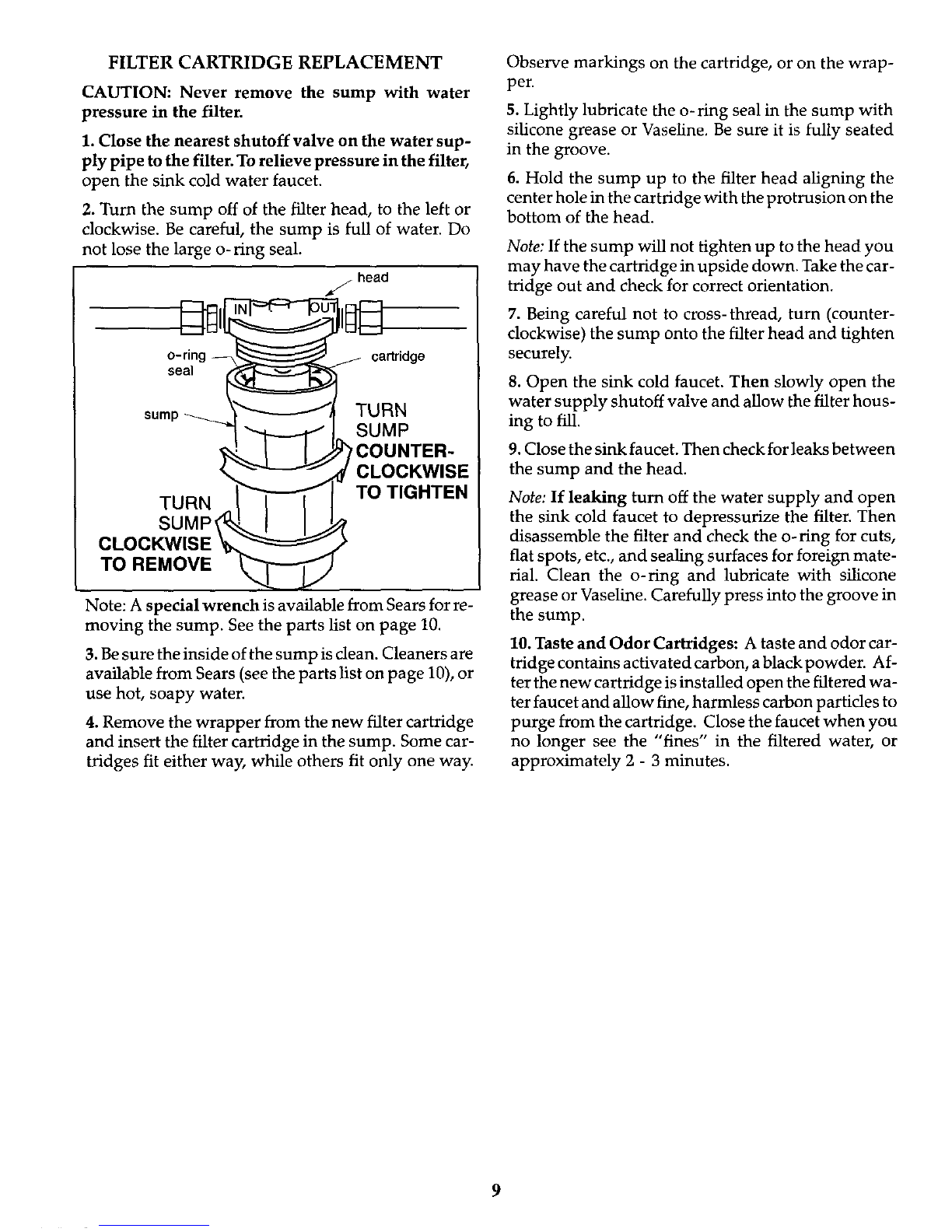

TURN TO PAGE 9 AND FOLLOW ALL STEPS UNDER "FILTER CARTRIDGE REPLACEMENT".

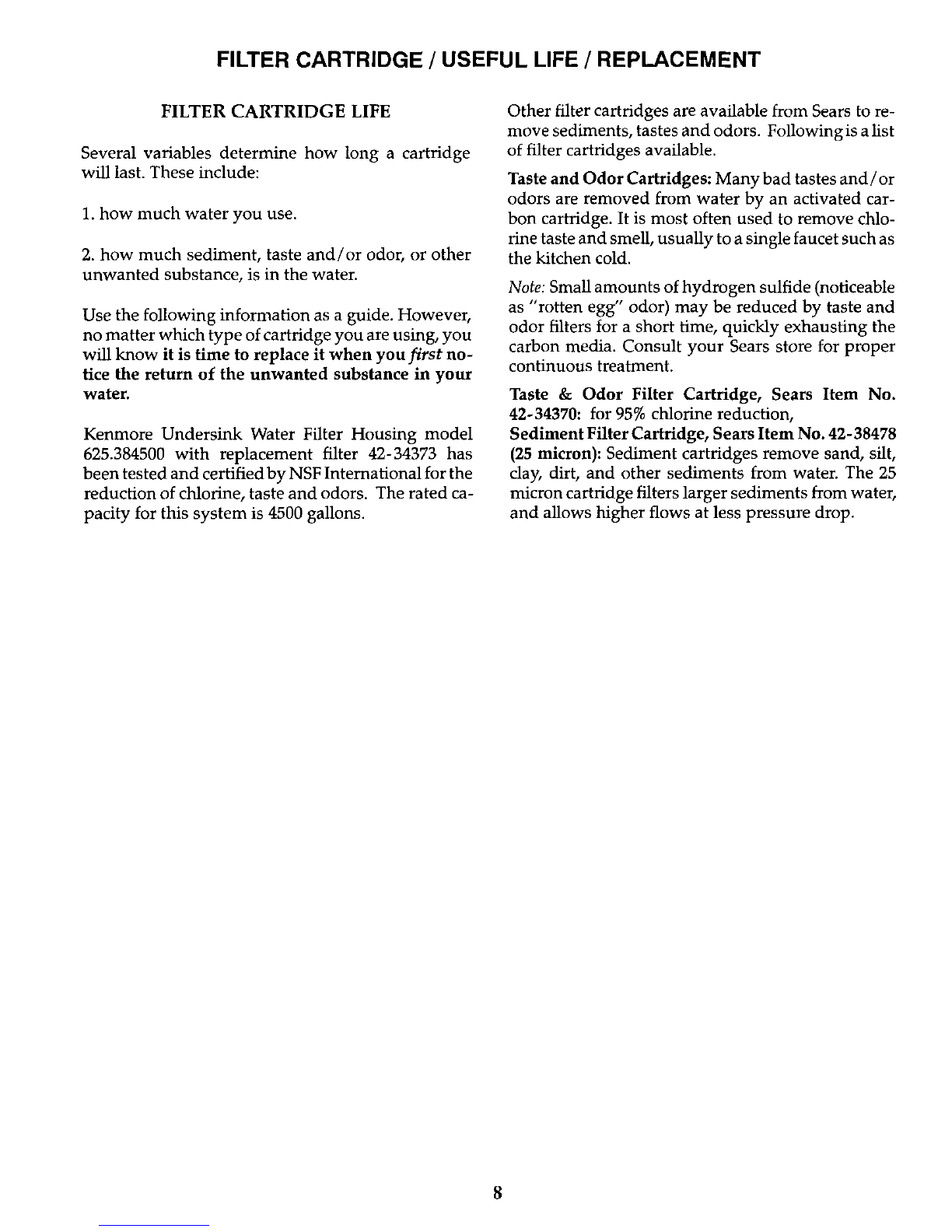

FILTER CARTRIDGE /USEFUL LIFE /REPLACEMENT

FILTER CARTRIDGE LIFE

Several variables determine how long a cartridge

will last. These include:

1. how much water you use.

2. how much sediment, taste and/or odor, or other

unwanted substance, is in the water.

Use the following information as a guide. However,

no matter which type of cartridge you are using, you

will know it is time to replace it when you first no-

tice the return of the unwanted substance in your

water.

Kenmore Undersink Water Filter Housing model

625.384500 with replacement filter 42-34373 has

been tested and certifiedby NSF International for the

reduction of chlorine, taste and odors. The rated ca-

pacity for this system is 4500 gallons.

Other filter cartridges are available from Sears to re-

move sediments, tastes and odors. Followingis a list

of filter cartridges available.

Taste and Odor Cartridges: Many bad tastes and/or

odors are removed from water by an activated car-

bon cartridge. It is most often used to remove chlo-

fine taste and smell, usually to a single faucet such as

the kitchen cold.

Note: Small amounts of hydrogen sulfide (noticeable

as "rotten egg" odor) may be reduced by taste and

odor filters for a short time, quickly exhausting the

carbon media. Consult your Sears store for proper

continuous treatment.

Taste &Odor Filter Cartridge, Sears Item No.

42-34370: for 95% chlorine reduction,

Sediment Filter Cartridge, Sears Item No. 42-38478

(25 micron): Sediment cartridges remove sand, silt,

day, dirt, and other sediments from water. The 25

micron cartridge filters larger sediments from water,

and allows higher flows at less pressure drop.

FILTER CARTRIDGE REPLACEMENT

CAUTION: Never remove the sump with water

pressure in the filter.

1. Close the nearest shutoffvalve on the water sup-

ply pipe to the filter. To relieve pressure in the filter,

open the sink cold water faucet.

2. Turn the sump off of the _ter head, to the left or

clockwise. Be careful, the sump is full of water. Do

not lose the large o-ring seal.

head

seal

IUNTER-

TURN

SUMP,

CLOCKWISE

TO REMOVE

TO TIGHTEN

Note: A special wrench is available from Sears for re-

moving the sump. See the parts list on page 10.

3. Be sure the inside of the sump is clean. Cleaners are

available from Sears (see the parts list on page 10), or

use hot, soapy water.

4. Remove the wrapper from the new filter cartridge

and insert the filter cartridge in the sump. Some car-

tridges fit either way, while others fit only one way.

Observe markings on the cartridge, or on the wrap-

per.

5. Lightly lubricate the o- ring seal in the sump with

silicone grease or Vaseline. Be sure it is fully seated

in the groove.

6. Hold the sump up to the filter head aligning the

center hole in the cartridge with the protrusion on the

bottom of the head.

Note: If the sump will not tighten up to the head you

may have the cartridge in upside down. Take the car-

tridge out and check for correct orientation.

7. Being careful not to cross-thread, turn (counter-

clockwise) the sump onto the filter head and tighten

securely.

8. Open the sink cold faucet. Then slowly open the

water supply shutoff valve and allow the filter hous-

ing to fill.

9. Close the sink faucet. Then check for leaks between

the sump and the head.

Note: If leaking turn off the water supply and open

the sink cold faucet to depressurize the filter. Then

disassemble the filter and check the o-ring for cuts,

flat spots, etc., and sealing surfaces for foreign mate-

rial. Clean the o-ring and lubricate with silicone

grease or Vaseline. Carefully press into the groove in

the sump.

10. Taste and Odor Cartridges: A taste and odor car-

tridge contains activated carbon, a black powder. Af-

ter the new cartridge is installed open the filtered wa-

ter faucet and allow fine, harmless carbon particles to

purge from the cartridge. Close the faucet when you

no longer see the "fines" in the filtered water, or

approximately 2 - 3 minutes.

REPAIR PARTS

Kenmore Undersink Water Filter Housing, Model No. 625.384500

KEY PART

NO. NUMBER DESCRIPTION

1 7231296 Mounting Bracket (includes screws)

27156535 Head

3 42-34385 O-ring, 3-3/8" I.D. x 3-5/8" O.D.

4 7156577 Sump

• 7228073 Owners Manual

4" 42-38478 Sediment Cartridge, 25 micron

4, 42-38480 Sediment Cartridge, 5 micron

4, 42-34370 Taste & Odor Cartridge, 95% chlorine reduction

4, 42-34373 Premium Taste & Odor Cartridge, 98% chlorine reduction

4, available options from Sears (at time of printing), not illustrated, and not included with

Water Filter Housing

• net illustrated

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kenmore Sistema idrico

Kenmore

Kenmore 625.384610 Manuale utente

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Kenmore

Kenmore 625.38156 Manuale utente

Kenmore

Kenmore 625.384650 Manuale utente

Kenmore

Kenmore 625.385010 Manuale utente

Kenmore

Kenmore 625.3847 Manuale utente

Kenmore

Kenmore 625.347051 Manuale utente

Kenmore

Kenmore 625.384540 Manuale utente

Kenmore

Kenmore 625.384700 Manuale utente

Kenmore

Kenmore 625.381560 Manuale utente

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Kenmore

Kenmore 625.75130 Manuale utente

Kenmore

Kenmore 625.384450 Manuale utente

Kenmore

Kenmore Elite ULTRAFILTER 650 625.38556 Manuale utente

Kenmore

Kenmore 625.347001 Manuale utente

Kenmore

Kenmore 625.347051 Manuale utente

Kenmore

Kenmore 625.384650 Manuale utente

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Kenmore

Kenmore 625.384720 Manuale utente

Kenmore

Kenmore 625.385010 Manuale utente

Kenmore

Kenmore 625.347031 Manuale utente

Kenmore

Kenmore Water System Manuale utente

Kenmore

Kenmore 625.384550 Manuale utente

Kenmore

Kenmore ULTRAFILTER 300 625.384720 Manuale utente

Manuali Sistema idrico popolari di altre marche

Spirotech

Spirotech SPIROVENT SUPERIOR S250 Manuale utente

Culligan

Culligan Aqua-Cleer Aqua-Cleer Advanced Drinking Water... Manuale utente

A.O. Smith

A.O. Smith Dura-Max AJH - 1000A - P Manuale utente

Microline

Microline T.F.C.-4 Manuale

Eureka Forbes

Eureka Forbes Aquaguard Select Manuale utente

Cetetherm

Cetetherm AquaEfficiency Manuale utente

CB Tech

CB Tech CB-VOC Manuale utente

Vaillant

Vaillant auroFLOW plus VPM 15 D Manuale utente

resideo

resideo Braukmann HS10S Manuale utente

Gude

Gude INOX 100/24 Manuale utente

Mono

Mono Eco 1-60 Manuale

SpectraPure

SpectraPure Drinking Water Kit Manuale utente

HydroCare

HydroCare Dual Action Manuale utente

NEXT pool

NEXT pool STERILOR Cu/Ag Schema elettrico

Alpha

Alpha SolarSmart 150 Guida utente

TA FRISTAR3 Manuale utente

GÜDE

GÜDE HWA 800 K Manuale utente

Rainfresh

Rainfresh UCS2 Manuale utente
