Kensington SD5760T Manuale utente
SD5760T Thunderbolt 4 Dual 4K Docking Station
Inside the Box.
One SD5760T dock.
One Thunderbolt cable.
One DC power adapter.
One welcome card.
One warranty card.
One compliance card.
One instruction guide.
One power cord for the DC power adapter.
Register your docking station at kensington.com/register

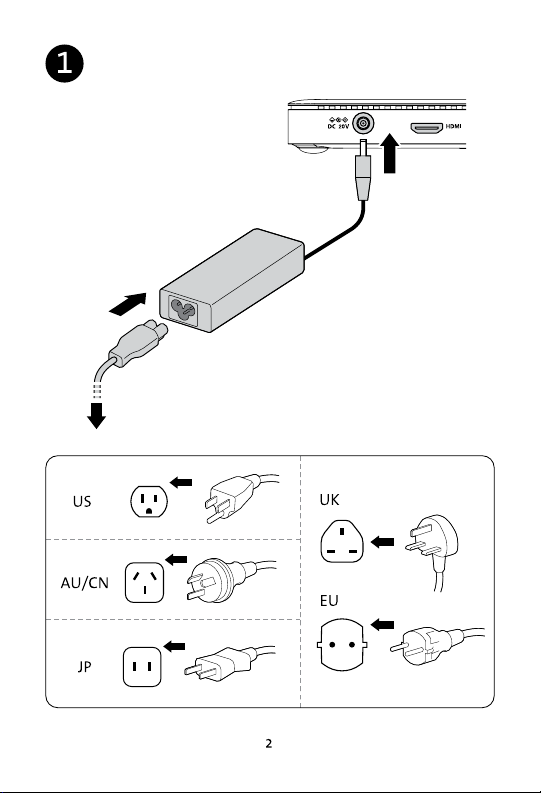

1. Connect the power adapter to the DC 20V port on the back of the dock.
Connect the power cable to the power adapter.
Plug the power cable into a wall outlet.

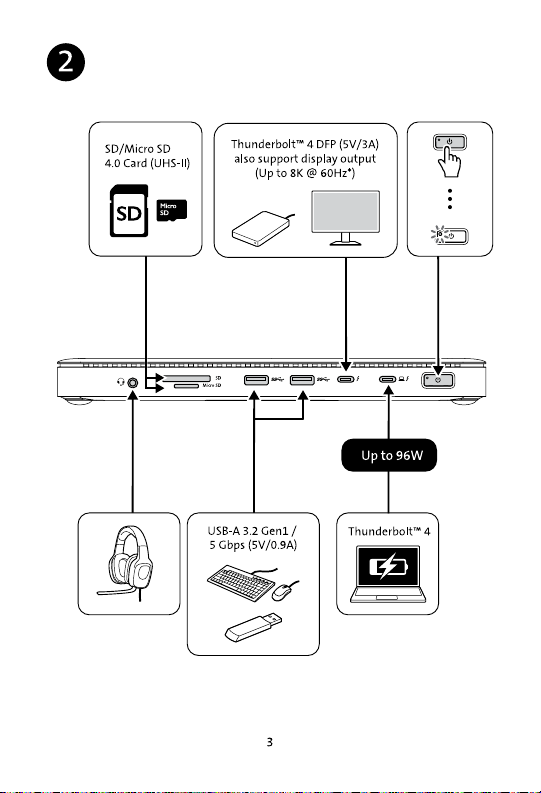

2. Front of the dock from left to right:
One audio combo jack.
One UHS-II 4.0 SD card reader.
One Micro SD card reader.
Two USB-A 3.2 Gen1 5Gbps (5V/0.9A) ports appropriate for connecting mice, keyboards, and thumb drives.
One Thunderbolt 4 DFP (5V/3A) port appropriate for an external hard drive or Thunderbolt-enabled monitor (up to 8K @ 60Hz).
One Thunderbolt 4 host port that will support up to 96W of Power Delivery to the host device.
One power button to turn your dock on and off as needed.
Back of the dock from left to right:
Two HDMI ports to support dual monitors.
Two USB-A 3.2 Gen2 10Gbps (5V/0.9A) ports appropriate for connecting mice, keyboards, and thumb drives.
One USB-C 3.2 Gen2 10Gbps (5V/1.5A) port appropriate for fast charging a smartphone.
One Gigabit Ethernet port for stable high-speed internet/intranet connectivity.
3. Connect one end of the Thunderbolt cable into the Thunderbolt port on the host laptop.
4. Connect the other end of the Thunderbolt cable to the Thunderbolt host port on the front of the dock.
5. Video specifications.
Thunderbolt 3, Thunderbolt 4 and USB4 devices running Windows will provide up to Single 8K @ 60Hz* via Thunderbolt, up to Single 4K @ 60Hz via HDMI, or up to Dual 4K @ 60Hz via two HDMI connections.
Thunderbolt 3, Thunderbolt 4 and USB4 devices running macOS will provide up to Single 6K @ 60Hz via Thunderbolt, up to Single 4K @ 60Hz via HDMI, or up to Dual 4K @ 60Hz via two HDMI connections.
USB-C Alt Mode devices running Windows will provide up to Single 4K @ 60Hz viaThunderbolt or up to Single 4K @ 60Hz via HDMI.
MacBook M1/M2 or iPad Pro devices will provide up to Single 6K @ 60Hz via Thunderbolt or up to Single 4K @ 60Hz via HDMI.
*Support for Display Stream Compression (DSC) is based on the host device and monitor capabilities.
Note for Thunderbolt video connections: Use the Thunderbolt DFP port to the left of the Thunderbolt host port on the docking station.
For higher refresh rates, the following applies.
Thunderbolt 3, Thunderbolt 4 and USB4 devices running Windows orThunderbolt 3, Thunderbolt 4 running macOS can provide Single 4K up to 120Hz* or Single 1080p up to 240Hz via Thunder-
bolt, or 1080p up to 240Hz via HDMI, or Dual 1080p up to 240Hz via two HDMI connections.
5. Video specifications.
Thunderbolt 3, Thunderbolt 4 and USB4 devices running Windows will provide up to Single 8K @ 60Hz* via Thunderbolt, up to Single 4K @ 60Hz via HDMI, or up to Dual 4K @ 60Hz via two HDMI connections.
Thunderbolt 3, Thunderbolt 4 and USB4 devices running macOS will provide up to Single 6K @ 60Hz via Thunderbolt, up to Single 4K @ 60Hz via HDMI, or up to Dual 4K @ 60Hz via two HDMI connections.
USB-C Alt Mode devices running Windows will provide up to Single 4K @ 60Hz viaThunderbolt or up to Single 4K @ 60Hz via HDMI.
MacBook M1/M2 or iPad Pro devices will provide up to Single 6K @ 60Hz via Thunderbolt or up to Single 4K @ 60Hz via HDMI.
Host laptop will prompt with, "New Thunderbolt device have been attached Thunderbolt devices were attached. In order to approve them for use this applicationmust be run with administrator privileges."
Click OK to run the Thunderbolt™ software with administrator privileges.
6.1 Manage Thunderbolt 4 devices and settings later by clicking on the Thunderbolt devices menu.
6.2 Select desired task from the Thunderbolt devices menu. Choose between View Attached Devices, Approve Attached Devices, Manage Approved Device, Settings, and Exit.
6. Initial Thunderbolt 4 connection for Windows.
2. NEED CLARIFICATION
Sold separately: K34050 mounting bracket.
1. Attach the mounting bracket to the back of the monitor stand.
Sold separately: Recommended K65020WW MicroSaver 2.0 Keyed Lock.
Attach the lock using the standard lock slot noted with a square shaped K icon on the side of the docking station.
Sold separately: Recommended K60603WW NanoSaver Keyed Laptop Lock.
Attach the lock using the nano lock slot noted with a hexagon shaped K icon on the side of the docking station.
Attach the cable of the lock to any fixed location such as a table leg.
For support, visit kensington.com/support.
