Kenwood JE550 Manuale utente
●Do not use the juicer if the filter is damaged.
●Never put the motor unit, cord or plug in water – you could get an electric
shock.
●Switch off and unplug:
●●before fitting or removing parts
●●before cleaning
●●after use.
●Never use a damaged juicer. Get it checked or repaired: see 'Service and
customer care', page 6.
●Only use the pusher supplied. Never put your fingers in the feed tube. Unplug
before unblocking the feed tube.
●Before removing the lid, switch off and wait for the filter to stop.
●Don't let children or infirm people use the juicer without supervision.
●Never let the cord touch hot surfaces or hang down where a child could grab it.
●Don't touch moving parts.
●Never leave the juicer on unattended.
●This juicer is for domestic use only.
●Don’t let children play with the machine.
before plugging in
●Make sure your electricity supply is the same as the one shown on the
underside of your juicer.
Important (UK only) ●The wires in the cord are coloured as follows:
Blue = Neutral, Brown = Live.
●This juicer complies with European Economic Community Directive 89/336/EEC.
before using for the first time
1Remove all packaging.
2To take your juicer apart: see 'To take your juicer apart', page 5.
3Wash the parts: see 'Cleaning', page 5.
KENWOOD JE550
safety
1
0
1
2
pusher
hopper
lid
filter
pulp collector
lid with foam separator
juice jug
speed control
motor unit
interlock
compartment for excess cord
KENWOOD JE550
know your Kenwood centrifugal juicer
2
KENWOOD JE550
to assemble and use your juicer
preparing food
●Remove stones (plums, peaches, cherries etc).
●Remove tough skins (melons, pineapples, cucumbers,
potatoes etc).
●Soft-skinned and other foods just need washing (apples,
pears, carrots, radishes, lettuce, cabbage, parsley, spinach,
grapes, strawberries, celery etc).
●Citrus Fruit - Peel and remove the white pith, otherwise the
juice may taste bitter. For best results Kenwood citrus juicers
are recommended for citrus fruit.
assembly and use
1Fit the pulp collector .
2Fit the filter inside the pulp collector
3Put the lid on and push down firmly on the feed tube. Then
slide the interlock switch to lock the lid. Your juicer will
not work if the lid is unlocked.
4Place the hopper onto the lid .
5Push any excess cord into the compartment at the back of
the juicer.
6Put the juice jug under the outlet . The foam separator in
the jug ensures that the juice is free from foam
7Cut the food into small pieces to fit the feed tube.
8Switch on and push down with the pusher. Use speed 1
for softer food; speed 2 for harder foods.
●Some very hard foods may make your juicer slow down or
stop. If this happens switch off and unblock the filter.
●Switch off and clear the pulp collector regularly during use.
Always unplug after use.
3
0
1
2
0
1
2
KENWOOD JE550
hints
●Insert soft food slowly to get the most juice.
●Vitamins disappear - the sooner you drink your juice, the more vitamins
you'll get.
●If you need to store the juice for a few hours put it in the fridge. It will
keep better if you add a few drops of lemon juice.
●Don't drink more than three 230mls (8 fl.oz.) glasses of juice a day
unless you're used to it.
●Dilute juice for children with an equal amount of water.
●Juice from dark green (broccoli, spinach etc) or dark red (beetroot, red
cabbage etc) vegetables is extremely strong, so always dilute it.
●Fruit juice is high in Fructose (fruit sugar), so people with diabetes or low
blood sugar should avoid drinking too much.
●Don't mix fruit and vegetable juice together (apart from apple and carrot)
- it can cause painful wind or bloating.
4
1Unplug.
2Lift out the pusher and remove the hopper .
3Release the lid by sliding the interlock switch back . Lift off
the lid.
4Lift out the filter .
5Lift out the pulp collector .
6Remove the juice jug.
cleaning
●Before cleaning, unplug your juicer.
●If the filter is too tight to remove, wait a few minutes until it
loosens up.
●We don't recommend washing any of the parts in the
dishwasher.
●Some foods, eg carrot, will discolour the plastic. Rubbing with a
cloth dipped in vegetable oil helps remove discolouring.
motor unit
●Wipe with a damp cloth, then dry.
pulp collector, lid, pusher, hopper
●Wash, then dry.
filter
●Clean using a soft brush.
●Check the filter regularly for signs of damage. Do
not use if the filter is damaged. Refer to “service
and customer care”
Note: The hopper can be inverted for storage on the juicer
KENWOOD JE550
to take your juicer apart
5
KENWOOD JE550
service and customer care
●If the cord is damaged it must, for safety reasons, be replaced by
KENWOOD or an authorised KENWOOD repairer.
UK If you need help with:
●using your juicer or
●servicing or repairs (in or out of guarantee)
call Kenwood customer care on 023 9239 2333. Have your model
number ready - it's on the underside of your juicer.
●spares and attachments
call 0870 2413653.
other countries ●Contact the shop where you bought your juicer.
UK only guarantee
If your juicer goes wrong within one year from the date you bought it, we
will repair or where necessary replace it free of charge provided;
●you have not misused, neglected or damaged it;
●it has not been modified (unless by Kenwood);
●it is not second-hand;
●it has not been used commercially;
●you have not fitted a plug incorrectly; and
●you supply your receipt to show when you bought it.
This guarantee does not affect your statutory rights.
6
0
1
2

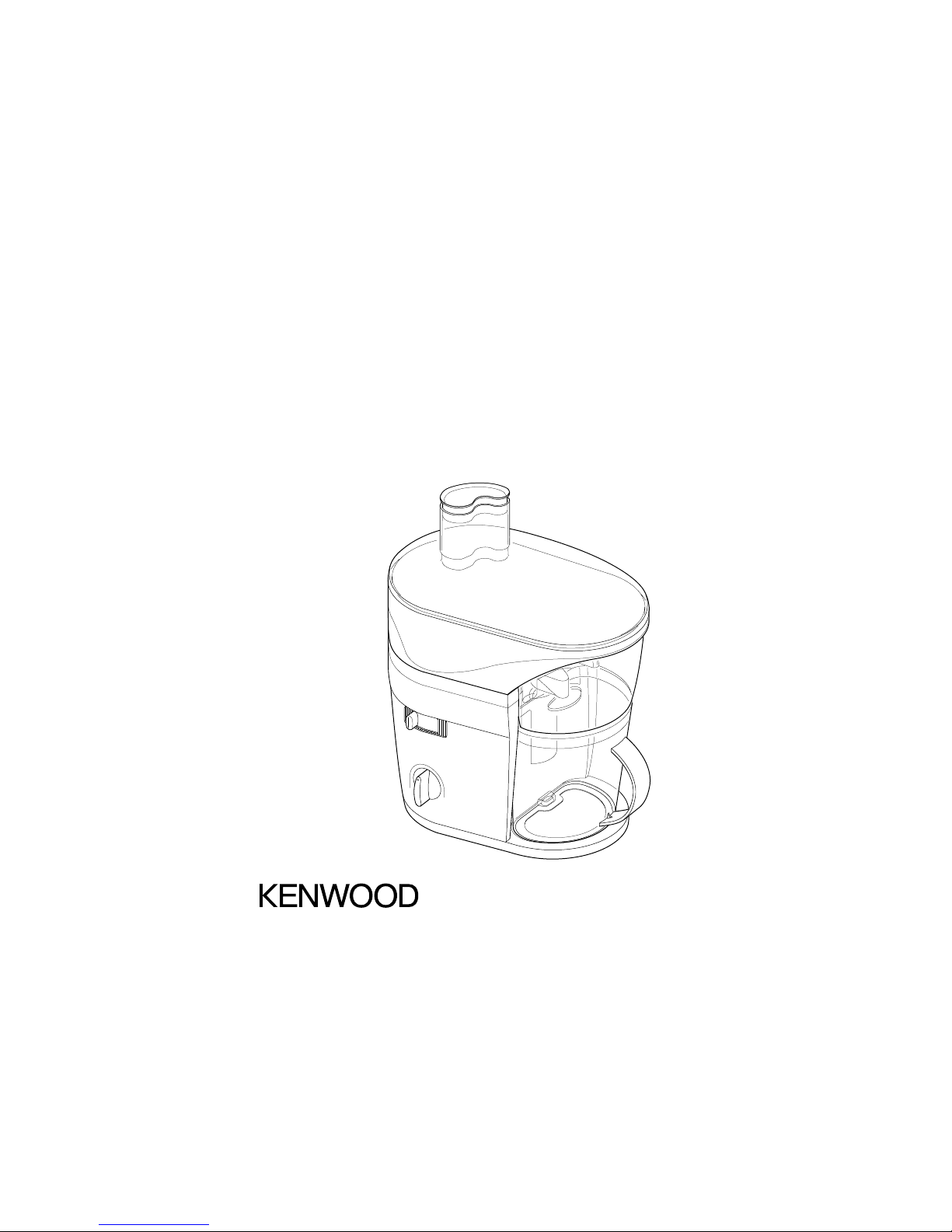

instructions
Kenwood JE550
With your Kenwood Centrifugal Juicer you can enjoy the delicious, natural taste of the
freshest juice - from your own choice of fruit and vegetables. And being a Kenwood, it's
easy to use. So enjoy a healthier lifestyle with your Kenwood Centrifugal Juicer.
9265/4
Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK
www.kenwood.co.uk
