Kenwood CK 405 Manuale utente
1
DUAL FUEL
DOUBLE OVEN COOKER
model CK 405
Instructions for use - Installation advice
Before operating this cooker,
please read these instructions carefully
GB
2
CONTENTS
Page Number
Introduction............................................... 3
Important Safeguards & Recommendations ..................... 4-6
Cooking Hob ............................................. 7

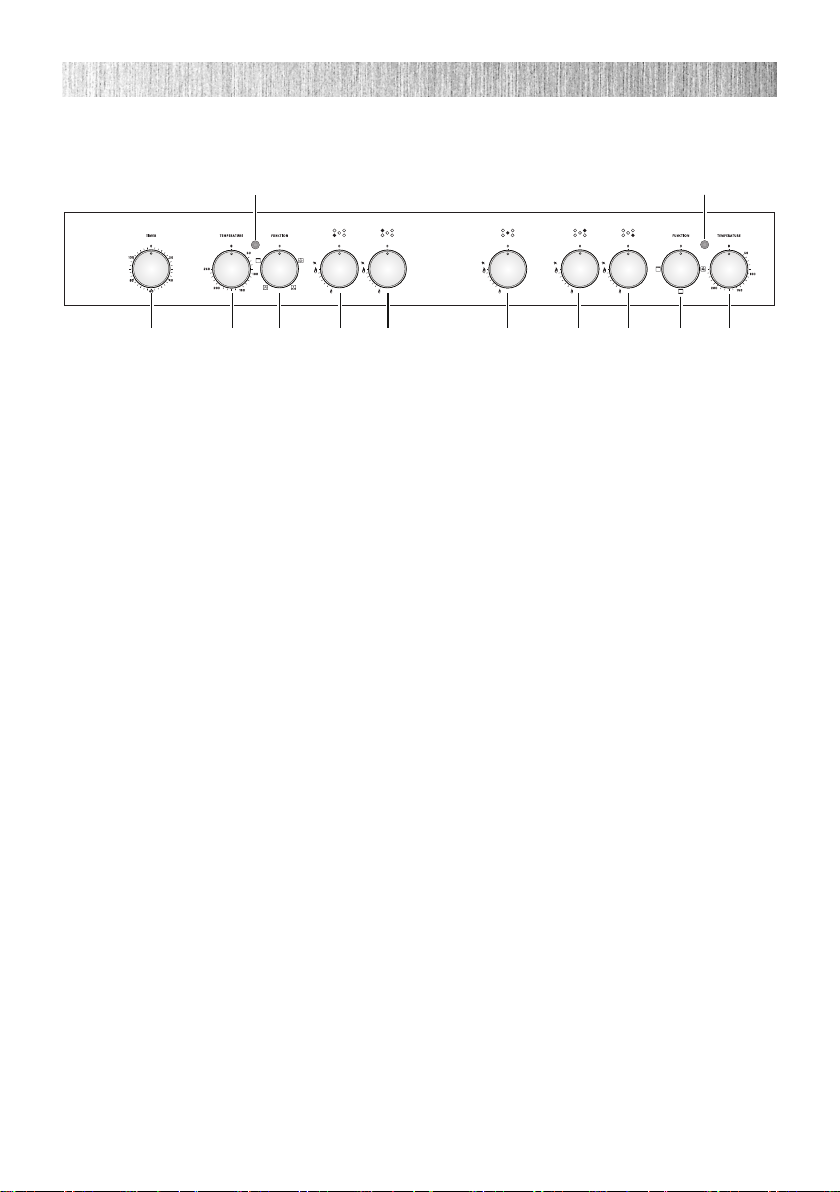

Control Panel ............................................. 8

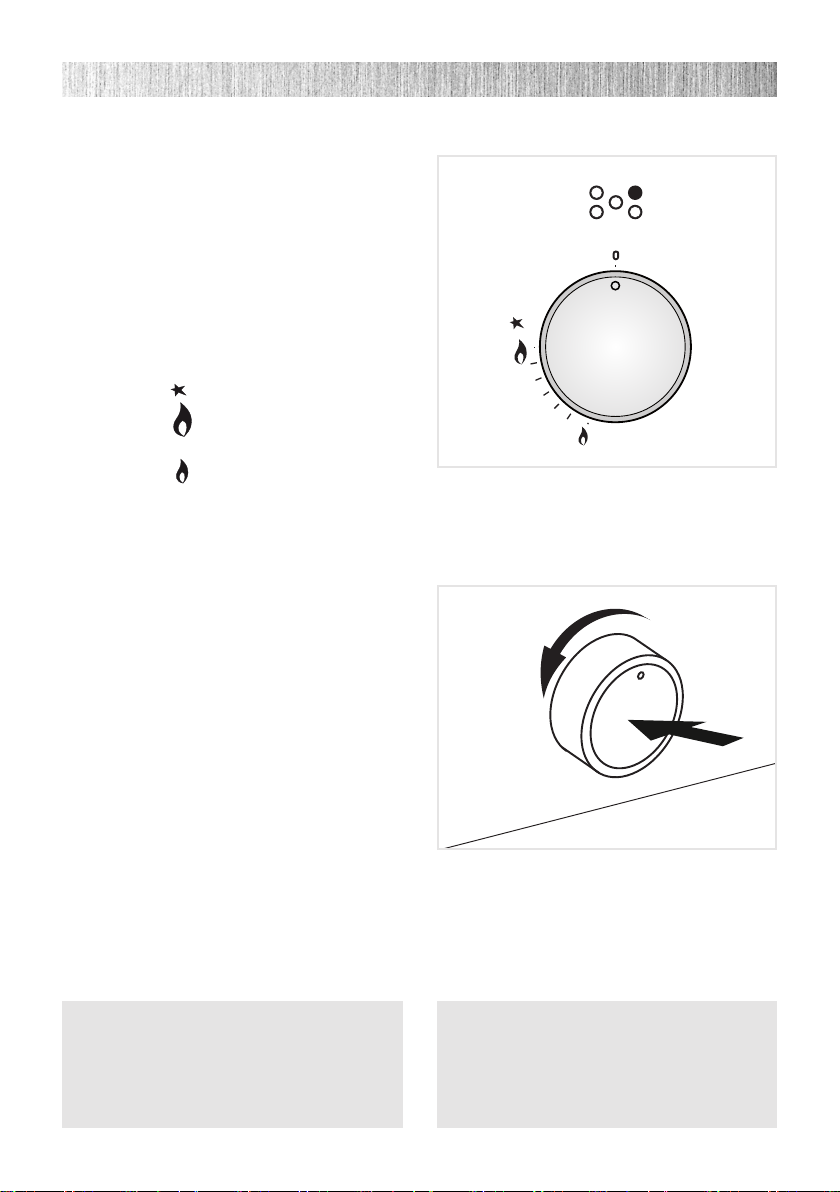

Use of hob burners ........................................ 9 - 10
Fan main oven............................................12 - 14
Conventional oven .........................................15 - 16
Oven temperature guide ....................................17
120 minutes timer .........................................18
Cleaning & maintenance ....................................19 - 24
Advice For The Installer ....................................25
Installation ...............................................26 - 30
Gas installation ...........................................31 - 36
Electrical section ..........................................37 - 38
Guarantee & After Sales Service .............................39
3
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain signicant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
Dear Customer,
Thank you for purchasing a Kenwood CK 405 dual fuel double
oven cooker.
The safety precautions and recommendations reported below
are for your own safety and that of others. They will also provide
a means by which to make full use of the features offered by your
appliance.
Please preserve this booklet carefully. It may be useful in
future, either to yourself or to others in the event that doubts
should arise relating to its operation.
This appliance must be used only for the task it has explicitly
been designed for, that is for cooking foodstuffs. Any other
form of usage is to be considered as inappropriate and
therefore dangerous.
The manufacturer declines all responsibility in the event of
damage caused by improper, incorrect or illogical use of the
appliance.
DECLARATION OF CE CONFORMITY
This cooker has been designed, constructed, and marketed in compliance with:
• Safety requirements of EU Directive “Gas” 2009/142/EC;
• Safety requirements of EU Directive “Low Voltage” 2006/95/EC;
• Protection requirements of EU Directive “EMC” 2004/108/EC;
• Requirements of EU Directive 93/68/EEC;
• Requirements of EU Directive 2011/65/EU. GB
4
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing
straps, etc.) should not be left around within easy reach of children,
as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning of this appliance.
• Do not attempt to modify the technical characteristics of the appliance
as this may become dangerous to use. The manufacturer declines all
responsability for any inconvenience resulting from the inobservance
of this condition.
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not carry out cleaning or maintenance operations on the appliance
without having previously disconnected it from the electric power
supply.
• WARNING: Ensure that the appliance is switched off before replacing
the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the
appliance thus make it unsafe.
5
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to
substitute another model), before disposing of it, it is recommended
that it be made inoperative in an appropriate manner in accordance to
health and environmental protection regulations, ensuring in particular
that all potentially hazardous parts be made harmless, especially in
relation to children who could play with unused appliances.
• The various components of the appliance are recyclable. Dispose of
them in accordance with the regulations in force in your country. If the
appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
• WARNING: During use the appliance and its accessible parts become
hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on the
hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept away.
• Make sure that electrical cables connecting other appliances in the
proximity of the cooker cannot come into contact with the hob or
become entrapped in the oven door.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re with
water, but switch of the appliance and then cover ame e.g. with a lid
or a re blanket.
6
• WARNING: Danger of re: do not store items on the cooking surfaces.
• WARNING: When correctly installed, your product meets all safety
requirements laid down for this type of product category. However
special care should be taken around the rear or the underneath of the
appliance as these areas are not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these instructions:
– Furnish the interior of the oven as described at chapter “CLEANING
AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let the
oven cool down and clean the interior of the oven with a cloth
soaked in water and neutral detergent; then dry carefully.
• CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
• Do not line the oven walls with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
• Always use oven gloves when removing the shelves and food trays
from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance or its
handle – as this could be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build up in the
oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the cooker or on the open oven door.
• Always stand back from the appliance when opening the oven door
to allow steam and hot air to escape before removing the food.
• SAFE FOOD HANDLING: Leave food in the oven for as short a time
as possible before and after cooking. This is to avoid contamination
by organisms which may cause food poisoning. Take particular care
during warmer weather.
• WARNING: Taking care NOT to lift the cooker by the door handle.
7
ENERGY LABELLING/ECODESIGN
• Commission delegated regulation (EU) No 65/2014 (supplementing Directive 2010/30/EU
of the European Parliament and of the Council).
• Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the
European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish compliance with
the above requirements:
• Standard EN 60350-1 (electric ovens).
• Standard EN30-2-1 (hobs: gas red burners).
USE OF THE APPLIANCE, ENERGY SAVING TIPS
OVEN
• Check the oven door always closes properly and the door gasket is clean and in order.
During use, open the oven door only when strictly necessary to avoid heat losses (for
some functions it may be necessary to use the oven with the door half-closed, check
the oven operating instructions).
• Turn off the oven 5-10 minutes before the end of the theoretical cooking time to
recuperate the stored heat.
• We recommend using oven proof dishes and adjusting the oven temperature during
cooking if necessary.
HOB
GAS FIRED BURNERS
• It is important that the diameter of the pot be suitable to the size of the burner so as
not to compromise the high output of the burners and therefore energy waste. A small
pot on a large burner does not give you a boiling point in a shorter amount of time
since the capacity of heat absorption of a liquid mass depends on the volume and the
surface of the pot.
• Avoid keeping a burner on without something on it (without pot).
8

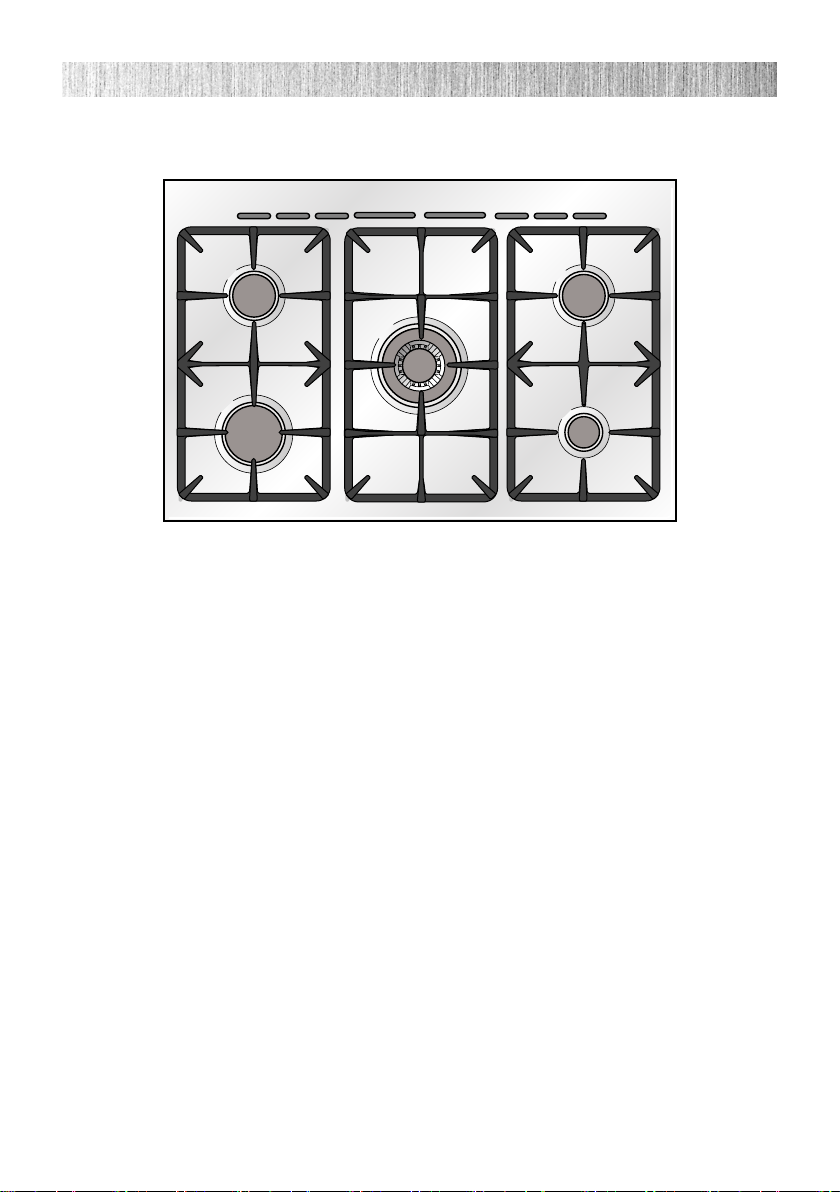

Fig. 1.1
2
4
2
1
3
GAS BURNERS
1. Auxiliary burner (A) 1,00 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Triple-ring burner (TR) 3,50 kW
1 - COOKING HOB
Notes:
• The electric ignition is incorporated in the knobs.
• The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas off at the control knob and wait at
least 1 minute before attempting to relight.
CAUTION:
Gas hobs produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or
by installing an extractor hood connected to an outlet duct that vents to the outside.
CAUTION:
If the hob is used for a prolonged time it may be necessary to provide further ventilation by
opening a window or by increasing the suction power of the extractor hood (if tted).
9
CONTROL PANEL - Controls description
1. Conventional oven temperature knob (right small oven)
2. Conventional oven switch knob (right small oven)
3. Front right burner control knob
4. Rear right burner control knob
5. Central burner control knob
6. Rear left burner control knob
7. Front left burner control knob
8. Fan oven switch knob (main left oven)
9. Fan oven thermostat knob (main left oven)
10. 120 minutes timer control knob
Pilot lamps:
11. Fan oven temperature indicator light
12. Conventional oven temperature indicator light
2 - CONTROL PANEL
5 4 3 2 17 68910
11 12
Fig. 2.1
Please note: This appliance incorporates a safety cooling fan which you will hear operating
whenever the oven or grill is being used.
The cooling fan may even run on after the appliance has been switched off.
The duration of this time is dependent on several factors, including previous cooking
temperature, duration and ambient temperature. Times in excess of 30 minutes are not
uncommon.
10
3 - USE OF THE HOB BURNERS
GAS BURNERS
Gas ow to the burners is adjusted by
turning the knobs (illustrated in g. 3.1)
which control the safety valves.
Turning the knob, so that the indicator line
points to the symbols printed on the panel,
achieves the following functions:
- symbol 0closed valve
- symbol maximum
aperture or ow
- symbol minimum
aperture or ow
√The maximum aperture position
permits rapid boiling of liquids, whereas
the minimum aperture position allows
slower warming of food or maintaining
boiling conditions of liquids.
√ To reduce the gas ow to minimum
rotate the knob further anti-clockwise
to point the indicator towards the small
ame symbol.
√Other intermediate operating
adjustments can be achieved by
positioning the indicator between the
maximum and minimum aperture
positions, and never between the
maximum aperture and closed
positions.
Caution!
The cooking hob becomes very hot
during operation.
Keep children well out of reach.
N.B. When the cooker is not being
used, set the gas knobs to their closed
positions.
Fig. 3.2
Fig. 3.1
Altri manuali per CK 405
2
Indice
Altri manuali Kenwood Forno
Kenwood
Kenwood SC102/2KM Manuale utente
Kenwood
Kenwood CK 640/1 Istruzioni per l'installazione e il funzionamento
Kenwood
Kenwood CK 408/1 Istruzioni per l'installazione e il funzionamento
Kenwood
Kenwood KS 100 G Istruzioni per l'installazione e il funzionamento
Kenwood
Kenwood MO300 Manuale utente
Kenwood
Kenwood KS101G Series Manuale utente
Kenwood
Kenwood OV2630B Manuale utente
Kenwood
Kenwood CKB 250E Manuale utente
Kenwood
Kenwood CKB200 Istruzioni per l'installazione e il funzionamento
Kenwood
Kenwood Mini Oven Manuale utente
Kenwood
Kenwood SC102/2 KM Istruzioni per il montaggio
Kenwood
Kenwood TTM900 Series Manuale utente
Kenwood
Kenwood CKB 300 Manuale utente
Kenwood
Kenwood KD 150 Manuale utente
Kenwood
Kenwood CK 410 Istruzioni per l'installazione e il funzionamento
Kenwood
Kenwood Turbo Quartz OV340 Manuale utente
Kenwood
Kenwood CKBU 300 Manuale utente
Kenwood
Kenwood KS 100 G Manuale utente
Kenwood
Kenwood KD 150 Manuale utente
Kenwood
Kenwood KEN GJW25 Manuale utente
