Kenwood TS-590S Manuale utente

SERVICE MANUAL

This product uses Lead Free solder.

This product complies with the RoHS directive for the European market.

B51-8941-00 (N)283

HF / 50MHz ALL MODE TRANSCEIVER

TS-590S

Key top (8key)

(K29-9466-02)

Panel

(A62-1176-02)

Phone jack (9P)

(E11-0705-15)

RF coaxial receptacle (Round)

(E06-0858-25)

Key top (25key)

(K29-9467-02)

RF coaxial receptacle (M)

(E04-0167-15)x2

3.5D phone

jack (3P)

(E11-0414-15)

Rectangular receptacle

(E58-0537-05)

Sub socket (D)

(E58-0529-05)

3.5D phone jack (3P)

(E11-0455-05)

Pin jack

(E13-0166-25)x2

Foot (Back)

(J02-0475-05)x2

Phone jack (9P)

(E11-0705-15)

DIN socket

(E56-0408-15)

DIN socket

(E06-0752-15)

Lead wire with connector (EXT.AT)

(E37-0891-25)

Lead wire with terminal

(E37-1480-05)

Foot (Front)

(J02-0442-04)x2

Foot (Front)

(J02-0440-04)

Knob (Main knob)

(K21-1107-13)

Key top (20key)

(K29-9468-02)

Key top (5key)

(K29-9469-02)

Front glass

(B10-2799-02)

Knob (RIT)

(K29-9471-03)

Knob (MULTI)

(K29-9456-23)

Knob (Inside/NOTCH,AF)

(K29-9390-03)x2

Knob (Outside/SQL,RF)

(K29-9391-13)x2

Knob (Inside/HI)

(K29-9477-03)

Knob (Outside/LO)

(K29-9478-03)

fineline6

102

JIHGFEDCBA

R211

R215

R216

R217

TP312

L103

L105

L106

L108

TP374

TP375

TP376

TP377

TP378

TP379

TP380

MULA

MULC

MULB

33C

1 MLED

MULA

MULC

MULB

33C

MLED

TP381

TP382 1

NVOL

GND

33C

SVOL

TP383

TP384

TP385 TP386

TP387

TP388

TP389

33C 1

AFVOL

RFVOL

GND

TP390

TP391

TP392

TP393

TP394

TP395

TP396

TP397

TP398

TP399

CN107

C122

C127

C128

TP400

C129

TP401

C130

C131

C132

C133 C134

C135

C139

C140

C141

C145

R952

R953

R954

C148

GND4

RITB

RITA

R955

R186

R189

R190

R192

R195

R196

R197

R198

R199

C950

MSG

MCG

MIC

C951 C957

C958

C959

C973

R200

R201

R204

MENB

MENA

GND

R205

R206

R207

R208

L104

R210

R212

R213

R214

Q107

CN103

CN104

CN105

CN106

C123 C124

PCTS

PRTS

BKC

GND

33C

GND

RRXD

PTXD

PRST

PSW

GND

C125

C136

C137

C138

R185

C149

C150

R191

C155

R193

R194

CP106

CP107

R202 R203

R209

C151

C152

CN102

C146

C147

R187

R188

CN951

CN965

C956

B/6

C/6

E/6

TS-590S PC BOARD

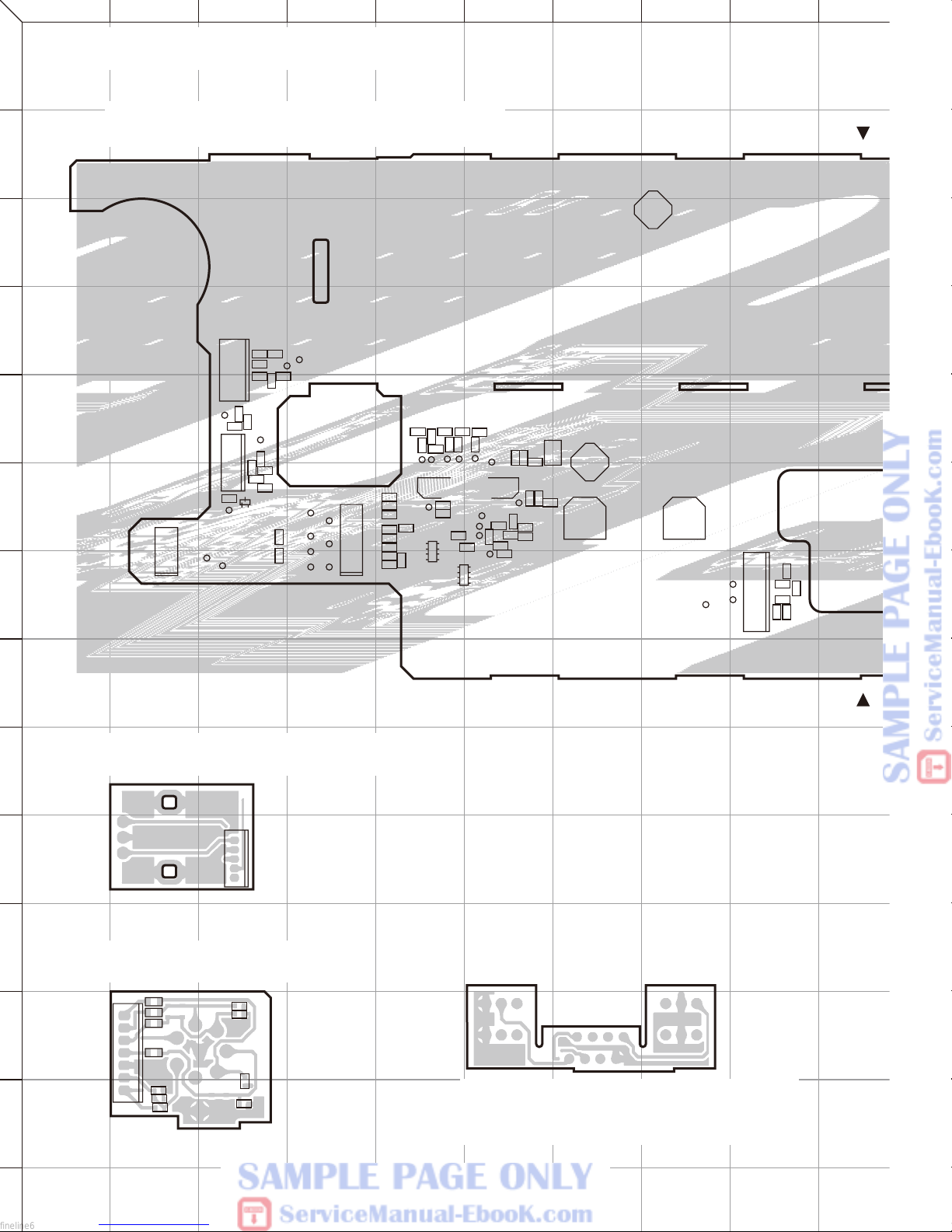

DISPLAY UNIT (X54-3700-00) (A/6): DISPLAY

Foil side view (J79-0280-09 A/6)

DISPLAY UNIT

(X54-3700-00) (B/6): MULCH/CH

DISPLAY UNIT

(X54-3700-00) (E/6): MIC

DISPLAY UNIT

(X54-3700-00) (C/6)

: HI/LO (SHIFT/WIDTH), NOTCH/SQL

fineline6

TS-590S

141

General

Mode J3E (SSB)/ A1A (CW)/ A3E (AM)/ F3E (FM)/ F1B (FSK)

Number of memory channels 110 + 10 (Quick memory channels)

Antenna impedance 160 m ~ 6 m band 50 Ω(with built-in antenna tuner 16.7 ~ 150 Ω)

Supply Voltage DC 13.8 V±15%

Grounding method Negative ground

Current

Transmit (max.) Less than 20.5 A

Receive (no signal) Less than 1.5 A

Usable temperature range –10°C ~ +50°C (+14°F ~ +122°F)

Frequency stability without SO-3 –10°C ~ 50°C Within ±5 ppm

Frequency stability with SO-3 –10°C ~ 50°C Within ±0.5 ppm

Dimensions (W x H x D Projections not included) 270 x 96 x 291 mm/ 10.63 x 3.78 x 11.46 inches

Weight Approx. 7.4 kg/ 16.3 lbs

Transmitter

Frequency range

160 m band 1.8 ~ 2.0 MHz (K type)/ 1.81 ~ 2.0 MHz (E type)

80 m band 3.5 ~ 4.0 MHz (K type)/ 3.5 ~ 3.8 MHz (E type)

60 m band 5.1675 MHz, 5.25 ~ 5.45 MHz (K type)

40 m band 7.0 ~ 7.3 MHz (K type)/ 7.0 ~ 7.2 MHz (E type)

30 m band 10.1 ~ 10.15 MHz

20 m band 14.0 ~ 14.35 MHz

17 m band 18.068 ~ 18.168 MHz

15 m band 21.0 ~ 21.45 MHz

12 m band 24.89 ~ 24.99 MHz

10 m band 28.0 ~ 29.7 MHz

6 m band 50.0 ~ 54.0 MHz (K type)/ 50.0 ~ 52.0 MHz (E type)

Output power

SSB/ CW/ FSK/ FM

Max. 100 W

Min. 5 W

Max. 25 W

Min. 5 W

Maximum frequency deviation (FM)

Wide Less than ±5 kHz

Narrow Less than ±2.5 kHz

Modulation

SSB Balanced

AM Low power

FM Reactance

Spurious emissions

160 m ~ 10 m band Less than –50 dB

6 m band Less than –60 dB

Carrier suppression (SSB) More than 50 dB

Unwanted sideband suppression (modulation frequency 1.0 kHz) More than 50 dB

Transmit frequency response –6 dB: 400 ~ 2600 Hz

XIT shift frequency range ±9.999 kHz

Microphone impedance 600 Ω

SPECIFICATIONS
