Key Digital KD-CAT5XCAT5 Manuale utente
KD-CAT5XCAT5
Operating Manual
CAT5 Extender
The KD-CAT5XCAT5 is a CAT5 extender capable of resolutions up to 1080P. It
can be used with or without the supplied power adapter and is intended for use with
Key Digital’s KD-HDMIXCAT5, KD-VP8, KD-HDMIWPTX, KD-HDMIWPRX or
KD-CAT5XHDMI.
2
Quick Setup Guide
Connect power, then connect the CAT5 input source cables to the correct
input ports (‘Data’ and ‘Control’) on the KD-CAT5XCAT5. Finally,
connect the CAT5 outputs to the receiving device (KD-CAT5XHDMI, KD-
HDMIWPRX)
3
Table of Contents
Installation Instructions……………………………………………………………………4
Technical Specifications ………………………………………………………………….6
Troubleshooting…………………………………………………………………………...6
Product Warnings………………………………………………………………………….7
Warranty………………………………………………………………………………......7
Contact Information……………………………………………………………………….8
4

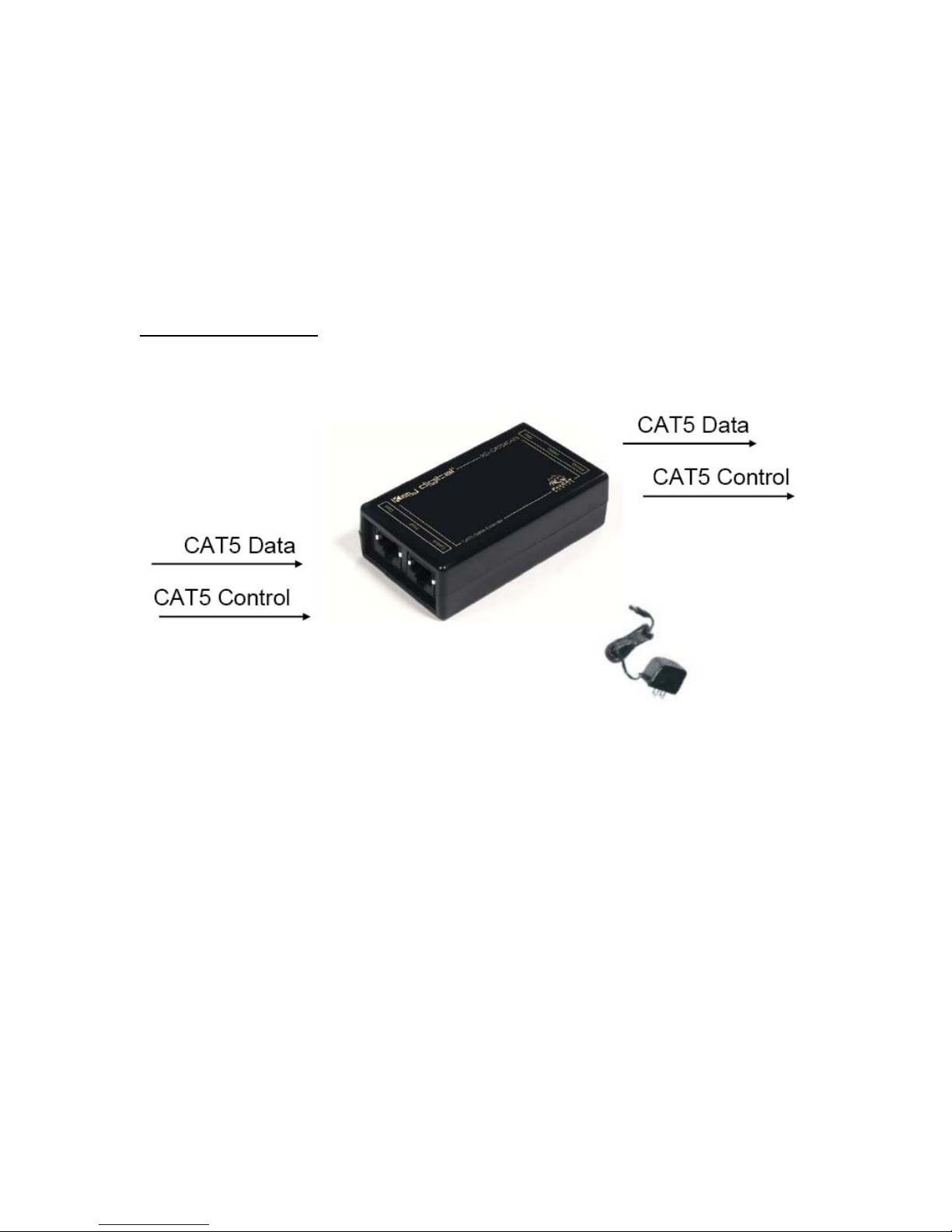

Fig. 1
Instructions
The KD-CAT5XCAT5 can receive power from either the CAT5 ‘Control’ connection or
via the supplied power adapter. When using the CAT5 cable to deliver power to the unit,
performance is subject to the following factors:
Ability of the CAT5 cable to deliver the required power over distance
Quality of the CAT5 cable.
1. Find a safe and convenient location for the KD-CAT5XCAT5 unit.
Before permanently securing the unit or final installation of cabling behind walls or
ceilings, test for proper operation of the unit and the cables in your system.
2. Power
In order to insure the best possible performance from the KD-CAT5XCAT5, we
recommend using only the original Key Digital power supply.
If you are using the supplied power adapter, plug it into the power input jack on
the side of the unit. You should see the “Power” LED illuminate. (see Fig. 1)
Green LED: Power Indicato
r
Blue LED: Stable in
p
ut video si
g
nal
p
resent
Red LED: Valid Source/S
y
nch DVD/TV connection indicato
r
Power Jack
5
3. Connections
•Plug in the CAT5 source cables to their corresponding ‘Data’ and ‘Control’
input ports of the KD-CAT5XCAT5. If you are not using the supplied power
adapter, the “Power” LED should illuminate upon plugging in the ‘Control’
input cable if your HDMI source and the KD-HDMIXCAT5 or KD-
CAT5XCAT5 are powered on.
•Plug in the CAT5 output cables to the “Data” and “Control” output ports on
the KD-CAT5XCAT5. At this point, if both your source (KD-VP8, KD-
HDMIXCAT5 or KD-HDMIWPTX) and destination (KD-CAT5XHDMI,
KD-HDMIWPRX) devices are powered on, you should see the green “Power”
LED and the blue “HPD” LED lit.
When a stable signal is established between your source and destination, the red
“Equalizer Active” LED will light. If this red LED indicator is blinking or not
illuminated, try shortening HDMI or CAT5 cable lengths or lowering the resolution
of the video signal.
.
Mounting the KD-CAT5XCAT5 unit
The KD-CAT5XCAT5 is shipped with a convenient mounting bracket as an installation
option. Once you have verified operation of the unit with your cables, secure the
mounting bracket to a convenient location. Carefully insert the KD-CAT5XCAT5 into
the bracket.
6
Technical Specifications
Connectors: Two CAT5 input connectors labeled “Data” and “Control”
Two CAT5 output connectors labeled “Data” and “Control”
Power: External AC-DC power supply included (5 Volt DC @ 1 Amp,
110-240 VAC, 50-60 Hz)
Mechanical: No Fan Noise
Weight < 1Lb
Molded black ABS Plastic Enclosure
Molded black ABS mounting bracket (1)
Resolutions Supported: All resolution up to 1080p/60
Dimensions: HxWxL = 25mm x 50mm x 84mm
1in x 2in x 3.25in
Troubleshooting
Most issues with the KD-CAT5XCAT5 setup will involve resolution and distance
performance. If you experience problems (no image, video artifacts, picture dropout,
noise) here are a few things to try.
1. Use the shortest possible CAT5 cables between devices.
2. Lower the output resolution of the image source.
3. Use the provided power supply for the KD-CAT5XCAT5 instead of relying
on the voltage in the CAT5 cable to power the unit.
7
Product Warnings:
1) Connect HDMI and CAT5 cables before providing power to the unit.
2) Test for proper operation before securing unit behind walls or in hard to
access spaces.
3) If installing the KD-CAT5XCAT5 into wall or mounting bracket into sheet-
rock, provide proper screw support with bolts or sheet-rock anchors.
1. Read and follow all instructions.
2. Heed all warnings.
3. Do not use this device near water.
4. Clean only with dry cloth.
5. Install in accordance with the manufacturer’s instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way including:
•Damage to the power supply or power plug
•Exposure to rain or moisture
8
Key Digital Contacts
Repairs and Warranty Service
To obtain a Returned Materials Authorization (RMA) number, please contact:
Phone: (914)-667-9700
email: [email protected]
Technical Support
Phone: (914)-667-9700
Email: tech@KeyDigital.com
Customer support
Phone: (914)-667-9700
Email: [email protected]
