Keys Fitness Stepper Machine E2-0 Manuale utente

315-00131

09/18 Rev 9.0

Owner’s Manual

Customer Service

(800) 340-0482

Manufactured By:

Keys Fitness Products

4009 Distribution Drive

Suite 250

Garland, TX 75041

Read all precautions and instructions

in this manual before using this equip-

ment.

KF-E2.0

Model Name : KF-E2.0

Serial Number :

Serial Number can be found at

the above specified location.

CAUTION

www.keystness.com

Table of Contents

Table of Contents 2

Important Safety Information 3

Assembly 4

Parts Identifier 5

Assembly Steps 6

Console Information 18

Maintenance Instruction 25

Workout Information 27

Parts list 31

Exploded View 33

Warranty 35

TABLE OF CONTENTS THANK YOU for making this unit a part of your exercise program. Keys Fitness

Products Fitness assures the very best in value, appearance, durability and biome-

chanics. This manual will guide you through the assembly process. If at any time

you are having trouble with the assembly or use of this product, then please con-

tact us at our Keys Fitness Help line. We have trained service technicians on site

to take care of you, our valued customer.

REGISTRATION CARD

To avoid unnecessary delays in warranty parts and to insure that a permanent

record of your purchase is on file with our company, be sure to send in the war-

ranty registration card or register on-line at www.keysfitness.com within 10 days of

purchase.

Keys Fitness series

MODEL: KF-E2.0

QUESTIONS?

CALL

(800) 340-0482

Monday-Friday

8:30 am - 5:30 pm Central Time

www.keystness.com

WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age

of 35 and/or persons with pre-existing health problems. The manufacturer or distributor assumes no responsibility for personal injury or property

damage sustained by or through the use of this product. To reduce the risk of electrical shock, burns, re, or other possible injuries to the user, it is

important to review this manual and the following precautions before operation.

SAFETY PRECAUTIONS AND TIPS

1. It is the owner’s responsibility to ensure that all users of this unit have read the Owner’s Manual and are familiar with warnings and

safety precautions.

2. This unit has a user maximum capacity of 275 pounds.

3. The unit should only be used on a level surface and is intended for indoor use only. The unit should not be placed in a garage,

patio, or near water and should never be used while you are wet. Keys Fitness recommends a mat be placed under the unit to

protect oor or carpet and for easier cleaning.

4. Follow safety information in regards to plugging in your unit. Do not run the power cord underneath your unit. Do not operate the

unit with a damaged or frayed power cord.

5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use the unit with bare feet, sandals,

socks or stockings.

6. Always examine your unit before using to ensure all parts are in working order.

7. Allow the unit to fully stop before dismounting.

8. Pets should never be allowed near the unit.

9. Do not leave children unsupervised near or on the unit.

10. Never operate the unit where oxygen is being administered, or where aerosol products are being used.

11. Never insert any object or body parts into any opening.

12. For safety and to prevent damage to your unit, no more than one person should use the unit at a time.

13. Always unplug the unit before cleaning and/or servicing. Service to your unit should only be performed by an authorized service

representative, unless authorized and/or instructed by the manufacturer.

14. Failure to follow these instructions will void the unit warranty.

Thank you for purchasing the Keys Fitness KF-E2.0! The quality product you have chosen was designed to meet your needs for

cardiovascular exercise. Before you start, please read the Owner’s Manual and become familiar with the operation of your new unit. Remember

to take time to perform stretching exercises, provided in this manual, to help avoid injury. If you are taking medication, consult your physician to

see what effect the medication will have on your exercise heart rate. If you have heart problems, you are not active, and/or are over the age of 35

years, do not use the pre-set programs or start an exercise program without rst contacting and receiving approval from your physician. To avoid

the risk of electrical shock, always keep the console dry. Do not spill liquids on the console. Keys Fitness recommends a sealed water bottle for

beverages consumed while using the unit.

Important Safety Information

www.keysfitness.com

Assembly

www.keystness.com

Parts Identifier

Prior to assembly, remove components from the box

and verify that all the listed parts were supplied.

Right Rotating

Handlebar

Allen Screws

M8x58

Left Rotating

Handlebars

Right Handlebar

Left Handlebar

Bottle Holder

Water Bottle

Rotating Arm - Pedal assembly (Right)

Wheel Tracks

Front stabilizer D

Upright post

Console

Upright tube cover

Tools

Main Frame

Allen Screws

M8x70

Allen Screws

M8x20

Allen Screws

M10x112

Screws (Black)

M5x20 Allen Screws

M6x10 Allen Screws

M8x15

Allen Screws

M8x20

Screws

M4x10 Spring Washers M8 Flat Washers

M8x16x1.2 Flat Washers

M10xø22x1.5

Spring Washers

M10

Bushings

Flat Washers

M8xø22x2.0

Flat Washers

M8xø38x2.0

Nut M8

N1 N3 N4

N5 N6 N7 N8

N10 N13 N14 N15

N17

N18

N20

N21

N22

K1 K2

Rotating Handlebar

Tube - Left

Rotating Handlebar

Tube - Right

Pedal Arm

Cover - Left

L-L Pedal Arm

Cover - Right

L-R

6mm 5mm 13mm

14mm

www.keystness.com

Assembly

N17

N15

Use Tool

6mm

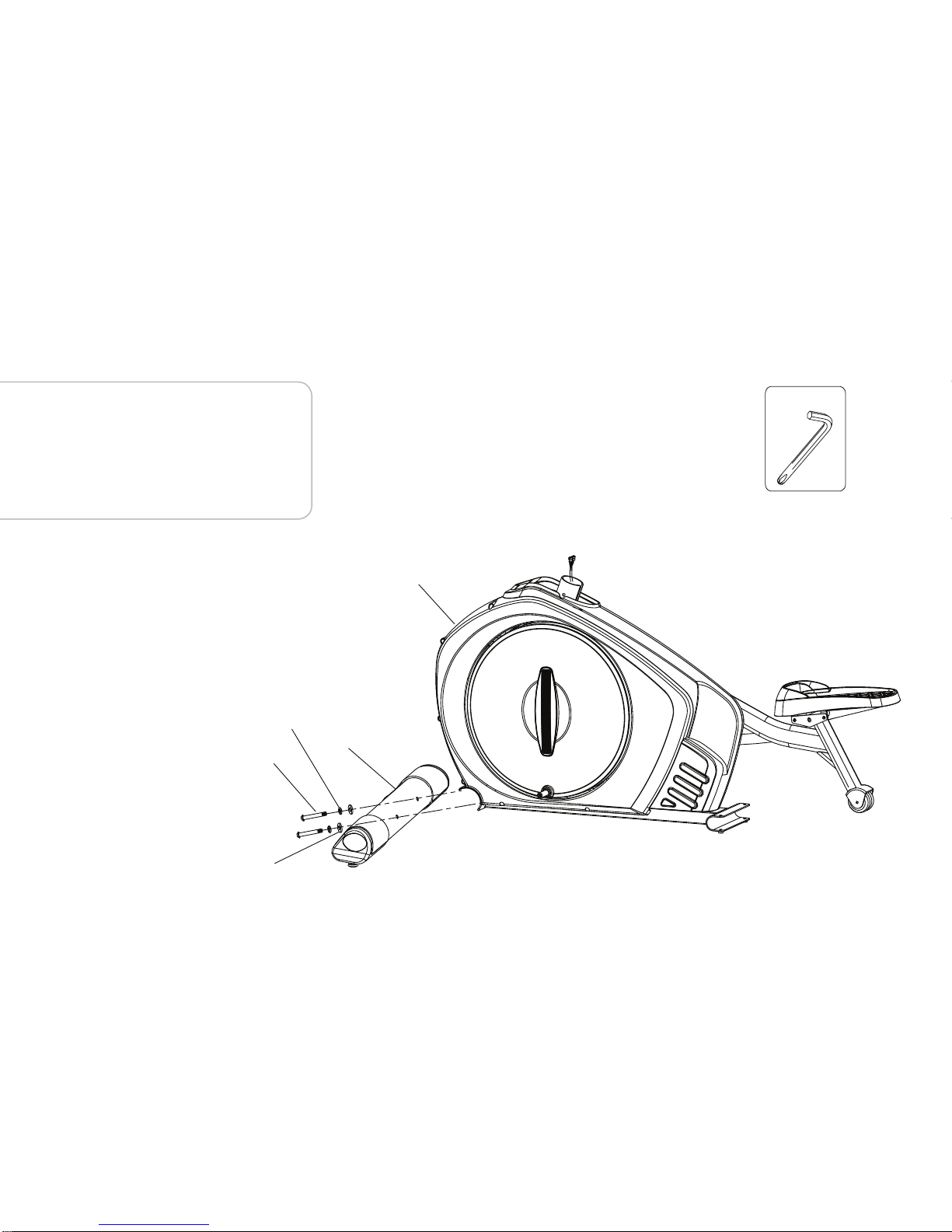

ASSEMBLY FOR FRONT STABILIZER

Secure the front stabilizer (B) to the main

frame (A) using 2 allen screws (N4), 2 spring

washers (N17) and 2 flat washers (N15).

www.keystness.com

N1 N13

N14

Assembly

Use Tool

6mm

Note: After finishing the installation of both the

front stabilizer bar and the rear wheel tracks, in

order to add stability to the unit, you may need

to adjust the levelers that are located on the

bottom of the stabilizer bars.

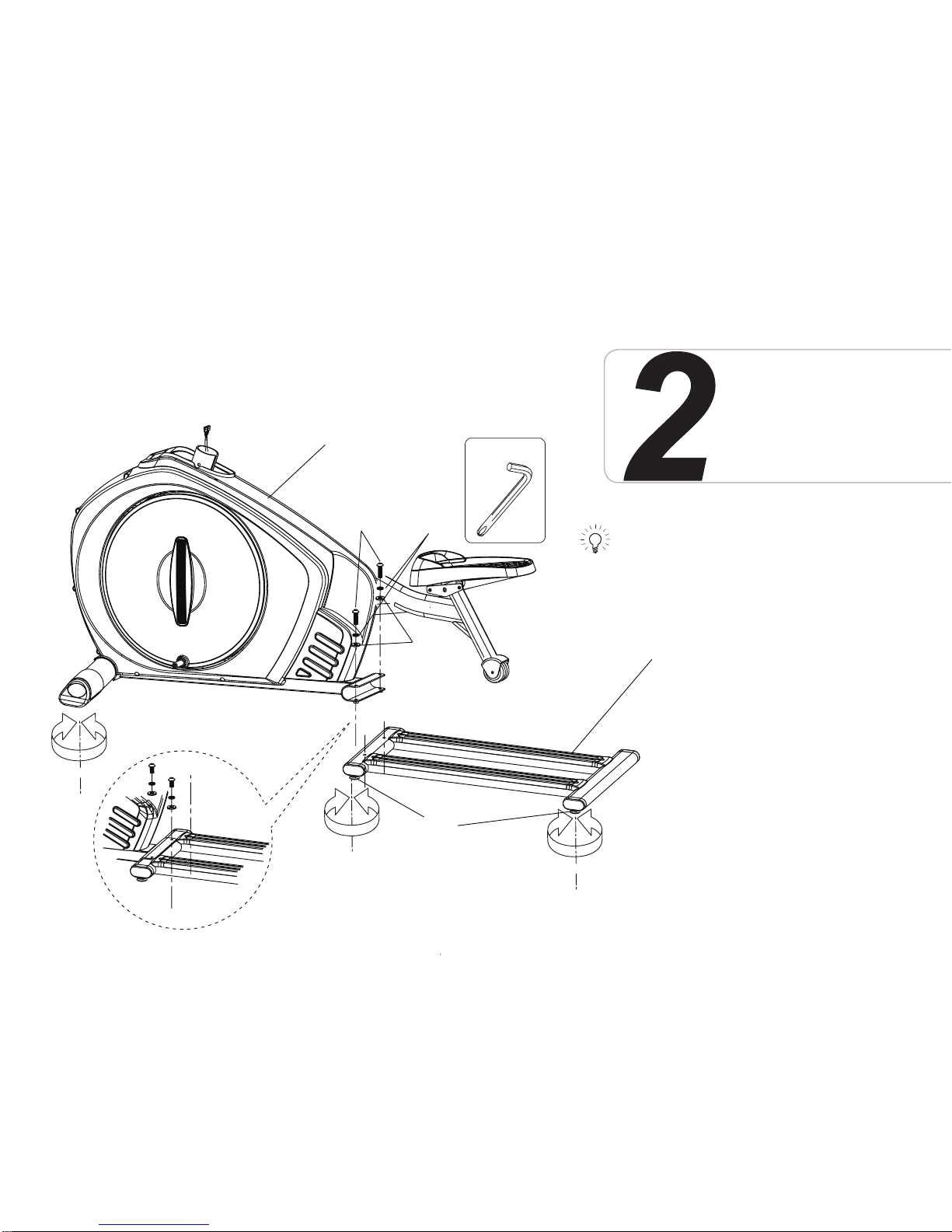

ASSEMBLY FOR REAR WHEEL TRACKS

Secure the rear wheel tracks (C) to the main frame

(A) using screws (N1), springs washers (N13), and flat

washers (N14).

www.keystness.com

Assembly

N13

N14

Use Tool

6mm

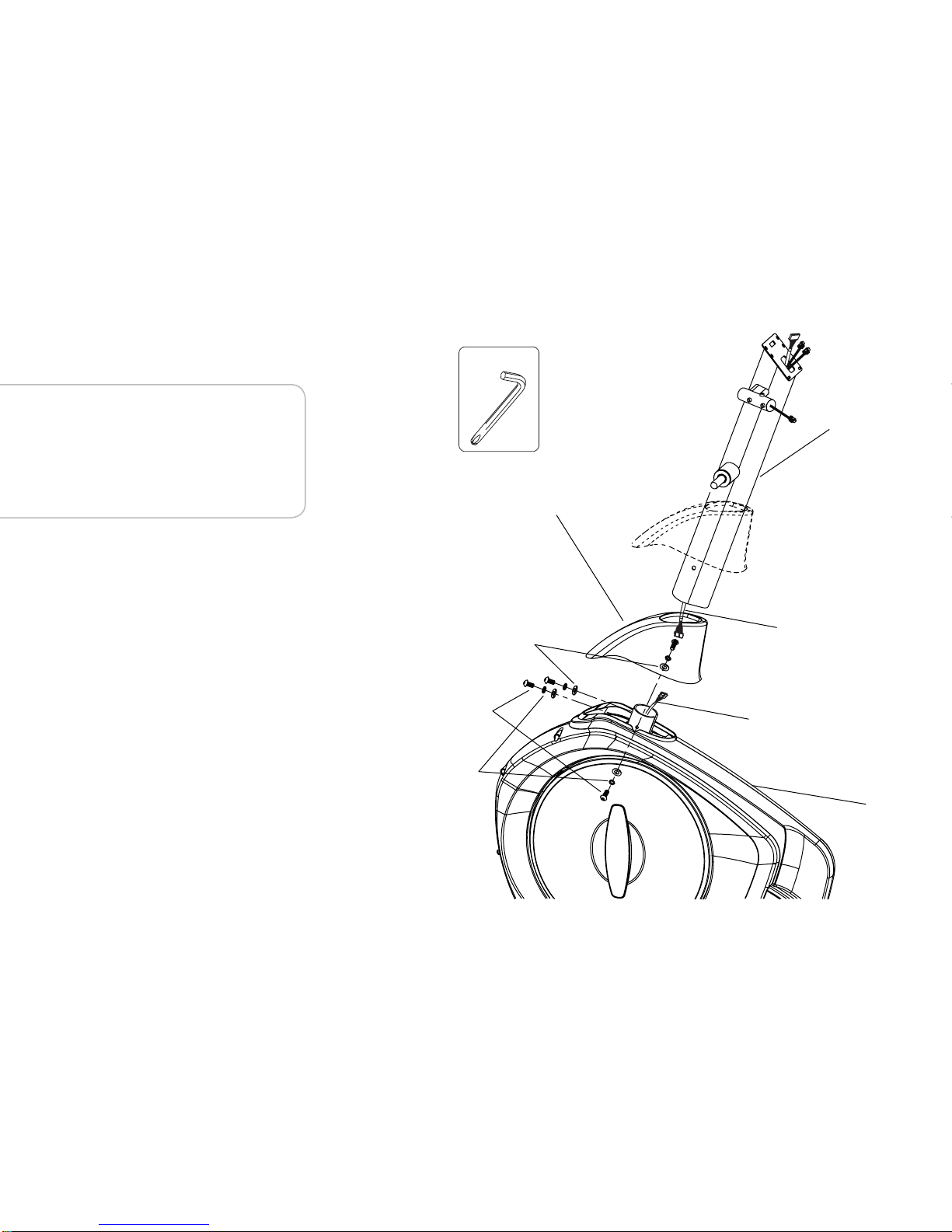

ASSEMBLY FOR UPRIGHT POST

Step 1:

Insert the upright post cover (H) onto the upright post (D)

from the bottom side.

Step 2:

Connect the lower sensor wire (A2) with the upper sensor

wire (D2).

Step 3:

Mount the upright post (D) to the main frame (A) and secure

using 4 allen screws (N7), 4 spring washers (N13), and 4 flat

washers (N14).

Step 4:

Slide the console tube cover down to conceal tube

connection.

www.keystness.com

Assembly

N13

N21

N13

N14

G1-1

D2-1

Use Tool

6mm

Use Tool

5mm

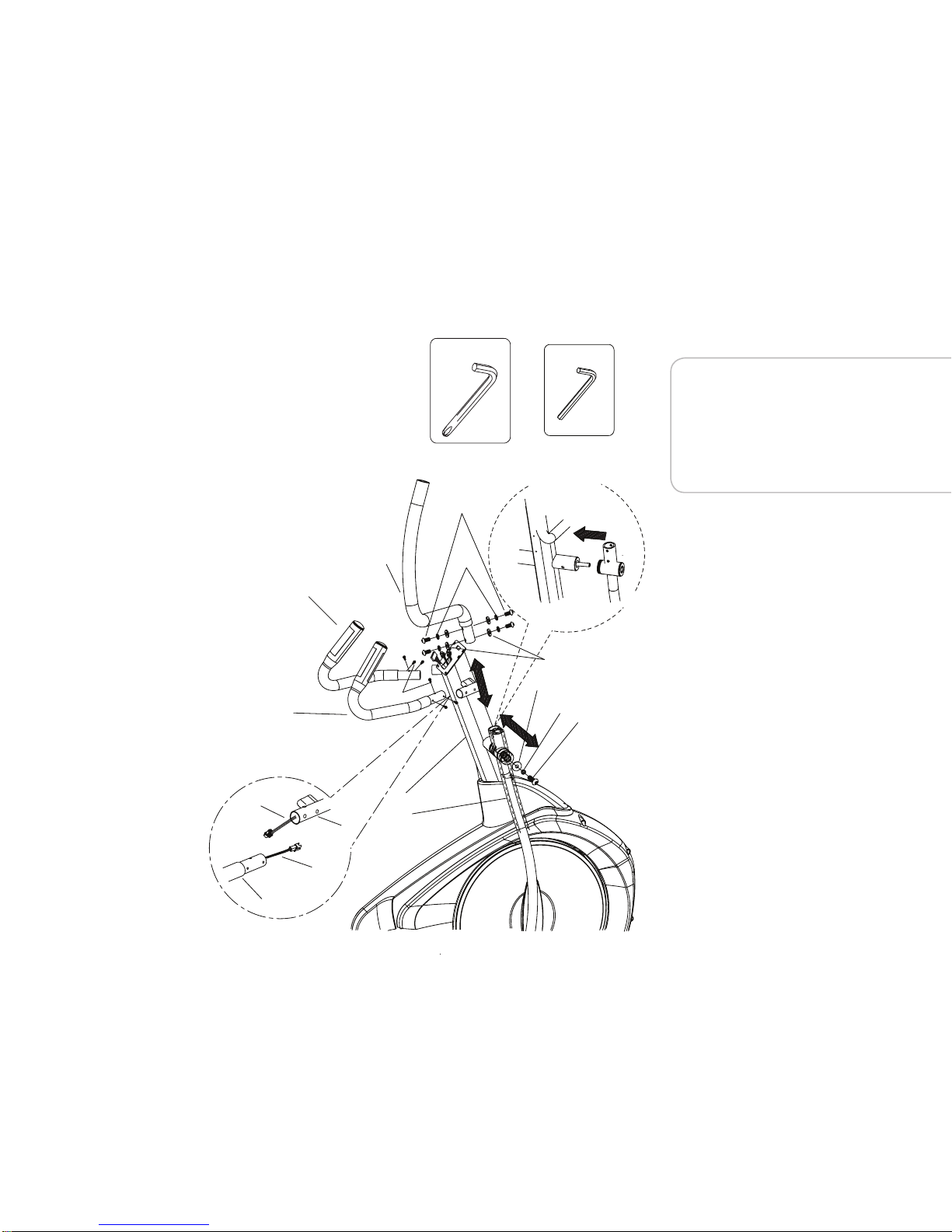

ASSEMBLY FOR RIGHT

HANDLEBAR

Step 1:

Connect the right rotating handlebar tube

(P1) to the upright post (D) at the arm joint

and secure using allen screw (N8), spring

washer (N13) and flat washer (N21).

Step 2:

Attach the right rotating handlebar (E1) to

the right rotating handlebar tube (P1) and

secure using 4 allen screws (N3), 4 spring

washers (N13), and 4 flat washers (N14).

ASSEMBLY FOR STATIONARY

HANDLEBARS

Step 1:

Connect the pulse wire (G1-1) from the

right handlebar (G1) to the pulse wire

(D2-1) from the upright post (D).

Step 2:

Attach the right stationary handlebar

(G1) to the right handlebar mount on the

upright post (D) and secure using 3 allen

screws (N6).

Step 3:

Repeat steps 1 and 2 for the left station-

ary handlebar (G2).

www.keystness.com

Assembly

N18

N13

N14

N22

Use Tool

6mm

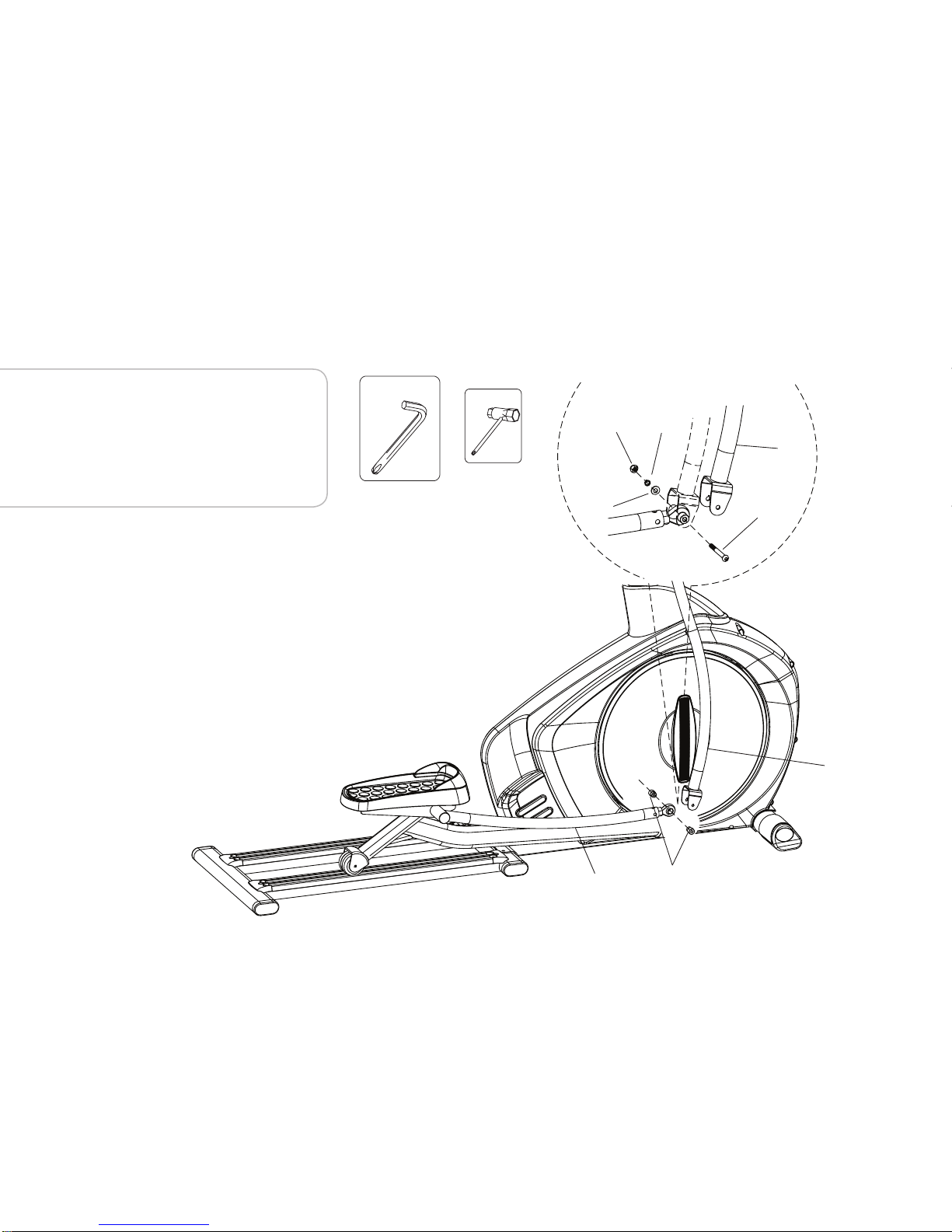

ASSEMBLY FOR RIGHT ROTATING

HANDLEBAR TUBE

Step 1:

Insert 2 bushings (N18) on the tapered ends into the right pedal

arm joint (A) - one for each side.

Step 2:

Attach the right pedal arm (A) to the right rotating handlebar tube

(P1) and secure using allen screw (N2), spring washer (N13), flat

washer (N14) and nut (N22).

Use Tool

13mm14mm
