Keysight Technologies U3606A Manuale utente

Keysight U3606A

Multimeter|DC Power Supply

Quick Start

Guide

U3606A Quick Start Guide III

Notices

No part of this manual may be reproduced in

any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Keysight

Technologies as governed by United States

and international copyright laws.

Manual Part Number

U3606-90002

Edition

Third Edition, August 1, 2014

Keysight Technologies

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Keysight disclaims all warran-

ties, either express or implied, with

regard to this manual and any infor-

mation contained herein, including

but not limited to the implied warran-

ties of merchantability and fitness for

a particular purpose. Keysight shall

not be liable for errors or for inciden-

tal or consequential damages in con-

nection with the furnishing, use, or

performance of this document or of

any information contained herein.

Should Keysight and the user have a

separate written agreement with

warranty terms covering the material

in this document that conflict with

these terms, the warranty terms in the

separate agreement shall control.

Technology Licenses

The hardware and or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

U.S. Government Restricted Rights. Soft-

ware and technical data rights granted to

the federal government include only those

rights customarily provided to end user cus-

tomers. Keysight provides this customary

commercial license in Software and techni-

cal data pursuant to FAR 12.211 (Technical

Data) and 12.212 (Computer Software) and,

for the Department of Defense, DFARS

252.227-7015 (Technical Data - Commercial

Items) and DFARS 227.7202-3 (Rights in

Commercial Computer Software or Com-

puter Software Documentation).

Safety Notices

CAUTION

A CAUTION notice denotes a haz-

ard. It calls attention to an operat-

ing procedure, practice, or the like

that, if not correctly performed or

adhered to, could result in damage

to the product or loss of important

data. Do not proceed beyond a

CAUTION notice until the indicated

conditions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could result

in personal injury or death. Do not

proceed beyond a WARNING

notice until the indicated condi-

tions are fully understood and

met.

IV U3606A Quick Start Guide

Safety Symbols

The following symbols on the instrument and in the documentation indicate precautions

which must be taken to maintain safe operation of the instrument.

Environmental Conditions

This instrument is designed for indoor use and in an area with low condensation. The table

below shows the general environmental requirements for this instrument.

Direct current (DC) Alternating current (AC)

Both direct and alternating current Caution, risk of danger (refer to this manual

for specific Warning or Caution information)

Environmental conditions Requirements

Operating temperature 0 °C to 55 °C

Storage temperature –40 °C to 70 °C

Relative humidity Up to 80% at 30 °C RH (non-condensing)

NOTE

The U3606A Multimeter|DC Power Supply complies with the following safety and

EMC requirements:

•IEC 61010-1:2001/EN61010-1:2001 (2nd Edition)

•Canada: CAN/CSA-C22.2 No. 61010-1-04

•USA: ANSI/UL 61010-1:2004

•IEC 61326-1:2005/EN61326-1:2006

•CISPR11:2003/EN55011:2007, Group 1 Class A

•Canada: ICES/NMB-001:2004

•Australia/New Zealand: AS/NZS CISPR 11:2004

U3606A Quick Start Guide V

Regulatory Markings

Additional Safety Information

For further information on safety, refer to the U3606A User’s and Service

Guide.

The CE mark is a registered trademark

of the European Community. This CE

mark shows that the product complies

with all the relevant European Legal

Directives.

The C-tick mark is a registered

trademark of the Spectrum

Management Agency of Australia. This

signifies compliance with

the Australia EMC Framework

regulations under the terms of the

Radio Communication Act of 1992.

ICES/NMB-001 indicates that this ISM

device complies with the Canadian

ICES-001.

Cet appareil ISM est confomre a la

norme NMB-001 du Canada.

This instrument complies with the

WEEE Directive (2002/96/EC) marking

requirement. This affixed product label

indicates that you must not discard

this electrical or electronic product in

domestic household waste.

The CSA mark is a registered

trademark of the Canadian Standards

Association.

VI U3606A Quick Start Guide

Contents

Introduction 1

The Front Panel at a Glance 2

The Display at a Glance 3

Connect the Power Cord 4

Adjust the Carrying Handle 5

Connect the Test Leads to the Terminals 6

Input terminal connections 6

Output terminal connections 7

Power-on the U3606A 8

Select a Function 9

Using the utility menu 10

Digital multimeter functions 11

DC power supply functions 17

Where to Go Next? 25

User references 25

Keysight support and contact information 25

U3606A Quick Start Guide 1

1 Introduction

The Keysight U3606A Multimeter|DC Power Supply unit is a combination

of a 5½ digit, 120000 count digital multimeter and a 30 W DC power

supply with a square- wave generator, that is able to work simultaneously

and independently.

As a digital multimeter, the U3606A is capable of making DC voltage, AC

voltage, AC+DC voltage, DC current, AC current, AC+DC current, 2- wire

resistance, 4- wire low- resistance, capacitance, frequency, duty cycle, and

pulse width measurements. It is also capable of performing audible

continuity and diode tests. The U3606A supports the following

mathematical operations: null, decibel display, statistics, limit, and hold.

As a DC power supply, the U3606A is able to supply a 30 W DC output

with two selectable ranges: S1 (30 V/1 A) and S2 (8 V/3 A). It is capable

of generating 30 V square waves (up to 4.8 kHz) for digital circuit

troubleshooting. The U3606A also supports ramp and scan capability.

This quick start guide aims to provide a quick approach to setting up the

U3606A for making measurements and supplying power.

2U3606A Quick Start Guide

2 The Front Panel at a Glance

For a complete list of all the keypad functions and descriptions, see Chapter 1, “Getting

Started” in the U3606A User’s and Service Guide.

The front panel has two rows of keys to select various functions and operations. Most keys

have a shifted function printed in blue above the key. To perform a shifted function: first,

press Shift (the Shift annunciator will illuminate). Then, press the key that has the desired

label above it.

As an example, the limit math operation is shifted (shown in blue).

To enable the limit math operation, press Shift > Limit. If you accidentally

press Shift, but do not want to perform a shifted function, just press it

again to turn off the Shift annunciator.

Input terminals

and current fuse

Keys for digital

multimeter operation

Autorangeand

manual range

Keys for source

(DC power supply)

operation

Shift

Local

Power

on/off

switch

Output terminals VFD display

U3606A Quick Start Guide 3

3 The Display at a Glance

For a complete list of all the annuciator descriptions, see Chapter 1, “Getting Started” in the

U3606A User’s and Service Guide.

12345

6789

10 11

Description

1 Primary display for digital multimeter measurements

2 Measurement functions and units

3 OUT and SBY annunciators

4 Secondary display for source operations (lower secondary display)

5 Source functions and units

6 Trigger, hold, statistics, null, diode, audible continuity, and shift annunciator

7 Source operations, Lo Ωannunciator

8 Primary display for source operations (upper secondary display)

9 Calibration and source functions and units, S1 and S2 range annunciators

10 Autoranging, AC, DC, and limit annunciator

11 Log (feature currently not applicable for the U3606A), store, recall, ramp, scan, error, remote, and

over-voltage/over-current annunciator

4U3606A Quick Start Guide

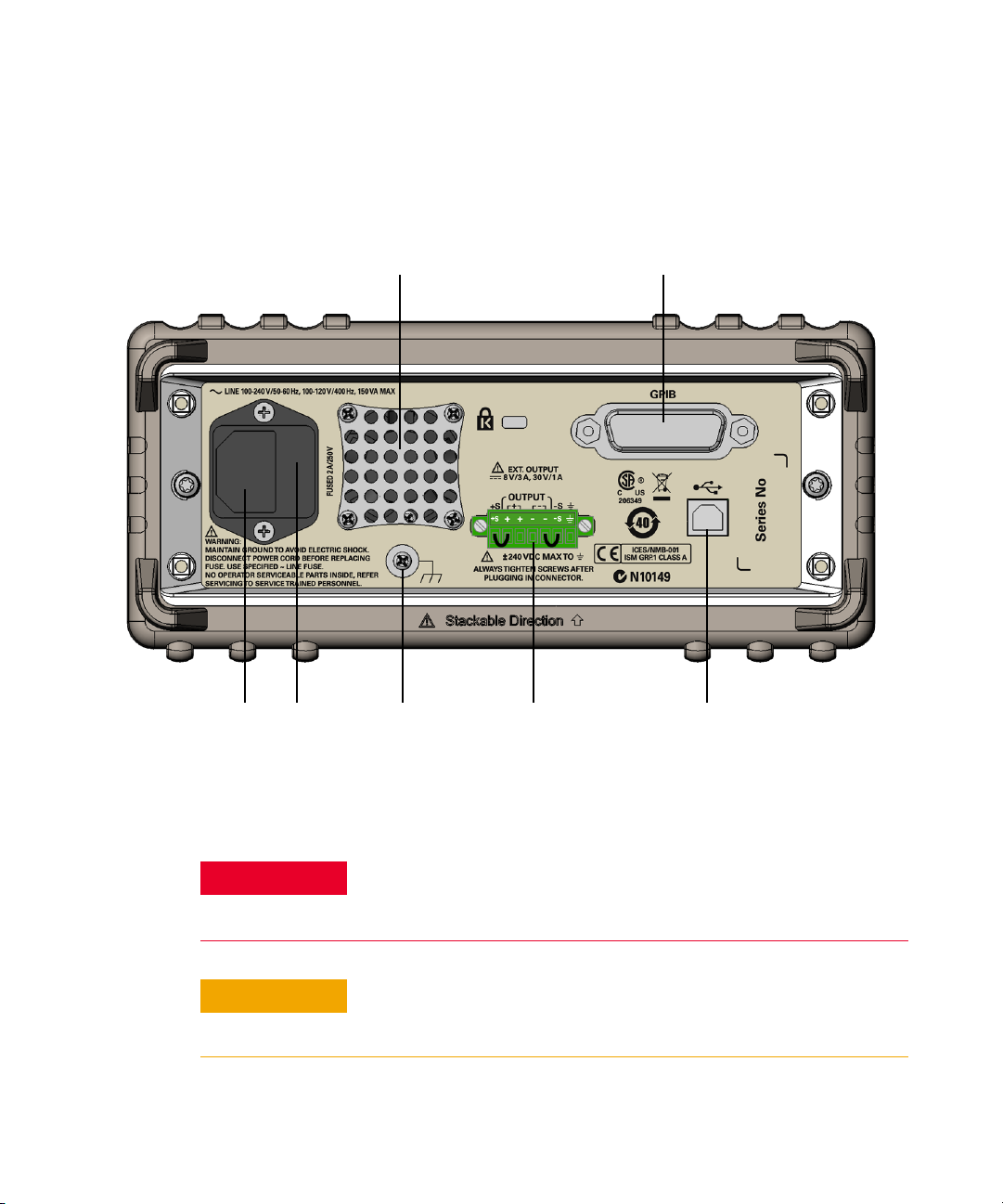

4 Connect the Power Cord

Connect the power cord to the AC power connector. The mains plug should only be inserted

in a socket outlet that provides protective earth contact.

AC power

connector

AC line

fuse

Chassis

ground lug

Rear output terminals

with metal short bar

USB interface

connector

Ventilation fan GPIB interface connector

WARNING

Any interruption of the protective earth contact inside or outside the

instrument makes any operation of the instrument dangerous.

Intentional interruption is prohibited.

CAUTION

The U3606A is grounded only when the power-line cord is plugged into

an appropriate receptacle. Do not operate your instrument without

adequate ground connection.
