Keyspan TuneView for iPod Quick Start
This Quick Start guide is intended to guide you through the basic setup and fi rst use of the Keyspan
TuneView for iPod. More detailed documentation can be found on Keyspan’s website (http://www.
keyspan.com/). If you are setting up multiple TuneView units, set them up one at a time.
Package Contents
The Keyspan TuneView for iPod package (TVI-200C Package) contains the following items:
• TuneView Dock • TuneView Remote
• Dock Adapters (x3) • Batteries (2 x AA)
• USB Power Adapter • USB Cable
• Audio Cable • Printed Quick Start
Step 1 - Connect Audio and Video Cables
Audio:
Connect the audio cable’s 3.5mm stereo jack
to the LINE OUT port on the back of the
TuneView Dock. Next, connect the stereo
cable’s dual RCA connectors to your stereo/
speakers.
Video:
The S-Video jack allows connection to a TV for
viewing slideshows and video on your televi-
sion (if your iPod supports these features).
Connect one end of an S-Video cable (not
included in the TVI-200C Package) to the
S-VIDEO OUT port on the TuneView Dock and then con-
nect the other end to your TV.
Step 2 - Connect The USB Cable/Power Supply To Your Dock
Connect one end of the USB cable to the SYNC/POWER port on the TuneView Dock. Connect
the other end of the USB cable to the USB port on the USB Power Adapter.
Step 3 - Insert Included Batteries Into The TuneView Remote
Turn over your TuneView Remote and remove the battery cover. Then insert the two AA batteries
Pg 1
Pg 1
Troubleshooting Tip:
When you power up your TuneView Dock,
its status light will turn on and then turn off
indicating that the dock is working and ready
to use.
Note:
You can connect the TuneView Dock to your
computer via the included USB cable. When
the Dock is connected to your computer, the
TuneView Remote will not be able to
communicate with your iPod.
Note:
The TuneView Remote’s LCD screen will now turn on. If the LCD does not turn on,
please verify that you have inserted the batteries correctly.
SYNC/POWER
[USB]
S-VIDEO OUT
[video]
LINE OUT
[audio]
Page 2 - TuneView for iPod Quick Start
Step 4 - Insert Universal Dock Adapter and iPod Into The TuneView Dock
Insert the appropriate Universal Dock Adapter for your iPod. The TuneView Dock includes three
dock adapters for use with iPod : #3 - iPod mini (4GB or 6GB), #4 - 4G iPod (20GB or U2 Special
Ed.), #6 - iPod with color display (20GB, 30GB, or U2 Special Ed.). If you have a 4G iPod (40GB)
or an iPod with color display (40GB or 60GB), please purchase the appropriate dock adapter from
Apple. If you have a newer iPod (such as a nano 1G, nano 2G, or 5G iPod with video), please use the
dock insert that came with your iPod.
Once the dock adapter is installed, connect your iPod to the TuneView Dock. Note: 3G iPods are
not supported by the TuneView dock.
Step 5 - Check For Communication / Finishing Up
At this point, you will see the Keyspan logo on your iPod’s screen, your
iPod is now charging and is ready to be used with the TuneView.
Step 6 - Finishing Up

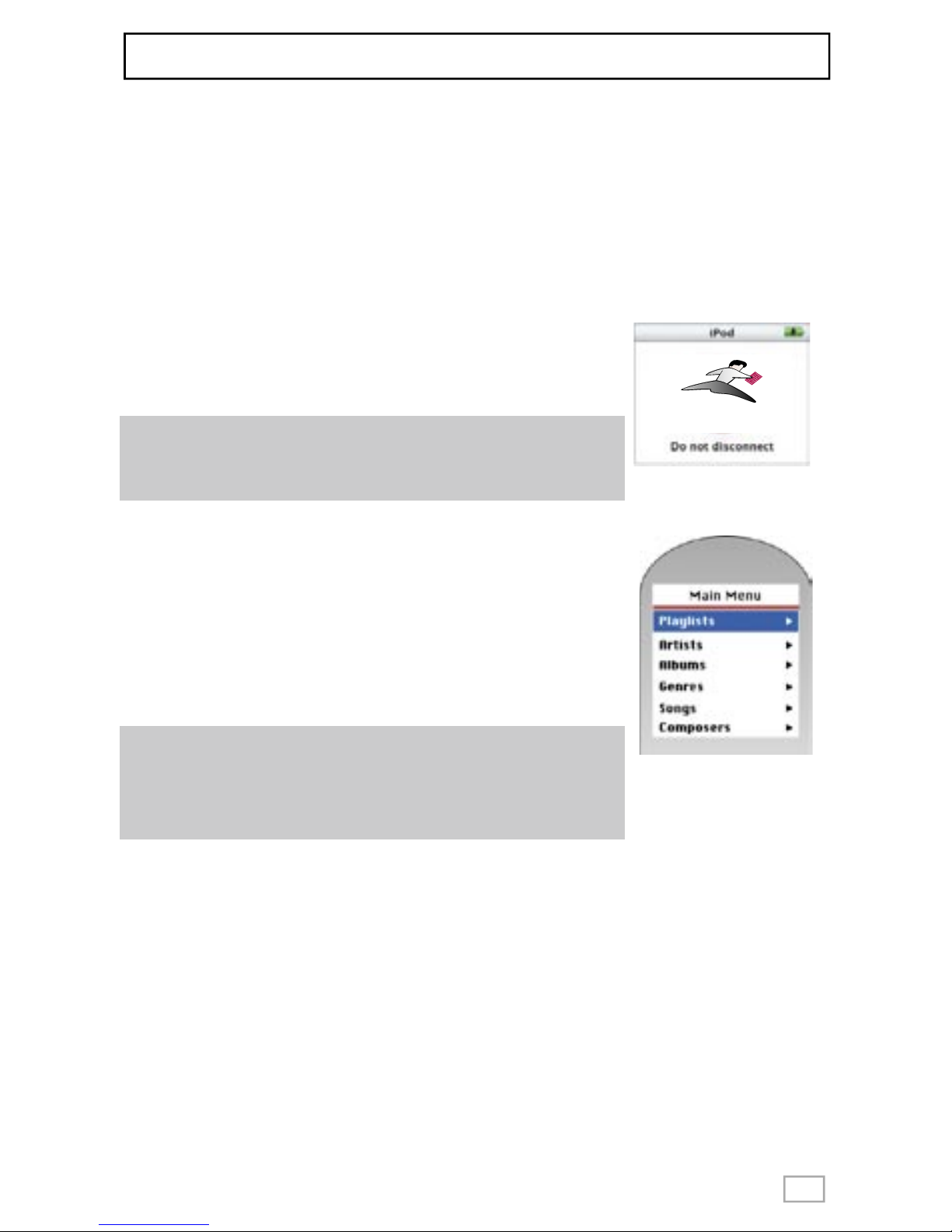

The TuneView LCD screen will now display TuneView’s Main Menu
screen (see image).
Your TuneView for iPod is ready for use!
You can now use the remote to browse your iPod contents. For more
details on how to use the remote and information about its buttons, pro-
ceed to the next sections in this Quick Start.
Using TuneView
Within 75 feet of the dock you will typically fi nd that the RF signal between the dock and the remote
is strong (even when the signal is passing through 1-3 residential walls). In this area it will not matter
which direction you are facing when using the TuneView remote. Beyond 75 feet, if the signal is
passing through 1 or more walls, you may fi nd that you need to point the TuneView remote in the
general direction of the TuneView dock in order to obtain good performance.
* Range of 150 feet or more is obtained in open space.
Firmware Note:
TuneView Remote requires your iPod to have the latest fi rmware. If
your fi rmware is out of date, the TuneView Remote will report “This
iPod needs its fi rmware updated to use it with TuneView”
Language Note:
The TuneView Remote menu system can be displayed in English
(default setting), Spanish, French, and German. This is set in the Setup
screen under the TuneView’s Main Menu (navigate to Main Menu >
Setup > ).
Pg
2
Page 3 - TuneView for iPod Quick Start
TuneView Buttons

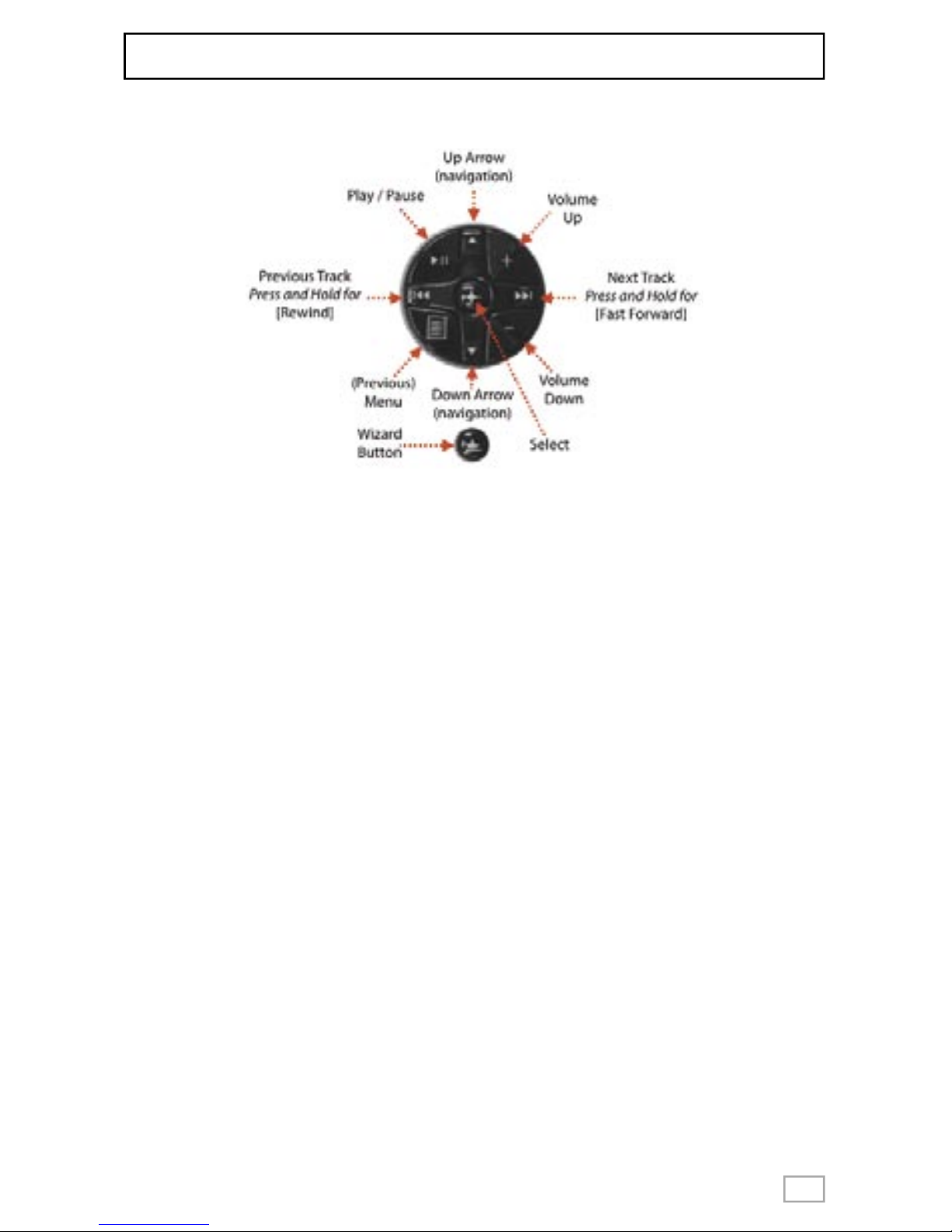

The following describes the buttons on the TuneView Remote:
You will use these buttons to navigate the TuneView interface.
Up / Down Arrows Use to scroll up/down menus
Select Use to select a choice
Play/Pause Use to play/pause current selection
Menu Use to return to previous menu
Volume Up / Down Use to change volume
Next Track [Fast Forward] Press once to go to next track/chapter
Press and Hold to fast forward
Previous Track [Rewind] Press once to go to previous track/chapter
Press and Hold to rewind
Wizard button The Wizard button will display a dynamic/
contextual menu based on what you are currently
doing. While browsing songs, the Wizard menu
will let you jump to the beginning, middle, or
end of a list. The Wizard button can also be used
as a shortcut to access Mute and to show the
current playing song’s details (Song Display).
Playing and Selecting Songs / Audiobooks / Podcasts
To play songs using the TuneView remote, use the Up and Down arrow keys to navigate the
TuneView Main Menu. Press the Select button to enter a menu and select again to begin playing
a song. At this point, you can use the Play/Pause button to play or pause the current selection.
You can also use the Menu button to navigate to another menu (the Menu button is similar to the
MENU button on your iPod ).
Playing and Selecting Videos
Playing and selecting videos is similar to playing and selecting songs. When you play a video, your
video will be displayed on your TV (via the Dock’s S-Video connection) and your video’s details will
Pg
3
Rev XIS-TVI200C.A0.2006.12
Need help with this Keyspan product? Please contact us at:
web: www.keyspan.com/support/
fax: +1 510 222 0323
telephone: +1 510 222 8802
Page 4 - TuneView for iPod Quick Start
be shown on the remote. If your video has chapters, press the Next/Previous track buttons to advance
to the next chapter in your video (if your video has chapters).
Repeat, Shuffle and Other Settings
To set your Shuffle settings (Off/Songs/Albums) and/or Repeat settings (Off/One/All), access the
Setup menu from theTuneView Main Menu. The Setup menu also allows you to turn on/off the
Scroll Thumb (the small slider that indicates your position within a menu), set the TuneView’s default
language, and view your TuneView’s firmware version.
TroubleShooting - Reset To Factory Settings
If you are having problems with your TuneView Remote, this section provides troubleshooting infor-
mation. More detailed information can be found on Keyspan’s website.
Reset To Factory Settings
Step 1 - Reset Remote
On the TuneView Remote, press and hold the Wizard button and the Up Arrow button at the same
time, until the TuneView screen turns off and then on again (this may take up to 3 seconds). This
will reset your remote and an animated red lighting bolt will appear on the remote’s screen until you
pair/sync with the remote (steps 2 and 3). å
Step 2 - Reset Dock
On the TuneView Dock, locate the Pair With Remote button on the bottom of the dock. Press and
hold this button with a paper clip (or similar object) for 5 seconds until the dock’s Status light blinks.
At this point, your dock is read to pair/sync with the first remote it detects.
Step 3 - Pair/Sync Remote To Dock
On the TuneView Remote, press any button. The animated red lighting bolt will disappear when
communication has been established with the dock.
If you have any problems with this process, contact Keyspan support (see details below).
Notices
KEYSPAN TuneView for iPod (TVI-200C package)
Description: Dock Remote
Model / Part Number: TVDK-A (KYRF-LDK) TVREM-200C (KYRF-RMLN)
FCC: ID: JFVKYRF-LDK-1 ID: JFVKYRF-RMLN-1
Class B, Part 15; 15.247
CE: EN 300 328, EN 301 489, EN 60950
Canada: IC RSS 210 (Class B)
Australia/New Zealand: C-Tick
