Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times.

KSTAP05PHA

KSTAP07PHA

Producto

800-849-1112

[email protected]

800-849-1112

[email protected]

Keystone.

Troubleshooting Tips

Read This Manual

Inside you’ll find many helpful hints on how to use and maintain your air conditioner

properly. Just a little preventive care on your part can save you a great deal of time

and money over the life of your air conditioner. You’ll find many answers to common

problems in the troubleshooting tips - you should be able to fix most of them quickly

before calling service. These instructions may not cover every possible condition of

use, so common sense and attention to safety is required when installing, operating,

and maintaining this product.

FRONT REAR

Control panel

Handle

(both sides)

Horizontal louver

control lever(adjust

manually)

Vertical louver

control lever

(adjust manually)

Panel

Caster Bottom tray

drain outlet

Air filter

Upper air intake

air outlet

Lower air intake

Drain outlet

Design Notice: In order to ensure the optimal performance of our products, the design specifications of the unit and remote

control are subject to change without prior notice.

Please read through these instructions before you start the

installation process. Improper installation can cause

damage to the unit, your personal property, and also poses

a personal safety hazard.

- DO NOT share a single outlet with other electrical appliances.

Improper power supply can cause fire or electrical shock.

Caution: Risk of fire/flammable materials

(Required for R32/R290 units only)

Caution: This symbol shows

that the operation manual should

be read carefully.

- DO NOT install your air conditioner in a wet room such as

a bathroom or laundry room. Too much exposure to water

can cause electrical components to short circuit.

- DO NOT install the unit in a location that may be exposed

to combustible gas, as this could cause a fire.

- The unit has wheels to facilitate movement. Make sure not

to use the wheels on thick carpet or to roll over objects, as

this could cause the unit to fall.

- DO NOT operate the unit that has been dropped or damaged.

- DO NOT allow children to play with the air conditioner.

Children must be supervised around the unit at all times.

- During a thunderstorm, the power must be cut off to avoid

damage to the machine due to lightning.

- If the air conditioner is knocked over during use, turn off the

unit and unplug it from the main power supply immediately.

Visually inspect the unit to ensure there is no damage. If you

suspect the unit has been damaged, contact a technician or

customer service for assistance.

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities or lack of experience and knowledge, unless they have been given supervision or

instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

-If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly

qualified persons in order to avoid a hazard.

-Prior to cleaning or other maintenance, the appliance must be disconnected.

- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do

not route cord under furniture or appliances. Arrange the cord away from the traffic area and where it

will not be tripped over.

- Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has

missing or broken parts, including a damaged cord or plug.

-To reduce the risk of fire or electric shock, do not use this unit with any solid-state speed control device.

-The appliance shall be installed in accordance with national wiring regulations.

- Contact the authorized service technician for repair or maintenance of this unit.

- Contact the authorized installer for the installation of this unit.

-When there are significant differences between features or operation implied by the remote control

illustration and the actual functions described in the USER MANUAL, the descriptions in the USER

MANUAL shall prevail.

Your installation location should meet the following requirements:

- Make sure that you install your unit on an even surface to minimize noise and vibration.

- The unit must be installed near a grounded outlet, and the Collection Tray Drain (found on the back of the unit) must be accessible.

- The unit should be located at least 19.7 inches from the nearest wall to ensure proper air conditioning.

- DO NOT cover the Intakes, Outlets, or Remote Signal Receptor of the unit, as this could cause damage to the unit.

Note About Fluorinated Gasses

- This air-conditioning unit is a hermetically sealed unit that contains fluorinated gasses. For specific information on the type of gas and the amount,

please refer to the relevant label on the unit itself.

- Service, maintenance, or repair of this unit must be performed by a certified technician.

- Product uninstallation and recycling must be performed by a certified technician according to local regulations.

NOTE:

All the illustrations in the manual are for explanation purposes only. Your air conditioner may be slightly different. The actual shape

shall prevail.

19.7inch

19.7 inch

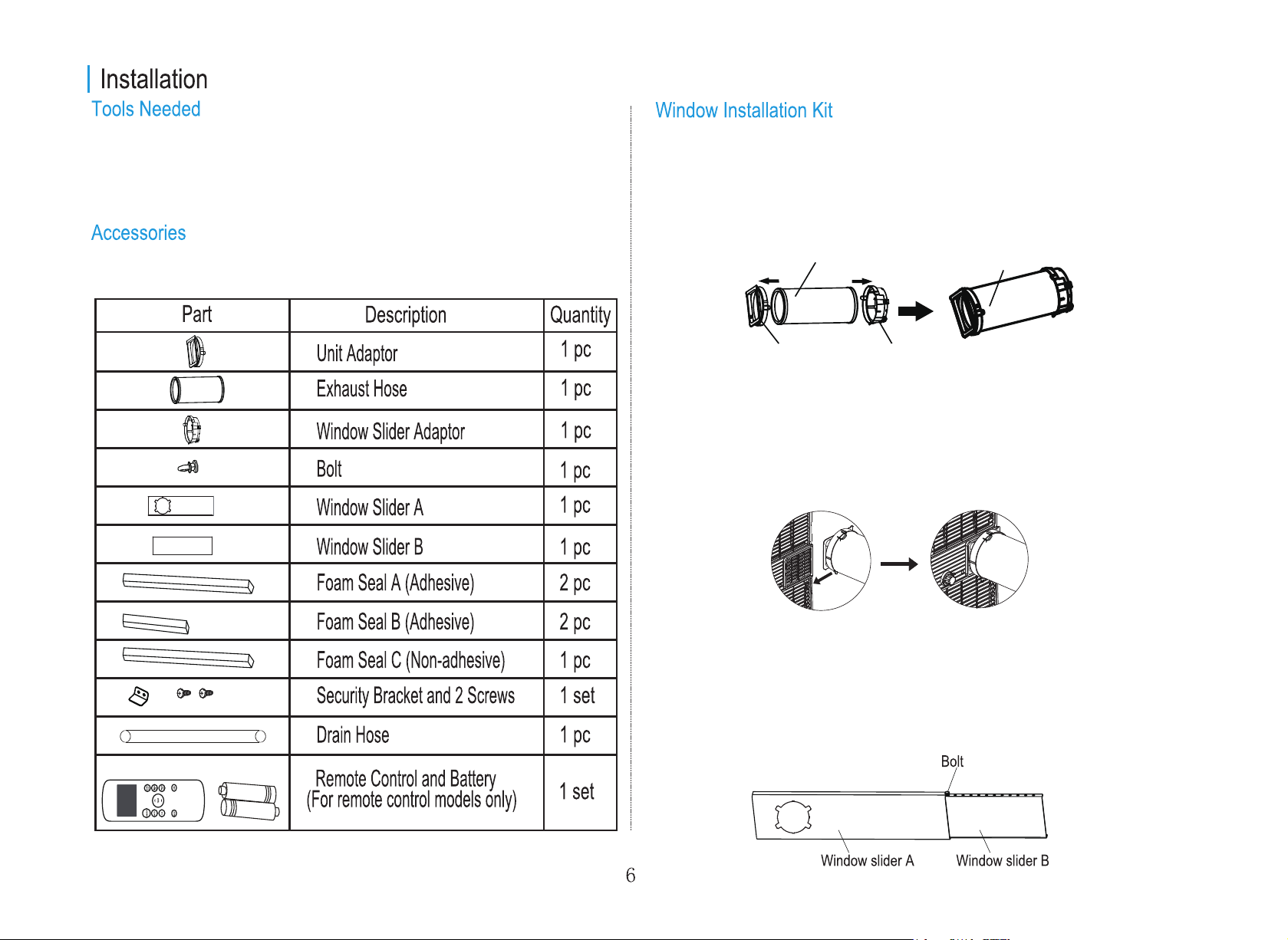

Step Two: Install the exhaust hose assembly to the unit

Step Three: Preparing the adjustable window slider

Align the unit adaptor of the exhaust hose assembly to the groove of the

air outlet opening on the back of the unit. Slide the exhaust hose

assembly along the direction indicated by the arrow for installation.

1. Depending on the size of your window, adjust the size of the window

slider.

2. If the length of the window requires two window sliders, use the bolt to

fasten the window sliders once they are adjusted to the proper length.

Press the exhaust hose into the window slider adaptor and the unit

adaptor. Each adaptor will snap into the exhaust hose automatically with

plastic clips.

Step One: Preparing the exhaust hose assembly.

- Medium Phillips screwdriver;

- Tape measure or ruler;

- Knife or scissors;

- Saw (optional, to shorten window adaptor for narrow windows)

Your Window Installation Kit fits windows 26.5 – 48

and can be shortened

for smaller windows.

Unit adaptor Window slider

adaptor

Exhaust hose Exhaust hose assembly
