Kicker SSIEXT14 Manuale utente
©2014 Stillwater Designs
SSIEXT14-A3-20141002

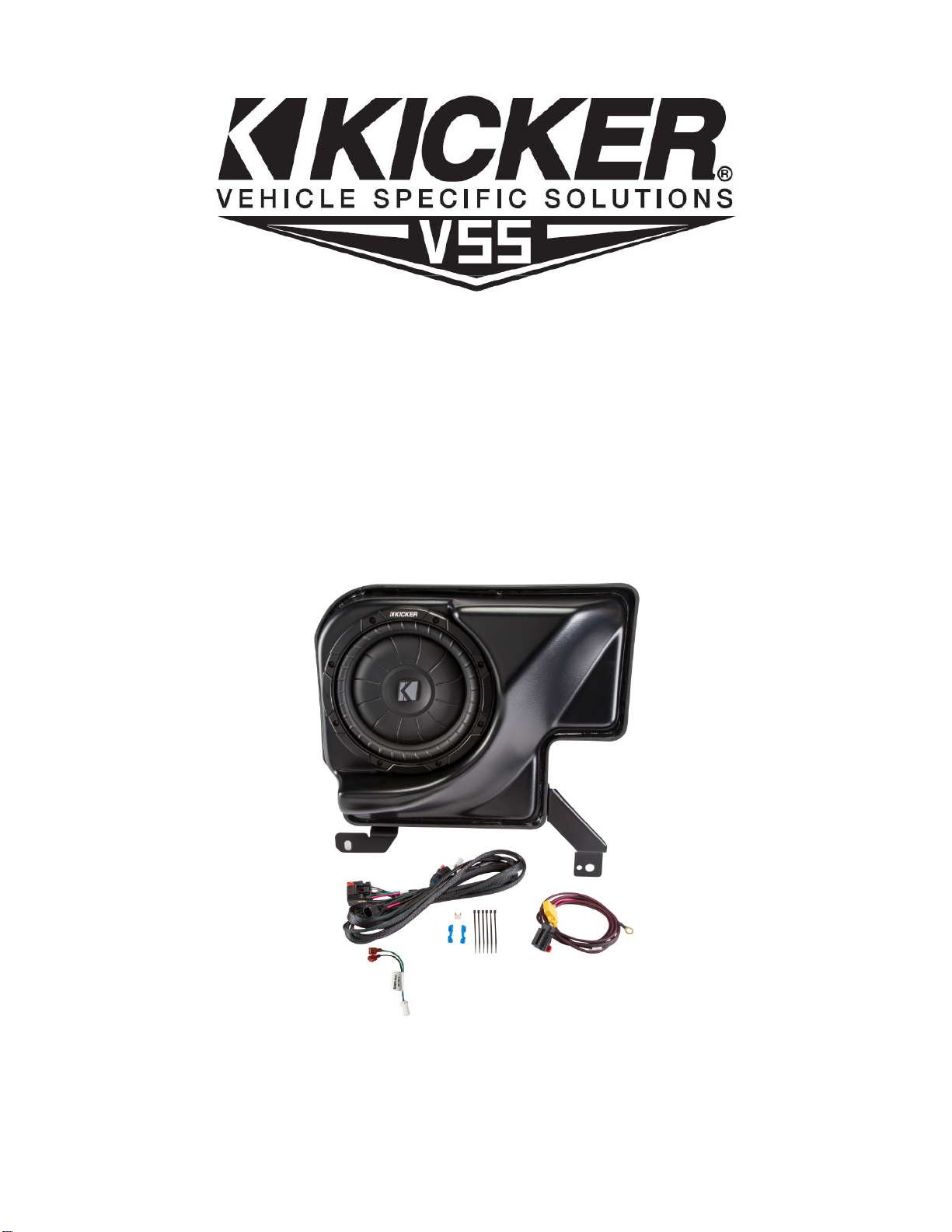

Subwoofer
Power Harness
Subwoofer Assembly
Subwoofer Body
Harness
25A Fuse
Wire Ties x 6
Wire Taps x 2
Adapter Harness
1
SSIEXT14
Designed for
2014 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 1500 series with base or premium radio
2015 and newer Chevrolet® Silverado & GMC® Sierra Double-Cab 2500/3500 with base or premium radio
Installation
1. Disconnect negative battery cable from battery. (For diesel engines with dual batteries disconnect both
negative cables)
2. Snap loose the driver’s side front and rear threshold panel along the bottom of the door openings.
3. Remove the red battery terminal cover and then the power distribution cover next to the battery on the
passenger’s side.
4. Remove the fuse from the fuse holder on the amplifier and subwoofer power harnesses. Connect the ring
terminals of both harnesses to the power lug identified in figure 1 and torque to 9 +/- 1.5 Nm.
5. Route the power wire along the fire wall to the factory grommet on the driver’s side and secure with wire
ties.
6. Using a razor knife, make a cross shaped incision in the protrusion large rubber grommet and feed the
power wires straight through the hole on the cabin side of the grommet. Fig. 2
7. Install supplied connector on the end of the power harness inside the cabin. The black connector should
have a block out plug installed in one side to prevent the power wire from being installed into the wrong
position in the connector. Push the terminals in until they click and lock into place.
8. Connect the subwoofer power harness two-pin power connector to the subwoofer harness two-pin power
connector.
9. Connect the black ground wire of the subwoofer harness to the bolt next to the park brake pedal indicated
in Fig 3 Torque to 9 +/- 1.5 Nm
Fig. 1
Connect Power
wire(s) to this lug
Fig. 2
Fig. 3
Connect Ground
wire to this bolt.
2
Note: Subwoofer Input Connection is the same for Premium and Non-Premium factory audio systems.
10. Locate the brown with blue stripe wire and blue wire that are twisted together in the factory harness near
the parking brake pedal and install one of the blue self-stripping connectors onto each wire. Fig. 4 and 5
11. Connect the green wire of the adaptor harness to the brown/blue stripe wire of the vehicle harness and the
brown wire of the adaptor harness to the blue wire of the vehicle harness. Connect the two pin connector
of the adapter harness to the two pin connector of the subwoofer harness. Fig. 5
12. Continue routing the subwoofer harness down the driver’s side of the vehicle to the back wall. Open the
cover of the wire tray along the threshold of the door, install wire and replace the tray cover.
13. Route the subwoofer harness under the carpet along the back wall toward the passenger’s side of the
cabin. Once the harness is routed to the passenger’s side. Allow the remaining length of harness to lay on
top of the carpet and exit from beneath the seat between the jack and the center seatbelt receptacle.
Subwoofer Mounting
14. Remove the two nuts indicated in Fig. 6
15. Install the enclosure over the studs.
NOTE: For trucks with split rear bench seat, install the two supplied washers over the stud closest
to the passenger’s side.
16. Connect the subwoofer wiring to the subwoofer harness and set the enclosure into place over the seat
studs. Fig. 7
17. Reinstall the rear seat nuts and torque to 109 Nm (80 ft/lb)
Fig. 5
Fig. 4
Fig. 6
Fig. 7
3
Troubleshooting the Kicker Integrated Systems
If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble.
The radio is working, but the Subwoofer is not working:
•Check the battery voltage to make sure it is not discharged below 11 volts.
•Check the negative battery cable to see if it has been securely tightened back on the battery.
•Check the inline fuse located near the battery to make sure it is plugged in completely, and not blown.
•Check the inline +12 volt power connector near the firewall to make sure it is plugged in securely.
•Check the inline connectors near the subwoofer enclosure to make sure they are plugged securely.
•Check the ground wire connection to make sure it is tightly secured to the proper ground in the vehicle.
•Check the audio input signal connection to make sure it is secure and connected to the proper wiring.
•Test with different music in case there is no low frequency audio in the initial sound check.
Symptom
Possible Cause
Solution
No Subwoofer Output
Fusenotinstalledininlinefuse
holder on subwoofer and / or amp
harness
Install fuse into fuse holder.
Refer to instructions for correct
placement
Low battery voltage
Recharge the battery
Negativebatterycablenot
connected
Reconnectnegativebatterycable
Power wire connector not
connected to body harness
Connect power wire to body
harness. Check for loose
connection
Ground wire not grounded properly
Check ground wire with voltmeter
to insure it is a good ground
Balance or fader controls not set to
neutral position
Set balance and fader control to
center settings. (only effects stand
alonesubwooferkit)
No low frequency information in
music
Test with several different songs
Subwooferharnessnot properly
/completelyconnectedtosub-
woofer.
Securely fasten both of the
connectors on the subwoofer
harness to the subwoofer. Check
for loose connections.
Radio Not Coming On
Blown radio fuse
Refer to owner's manual for radio
fuse location and value
Low battery voltage
Recharge the battery
4
If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at
(800) 256-0808 ext. 6009, or [email protected].
P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510
