WIRELESS

Hardwire Photoelectric Smoke Alarm

with Voice and Wireless Interconnect

User Guide

Model P4010ACS-WCA

Model P4010LACS-WCA (Safety Light)

WIRELESS INTERCONNECT:

You do NOT need a home wi-fi system

to use these units. Multiple wireless

units create their own independent

wireless alarm network.

120 V HARDWIRE

10YEAR BATTERY BACKUP

HARDWIRE & WIRELESS

INTERCONNECT

VOICE ALARM

SMOKE ALARM

P/N: 1314-7202-01

Thank You for Purchasing this Kidde Alarm

Hardwired for 120V AC, this model features a non-replaceable, sealed-in battery backup. It also contains

a voice message system and Hush® Control to temporarily silence nuisance alarms. It is capable of both

Hardwire and Wireless Interconnect.

READ SECTION 9: Activation and Wireless Alarm Network, before powering the units. You do

NOT need a home wi-fi system to use these units. Multiple wireless units create their own

independent wireless alarm network.

Teach children how to respond to the alarm and that they should never play with the unit. Your Kidde Smoke

Alarm was designed for use in a residential environment. It is not designed for use in a recreational vehicle

(RV) or boat.

NOTE: Please take a few minutes to thoroughly read this user guide which should be saved for future

reference and passed on to any subsequent owner.

The National Fire Protection Association (NFPA) and the manufacturer recommend replacing this alarm ten

years from the date code on back of alarm.

Model (on back): ___________________

Date Code (on back): ___________________

Date of Purchase: ___________________

Where Purchased: ___________________

Date to Replace: ___________________

Product Support: 1-800-880-6788

Please write down the below information

and have this at hand when you call.

Contents

1. Smoke Alarm: What To Do When The Alarm Sounds . . . . . . . . . . 4

2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds . . . . . . 5

3. Other Alarm Visual And Audible Indicators . . . . . . . . . . . . . .6

4. Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . 7

5. Introduction, Product Features & Specifications . . . . . . . . . . . . 8

6. Limitations Of Smoke Alarms . . . . . . . . . . . . . . . . . . . 9

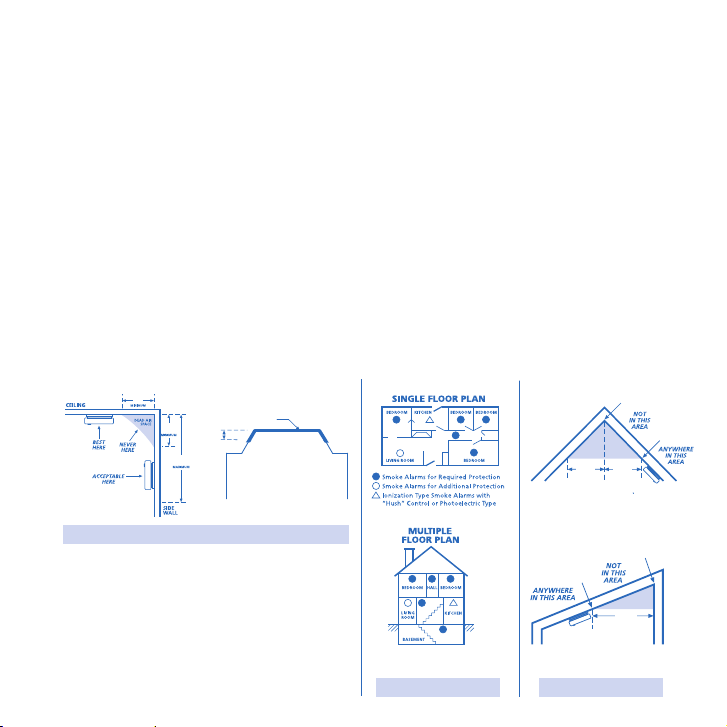

7. Recommended Locations For Smoke Alarms . . . . . . . . . . . . . 10

8. Locations To Avoid . . . . . . . . . . . . . . . . . . . . . . .12

9. Activation And Wireless Alarm Network . . . . . . . . . . . . . . . 12

9.1 Setting Up A Wireless Alarm Network. . . . . . . . . . . . . . . 13

9.2 Adding Another Device to an Existing Wireless Alarm Network . . . . . 14

9.3 Resetting a Device’s Wireless Settings . . . . . . . . . . . . . . 16

10. Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . 17

11. Operation And Testing . . . . . . . . . . . . . . . . . . . . . 21

12. Recognizing Nuisance Alarms . . . . . . . . . . . . . . . . . . 22

13. Battery Back Up . . . . . . . . . . . . . . . . . . . . . . . . 24

14. Permanently Disable Alarm / Discharge Battery . . . . . . . . . . . . 25

15. Cleaning Your Alarm . . . . . . . . . . . . . . . . . . . . . .26

16. Good Safety Habits . . . . . . . . . . . . . . . . . . . . . . 27

17. Service And Warranty . . . . . . . . . . . . . . . . . . . . . 30

1. Smoke Alarm: What To Do When the Alarm Sounds

Smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three long beeps repeating.

The red LED blinks in time with alarm pattern.

•Alert small children in the home as well as anyone else that might have difficulty recognizing the

importance of the alarm sounding or that might have difficulty leaving the area without help.

•Leave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or

picking up valuables.

•In leaving, don’t open any inside door without first feeling its surface. If hot, or if you see smoke seeping

through cracks, don’t open that door! Instead, use your alternate exit. If the inside of the door is cool,

place your shoulder against it, open it slightly and be ready to slam it shut if heat and smoke rush in.

•If the escape route requires you to go through smoke, stay close to the floor where the air is cleaner.

Crawl if necessary, and breathe shallowly through a cloth, wet if possible.

•Once outside, go to your selected meeting place and make sure everyone is there.

•Call the fire department from your cell phone outside, or from your neighbour’s home—not from yours!

•Don’t return to your home until the fire officials say that it is all right to do so.

•There are situations where a smoke alarm may not be effective to protect against fire as stated in the

NFPA Standard 72. For instance:

a) smoking in bed

b) leaving children home alone

c) cleaning with flammable liquids, such as gasoline

NOTE: See Section 12. RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.

2. Carbon Monoxide Alarm: What To Do When the Alarm Sounds

NOTE: This is not a carbon monoxide (CO) alarm, but will receive and transmit a CO alarm signal (with

voice message) from an interconnected CO or combination smoke / CO alarm.

Carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating

every 5 seconds. The red LED blinks in time with alarm pattern.

warning: Carbon monoxide alarm aCtivation indiCates the presenCe

of Carbon monoxide (Co) at high ConCentrations whiCh Can kill you.

1. Immediately move to fresh air – outdoors or by an open door/window. Do a head count to check

that all persons are accounted for. Do not re-enter the premises nor move away from the open door/

window until the emergency services responders have arrived, the premises have been aired out, and

your alarm remains in its normal condition.

2. Call your local emergency service.

(fire department or 911)

Never restart the source of a CO problem until it has been corrected. Never ignore the sound of the alarm!

NOTE: See Section 12. RECOGNIZING NUISANCE ALARMS, for nuisance alarm situations.

PHONE NUMBER

3. Other Alarm Visual and Audible Indicators

Operational Mode Visual Indications Audible Indications Action/Note:

Normal (standby) AC power: Green LED on continuously

during light conditions, or blink every 60

sec during dark conditions.

DC power: Green LED blink approx

every 60 sec.

Test (button press when

no alarm condition is

present)

• 4 patterns of Red/Amber/Green.

• Test: Red LED blinks in time with

alarm pattern. Safety light will briey

illuminate on model P4010LACS-WCA.

• Green LED fade on/o at test complete

• Button press sound

• Voice: "Testing, this is very loud.

Press now to cancel test. 5, 4, 3, 2, 1."

• 3 long beeps, Voice "Fire!", 3 long

beeps, Voice "Test Complete,"

Power on/reset sound.

• Voice "Test Canceled" if button

pushed before test sequence

begins.

Perform Test/Hush button press

once a week to verify proper alarm

operation

* Push/release button before the

countdown ends to cancel test.

Smoke Alarm Memory

(unit has experienced a

smoke alarm event within

the last hour)

Red and Amber LED alternate on 1 sec,

every 10 sec.

After button push: "Smoke previously

detected" only on the initiating

alarm unit.

Push test button to clear Alarm

Memory. NOTE: standard test

sequence will follow. (Push/release

button again to cancel test).

Smoke Alarm Hush Mode,

(Hush®

Control)

Red LED blinks every 2 sec. After button push: "Hush Mode

Activated." Smoke alarm pattern

stops. (If there is too much smoke to

allow Hush: Voice "Too Much Smoke,

Alarm cannot be Hushed" Smoke

alarm pattern continues.)

This feature is to be used only

when a known alarm condition,

such as smoke from cooking,

activates the alarm.

Locate None After button push on non-initiating

unit, only initiating unit continues

alarm pattern.

Use this to quickly locate the alarm

source and determine if alarm is

nuisance or real.

Smoke Alarm Hush Mode

Canceled

None Voice message "Hush Mode

Canceled."

When smoke levels drop below the

alarm threshold, the voice message

"Hush Mode Canceled" will occur .

Initiating Alarm,

(Multiple alarms in an

interconnected system)

Green LED blinks once per sec indicating

that this is the unit initiating the alarm

in an interconnected, multiple alarm,

system.

Unit in Smoke alarm mode. During alarm, the initiating alarm

red blink will be interrupted by a

green blink.

4. Troubleshooting Guide

Trouble Condition Visual Indications Audible Indications Action:

Low Battery

Amber

LED

blinks

every

seconds

Chirp every 60 sec, voice every 30

sec: “Replace alarm.”

Voice stops after 5 mins.

* Remove, discharge, dispose unit, and replace as soon

as possible.

Fault Mode Chirp every 30 sec.

Voice every 30 sec: “Error, see trouble

shooting guide”

After 5 mins: no voice message

* See Cleaning Your Alarm section.

* Push Test/Hush button once to attempt to reset

the unit .

* Red LED will blink out an error code (number of blinks)

when Test/Hush button is push/released once. Report

the number of blinks to customer service if needed.

End of Unit Life Double chirp every 30 sec.

First 5 mins: Voice every 30 sec:

“Replace alarm, press button to

temporarily silence.” Voice stops after

5 mins. After 7 days: Chirps continue.

Voice every 30 sec for 5 mins:

“Replace alarm.”

* Push/release Test/Hush button to temporarily silence

(see End of Unit Life Hush Mode section below)

* Remove, discharge, dispose unit, and replace as soon

as possible.

End of Unit Life Hush

Mode (after push/

release Test/Hush

button during End

of Life)

Voice “Temporarily Silenced.”

End of Unit Life chirps silenced for

24 hrs. (7 days after End of Unit Life

chirps begin, the chirps cannot be

silenced.)

* Remove, discharge, dispose unit, and replace as soon

as possible.

Network Error Chime every 30 secs. Voice every 30

sec: “Connection lost. Press button

to temporarily silence.”

After 5 min: no voice messages

(Note: network must have 3 or more

alarms for voice messages.)

* Push/release the Test/Hush button once to silence for

24 hrs at a time.

* Red LED will blink out an error code (number of blinks)

when Test/Hush button is push/released once. Report

the number of blinks to customer service if needed.

* Push and hold Test/Hush button until two beeps

are heard (approx 4 sec) and then release the button

to try to rejoin. Or reset (section 9.3) and then rejoin

(section 9.2).

* If error persists, remove, discharge, and replace alarm

as soon as possible.

Network Error Hush

(after button push

during Network Error)

Voice “Temporarily

Silenced.”

If you require further information please contact Product Support at 1-800-880-6788 or write us at:

Kidde Canada Inc., P.O. Box 40, Apsley, ON K0L 1A0. Our internet address is www.kiddecanada.com.

5. Introduction, Product Features and Specifications

INTRODUCTION

This alarm detects products of combustion using photoelectric technology. Ten (10) years after the unit is

installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”

mode. See Troubleshooting Guide. To help identify the date to replace the unit, a label has been affixed to the

side of the alarm. Write in the “Replace by” date (10 years from initial power up) in permanent marker on the

label prior to installing the unit.

NOTE: AC power must be connected to obtain the full 10 year battery and unit life.

PRODUCT FEATURES AND SPECIFICATIONS:

•Temperature: Operating Range: 4.4°C (40°F) to 37.8°C (100°F)

•Humidity: Operating range: up to 95% RH non-condensing

•Audible Alarm: 85+ dB at 10’ 3.0 to 3.5 KHz pulsing alarm, with voice message “Fire!”

•NOTE: This is not a CO alarm, but it will receive and transmit a CO alarm signal (with voice message

“Warning! Carbon Monoxide”) from an interconnected CO or combination smoke/CO alarm.

•Smoke Sensor: Photoelectric

•Voice message system

•Smoke Alarm Hush® Control

•Ambient Light Sensing

•Powered by 120 V AC (60 Hz, 53 mA max) wire-in connector with sealed lithium battery backup.

•Hardwire and wireless interconnectable to other compatible alarms.

•One large, user- friendly button.

•LED safety light on model P4010LACS-WCA to help illuminate escape pathways.

6. Limitations of Smoke Alarms

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

•Life safety from fire in residential occupancies is based primarily on early notification to occupants of the

need to escape, followed by the appropriate egress actions by those occupants.

•Fire warning systems for dwelling units are capable of protecting about half of the occupants in

potentially fatal fires. Victims are often intimate with the fire, too old or young, or physically or mentally

impaired such that they cannot escape even when warned early enough that escape should be possible.

For these people, other strategies such as protection-in-place or assisted escape or rescue are necessary.

•Leading authorities recommend that both ionization and photoelectric smoke alarms be installed to

help insure maximum detection of the various types of fires that can occur within the home. Ionization

sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than

photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow

smoldering fires) sooner than ionization alarms.

•A battery powered alarm must have a battery of the specified type, in good condition and installed

properly (This model has a sealed backup battery).

•Smoke alarms must be tested regularly to make sure the battery and the alarm circuits are in good

operating condition.

•Smoke alarms cannot provide an alarm if smoke does not reach the alarm. Therefore, smoke alarms may

not sense fires starting in chimneys, walls, on roofs, on the other side of a closed door or on a different

floor.

•If the alarm is located outside the bedroom or on a different floor, it may not wake up a sound sleeper.

•The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For maximum

protection, a smoke alarm should be installed in each sleeping area on every level of a home.

This alarm is not intended to alert hearing impaired individuals.

7. Recommended Locations for Smoke Alarms

•Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest

from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area.

•Locate additional alarms to monitor any stairway as stairways act like chimneys for smoke and heat.

•Locate at least one alarm on every floor level.

•Locate an alarm in every bedroom.

•Locate an alarm in every room where electrical appliances are operated (i.e. portable heaters or humidifiers).

•Locate an alarm in every room where someone sleeps with the door closed. The closed door may

prevent an alarm not located in that room from waking the sleeper.

•Smoke, heat, and combustion products rise to the ceiling and spread horizontally. Mounting the smoke

alarm on the ceiling in the center of the room places it closest to all points in the room. Ceiling mounting

is preferred in ordinary residential construction.

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

ANYWHERE ALONG

THIS BOLD SURFACE

Locations permitted for smoke

alarms and smoke detectors

on tray-shaped ceilings.

(4")

10cm

(4")

10cm

(12")

30.5cm

(12")

30.5cm

(3')

0.9m

(3')

0.9m

(3')

0.9m

NFPA 72 states: “Smoke alarms in rooms with

ceiling slopes greater than 0.3 m in 2.4m (1 ft in 8 ft)

horizontally shall be located on the high side of the

room.” NFPA 72 states: “A row of detectors shall be

spaced and located within 0.9 m (3 ft) of the peak of

the ceiling measured horizontally.”

Figure 7-A

Figure 7-B Figure 7-C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kidde Rilevatore di fumo

Manuali Rilevatore di fumo popolari di altre marche

x-sense

x-sense SD19-W Manuale utente

BRK electronic

BRK electronic First Alert P1010 Manuale utente

FireAngel

FireAngel Thermoptek ST-622 Manuale utente

teko

teko Astra-42A Manuale utente

Safetec

Safetec SDS-2/6 Manuale del proprietario

Siemens

Siemens PE-11C Manuale utente

System Sensor

System Sensor DH500ACDC Manuale utente

Resolution Products

Resolution Products RE612 CryptiX Manuale utente

First Alert

First Alert PC900V Manuale utente

Eminent

Eminent EM6590 E-Domotica Manuale utente

Ei Electronics

Ei Electronics Ei Ei168RC Manuale utente

Carrier

Carrier Kidde Quell Q301 Manuale utente

VESDA

VESDA VLF-500 Manuale utente

ELRO

ELRO FS8110 Manuale utente

Heiman

Heiman SMOKI NS-626PHS Manuale utente

Regin

Regin SDD-S65 Manuale utente

Family Gard

Family Gard FG225 Manuale utente

Greystone

Greystone DSD120 Manuale utente
