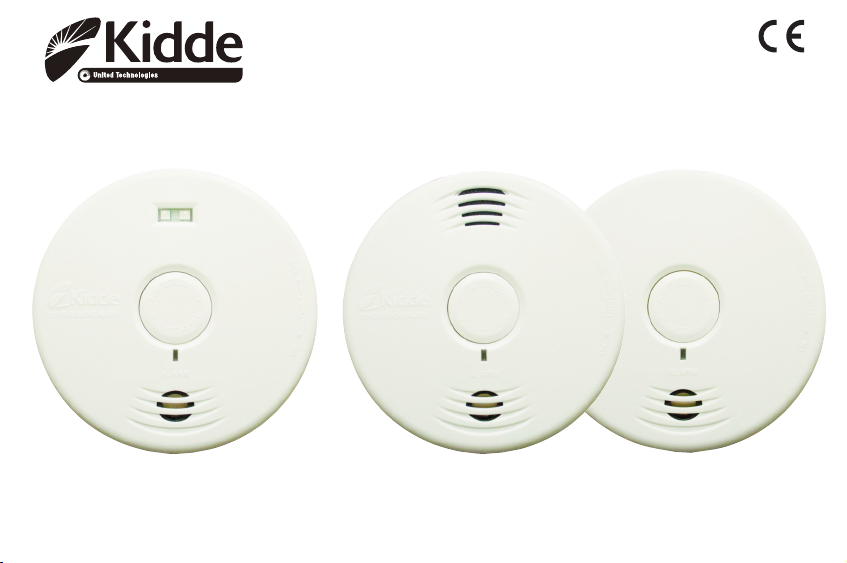

WFPL WFPV WFP

Hallways Unit with Escape Light Voice Unit / Living Area Unit

10-year Opcal Smoke Alarm User Guide

Sealed-in Baery lasts the life of the alarm

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 1

Contents

1. Smoke Alarm Best Pracse

2. Important Smoke Alarm Informaon

3. Where to install a Smoke Alarm

4. Where not to install a smoke alarm

5. Installaon of your alarm

6. Acvang your alarm

7. Operang and Tesng your Smoke Alarm

8. Maintenance

9. Product Speciﬁcaon

10.Deacvaon of your alarm

11.Service and Warranty

12. Environmental Protecon

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 1

1. SMOKE ALARM BEST PRACTISE

At all mes and before installing your smoke alarm you must;

• Have an escape plan with alternate exits

• Train your family in this escape plan and pracse it regularly

• Ensure your family know what the alarm sounds like

If the alarm sounds check for ﬁres ﬁrst of all, and if one is discovered then;

• DO Alert small children

• DO Exit the home according to your escape plan

• DO Crawl if the smoke is dense, using a damp cloth to breathe through

• DO Call the ﬁre brigade from a neighbour’s home

• DO Ensure that everyone is awake, and assistance is given to those who require it

• DON’T stop to dress or retrieve valuables

• DON’T open doors that are warm, or through which smoke is seeping

NOTE – Situaons where a smoke alarm might not be eﬀecve;

• Smoking in bed

• Leaving children unaended

• Cleaning with ﬂammable liquids resulng in explosive vapour

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 2

2. IMPORTANT SMOKE ALARM INFORMATION

• Before temporarily silencing the alarm with the Hush buon, idenfy the source of the smoke.

• Smoke alarms need to be tested regularly

• Smoke alarms cannot provide an alarm if smoke cannot reach them

• Fires in chimneys, walls, roofs, diﬀerent levels or behind closed doors might not be detected

• For the physically or mentally impaired, or very young, escape may be di cult and so alternave

escape strategies should be adopted

• The smoke alarm may not wake heavy sleepers or those impaired by the use of drugs or alcohol. In

this case an alarm should be ﬁed in each sleeping area

• Smoke alarms can save lives, but they are not an alternave for an adequate insurance policy to

protect lives and property

•IMPORTANT: Addional markings on back of unit.

Leading authories recommend that both ionisaon and photoelectric smoke alarms be installed to help

insure maximum detecon of the various types of ﬁres that can occur within the home. Ionisaon sensing

alarms may detect invisible ﬁre parcles (associated with fast ﬂaming ﬁres) sooner than photoelectric

alarms. Photoelectric sensing alarms may detect visible ﬁre parcles (associated with slow smoldering

ﬁres) sooner than ionisaon alarms.

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 3

3. WHERE TO INSTALL A SMOKE ALARM

Locate one alarm on every ﬂoor level

Locate to monitor stairways – Escape Light alarm recommended (Model WFPL)

Locate in each sleeping locaon / bedroom – Voice alarm recommended (Model WFPV)

Locate in every room with electrical appliances

Hallways longer than 9m require a smoke alarm at each end – Escape Light alarm recommended

Rooms greater than 47m2require addional alarms

NOTE – If your room is not well insulated, smoke may not reach the ceiling and wall-mounng should be adopted.

This apparatus is to be installed by a competent person.

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 4

•Garages

•Areas of extreme temperature (below 0 °C and above 40 °C)

•Dusty or insect infested areas

•Do not install where the venlaon openings in the unit could be impeded by items

such as newspapers, table-cloths, curtains, etc.

•Humid areas (greater than 93% RH)

•In front of fans, ducts or other high ﬂow areas

•Within 1 metre of a ﬂuorescent light

•Kitchens (or within 1 metre of the kitchen)

•Bathrooms (or within 1 metre of the bathroom)

•This alarm is intended for domesc use only – it is not tested for leisure boats ,

camper vans or caravans. It is not suitable for large passenger boats.

4. WHERE NOT TO INSTALL A SMOKE ALARM

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 5

Ribs (2

places)

Mounting Option 1

Slots

Mounting Option 2

OPTION 1 - Easy mount to drywall only;

1. Choose a mounting location (wall or ceiling) and drill a 5mm

hole through drywall.

2. Insert the provided screw through the mounting plate aligning

the ribs on the screw with the slots on the mounting plate.

3. Tighten the screw/mounting plate to wall or ceiling until it is

snug against surface. DO NOT over-tighten.

OPTION 2 - Mounting onto other urfaces

1. Choose a location (wall or ceiling) and using the mounting

plate provided as a template, mark three hole locations.

2. Install the three provided screws through the mounting plate

and tighten. DO NOT over-tighten screws (if mounting in

plasterboard or similar surface, drill 5mm holes and use the

plastic anchors provided). Anchors are not required for

mounting on hard surfaces such as wood.

5. INSTALLATION OF YOUR ALARM

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 6

6. ACTIVATING THE ALARM

This alarm is automacally acvated when it is aached to the mounng plate for the ﬁrst me.

Once acvated, the baery will power the alarm for its 10-year life under normal condions.

Align the alarm with the mounng bracket and rotate clockwise approximately 45

degrees

unl

the unit stops rotang and clicks into place. DO NOT over-ghten. If the unit needs to be

re-aligned rotate the alarm an-clockwise, remove and rotate to the desired alignment.

NOTE: This alarm will mount to the plate in 3 posions (every 120

degrees

The alarm brieﬂy chirps to indicate that power has been received. The unit will remain on unl it

is disabled by the user or at the end of the alarm’s life. Do not over ghten the alarm as this can

cause damage to the mounng bracket.

The alarm is now acvated! Now test the alarm as described in this user guide.

Model WFPV will issue a voice prompt at acvaon asking the user to press the test buon. Pro-

ceed to ‘Operaon and Tesng’ secon.

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 7

7. OPERATING AND TESTING YOUR SMOKE ALARM

Sound Em tted

Vo ce Prompt

(Model WFPV)

LED (all) & Escape L ght

(Model WFPL)

Note

Normal

Operation

None None Flashes once every 10 minutes LED will flash every 60seconds for 10

minutes after power-up, then flashes

every 10 minutes

Test 3 long beeps repeated

twice

“FIRE, FIRE!” Flashes with alarm pattern

(Model WFPL briefly

illuminates amber safety light)

None

Alarm 3 long beeps, repeating “FIRE, FIRE!”

3 x flashes, synchronised with audi-

ble alarm (and illumination of amber

safety light for model WFPL)

Identify source of smoke and

evacuate if necessary

Low Battery ingle chirp every 60

seconds

“Low Battery” Flashes once every 30 seconds Deactivate the alarm and replace

within 7 days

Hush

ee NOTE 1

“Hush Mode Activated”

Flashes every 10 seconds for 10

minutes

Hush

Cancellation

“Hush Mode Cancelled” Cancelled by pressing test button

Fault Mode ingle chirp every 30

seconds

Fault Code (2-12 flashes every

30 seconds)

End of Life

ee NOTE 2

2 chirps every 30 sec-

onds

Flashes twice every 30 seconds

Note 1 – Pre ing the Te t/Hu h bu#on will de en i"ze the alarm for 10 minute to a known alarm condi"on uch a burnt toa t.

During thi period the LED ﬂa he every 10 econd .

Note 2 – Pu hing the Te t/Hu h bu#on at end of life ilence End of Life chirp for 3 day . Can be u ed 10 "me within 30 day .

Allow the homeowner to purcha e a replacement alarm.

0313-7201-00_(PWFPH_B_L)_PEUK_V10.qxp:_ 2015.12.3 2:55 PM Pa e 8

8. MAINTENANCE

At least once a year remove the alarm and use a vacuum cleaner to suck out any dust. Wipe

the outside of the alarm with a damp cloth. When you replace the alarm remember to test it.

• Never use detergent or other solvents to clean the alarm.

• Avoid spraying air freshener, hair spray, or other aerosols near the smoke alarm

• Do not paint the unit. Paint will seal the vents and interfere with the sensor’s ability to

detect smoke.

•NOTE: do not use naked ﬂame sources, such as lighted candles, to test your apparatus.

• Storage and Transport Condions: -20° C to +60° C, 5-95%RH (non-condensing).
