I SET LIVE FUEL-EFFECT GAS FIRES

User Instructions

These instructions should be read by the user before operating the

appliance and retained for future reference

Model o’s KICC**M , KICC**S & KICC**R are only for use on

atural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.

** denotes trim and fret colour / finish variant supplied with the

product

I STALLATIO I FORMATIO

CO DITIO S OF I STALLATIO

It is the law that all gas appliances are installed only by a competent (e.g.

Registered) Installer, in accordance with the installation instructions and the Gas

Safety (Installation and Use) Regulations 1998. Failure to install appliances

correctly could lead to prosecution. It is in your own interest and that of safety to

comply with the law.

The fire may be fitted below a combustible shelf provided that the shelf is at least

200mm above the top of the appliance and the depth of the shelf does not exceed

150mm.

The fire may be installed below combustible shelves which exceed 150mm deep

providing that the clearance above the fire is increased by 15mm for each 25mm

of additional overhang in excess of 150mm.

o purpose made additional ventilation is normally required for this

appliance when installed in G.B. When installed I.E. please consult

document I.S. 813 : 1996 Domestic Gas Installation which is issued by the

ational Standards Authority of Ireland. Any purpose made ventilation

should be checked periodically to ensure that it is free from obstruction.

If the chimney or flue has been previously used by appliances burning fuels other

than gas they must be swept prior to the installation of this fire.

If this appliance is fitted directly on to a wall without the use of a fireplace or

surround, soft wall coverings such as wallpaper, blown vinyl etc. could be affected

by the heat and hot convection air and may discolour or scorch. This should be

considered when installing or decorating.

The Model number of this appliance is as stated on the rating plate affixed to the

control panel of the fire and the appliance is manufactured by:-

BFM Europe Ltd

Trentham Lakes

Stoke on Trent

ST4 4TJ

Please Note : The life span of the batteries in the burner unit on SC / RC

variants is epen ent upon use an therefore the battery life will vary

accor ingly. If the burner unit fails to operate, please check the 6 off AA

batteries before calling the service centre for engineer assistance.

ABOUT YOUR EW CEASAR GAS FIRE

The Kinder Ceasar coal effect gas fires incorporate a unique and highly developed

fuel bed which gives the realism of a loose coal layout combined with realistic

flames and glow. The fire incorporates a flame control which allows you to adjust

the flame appearance to give the desired combination of flames and glow. The left

hand position gives maximum radiant heat and output whereas the right hand

position gives more flame but slightly less glow

The use of durable ceramic material in the construction of the fuelbed components

ensures long and trouble free operation.

When first using the new fire a slight smell may be noticed. This is due to starch

used in the manufacture of the soft ceramic coals, it is non-toxic and will soon

disappear.

Please take the time to fully read these instructions as you will then be able to

obtain the most effective and safe operation of your fire.

IMPORTA T SAFETY I FORMATIO

WAR I G

This appliance has a naked flame and as with all heating appliances a

fireguard should be used for the protection of children, the elderly and

infirm. Fireguards should conform to B.S. 8423 : 2002 (Fireguards for use

with gas heating appliances).

It is important that this appliance is serviced at least once a year by a registered

gas installer and that during the service the fire is removed from the fire opening

and the chimney or flue visually checked for fallen debris or blockages which must

be removed. The chimney should also be checked to ensure

clearance of flue products. We recommend that during the annual service,

replacement of the Oxypilot is carried out. These are conditions of the

manufacturers guarantee.

After installation or during servicing a spillage test must always be carried

out.

Rubbish of any type must EVER be thrown onto the fuel bed, this could affect

safe operation and damage the fire.

Any debris or deposits should be removed from the fuel bed from time to time.

This may be carried out by referring to the cleaning section as described later in

this book.

Only the correct number and type of coals must be used and only complete and

genuine replacement sets must be used.

Always keep furniture and combustible materials well clear of the fire and never

dry clothing or items either on or near to the fire. ever use aerosols or

flammable cleaning products near to the fire when it is in use.

The ceramic fuel bed remains hot for a considerable period after use and

sufficient time should be allowed for the fire to cool before cleaning etc.

The fire must only be operated with a fender which meets the criteria described in

the rear of this book.

OPERATI G THE FIRE (MA UAL CO TROL MODELS)

The controls are located behind the ashpan cover which is situated behind the

Ashpan / Fender. The controls, comprise a control valve to adjust the gas flow and

a push button piezo igniter. There is also a flame adjuster which slides from left to

right. The left hand position gives maximum radiant heat and output whereas the

right hand position gives more flame but slightly less glow. To light the fire proceed

as follows:-

1) Depress the control knob and turn anti-clockwise to the position

marked pilot. Hold in the control knob for a few seconds to allow the gas to

reach the pilot.

2) Continue to hold-in the control knob and press the igniter button. If the pilot

does not light, continue to press the igniter button until ignition occurs. The

pilot flame’s reflection can be seen by looking at the left hand side front of

the stainless steel side trim. When the pilot has lit, continue to hold the

control knob in for 5-10 seconds to allow the thermocouple to heat up, if the

pilot goes out when the control knob is released, repeat the lighting

sequence.

In the unlikely event of a failure of the igniter, the fire can be lit as follows :-

Depress the control knob and turn anti-clockwise to the position

marked pilot. Hold in the control knob for a few seconds to allow the gas to reach

the pilot. Insert the tip of a lit taper in behind the front ceramic coals on the left

hand side. This will light the pilot flame. When the pilot has lit, continue to hold

the control knob in for 5-10 seconds to allow the thermocouple to heat up, if the

pilot goes out when the control knob is released, repeat the lighting sequence.

3) After lighting, turn the control knob in the anti-clockwise direction to the high

position and the main burner will light. It is recommended that for most

efficient performance the fire is allowed to warm up for a few minutes with

the flame adjuster set to the left hand position and the gas control on

maximum.

4) The gas control can be turned clockwise from the maximum position to give

the desired heat output and the flame control adjusted to give the most

pleasing flame effect or maximum glow.

WAR I G

If the fire goes out for any reason or is turned off and it is

necessary to re-light the fire it is important to allow the fire to cool

for 3 minutes before attempting to re-light it.

OPERATI G THE FIRE (SLIDE CO TROL MODELS)

The controls comprise a control lever, to turn the fire on and off and adjust the gas

rate, and a flame adjuster to alter the flame picture. The control lever is located at

the top right hand side of the fire. Depressing the control lever fully operates the

igniter and lights the pilot flame and ignition rate gas. Once the pilot is established

raising the lever allows medium and finally high gas settings. The fire is turned off

when the control lever is fully raised.

The flame adjuster is located behind the ashpan cover. Sliding the adjuster to the

left hand position gives maximum radiant heat output whereas the right hand

position gives more flame with slightly less glow. To light the fire proceed as

follows:-

1) Depress the control lever fully downwards to the position marked “Z”. Hold

down the control lever for a few seconds to allow the gas to reach the pilot.

2) The fire will then begin its ignition sequence. If the pilot does not light,

continue to press the control lever until ignition occurs. The pilot flame can

be seen by looking underneath the front ceramic rail, above the burner heat

shield, at the front left hand side of the fuel. When the pilot has lit, continue

to hold the control lever down for 5-10 seconds to allow the thermocouple to

heat up, before releasing the lever apply one firm downwards push to ensure

that the f.s.d. valve is fully latched, if the pilot goes out when the control

lever is released, repeat the lighting sequence.

In the unlikely event of a failure of the igniter, firstly check the operation of the

1.5V battery and if necessary replace with a ‘AA’ size alkaline battery. It is impor-

tant that only an alkaline battery is used, otherwise premature battery failure

and leakage may result. If the appliance still fails to light the fire can be lit as

follows:

Depress the control lever fully downwards to the position marked “Z”. Hold in

position for a few seconds to allow the gas to reach the pilot. Insert the tip of a lit

taper or spill between the front ceramic and burner heat shield. This will light the

pilot flame and low rate gas. When the pilot has lit, continue to depress the control

lever in for 5-10 seconds to allow the thermocouple to heat up before releasing the

control lever apply one firm downwards push to ensure that the f.s.d. valve is fully

latched.

3) After lighting, move control lever up to the high position and the main burner

will light. It is recommended that for the most efficient performance the fire is

allowed to warm up for a few minutes with the flame adjuster set to the left

hand position and the control lever set to high.

4) The gas control can be moved from the High to Low position to give the

desired heat output and the flame control adjusted to give the most pleasing

flame effect or maximum glow.

5) To turn the fire off, FULLY raise the control lever to the OFF position.

OPERATI G THE FIRE (REMOTE CO TROL MODELS)

a) The Remote control handset generates an infrared signal, which will be

received by the sensor situated at the front right of your fire, behind the

ashpan cover. This infrared signal requires direct line of sight from the

handset to the sensor on the fire to ensure good operation.

b) To light the appliance using the handset, point the handset at the fire

and press the 2 left hand buttons together. The fire will emit a “beep”

sound, the buttons can now be released. After a few seconds an

audible clicking can be heard and then the fire will light the pilot and

then light the main burner. The ignition cycle will take approximately 20

seconds.

c) To reduce the level of heat input on the fire, point the handset at the fire

and press the small flame button once (An audible beep will be heard)

and the heat input level will reduce to the low setting (4.2kW). Press

and continually hold the small flame button and the fire will reduce incre

mentally to the low setting (4.2kW)

d) To increase the level of heat input on the fire, point the handset at the

fire and press the large flame button. (An audible beep will be

heard) and the heat input level will increase to the high setting (6.9kW)

Press and continually hold the small flame button and the fire will

reduce incrementally to the high setting (6.9kW)

e) To leave the fire in the standby mode (pilot only running) press the small

round button on the handset. The fire should not be left in the

standby mode when unattended.

f) To switch the appliance off completely, press the large round button on

the handset, the fire will then switch off. See fig. 1 below for image of

handset.

Fig. 1

H gh (Large Flame)

Low (Small Flame)

Off Button

Standby Button

TUR I G THE PRODUCT OFF I THE U LIKELY EVE T OF A

REMOTE HA DSET MALFU CTIO .

a) In the unlikely event of the remote control handset malfunctioning (or if

lost or broken) after the appliance has been turned on, the fire can be

turned off via the emergency shut off switch on the control panel.

b) To turn the product off, firstly remove the ashpan from the fire.

c) Press and hold the emergency shut off switch until the fire shuts down.

The process may take up to sixty seconds to complete. (see Fig. 2

below).

d) When the fire has shut down, release the emergency shut off switch.

e) The appliance will now remain in the “off” position until activated by the

remote handset.

Fig. 2

REPLACI G THE BATTERIES (REMOTE CO TROL MODELS O LY)

E SURE THE FIRE IS COOL BEFORE REPLACI G BATTERIES

Remove the ashpan cover. The battery pack is loacted on the right hand side side

of the burner unit at the bottom. Carefully remove the pack and remove

batteries. Replace in the reverse order using 6 off 1.5V AA Alkaline Battery. It is

important that only an alkaline battery is used, otherwise premature battery

failure and leakage may result.

PLEASE NOTE : THERE IS NO MANUAL OVER-RIDE FACILITY FOR THE

REMOTE CONTROL SYSTEM AND THE EMERGENCY SHUT OFF SWITCH

SHOULD ONLY BE ACTIVATED IF YOU ARE SURE THE REMOTE

HANDSET IS MALFUNCTIONING, DAMAGED OR LOST.

Emergency Shut Off

Sw tch Pos t on on

Control Panel.

REPLACI G THE BATTERY (SLIDE CO TROL MODELS O LY)

E SURE THE FIRE IS COOL BEFORE REPLACI G BATTERIES

Unscrew Battery retaining cap situated at the front right of the fire and remove

battery. Replace in the reverse order using a 1.5V AA Alkaline Battery. It is

important that only an alkaline battery is used, otherwise premature battery

failure and leakage may result.. Unscrew Battery retaining cap situated at the

front right of the fire and remove battery. Replace in the reverse order using a

1.5V AA Alkaline Battery. It is important that only an alkaline battery is used,

otherwise premature battery failure and leakage may result.

SPILLAGE MO ITORI G SYSTEM

This appliance is fitted with a spillage monitoring system which shuts down the fire

if the evacuation of combustion products from the fire is affected by a partially or

fully blocked flue. If this system operates the fire will go out. If this occurs, leave

the fire for at least three minutes then follow the lighting procedure as described in

the previous section. In the event of repeated operation a registered gas

installer must be called to investigate and rectify the cause.

CLEA I G - WAR I G

Before attempting any cleaning operation ensure that the fire has been allowed to

fully cool.

CLEA I G THE TRIMS A D PAI TED METAL PARTS

Dependent upon the trim option chosen for use with this fire, there is a variety of

methods that can be chosen to clean the trim. If a Brass trim was supplied with

this fire this is plated brass and this trim must only be cleaned using a clean damp

cloth. Metal polishes must not be used on these trims. If a black trim was

chosen, then these should only be cleaned using a clean, damp cloth also. The

trim is best cleaned by removing it from the fire and placing it face up on a flat

surface. The fender that was supplied with the fire is laquered to protect the

finish and therefore must only be cleaned using a clean damp cloth.

Abrasive cleaners, chemical cleaning agents or any type of polish must

never be used as damage to the finish may result.

CLEA I G THE FUEL BED

We do not recommend cleaning of coals or fuelbed components as these are

fragile and damage may result. one of these parts must be washed or

exposed to any cleaning agents or water. Any damaged parts must be

replaced by contacting your dealer or telephoning Kinder Fires on the number

stated on the rear cover of this book. Coals must only be replaced with a

complete and genuine replacement set and the fire must never be run with the

wrong number or damaged coals. The fuelbed must be carefully re-assembled as

stated in the following section.

RE-ASSEMBLI G FUEL BED A D COMMISSIO I G

a) Place the ribbed ceramic fuelbed base on top of the fuelbed support

and pull fully forwards to the burner. Make sure that the fuelbed

base is located centrally in the fire box.Ensure that the fuelbed

base fit fully down onto the fuel bed support and is not

lodged on the burner. See fig. 3 below.

Fig. 3

b) Position the two halves of the front ceramic (L/H & R/H) on the locating

channel in the front ceramic, ensuring it is located onto the lip on the

burner front ceramic support. (See fig. 4 below)

Fig. 4

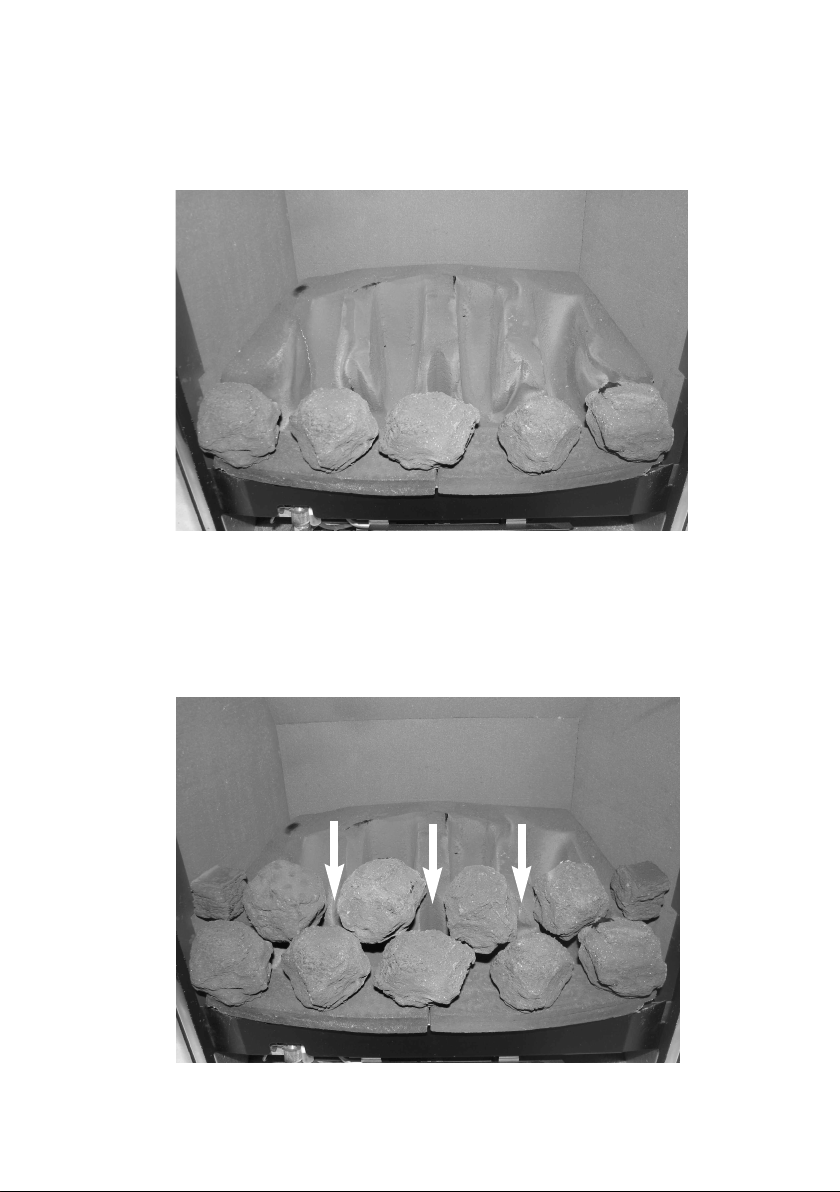

c) Fit five of the large sized coals onto the front ceramic rail, ensuring

that they are evenly spaced. Use the recess’s in the front ceramic rail

as a guide for placement. (See fig. 5 below)

Fig. 5

d) Select four of the large coals and arrange behind the front row of coals,

ensuring that flame paths as indicated below are not interupted, place

one of the small coals at each end of the second row. (See fig. 6

below)

Fig. 6

Altri manuali per Ceasar

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kinder Camino a gas

Kinder

Kinder Oasis Manuale utente

Manuali Camino a gas popolari di altre marche

Heatilator

Heatilator ION-V7 Manuale utente

Enviro

Enviro westport-steel Manuale utente

White Mountain Hearth

White Mountain Hearth VFP24FP2(0,1,2,3)L(N,P)-1 Guida rapida

Heat & Glo

Heat & Glo EVEREST-B Manuale utente

Napoleon

Napoleon HDX52NT-1 Manuale utente

Valor

Valor Ultimate Turbochim BR517R Manuale utente

HVFL

HVFL 18HVFL Manuale utente

Enviro

Enviro Berkeley-Nova Manuale utente

Ekofires

Ekofires eko 5010 Manuale utente

Flavel

Flavel Regent Manuale utente

Majestic

Majestic 300DVBLN/PV7 Manuale utente

Vermont Castings

Vermont Castings 33CFDV(N/P)(V/I)SB Manuale utente

kozy heat

kozy heat SPRINGFIELD 36 Manuale utente

Valor

Valor COSYFLAME BR623 Manuale utente

Wonderfire

Wonderfire sonnet plus br645 VA Manuale utente

Valor

Valor genesis BR645VA Manuale utente

Bellfires

Bellfires Corner Bell Large 3 CF Manuale utente

Heat & Glo

Heat & Glo GEM-36B Manuale utente
