Kinetico Premier Compact Manuale utente

visit www.kinetico.eu

Installation and User Manual

Installation et Guide d’utilisation

Installatie- en gebruikshandleiding

Manual de instalación y de usuario

Water Softener

Adoucisseur d’eau / Waterontharder

Descalciﬁcador

ENG DUFR ES

PREMIER COMPACT HE INT

Kinetico Premier Compact Water Softener Installation and User Manual

For more information about Kinetico:

Pour plus de renseignements sur Kinetico:

Voor meer informatie over Kinetico:

Para obtener más información sobre Kinetico:

visit www.kinetico.eu

The Premier Compact HE INT Water Softener is Tested and Certiﬁed by

WQA under NSF/ANSI 61 for Materials Safety Requirements Only. Not

Certiﬁed for Contaminant Reductions or Structural Integrity by WQA.

L’adoucisseur d’eau Premier Compact est testé et certiﬁé par WQA sous la

norme NSF/ANSI 61 seulement pour les exigences en matière de sécurité du

matériel. La réduction des contaminants ou l’intégrité structurelle ne sont

pas certiﬁées par la WQA.

De Premier Compact HE INT Waterontharder wordt getest en gecertiﬁceerd

door WQA onder NSF / ANSI 61 voor enkel materiele veiligheidsvereiste.

Niet Gecertiﬁceerd voor Verontreinigende Vermindering of structurele

integriteit door WQA.

El descalciﬁcador de agua Premier Compact ha sido comprobado y

certiﬁcado por WQA con respeto al estándar NSF/ANSI 61 solamente para

los requisitos de seguridad del material. La reducción de los contaminentes

o la integridad estructural no están certiﬁcados por WQA.

www.kinetico.eu

Original Version

Contents

Safety information 4

Contents of box 6

Speciﬁcations 6

Getting to know the softener 7

Pre-installation check list 8

Installation instructions 10

Installation review 12

Commissioning instructions 13

Useful information 15

Sommaire

Informations de sécurité 18

Contenu de la boîte 20

Caractéristiques 20

Se familiariser avec l’adoucisseur 21

Vériﬁcations préalables 22

Instructions d’installation 24

Inspection de l’installation 26

Instructions de mise en service 27

Informations utiles 29

ENG

Inhoudsopgave

Veiligheidsinformatie 32

Inhoud verpakking 34

Speciﬁcaties 34

De ontharder leren kennen 35

Checklijst voorafgaand aan installatie 36

Installatie-instructies 38

Installatiecontrole 40

Instructies voor inbedrijfstelling 41

Nuttige informatie 43

Contenido

Información de seguridad 46

Contenido de la caja 48

Especiﬁcaciones 48

Primeros pasos con el descalciﬁcador 49

Lista de comprobación previa a la instalación 50

Instrucciones de instalación 52

Revisión de la instalación 54

Instrucciones de puesta en marcha 55

Información útil 57

Kinetico Premier Compact Water Softener Installation and User Manual

Safety information

Read all information carefully prior to installing and using the

water softener.

Qualiﬁed Installer

Kinetico recommends that a qualiﬁed

installer performs the installation. Failure

to install the system as instructed could

invalidate the Limited Warranty.

Water Temperature

Do not install the Kinetico softener in

an area where the water temperature

can exceed 24°C or cause the unit

to freeze. Freezing temperatures will

damage the system.

Water Pressure

Do not install if the supply water pressure

exceeds 6 BAR (87 psi), unless a suitable

pressure regulating valve has been

installed on the softener water supply.

Overﬂow

VERY IMPORTANT:

Where a cabinet overﬂow could cause

damage, you must install a 1/2” I.D.

hose to the barbed ﬁtting on the

cabinet and run to a suitable outlet

that is visible and capable of taking the

overﬂow (i.e. through the outside wall).

Make sure the hose does not go higher

than the barbed ﬁtting as the water

will ﬂow away using gravity.

www.kinetico.eu

Original Version

Copper/Plastic Pipework

Where copper/plastic pipework is

used, Kinetico advises adherence to

the regulatory requirements to ensure

adequate earth bonding is provided.

Intended Use

Not intended to be used for treating

water that is micro-biologically unsafe

or water that has an unknown quality,

without adequate disinfection before or

after the system.

Conform to Regulations

You must ensure that the installation

conforms to local plumbing codes and

regulations. Note: Refer to separate

instructions for important WQA

certiﬁcation information.

Plumbing Schematic

Please refer to the plumbing schematic

on page 8 before commencing an

installation.

Kinetico Premier Compact Water Softener Installation and User Manual

Contents of box

Identify the following parts before proceeding.

Meter Disc 1 2 3 4 5 6 7 8

gpg 4 9 13 17 21 25 28 30

PPM 77 152 226 300 370 440 490 528

˚dH 4 9 13 17 21 25 28 30

˚TH 8 15 23 30 37 44 50 52

Litres between

regenerations 1961 980 654 490 392 327 280 245

Cabinet dimensions (h x w x d) 498 x 219 x 468 mm

Salt used per regeneration 0.34 kg

Regeneration time 11 minutes

Flow rate @ 1 bar pressure drop 22.7 l/min

Pipe connections - in/out ¾” BSP

Min/max operating pressure 1.8 - 6 bar

Min/max operating temperature 2 - 24˚C

Speciﬁcations

Max

hardness

1 x in/out retaining

bracket and pin

Jubilee clip4 x o-ring

1 x 2cc silicone tube 2 x 3/4” washers 1 x blanking plate 1 x 2m of 5/8”

drain tubing

2 x 3/4” BSP

in/out adaptor

www.kinetico.eu

Original Version

Getting to know the softener

Salt compartment

Outlet

Overﬂow

Drain

connection

Inlet

Support

bar

Top lid

Front lid

Blanking plate

(see page 10

for use and

installation of

blanking plate)

Kinetico Premier Compact Water Softener Installation and User Manual

Pre-installation check list

When determining the location of the softener, the following

should be considered:

Mains

supply

To home

To drain

Cold water

supply

Optional extra:

Pressure regulating

valve.

Air gap:

Local regulations

must be adhered to.

Non-return valve:

Local regulations

must be adhered to.

Optional extra:

Non-return valve,

local regulations

must be adhered to.

Pre-ﬁlter

www.kinetico.eu

Original Version

Installation will vary but should consist of:

a: A pressure regulating valve on the water supply to the softener where the

incoming pressure exceeds 6 bar.

b: A non-return valve on the mains water supply to the softener. If using a Kinetico

supplied installation kit, a non-return valve is built into the inlet tee.

c: A by-pass assembly which enables the softener to be isolated from the water

supply for maintenance and service. This also maintains the water supply when

the system is disconnected.

d: A drain line from the softener to a waste pipe through an appropriate air gap.

The drain must comply with local plumbing codes.

e: An overﬂow run to a suitable outlet that is visible.

Ensure you have the following:

a: Kinetico blending by-pass valve

plus a single check valve.

b: Connections for the inlet and outlet, either by means of ﬂexible pressure rated

hoses or by direct pipework. Connections on the softener and the Kinetico

blending by-pass valve are 3/4” BSP male threaded ﬁttings.

c: 1/2” ID hose for both the overﬂow and the drain.

d: Jubilee clip for the drain line.

Or, a means of constructing a by-pass

which consists of:

3 valves, Tee pieces, Single check valve

Kinetico Premier Compact Water Softener Installation and User Manual

Installation instructions

Locate:

a: Ensure the unit can be

positioned on a ﬂat surface.

b: If sand, silt or turbidity are

present in the water supply, a

pre-ﬁlter should be installed

before the water softener.

Please note: For ease of installation

the softener can be installed with the

connections on the left or right side of the

cabinet by reversing the components.

Test water pressure:

Test incoming pressure to the

unit. A pressure regulating valve

will be required if the pressure

is above 6 bar.

Install:

Plumb pipework as necessary to

accommodate a by-pass assembly,

h 105mm x w 194mm x d 80mm.

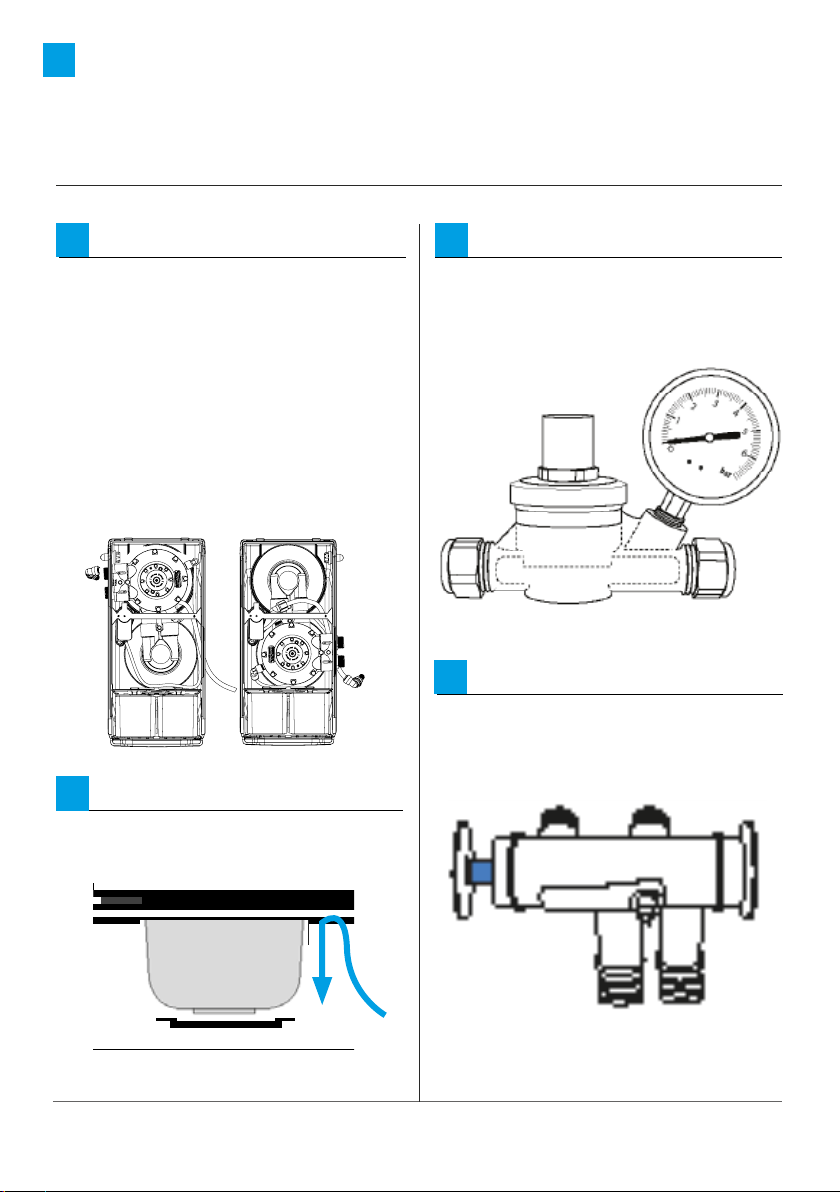

Insert blanking plate:

Insert the blanking plate into the

outlet which is not in use.

Lift up into position, then drop the

plate down into the slot.
