King Canada KAC-650 Manuale utente

AIR CLEANER

WITH REMOTE CONTROL

INSTRUCTION MANUAL

MODEL: KAC-650

IMPORTANT INFORMATION

2-YEAR

LIMITED WARRANTY

FOR THIS AIR CLEANER

KING CANADA TOOLS

OFFERS A 2-YEAR LIMITED WARANTY

FOR NON-COMMERCIAL USE ONLY.

PROOF OF PURCHASE

Please keep your dated proof of purchase for warranty and servicing purposes.

REPLACEMENT PARTS

Replacement parts for this tool areavailable at our authorized KING CANADA

service centers across Canada. For servicing, contact or return to the retailer where

you purchased your product along with your proof of purchase.

LIMITED TOOL WARRANTY

KING CANADA makes every effort to ensure that this product meets high quality

and durability standards. KING CANADA warrants to the original retail consumer

a2-year limited warranty as of the date the product was purchased at retail and that

each product is free from defects in materials. Warranty does not apply to defects

due directly or indirectly to misuse, abuse, negligence or accidents, repairs or

alterations and lack of maintenance. KING CANADA shall in no event be liable for

death, injuries to persons or property or for incidental, special or consequential

damages arising from the use of our products. Totake advantage of this warranty,

the product or part must be returned for examination by the retailer. Shipping and

handling charges may apply. If a defect is found, KING CANADA will either repair

or replace the product.

PARTS DIAGRAM & PARTS LISTS

Refer to the Parts section of the King Canada web site for the most updated parts

diagram and parts list.

SPECIFIC SAFETY RULES

FOR AIR CLEANERS

1. FOR YOUR OWN SAFETY, READ

INSTRUCTION MANUAL BEFORE

OPERATIONG THE TOOL. Learn the

tool’s application and limitations as well

as the specific hazards peculiar to it.

2. DO NOT ATTEMPT TO REMOVE OR

REPLACE THE FILTER(S) WHILE THE

MACHINE IS IN OPERATION. MAKE

CERTAIN AIR CLEANER IS

DISCONNECTED FROM THE POWER

SOURCE.

3. DO NOT OPERATE THE CLEANER

WITHOUT THE FILTER IN PLACE TO

AVOID EXPOSURE TO ROTATING

PARTS AND OVERLOADING THE

MOTOR.

4. THE USE of filters and attachments

which are not recommended may result

in product damage or the risk of

personal injury.

5. When suspending the Air Cleaner from

the ceiling MAKE CERTAIN the

hardwareis securely anchored into a

wood structure. Always keep a

minimum of 7 feet between bottom of Air

Cleaner and the floor surface to allow for

adequate head clearance. Also, use only

properly sized chain to prevent the tool

from falling.

6. TO REDUCE THE RISK OF

ELECTRICAL SHOCK, do not expose to

water or rain, and do not lift the Air

Cleaner by the power cord. DO NOT use

the power cord as a hanging device.

7. When used in the portable application,

MAKE CERTAIN the Air Cleaner is

adequately supported, or securely

clamped to the work surface to eliminate

any potential for movement or damage

from falling.

8. ALWAYS WEAR ADEQUATE EYE

PROTECTION.

9. WHEN NOT IN USE, BE CERTAIN TO

STORE AIR CLEANER IN A SAFE

LOCATION TO ELIMINATE THE

POTENTIAL OF DAMAGE TO THE

POWER CORD OR TRIPPING

HAZARDS.

10. MAKE WORKSHOP CHILDPROOF

by unplugging tools from power source,

using padlocks, or by using a master

switch.

11. MAINTAIN TOOLS IN TOP

CONDITION. Keep filters clean for

optimum performance. Follow

instructions for changing and cleaning

filters.

12. DANGER: DO NOT use this machine

to filter any metal dust. Combining wood

and metal dust can create an explosive

hazard. This Air Cleaner is intended to be

used to filter non-explosive atmospheres

only.

13. IF YOU ARE NOT thoroughly familiar

with the operation of the Air Cleaner,

obtain advice from your supervisor,

instructor or other qualified person.

14. WARNING: DO NOT operate your Air

Cleaner until it is completely assembled

and installed according to the instruction

manual.

15. PLACE POWER CORD IN A SAFE

LOCATION TO ELIMINATE

TRIPPING HAZARDS.

16. USE FACE OR DUST MASK AND

EYE PROTECTION. WARNING: The

dust generated by certain woods and

wood products can be hazardous to your

health. Always operate machinery in

well-ventilated areas and provide for

proper dust removal.

17. WARNING: TO AVOID A

POTENTIALLY DANGEROUS

SITUATION, DO NOT USE AIR

CLEANER TO DISSIPATE FUMES OR

SMOKE. This Air Cleaner is intended for

use in non-explosive, non-metallic

atmospheres where only dry airborn

dust is present.

18. SA

VE THESE INSTRUCTIONS. Refer

to them frequentely and use them to

instruct other users.

PRODUCT SPECIFICATIONS

ELECTRICAL CONNECTIONS

Specifications

Outer filter..........................................................................................................5 Microns

Inner filter ............................................................................................................1 Micron

Overall dimensions (LxWxH) ........................................30-1/4” x 24-1/8” x 12-1/8”

Sound rating @ 3ft...............................................................................High speed- 60db

........................................................................................................Medium speed- 53 db

................................................................................................................Low speed- 50 db

Air flow. ........................................................................................High speed- 650 CFM

..................................................................................................Medium speed- 550 CFM

..........................................................................................................Low speed- 450 CFM

Motor ................................................................................................115V, 60Hz, 1 Phase

RPM’s ....................................................................................................High speed- 1700

..........................................................................................................Medium speed- 1300

..................................................................................................................Low speed- 1000

Net weight ................................................................................................................44 lbs.

Shipping weight ......................................................................................................50 lbs.

ELECTRICAL CONNECTIONS

GROUNDING

This air cleaner must be grounded. If it

should malfunction or breakdown,

grounding provides a path of least

resistance for electric current, to reduce

the risk of electric shock. This air cleaner

is equipped with a cord having an

equipment-grounding conductor and

grounding plug. The plug must be

plugged into an appropriate outlet that is

properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING: TO MAINTAIN PROPER

GROUNDING, DO NOT REMOVE OR

ALTER THE GROUNDING PRONG IN

ANY MANNER.

As received from the factory, your air

cleaner is ready to run for 110V operation.

This air cleaner is intended for use on a

circuit that has an outlet and a plug

which looks like the one illustrated in

Fig.1.

A separate electrical circuit should be

used for your tools. This circuit should be

no less than than #12 wire and should be

protected with a 20 amp fuse. Make sure

the electric current is of the same

characteristics as stamped on the

machine nameplate. Running on low

voltage will damage the motor.

The air cleaner has three speeds and runs

at 2.4A/1700RPM in High speed,

0.8A/1300RPM in Medium speed and

0.6A/1000RPM in Low speed.

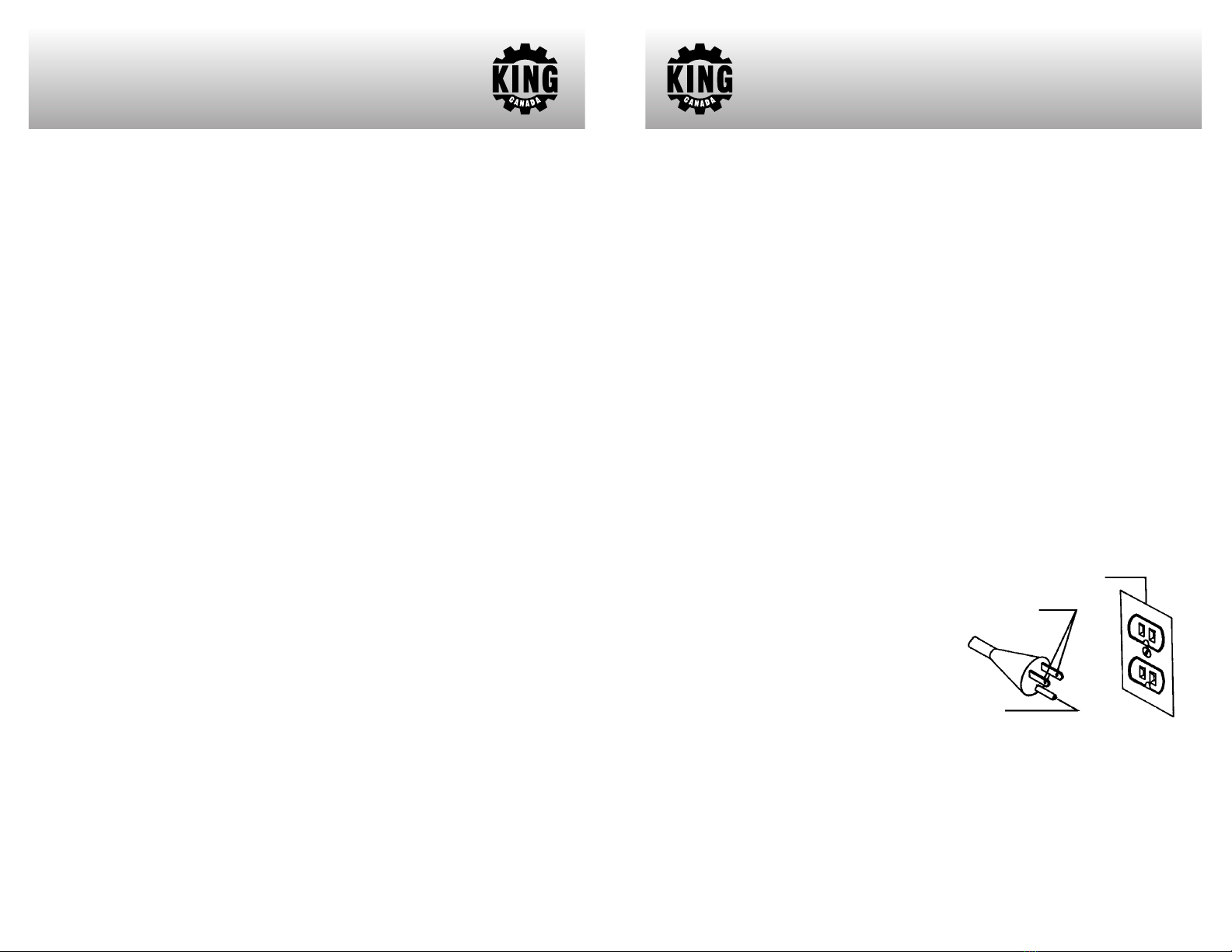

Figure 1

Current

carrying

prongs

Grounded outlet

Grounding

blade

UNPACKING

ASSEMBLY

UNPACKING

The Air Cleaner is shipped complete in one

container. Carefully unpack the Air Cleaner

and all loose items from the shipping

container. WARNING: DO NOT LIFT

THE AIR CLEANER BY POWER

CORD.

Contents of shipping container;

A- Air cleaner unit (1)

B- Remote control (1) with 2 AA

Batteries

C- Mounting brackets (4)

D- Hooks and nuts (4 ea.)

E- Hex. bolts (8)

F- Lock washers (8)

G- Velcropiece (1)

Tools required for assembly;

-No. 2 Cross point screwdriver

-10mm Wrench

Assembly

•This unit will work best if it is located

away from corners and heating/cooling

vents.

•This unit is specifically designed to

circulate and filter non-metalic dust, which

is generated thoughout the work area.

1) The air cleaner unit can be hung from the

ceiling. Remove the four screws (A, Fig.3)

from the cabinet top.

2) Hang the unit using four hooks and lock

nuts provided.

3) Make sure the lock nut is threaded half

way up the hook. Screw the hook into the

hole and tighten lock nut against the

cabinet top. You will need to hold the

hook so it doesn’t spin while tightening

the lock nut.

4) Repeat steps for the remaining three

hooks.

Note: Make sure the chain and ceiling

hooks areproperly rated for hanging this

unit. Hang unit with a 7ft. clearance from

the floor.

WARNING! Mounts must be anchored to

the building structure, which will support a

minimum of at least 100 pounds. Never

mount to dry wall or false ceiling grids.

Figure 2

Figure 3

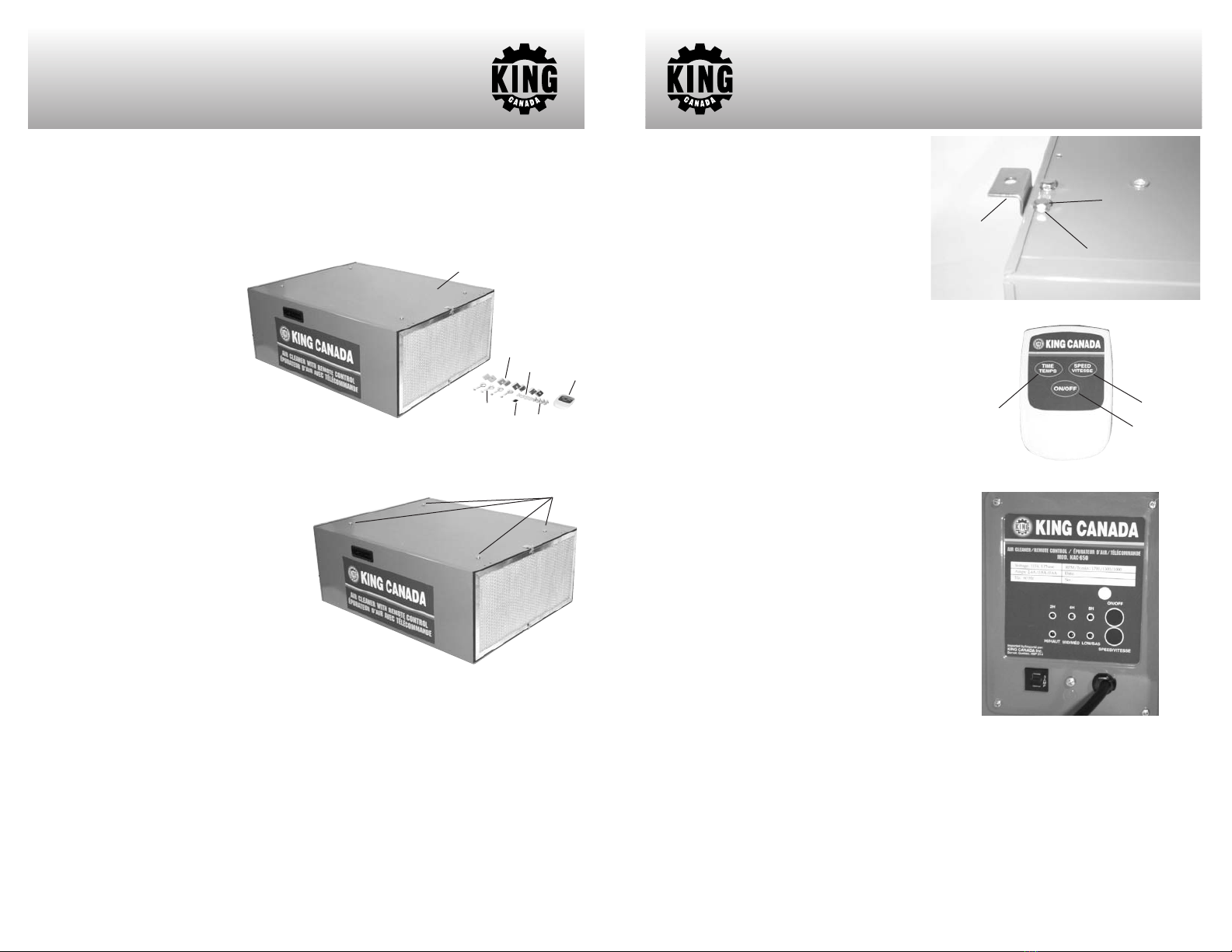

Assembly

1) Four brackets can also be used for

mounting to a ceiling or wall.

2) Place one end of bracket underneath the

lip of the cabinet.

3) Attach the bracket (A, Fig.4) with two

hex. bolts (B) and two lock washers (C).

4) Repeat steps for the remaining three

brackets.

CONTROLS & FEATURES

Remote control;

Timer button:(A, Fig.5) controls the three

different settings which are:

2H-will light up on the back of the unit

with one press of the timer button. The air

cleaner will operate for 2 hours and then

will shut off automatically.

4H-will light up on the back of the unit by

pressing the timer button twice. The air

cleaner will operate for 4 hours and then

will shut off automatically.

8H-will light up on the back of the unit by

pressing the timer button three times. The

air cleaner will operate for 8 hours and

then will shut offautomatically.

Speed button:(B, Fig. 5) contols the three

different speed settings (low, medium,

high). Thereis also a manual speed button

(A, Fig.6) on the backside of the unit which

allows you to sellect the desired speed.

On/Offbutton:(C, Fig.5) turns the unit on

&off. There is also a manual on/off button

(B, Fig.6) on the backside of the unit.

Fuse switch:(C, Fig.6) will pop out in case

of an overload. Wait 3-5 minutes and push

the fuse in.

Exhaust:The exhaust vent is adjustable by

moving it to the desired angle.

Changing filters

WARNING! To reduce the risk of injury,

disconnect the air cleaner from the power

source before servicing or changing filters.

Failure to comply may cause serious

injury!

There are two filters that need to be

changed. The outer filter can easily be

removed by disengaging the two clips of

the cabinet. Pull the filter out or use a

screwdriver to pop the filter out.

The filtration bag can now be pulled out of

the unit. The filters should be replaced

depending on the amount of usage and the

environment of your shop. Clogged filters

will reduce the amount of air circulation.

Replacement filters are availlable at your

nearest KING CANADA retailer.

ASSEMBLY, CONTROLS

CHANGING FILTERS

Figure 4

Figure 5

Figure 6

Altri manuali King Canada Purificatore d'aria

King Canada

King Canada KAC-410 Manuale utente

Manuali Purificatore d'aria popolari di altre marche

IKEA

IKEA UPPÅTVIND Manuale utente

Nash

Nash AP-1 PureSmart Manuale utente

LG PH-U450 Series Manuale utente

DeLonghi

DeLonghi DDSX 220WFA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuale utente

Sharp

Sharp FU-40SE Manuale utente

Philips

Philips AC2721 Manuale utente

Hitachi

Hitachi EP-A3000 Manuale utente

TruSens

TruSens Z-2000 Manuale utente

Motorola

Motorola MBP87SN Manuale utente

Beko

Beko ATP 7100I Manuale utente

Carrier

Carrier INFINITY 1620 Manuale utente

AtmosAir

AtmosAir P2002 Manuale utente

Winix

Winix NK300 Manuale utente

Friedrich

Friedrich C-90A Istruzioni per l'uso e l'installazione

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuale utente

Base aire

Base aire 555 Pro Manuale utente

Champion

Champion CP25 Manuale utente
