insTallaTion ManUal

• Amastheadamplierisdesigned

to amplify low signal levels for both

analogue and digital applications.

• Theampliergainshouldbeselected

to suit each individual environment.

• Mountwithpolypropylenesecuring

strap on to mast or mount to a wall

with cable connectors at the bottom.

• BestMountinglocationformasthead

unit is on mast 30 cm to 100 cm

below antenna.

• Ensureweatherproofstripsremain

in place.

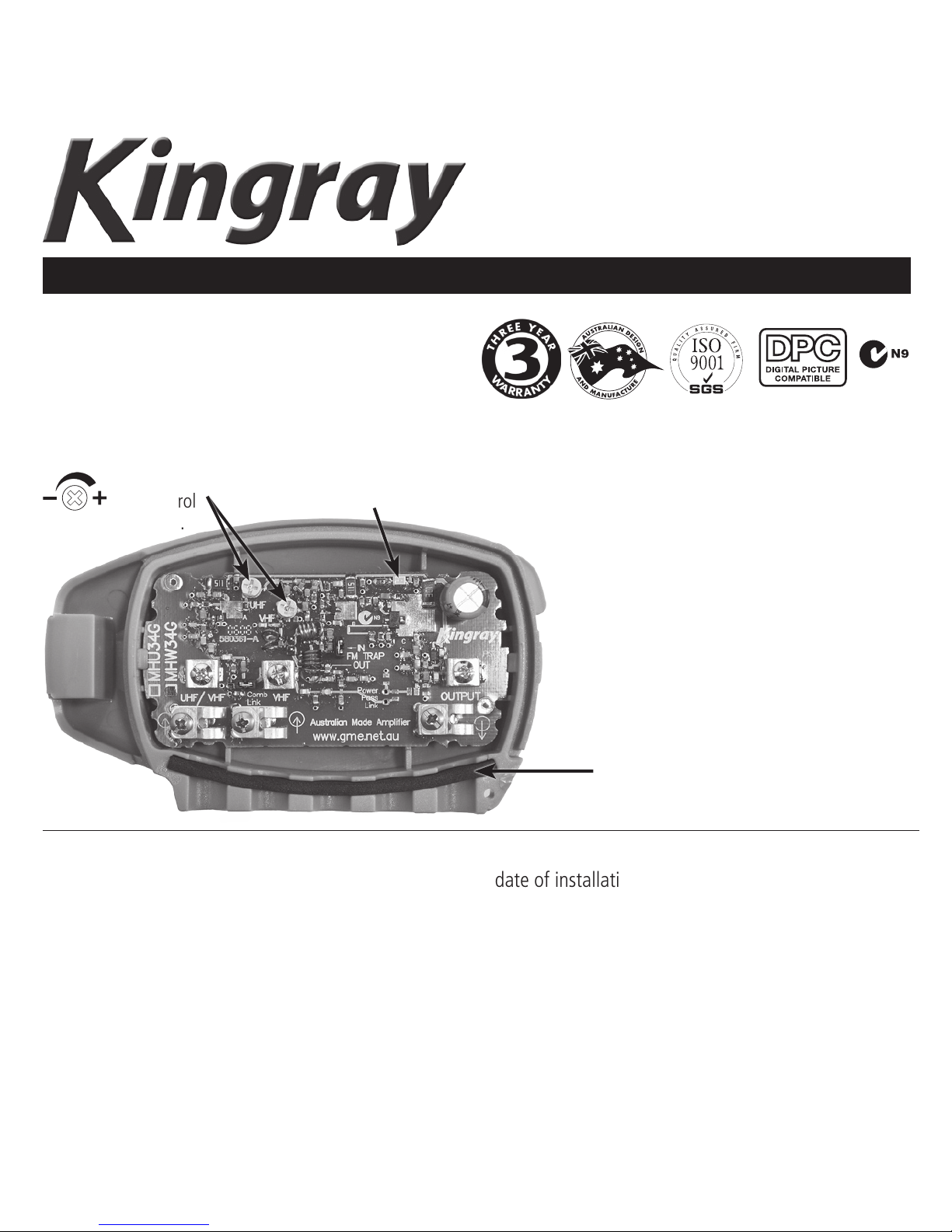

Power Indicating LED

For maximum

VHF/UHF gain

turn control

clockwise.

Standard Communications PTY. LTD. warrants this

Kingray product to be free from defects in material

and workmanship for a period of 3 years from the

date of installation and reserves the right to void

warranty if unit was misused, improperly installed or

damaged by claimant.

www.gme.net.au

SYDNEY

P: (02) 9879 8888

F: (02) 9816 4722

E: nswbrch@gme.net.au

MELBOURNE

P: (03) 9798 0988

F: (03) 9798 0177

E: vcbrch@gme.net.au

BRISBANE

P: (07) 3278 6444

F: (07) 3278 6555

E: qdbrch@gme.net.au

ADELAIDE

P: (08) 8234 2633

F: (08) 8234 5138

E: sabrch@gme.net.au

PERTH

P: (08) 9455 5744

F: (08) 9455 3110

E: wabrch@gme.net.au

AUCKLAND

P: (09) 274 0955

F: (09) 274 0959

E: nzbrch@gme.net.au

A Division of

Standard Communications

PTY. LTD.

Head Office:

Locked Bag 2086, North Ryde N.S.W. 1670 P: (02) 9844 6666, F: (02) 9844 6600

WARRANTY

Optimised for both Digital and

Analogue TV Signal Ampliﬁcation

Model MhW34G/GdP MhU34G

Masthead Ampliﬁers

Thank you for selecting an Australian designed and built

masthead ampliﬁer.

sPeciFicaTions

Frequency VHF44-230MHz

Range UHF520-820MHz

Max Gain VHF:22-28dB(WModelsONLY)

UHF: 34 dB

Noise VHF<3 dB

Figure UHF<2.5 dB

Output 105 dB

Figure DIN45004B@(-60dBIMR)

Gain VHF Tilt Control 14-10 dB

Controls UHF 10 dB

Supply PSK08/F 17.5 V AC and

Voltage PSK06/F 14 V DC @ 80 mA

(PSK02 may also be used).

MHW34G/GDP ONLY

Aus Pager Filter  -25dB@148MHz

NZ Pager Filter -25dB@158MHz

FM Filter -25dB@88-108MHz

Bare back the cable as per diagram, pushing the earth

braid back over the black sheath. Connect the earth

to the saddle and the centre conductor to the screw

connection.

Bare Back Cable with a Cable

Stripper or Stanley Knife.

insTallaTion

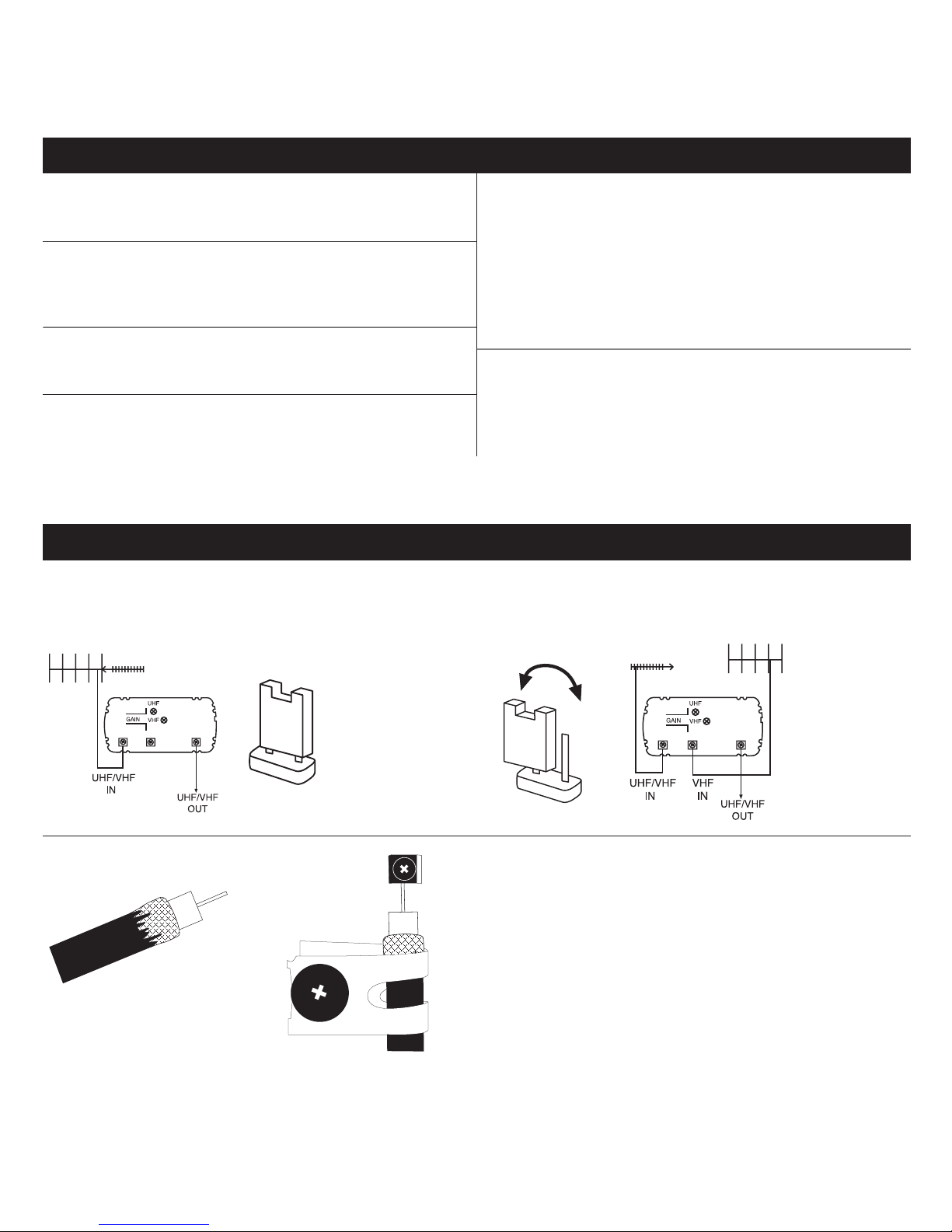

All these models are designed for combined or separate antenna inputs.

Combined Imput Separate Imput

Leave the link

on for a

combined

antenna

Remove for

a separate

antenna

FilTer oPTions

The FM and pager ﬁlter are located in the

MHW models only.

The-25dBBandStopFMFiltermaybedisabledby

simply removing the shorting link and placing it on

thespeciedterminals.TheFMtrapmustbeintheout

position to view television channel 3.

PagerFiltersettoattenuatebetween148-158MHz.

(Pager Filter maybe removed if you need

to amplify 5A, simply remove 2 coils as

indicated on the PCB above the VHF input.)

PoWerinG inline oPTions

Power Through Option: MHU Models only. TheUHFModelscanbeusedasanin-lineamplierfor

boosting UHF television signals on long run cable runs.

To power pass connect link to both pins on socket.

Please note: an F Type Adaptor has been included,

in all Kingray F Type Power Supplies to ﬁt an F Type

wall plate. However, the insert from the wall plate

can be removed and the Power Injector may be ﬁtted

directly with the locking nut provided.

PSK06F/08F PSK06/08

Technical advice

1. Check there is no earth braid touching the centre

conductor on the coaxial cable.

2. Is there more than one outlet? Check the

splitter box, the power supply must be connected

to the coaxial outlet that feeds the AC/DC leg of

the splitter box to pass power to the head unit.

(Check if LED is on).

3. Is there now too much signal causing an

overload effect to the VCR? Try turning down

the gain controls on the masthead unit, or select a

smaller dB rating ampliﬁer.

4. If there is a white line moving through the

picture?

Try a PSK06 14 V DC power supply.

Drawing No: 40565-7

Part No. 310113
