Kino Flo Mini-Flo Manuale utente

Mini-Flo

Operation Manual

Part No. 3100014 Rev C 06-10-2011

Mini-Flo Kits

True Match Lamps

092-K32 9” Kino KF32

092-K55 9” Kino KF55

122-K32 12” Kino KF32

122-K55 12” Kino KF55

KIT-139X/12

Mini-Flo Kit 12” Universal

KIT-139X/09

Mini-Flo Kit 9” Universal

Kits Contents

2 Mini-Flo Ballast, 12VDC

2 2.4 Amp Universal Power Supply

2 12” or 9” Fixture

2 Extension, 12ft

2 Mount

1 Flex arm, 6ft

1 Alligator Clip Adapter XLR

1 Car Adapter XLR

1 Travel Case

Dimensions

21.5 x 8 x 17”

(54.5 x 20.5 x 43cm)

Weight

15 lbs

6.8kg

Mini-Flo Kit

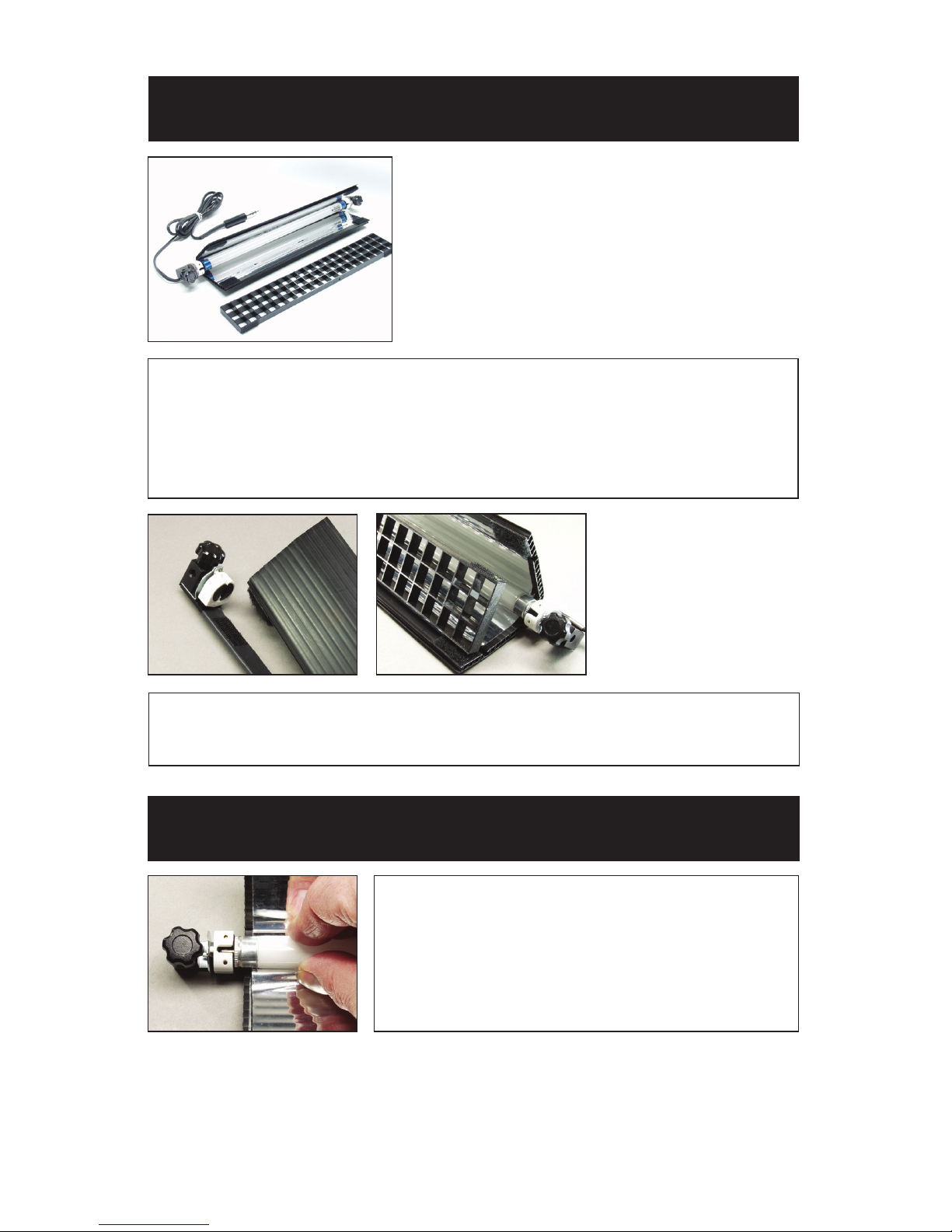

Fixture Assembly

Inserting Lamps

Fixture is comprised of 3 parts:

• Lamp Harness

• Fixture Shell

• Black Louver

The Lamp Harness, Fixture Shell and Louver are held together with

Velcro fasteners.

Insert the pins at both ends of the lamp into the

lamp holder. Rotate the lamp a ¼ turn until the

lamp clicks into place.

Mounting the Fixture

Ballast Operation

1) Cut the Flex Arm wire to desired length.

2) Lock knobs on the Mount Plate and

Lamp Harness hold the Flex Arm wire in place.

3) Use screws or adhesive tape to rig the Mount

Plate. Use two plates for greater stability.

Warning! To Ensure Proper Operation

ALWAYS TURN OFF THE BALLAST BEFORE connecting or disconnecting

lamps, harnesses or Head Extension Cables. Maximum distance is 48ft

(4 x 12ft cables).

Ballast Operation

The Mini-Flo Ballast operates remote from the xture. Connect the Mini-Flo

lamp harness to the extension cable or the Ballast. After the lamp is prop-

erly installed, the Ballast can be turned on. Avoid operating in temperatures

above 125°F (51°C).

(Note: The dimmer should be full up when striking the lamp. Once the lamp

has come up to full temperature, in 3-5 minutes, then dim to the desired light

level.)

In cold temperatures the Ballast may take longer to ignite the lamp. If it does

not ignite within 5 seconds, switch the ballast to OFF and try again. If lamp

does not strike after 2 or 3 attempts, turn Ballast off, check that the harness,

lamp or any extension connections are secure and restrike.

The BAL-139X power connection is a

4-Pin XLR connector.

Note: Use external power supply (PWS-1524X)

to operate on 100-250VAC.

1) Turn dimmer up to full.

2) Insert the lamp harness connector into the

receptacle on the ballast.

3) Turn on the power switch.

4) The dimmer knob will adjust the light level.

Kit Components & Lamps

CFX-091 9” Mini-Flo Fixture

CFX-1201 12” Mini-Flo Fixture

X02-12S Mini-Flo Extension, 12ft

BAL-139X Mini-Flo Ballast (4-Pin XLR),

12VDC

MTP-MW6 Mini-Flo Flex Arm Coil, 6ft

MTP-MM Mini-Flo Flex Arm Mount

PWS-1524X Power Supply 2.4A,

100-250VAC/12VDC, 4-Pin XLR

KAS-MF Mini-Flo Kit Travel Case

PWC-CX Cigarette to 4-Pin XLR, 6ft

PWC-X42 4-Pin XLR Splitter

True Match Lamps

092-K32 9” Kino KF32

092-K55 9” Kino KF55

122-K32 12” Kino KF32

122-K55 12” Kino KF55

PWC-AX Alligator to 4-Pin XLR, 12ft

Fixture Components

FIX-091 9” Mini-Flo Fixture Shell

FIX-1201 12” Mini-Flo Fixture Shell

HAR-091 9” Mini-Flo Harness

HAR-1201 12” Mini-Flo Harness

LVR-091-B 9” Mini-Flo Louver (Black)

LVR-1201-B 12” Mini-Flo Louver (Black)

Fixture Specications

Model A B C D Weight w/

Lamp

CFX-091 7.75”

(19.7cm)

11”

(28cm)

2.5”

(6.4cm)

3”

(7.6cm)

0.4 lbs/ 0.2kg

CFX-1201 11.75”

(29.9cm)

14”

(35.5cm)

2.5”

(6.4cm)

3”

(7.6cm)

0.5 lbs/ 0.2kg

For latest Warranty information and Certications,

see Kino Flo website at www.kinoo.com.

Environmental: Disposal of Old Electrical & Electronic Equipment.

This symbol on the product or on its packaging indicates that this

product shall not be treated as household waste. This product is made

of recyclable materials and should be disposed of in accordance with

local and state regulations.

Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA

Tel: 818 767-6528 website: www.kinoo.com

Ballast Specications

BAL-139X Mini-Flo Ballast, 12VDC

Input Voltage: 230VDC

Output Frequency: 25kHz

Amperage: 0.8A / 9”

0.9A/ 12”

Power Connector: 4-Pin XLR

Lamps: 1 F6T5 or 1 F8T5

Weight: 0.8lb (0.4kg)

Dimensions: 4.5 x 3.5 x 2”

(11.5 x 9 x 5cm)
