Kirisun PT6500 Manuale utente

PT6500 User’s Manual

Page 1 of 26

PT6500 User’s Manual

CONTENTS

■Unpacking and checking

Supplied accessories

■Preparation

◆Charging the battery

◆Installing/Removing the battery pack

◆Installing the antenna

◆Installing the optional speaker/microphone

◆Installing the belt clip

■Getting acquainted

■Basic Operation

■Programmable Button functions

■VOX

■Copy mode

■Whole setting

◆Time-out Timer（TOT）

◆Battery Saving

◆Low battery warning

◆Voice Annunciation of Channel Number

◆CTCSS/ DCS

■User’s resolution

◆Busy Channel Lockout（BCL）

◆Receiving squelch mode

◆DTMF signaling

◆2TONE signaling

◆Transmit start/over signaling (PTT ID)

■Problems and troubleshooting

■Major Specifications

■Status setting

PT6500 User’s Manual

Page 2 of 26

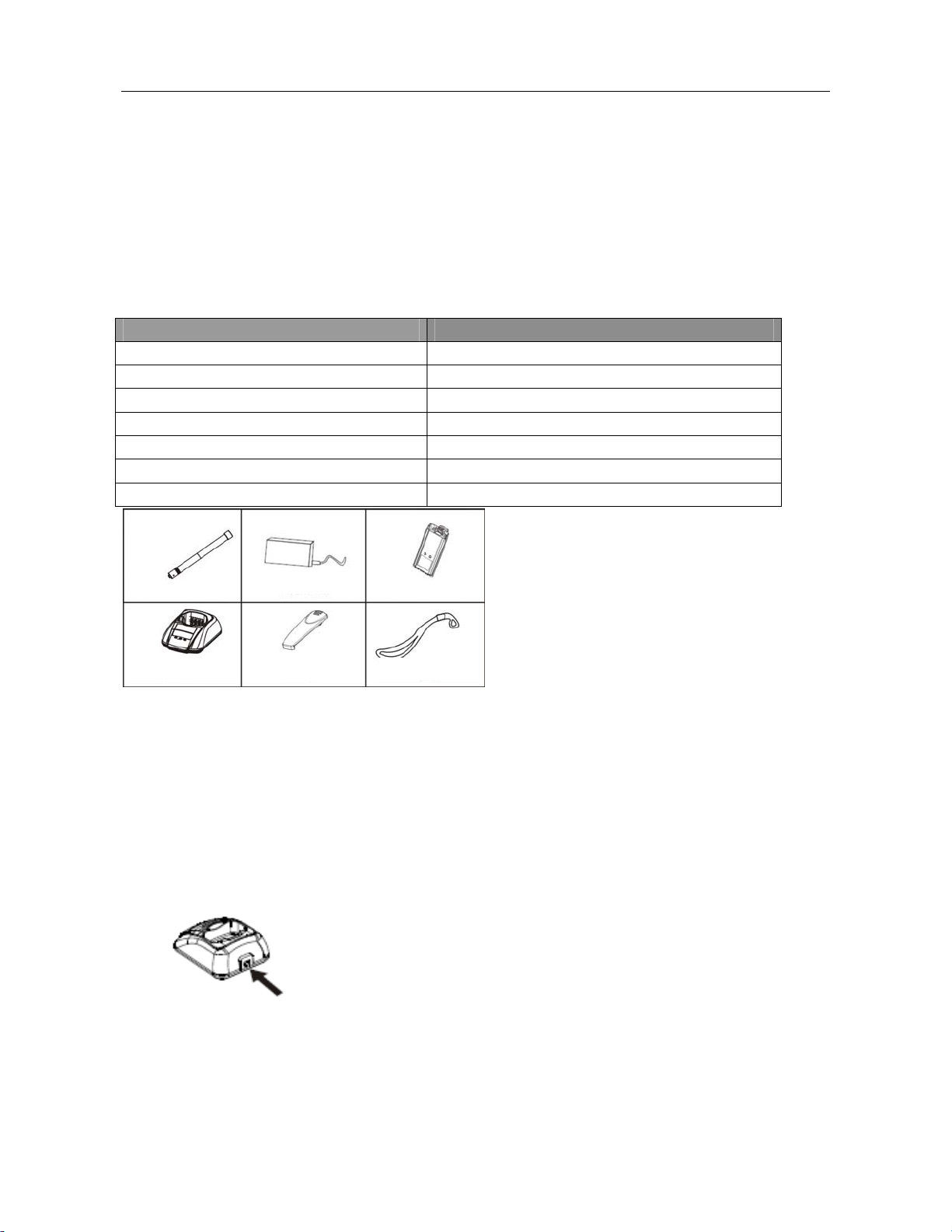

█Unpacking and checking

Unpack the transceiver carefully. We recommend that you identify the items listed in the following table

before discarding the packing material. If any items are missing or have been damaged during

shipment, please contact the dealer immediately.

Supplied accessories

Item Quantity

Antenna 1

Battery 1

Belt clip 1

Charger 1

Power adapter 1

Hand strap 1

User’s Manual 1

█Preparation

◆Charging the battery

Connect the power adapter with the battery charger. Plug the adapter into an AC wall outlet

and the indicator turns green.

Place the battery or transceiver into the charger slot, and make sure the transceiver has

been turned off.

Make sure the battery is well connected with charger, then the indicator turns red or flashes,

then the charger gets in the state of charging automatically.

ntenna

ower a

atter

t c

lip

stra

PT6500 User’s Manual

Page 3 of 26

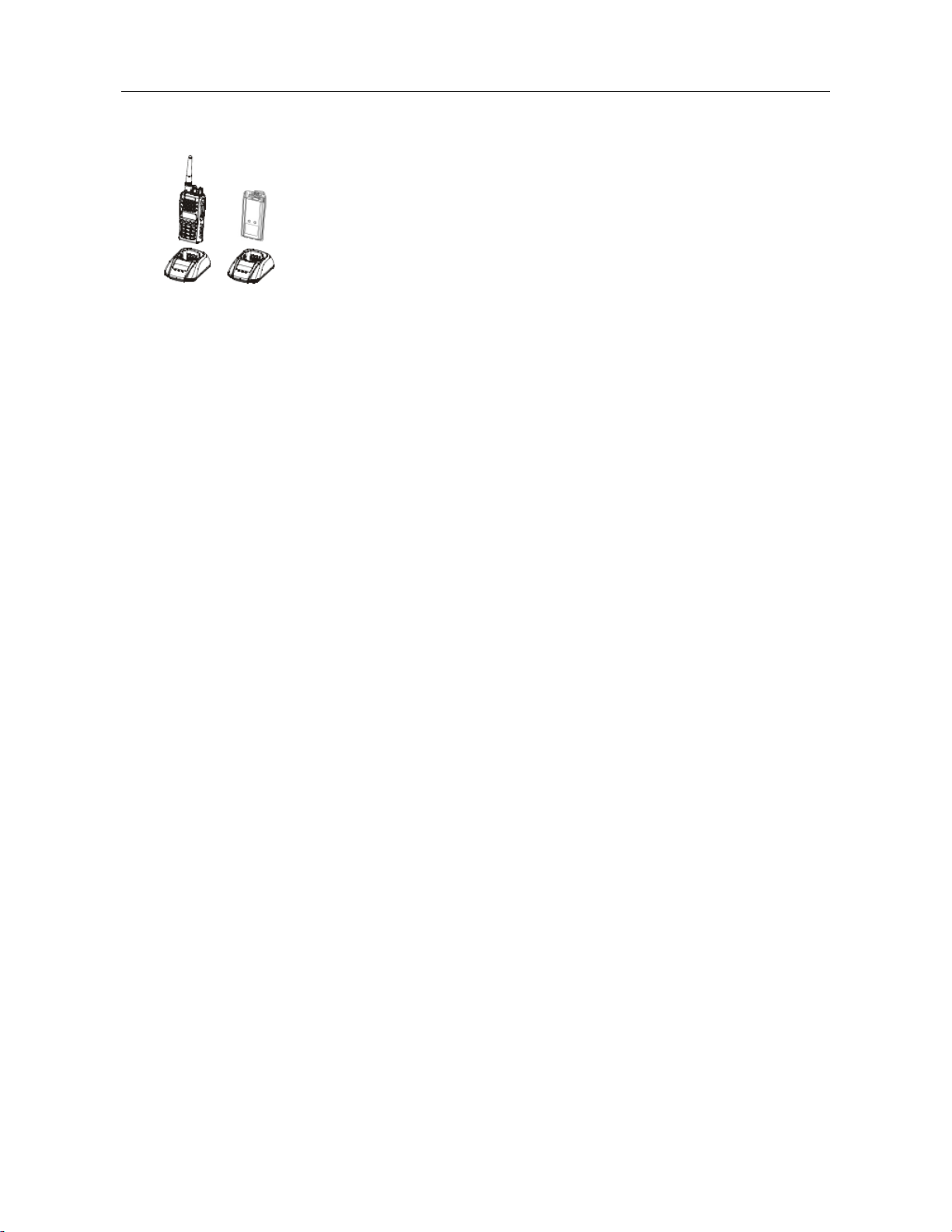

When battery is fully charged the indicator turns green.

The performance will be at the best condition if you remove the battery when the green

indicator is on. Then remove the power adaptor from the wall outlet.

The charger will enter the protection mode when the yellow indicator flashes, which means

the temperature or the circuit is abnormal. Do not charge the battery at this moment, just

remove the battery and turn off the power of the charger.

Notes:

* The battery is not fully charged in the factory. Before the initial use, please charge the new

battery.

* The KB-36A Ni-MH battery/KB-36C Li-ion battery of this company is adaptable with this

machine.

* When you charge the battery the first time or after long time storage (2 months), several

times of charging is needed. Make sure the battery is charged at least once every three

months.

* Do not charge the battery again if it is charged fully or not in the low-pressure warning

mode, otherwise, its life will be shortened or it will be damaged. Remove the battery from

the charger after charging.

* When you use the KB-36A battery, and the transceiver is in the low-pressure warning

mode, recharge the battery before use. Do not power on by force, otherwise, its life will be

shortened or it will be damaged.

* There is a protection circuit in KB-36C battery, so the power will be cut off at too low

battery.

PT6500 User’s Manual

Page 4 of 26

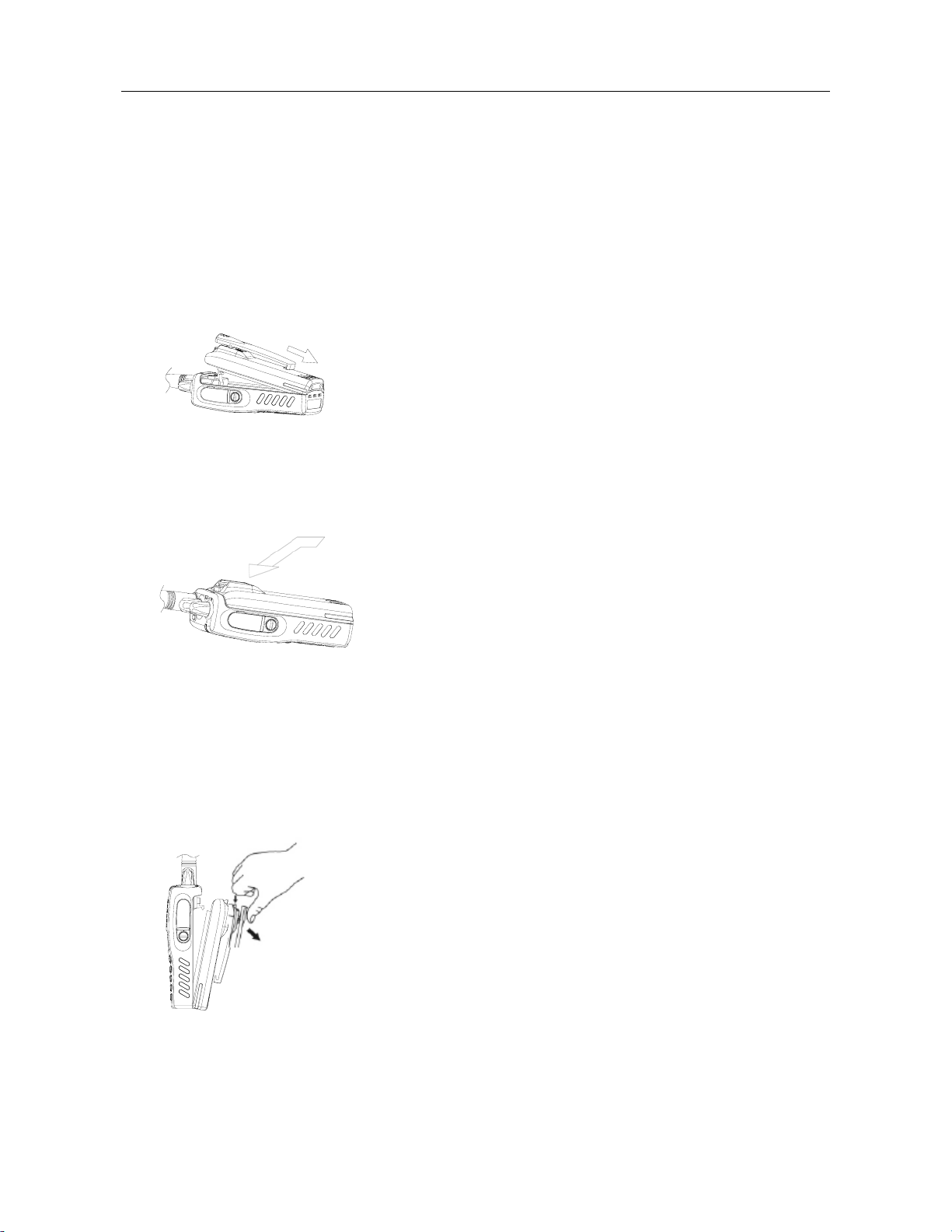

◆Installing/Removing the battery pack

To install the battery pack:

Match the 3 bulges of the battery pack with the corresponding holes at the rear Button of

the transceiver.

To install the battery pack:

Then firmly press the battery pack downwards to lock it in place until a click is heard.

To remove the battery pack:

Use your thumb to press the belt clip, and one side of your index finger to press the release

button; and then pull the battery away from the transceiver.

Notes:

* Do not cause short-circuit or throw the battery to the fire.

PT6500 User’s Manual

Page 5 of 26

* Do not disassemble the battery by your self.

◆Installing the antenna

Screw the antenna into the connector at the top of the transceiver by holding the Button of

the antenna and turn it clockwise until secure.

◆ Installing the optional speaker/microphone

Insert the speaker/microphone plug into the jacks of the versatile connector, and fix it with

the supplied snail screw.

◆ Installing the belt clip

Match the grooves of the belt clip with those on the rear of the battery. Then press the

support belt clip downwards to lock it in place. Push the card by inserting your nail or tool

into the groove at the upper part of the clip to remove the belt clip.

PT6500 User’s Manual

Page 6 of 26

Getting acquainted

The functions of the components are as follows:

A. LED Indicator

Lights red while transmitting;

Lights green while receiving a signal.

B. Power/Volume Switch

Turn clockwise till a click is heard to switch on the radio.

Turn counterclockwise till a click is heard to switch off the radio.

Rotate to adjust the volume after turning on the radio.

C. Channel Selector

Rotate to select the channel 1-128.

D. Antenna

E. Top Button (programmable button)

It is recommended to be set as the emergency warning Button.

F. Side button 1 (programmable button)

G. PTT（PUSH-TO-TALK）:

To make a call, press and hold the PTT button, then speak into the microphone with

PT6500 User’s Manual

Page 7 of 26

normal voice.

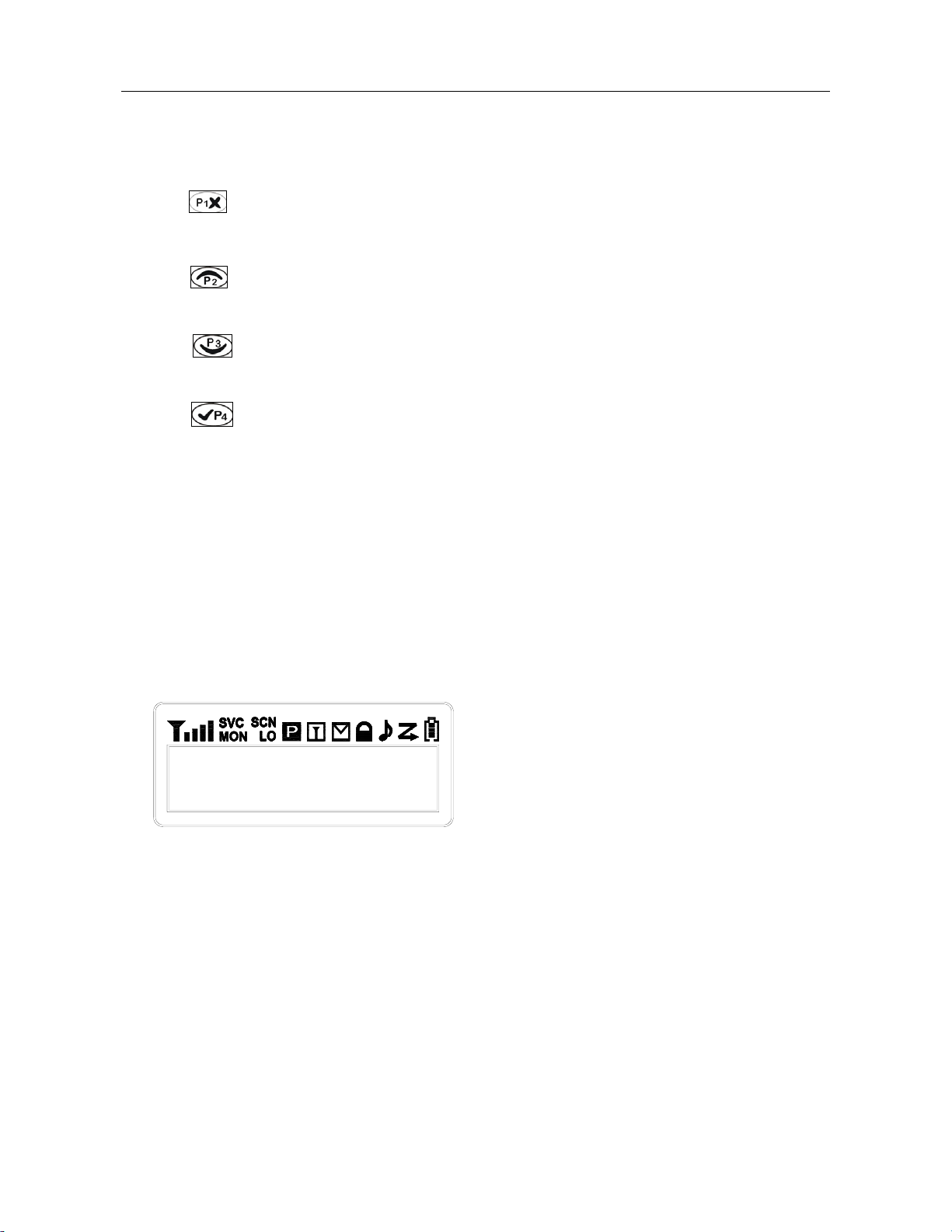

H. Side button 2 (programmable button)

I. Button

Return and delete button in the menu.

J. Button

Select Button.

K. Button

Select Button.

L. Button

Enter and Confirm Button.

M. Numeric keypad

N. Microphone/speaker jacks

For connecting microphone/speaker.

Explanation for the screen

Basic Operation

1. Switch On

Switch on the radio by turning the Power/Volume switch clockwise

till a click is heard, then the radio will be in the state of stand by

and you will hear a beep if the dealer has set it.

PT6500 User’s Manual

Page 8 of 26

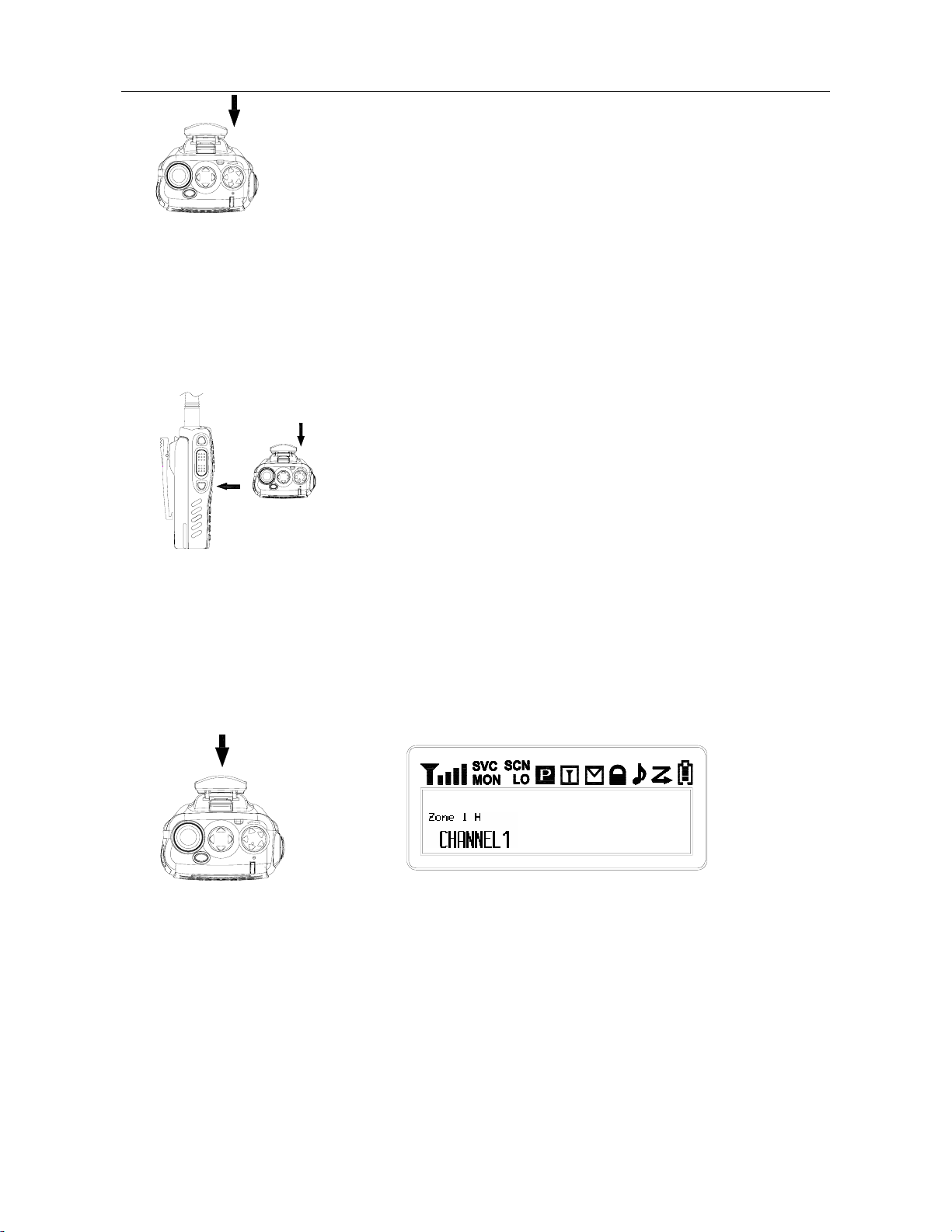

2. Adjust Volume

Press the button preset as canceling squelch to listen to the background noise and rotate

the Power/Volume switch to adjust volume.

3. Select a Channel

Rotate the channel selector to select channels. You will hear voice from the speaker while

receiving proper signals.

As shown in the above right figure:

Zone 1 is the zone of current channel (8 zones from 0 to 7).

H is the transmit power of the channel, H stands for high power, M for middle power while

L for low power.

CHANNEL 1 is the current channel (128 zones from 1 to 128).

4. Make a Call

PT6500 User’s Manual

Page 9 of 26

To make a call, press PTT, and speak in normal voice and please keep your mouth 3~4

cm away from the microphone.

5. Receive a Call

Release the PTT button to receive a call.

Your dealer can set CTCSS, DCS, 2 Tone signaling on you radio channels by PC software.

If you select a channel that has been preset with the tone signaling, you will not hear any

other calls except those from your own system.

6. Operation on menu: press “ ”button to enter the menu or confirm any contents;

press “ ” button to return to the previous menu or cancel the set. When entered the

menu, select the sub-menu with the “channel selector”, “ “or “ ”.

The menu is as follows:

pen

ose

pen

ose

pen

ose

pen

ose

eve

, m

iddl

low

pen

ose

pen

ose

pen

ose

or sav

or 1:1, 1:2, 1:4

ect s

ect zone

FRQ

tcss

PT6500 User’s Manual

Page 10 of 26

If can not enter that way, you have to set in PC communications;

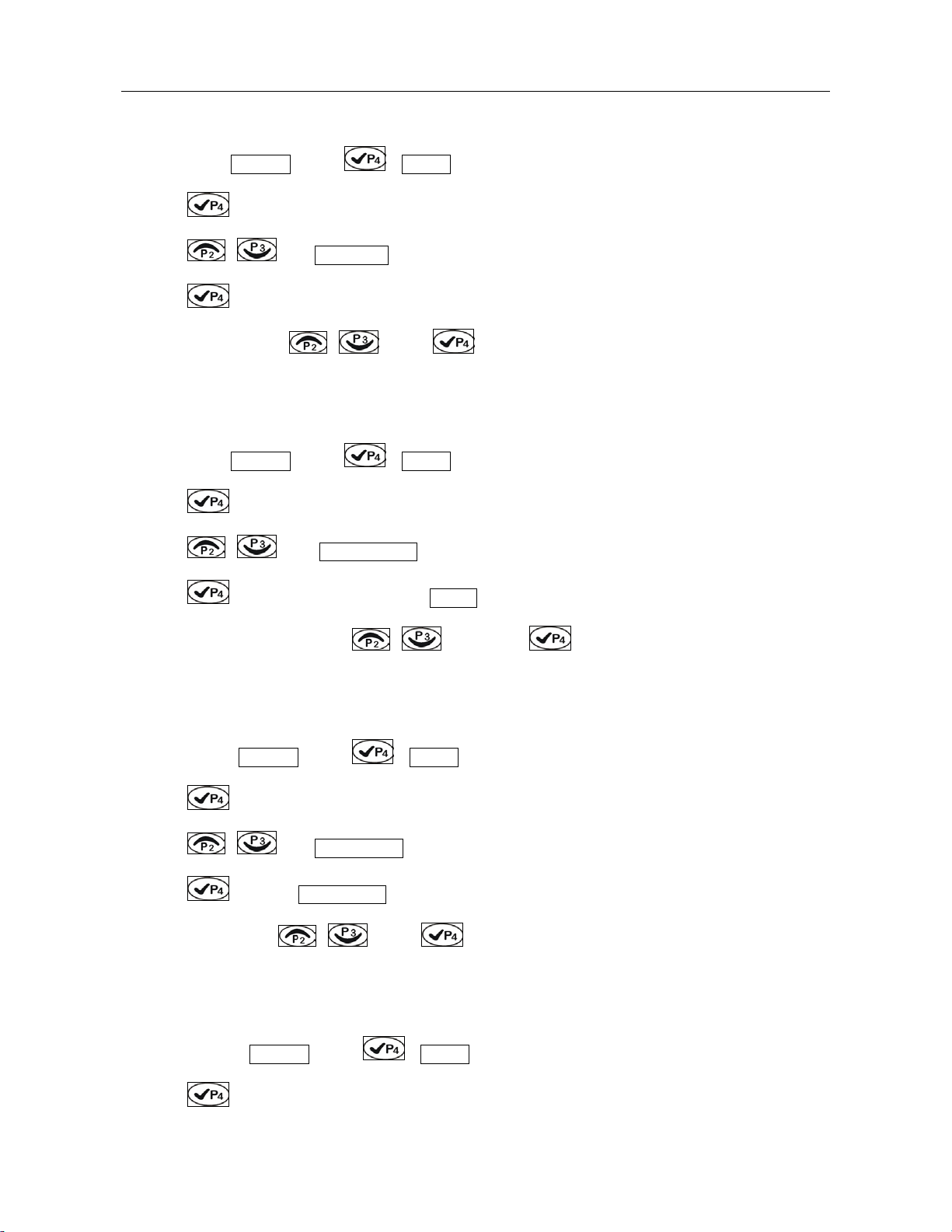

Set back light:

1. As shown: in CH 1 , press , utilities is shown.

2. Press to enter select mode,

3. Press / , and Back Light is shown,

4. Press to select On or Off,

5. Select On or Off with / , press to confirm.

Set the squelch level:

1. As shown: in CH 1 , press , utilities is shown.

2. Press to enter select mode,

3. Press / , then Squelch Level is shown,

4. Press to select squelch level, e.g., Leve 0

5. Change the squelch level with / , then press to confirm.

Set Companding：

1．As shown: in CH 1 , press , utilities is shown.

2. Press to enter select mode,

3. Press / , and Companding is shown,

4. Press to select Companding,

5. Select On or Off by / , press to confirm.

Set saving：

1．As shown: in CH 1 , press , utilities is shown.

2. Press to enter select mode,
