Kirstein XDRUM DD-670 Manuale utente
Users Manual
DD-670 Digital Drum
ArtNr 00056972
Version 09/2018
CAUTION
Any changes or modications in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
WARNING
When using electrical products, basic safety precautions should always be followed, including the
following:
These limits are designed to provide reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
direct sunlight (near a window),
high temperatures (near a heat source,
outside, or in a car during the daytime),
excessive humidity,
excessive dust,
strong vibration.
The drum contains digital circuitry and may
cause interference if placed too close to radio
or television receivers. If interference occurs,
move the drum further away from the affected
equipment.
POWER
Turn the power switch off when the drum is
not in use.
To avoid damage to the drum and other
devices to which it is connected, turn the
power switches of all related devices off
prior to connection or disconnection of
audio cables.
Turn the power off if the main cable is
damaged or the instrument is spattered with
liquid.
Do not switch the unit on and off in quick
succession, this places an undue load on
the electronic components.
Unplug the AC power cord during an
electrical storm.
Avoid plugging the AC adaptor into the
same AC outlet as appliances with high
power consumption, such as electric
heaters or ovens.
SERVICE AND MODIFICATION
This product should be serviced by qualified
service personnel when,
the power supply cord or the plug has been
damaged,
liquid has been spattered into the unit or it has
been exposed to rain,
the instrument does not appear to operate
normally or exhibits a marked change in
performance,
the instrument has been dropped or the
cabinet has been damaged.
Do not attempt to open the unit or make any
change in the circuits or parts of the unit.
HANDLING AND TRANSPORT
Never apply excessive force to the controls,
connectors, pads or other parts of the
instrument.
Always unplug cables by gripping the plug
firmly, not by pulling on the cable.
Physical shocks caused by dropping,
bumping, or placing heavy objects on the
instrument can result in scratches and/or
more serious damage.
Carefully check the amplifier volume control
before stating to play. Excessive volume can
cause permanent hearing loss.
CLEANING
Clean the unit with a dry or light-wet soft cloth.
Do not use paint thinner or petrochemical
based polishes.
LOCATION
Do not expose the drum to the following condi-
tions to avoid deformation, discoloration, or more
serious damage,
! DO NOT ATTEMPT TO OPEN THE UNIT OR MAKE ANY CHANGE IN THE CIRCUITS OR
PARTS OF THE UNIT.
TAKING CARE OF YOUR DRUM
!
CONTENTS TABLE
INSTALLATION ................................................................................................
SOUND MODULE .............................................................................................
Control Panel .....................................................................................................
Connectors .........................................................................................................
PLAYIN PAD .......................................................................................................
BEFORE START PERFORMANCE ................................................................
BASIC OPERATION .........................................................................................
Select Kit ............................................................................................................
Record a Drum Track ........................................................................................
Use the Mixer ....................................................................................................
Restore Factory Settings ..................................................................................
SETUP ...............................................................................................................
Back Volume .....................................................................................................
Tune ...................................................................................................................
Local ..................................................................................................................
FX Set ................................................................................................................
MIDI Set .............................................................................................................
Advanced Settings ............................................................................................
Sensitivity .......................................................................................................
Headroom .......................................................................................................
Sense Time .....................................................................................................
Trigger Curve ..................................................................................................
Cross Talk ......................................................................................................
Note Send .......................................................................................................
Rim Velocity ....................................................................................................
Pedal Velocity .................................................................................................
Calibration........................................................................................................
Reset .................................................................................................................
DRUM KIT EDIT ................................................................................................
Voice Type ........................................................................................................
Voice ..................................................................................................................
Volume ...............................................................................................................
Reverb ...............................................................................................................
Pitch ...................................................................................................................
Pan ....................................................................................................................
APPENDIX ..........................................................................................................
Kit List .................................................................................................................
Pattern List ..........................................................................................................
Voice List ............................................................................................................
SPECIFICATIONS .............................................................................................
1
6
6
9
10
11
12
12
Edit a Kit .............................................................................................................12
Play a Drum Pattern (Demo song) .......................................................................1 2
13
13
13
14
14
14
14
14
15
15
15
15
15
15
16
16
16
16
16
16
17
17
17
17
17
17
17
19
19
19
20
25
1
INSTALLATION

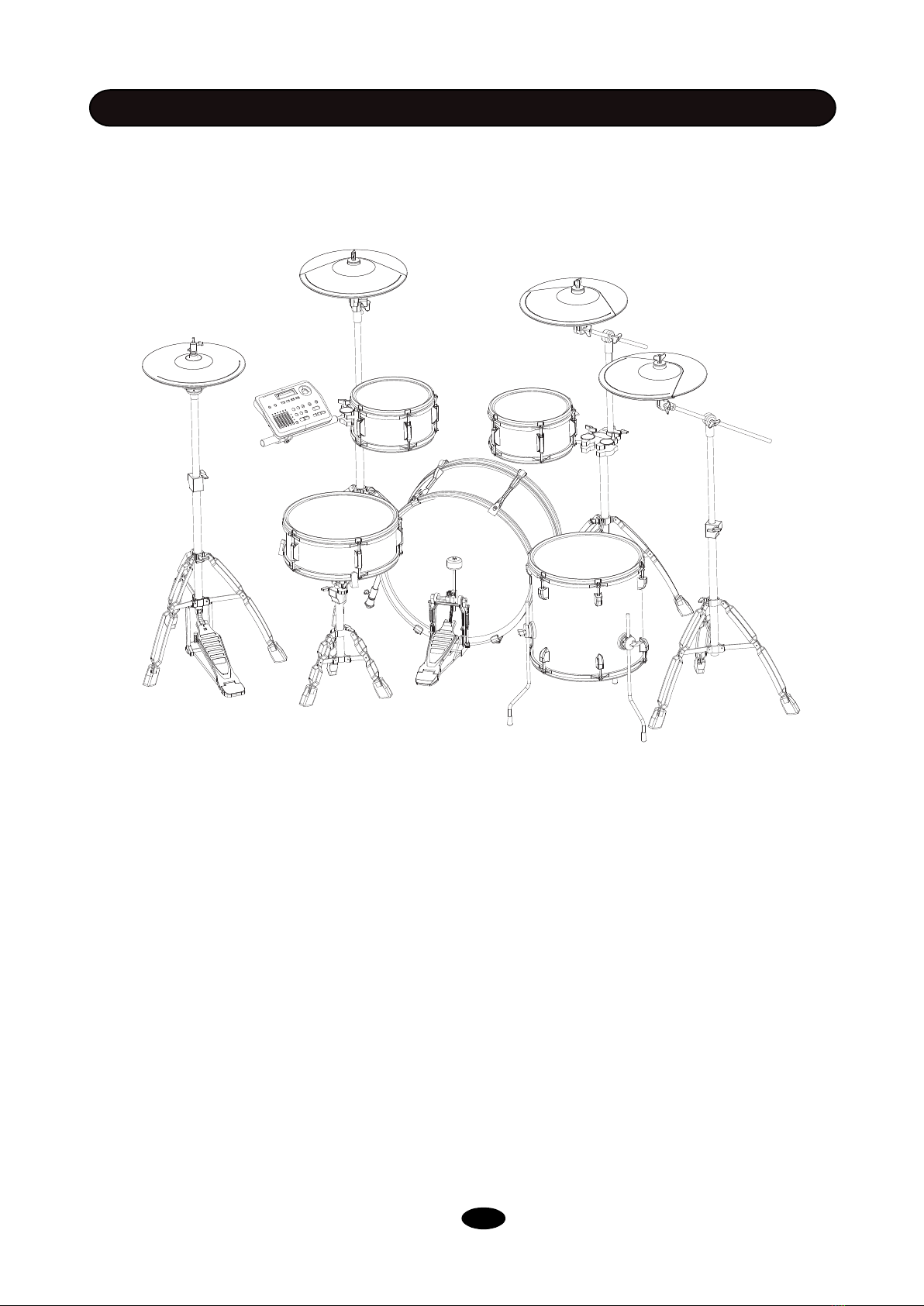

The diagram shows complete drum kit after installation.
Power adaptor and connection cables are not shown in the
diagram.
SOUND MODULE
HI-HAT
CRASH1
CRASH2
TOM1 TOM2
SNARE
RIDE
KICK PEDAL
KICK
TOM3
2
INSTALLATION
DRUM INSTALLATION - 1

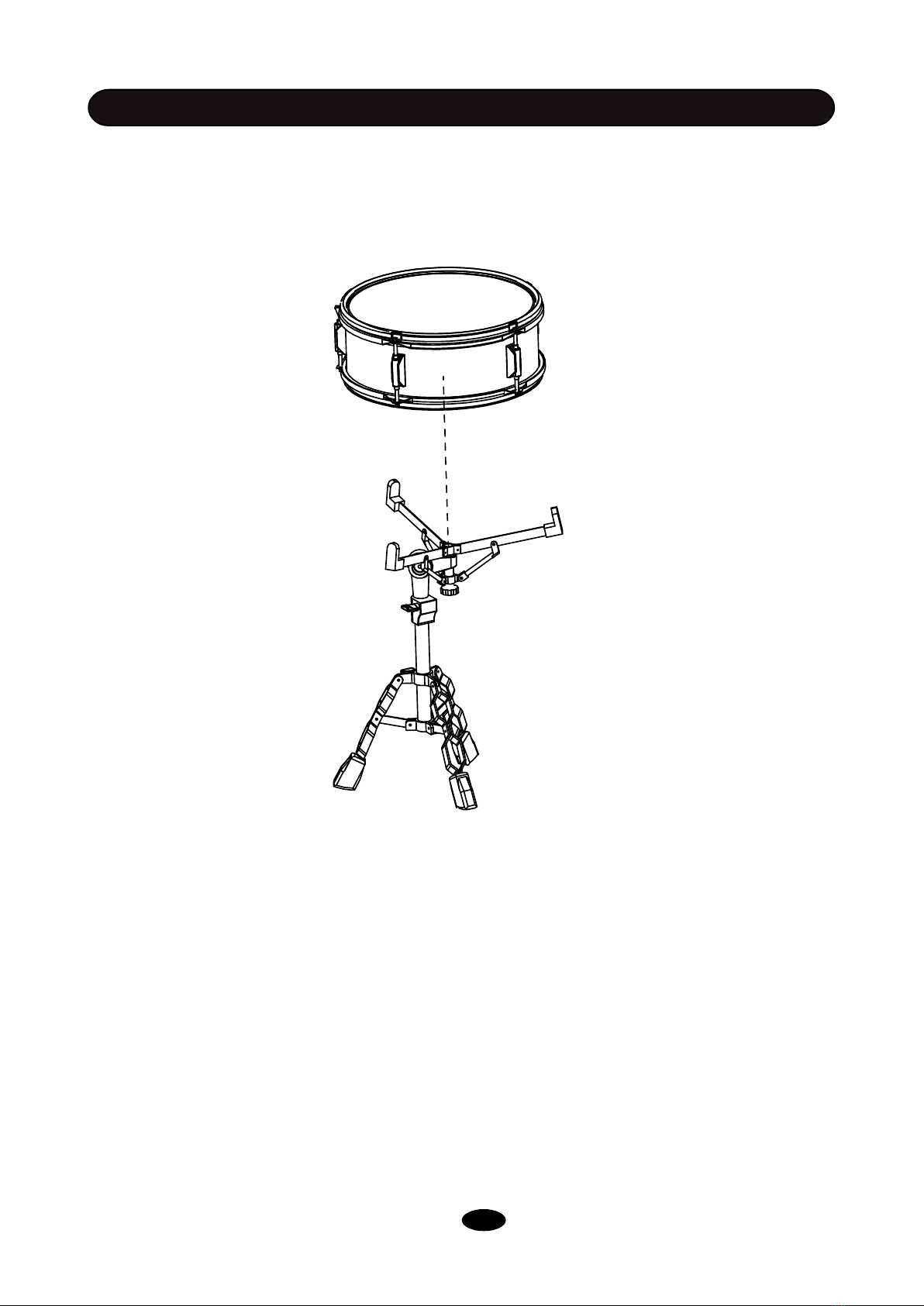

Snare Installation
1. Open Snare Stand Legs① to suitable position and make it stand firm.
2. Open Snare Stand Arms②, stretch it to maximum, put the Snare upward on the stand.
The one with rubber band and white sensor spot is the upside.
3. Tighten Snare Stand Arms② by rotating the rotary on the bottom side.
②
①
INSTALLATION
DRUM INSTALLATION - 2
3

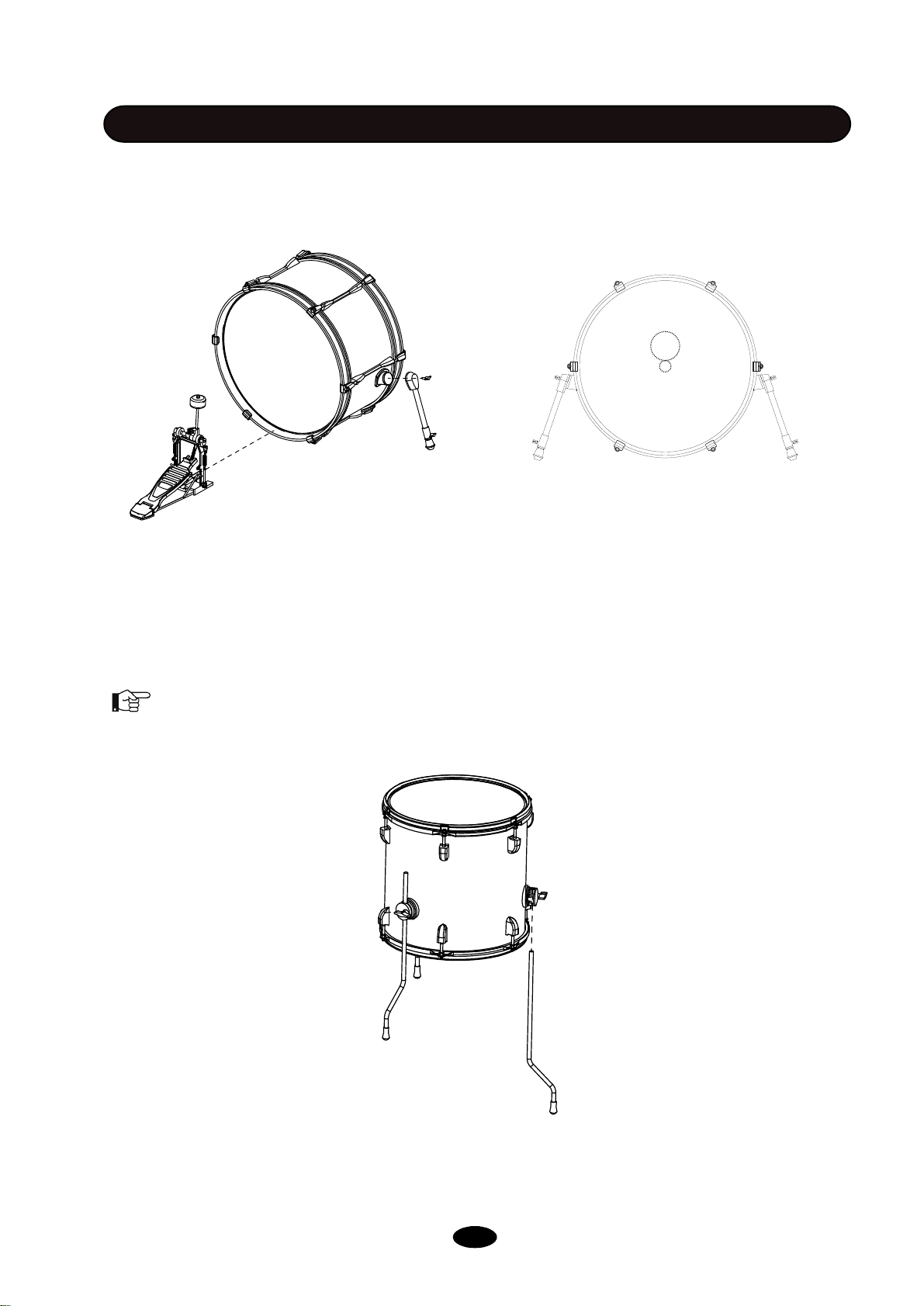

Floor Tom Installation
1. Insert Floor Tom Legs① into connectors on tom side.
2. Fasten wing nuts and adjust to suitable position.
①
Kick Installation
1. Install Kick Legs① on both sides and then fasten the wing nut.
2. Insert Kick Pedal② to Kick Drum, adjust the pedal to suitable
position and then fasten wing nuts on the pedal.
①
②
③
Note: Please aim your kick pedal beat to the Cushion Foam③. Playing directly on the below
sensor would cause damage.
4
INSTALLATION
DRUM INSTALLATION - 3
①
②
③
④
⑤

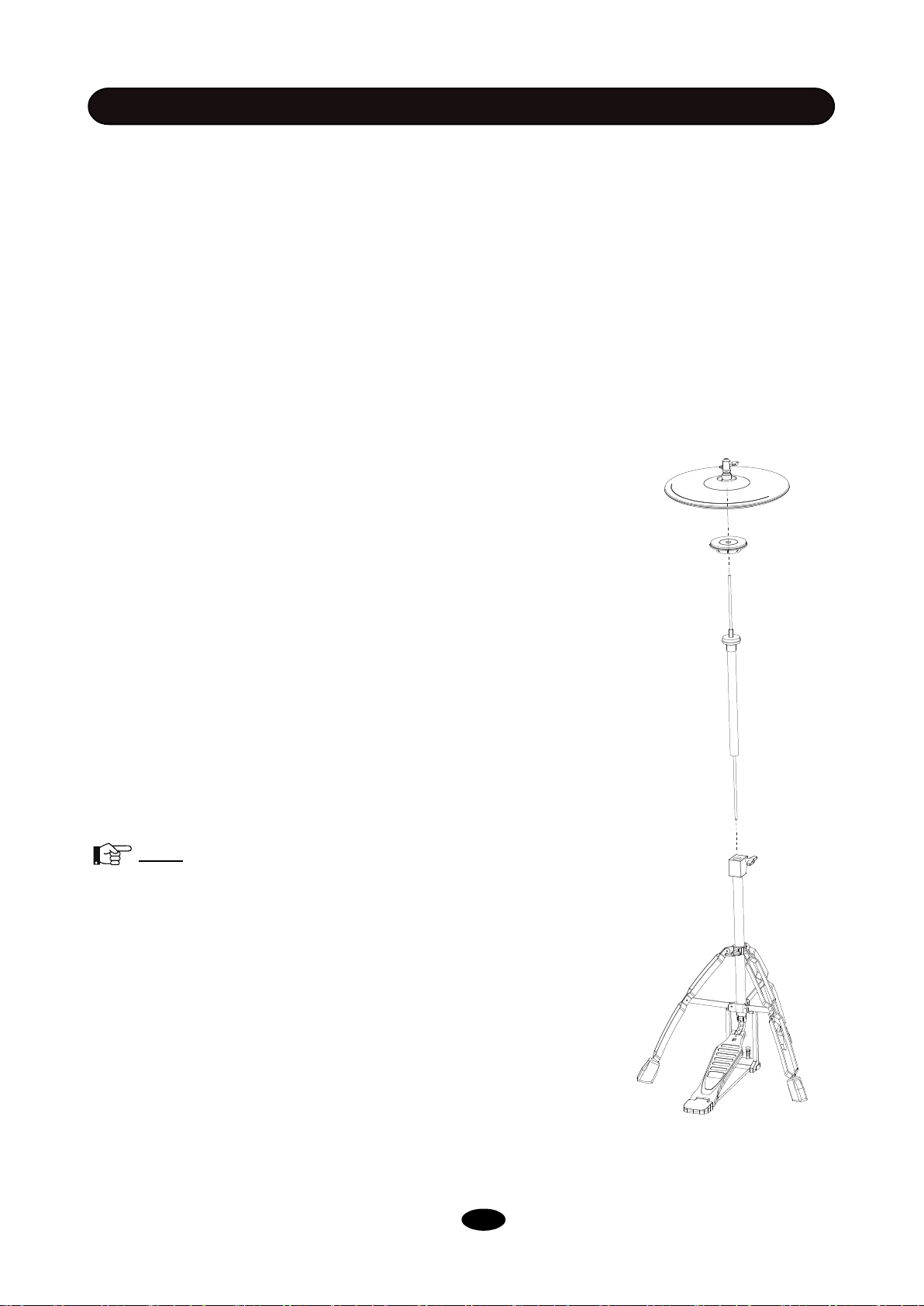

HiHat Installation
1. Open HiHat Stand Legs① to suitable position and make it stand
firm.
2. Insert Thin Rod② into screw thread on the Bottom Stand according
to dashed line here, and rotate it clockwise to fasten it.
3. Place Hollow Rod③ outside Rod②, and insert it into Bottom Stand.
4. Insert HiHat Cymbal Tray④ onto Thin Rod② and place it above
Hollow Rod③
5. Adjust Hollow Rod③ to suitable height and fasten it. Insert HiHat
Cymbal onto Thin Rod②. Make sure there is enough space
between the Cymbal and Tray④, and then fasten the screw on
Cymbal.
Note: If there is not enough space between Cymbal and
Tray④, the HiHat control function will be very short in range or even
not responding.
5
INSTALLATION
DRUM INSTALLATION - 4

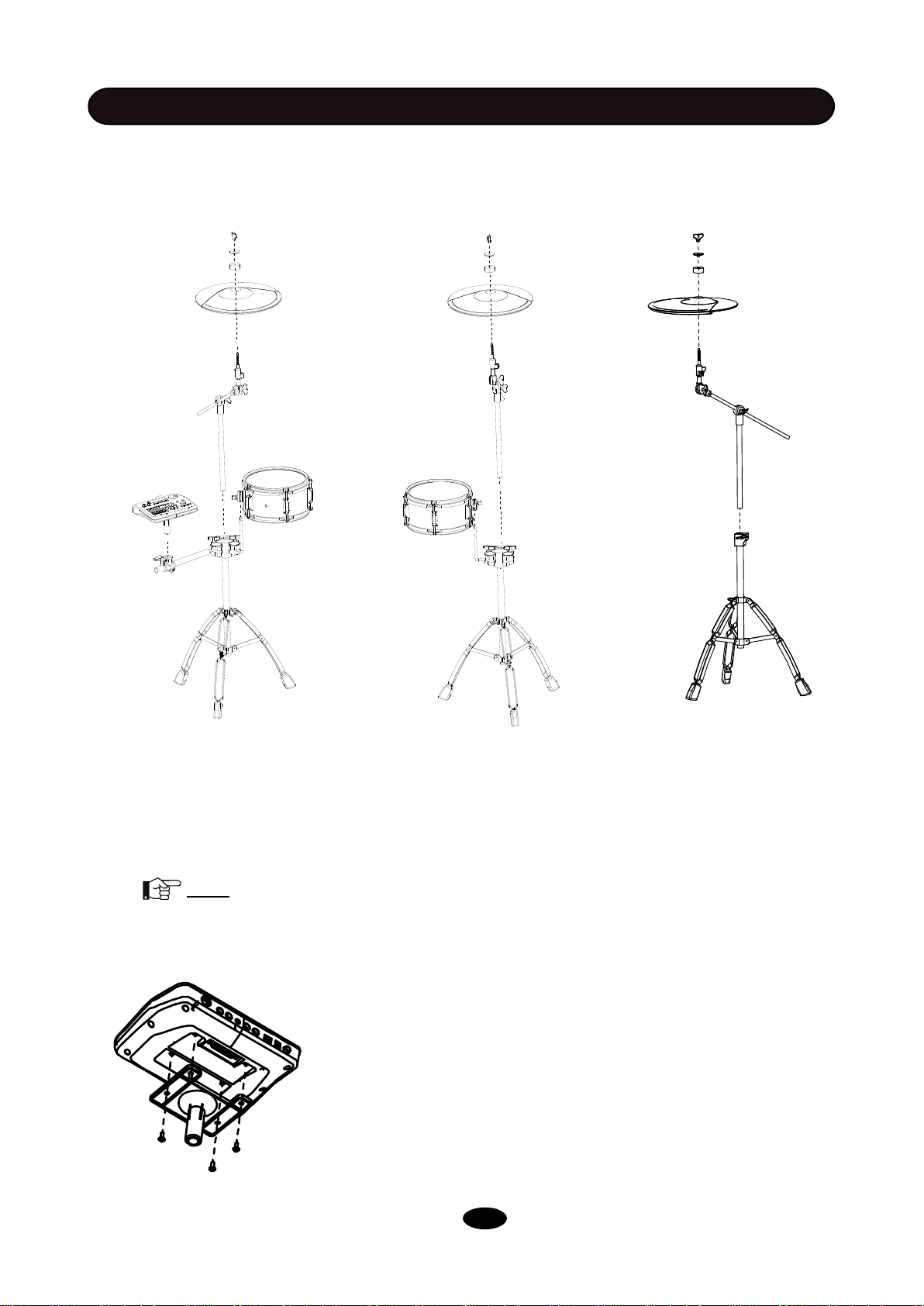

Cymbal/Tom Installation
1. Open Stand Legs① and make it stand firm.
2. Adjust Stand Arms ② to suitable position and fasten wing nuts.
3. Insert drums according to the picture above, and fasten wing nuts on the stand.
Note: The upside of tom has rubber band and white sensor spot under mesh.
①
②
1. Align holes in the sound module and the model mount then insert
screws and fasten it.
2. Insert rod of the model mount into the clamp, then tighten the wing nut.
Sound module Installation
Finalizing the Installation
After install all components, fine adjust the arm, clamps and rods to the
best position you desire.
Electronic Connection
Connect the trigger connector cable plug to the bottom of the sound
module, and then connect all cable heads according to their name tags.
①①
②
②
6

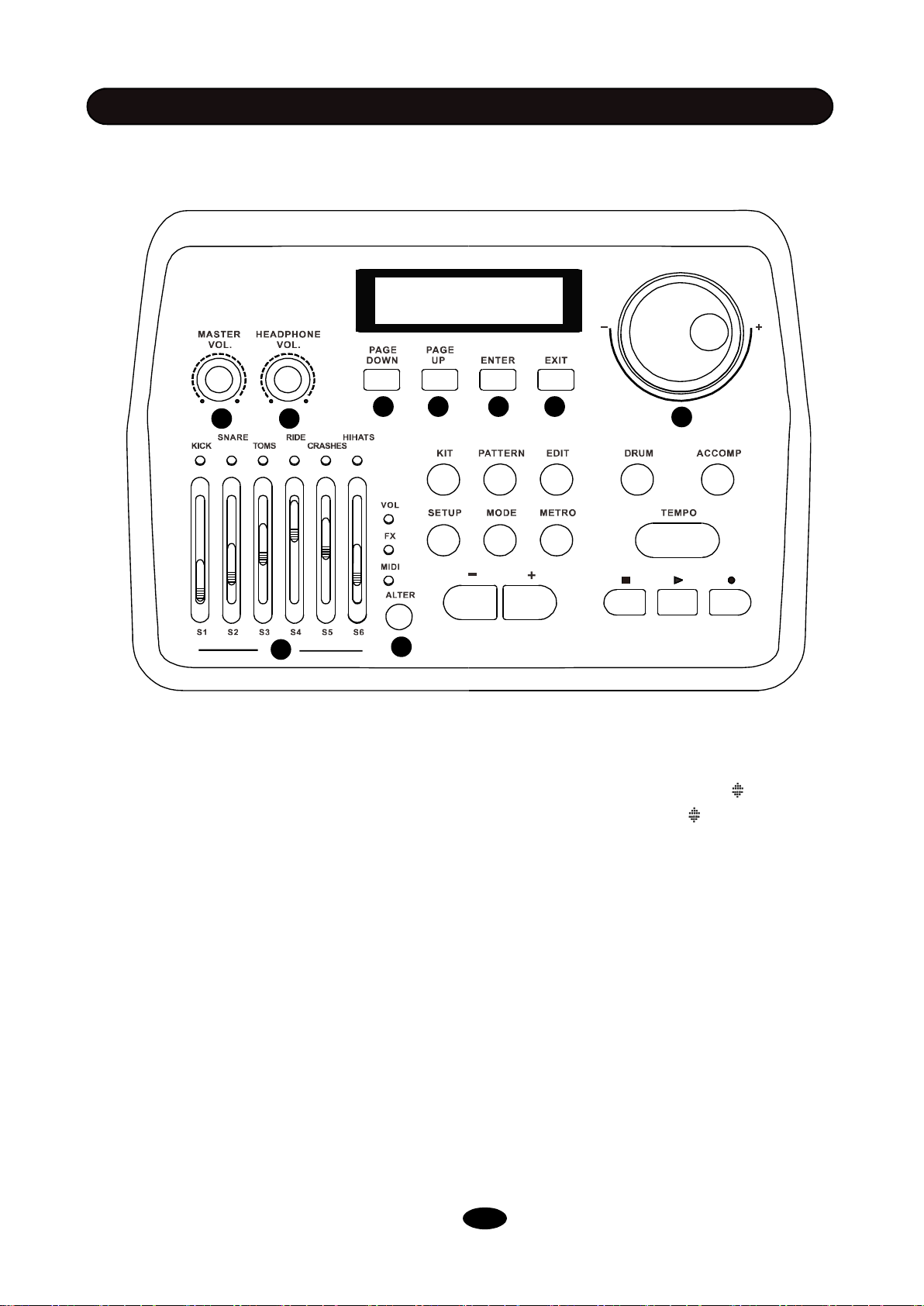

1. MASTER VOL.: Adjust the output level of LINE OUT. Rotate it clockwise to increase volume.
2. HEADPHONE VOL.: Adjust the output level of HEADPHONE , rotate it clockwise to increase
volume.
3. PAGE DOWN: Switch to next option in current menu. Can be used when you see on screen.
4. PAGE UP: Switch to last option in current menu.Can be used when you see on screen.
5. ENTER: Proceed to submenu or to confirm operation.
6. EXIT: Proceed to root menu or to cancel operation.
7. SCROLL WHEEL: Turn this wheel to increase or decrease values or change kits quickly. Rotate
it clockwise to increase.
8. MIXER & 9. ALTER: Use ALTER button to switch 3 fader modes.
In VOL mode: S1-S6 are used to control volume of kick, snare, toms, ride, crashes, hi-hats, and also
their rim or edge volume.
In FX mode: S1 controls kit reverb level. Reverb type can be selected in FX SET
menu. S2 controls kit compression ratio. Threshold can be set in FX SET menu.
S3-S6 control the gain of a 4-band equalizer. Frequency can be set in FX SET menu.
See the SETUP chapter for more information.
In MIDI mode: S1-S6 are assigned to 6 different midi controller. They can be used to control track
volume or effects on computer. Controller number can be set in MIDI SET menu.
(See chapter SETUP).
Control Panel
SOUND MODULE
1 2 3 4 5 6 7
89
