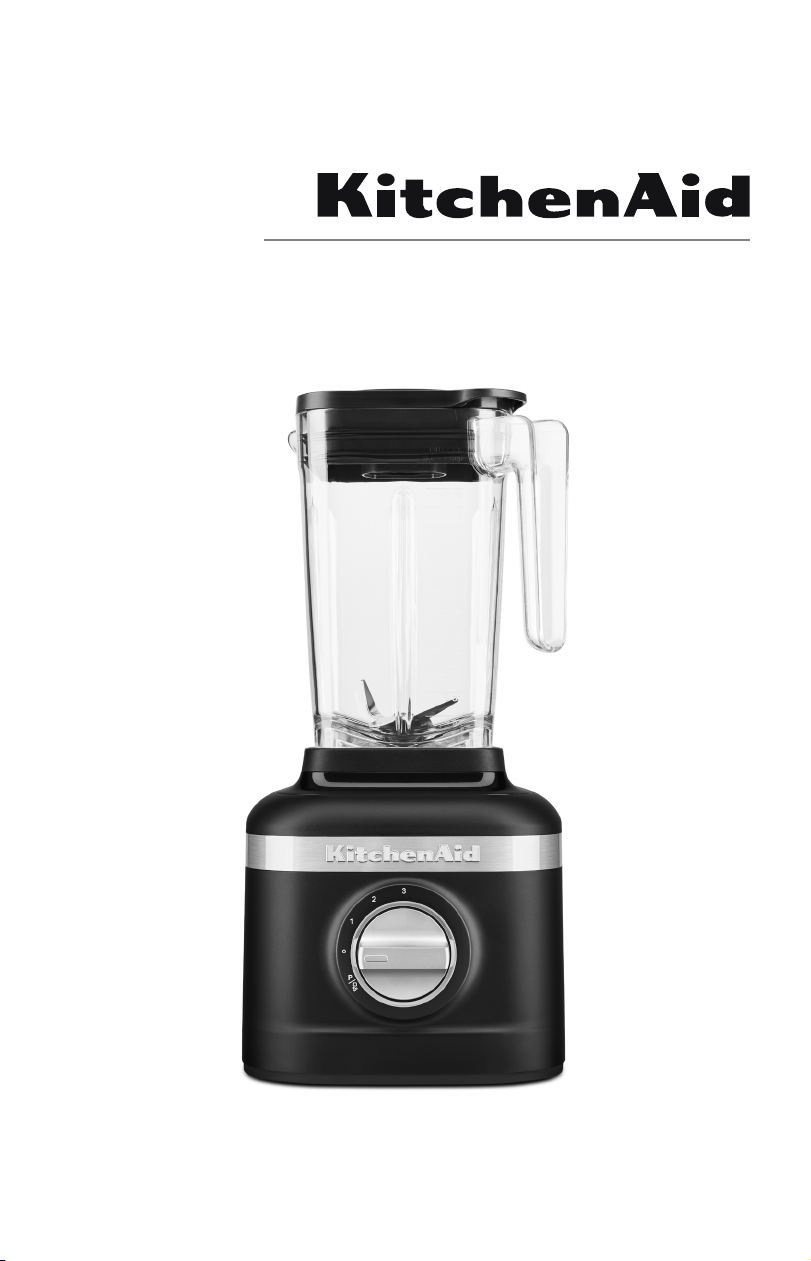

KitchenAid 5KSB1325A Series Manuale utente

Stand Blender

5KSB1325A**

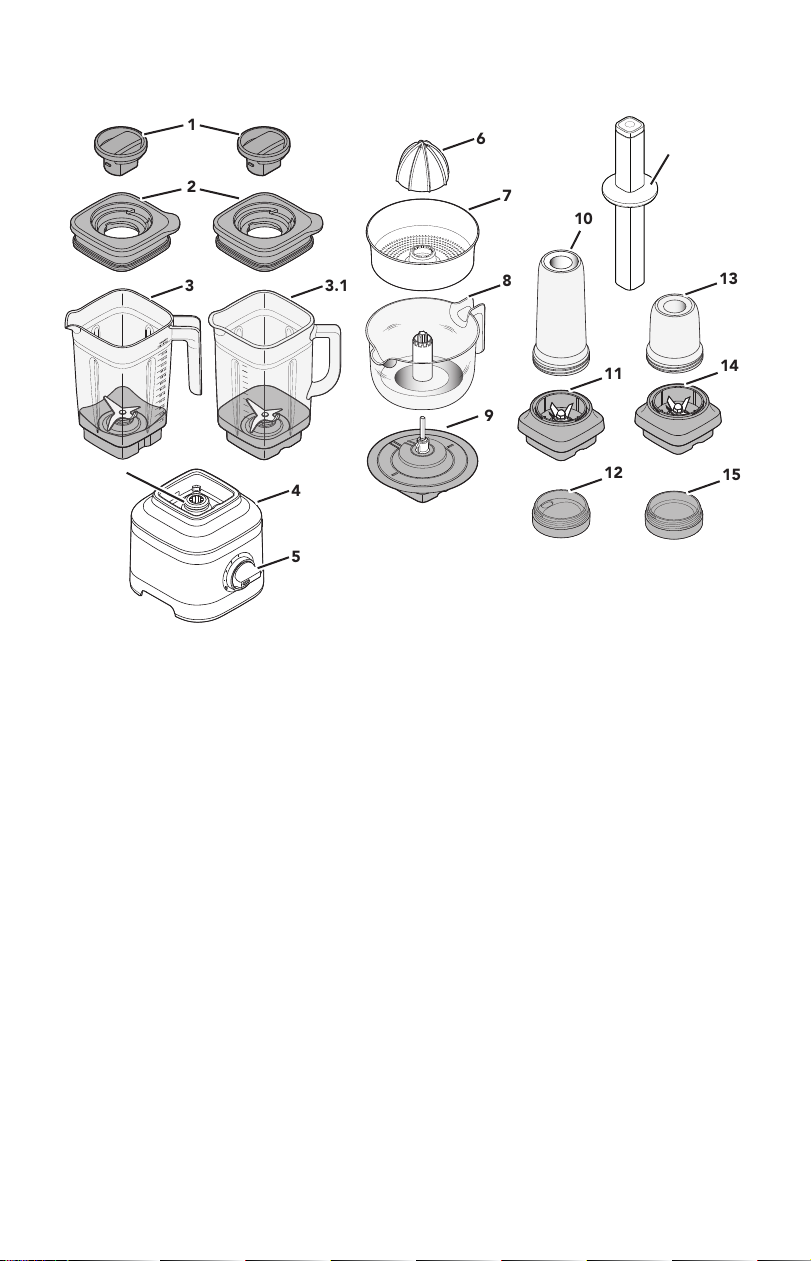

PARTS AND FEATURES

1Lid Centre Cap

2Lid with Vent Well

3Jar (1.4 L capacity)

3.1 Glass Jar**** (1.4 L capacity)

4Base

4.1 Interlock

5Control Dial

6Reamer*

7Pulp Strainer/Basket*

8Juice Container* (1 L capacity)

9Gear Assembly*

10 Personal Jar**

(0.5 L capacity)

11 Blade Assembly of Personal Jar**

12 Personal Jar Easy-Drink Lid**

13 Small Batch Jar*** (0.2 L capacity)

14 Blade Assembly of Small Batch Jar***

15 Small Batch Jar Lid***

16 Tamper

*Accessories only included with Citrus Press model.

**Accessories only included with Personal Jar model.

***Accessories only included with Small Batch Jar model.

****Accessories only included with Glass Jar Blender model.

The Glass Blender Jar (1.4 L capacity) is clear, easy-to-clean (Dishwasher safe) and, with the

comfortable ﬁrm grip for better handling.

48oz

OUNCES

8oz= 1 Cup

44oz

40oz

36oz

32oz

28oz

24oz

20oz

16oz

12oz

3.1

4.1

ENGLISH

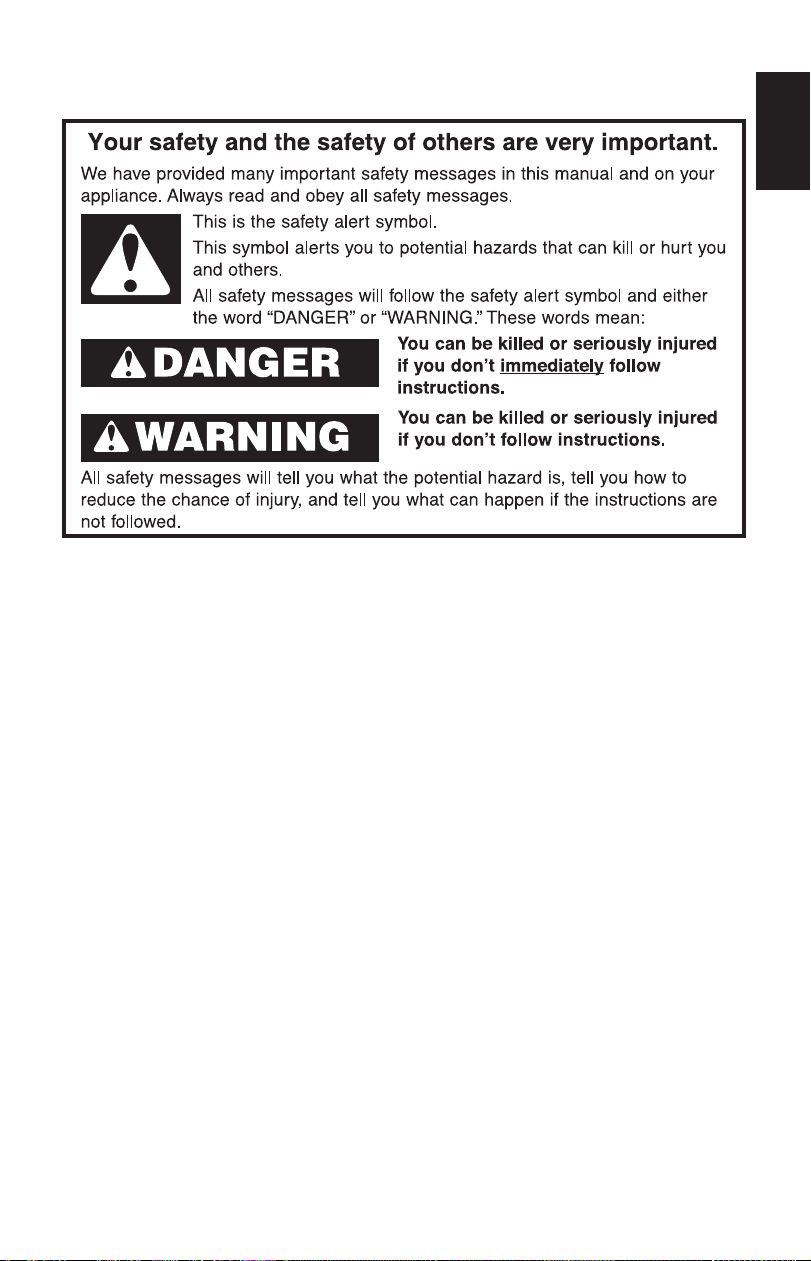

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions. Misuse of appliance may result in personal injury.

2. To protect against risk of electrical shock do not put the Stand Blender Base in

water or other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

4. Children should be supervised to ensure that they do not play with the appliance.

5. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts and before cleaning. To unplug, grasp the

plug and pull from the outlet. Never pull from the power cord.

6. Avoid contacting moving parts.

7. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorised Service Facility for examination, repair, or

electrical or mechanical adjustment.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

10. Keep hands and utensils out of container while blending to reduce the risk of

severe injury to persons or damage to the Blender. A scraper may be used but

must be used only when the Blender is not running.

11. Blades are sharp. Care should be taken when handling the sharp cutting blades,

emptying the jar and during cleaning.

12. Be careful if hot liquid is poured into the Blender as it can be ejected out of the

appliance due to sudden steaming.

ELECTRICAL REQUIREMENTS

13. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualied persons in order to avoid a hazard.

14. Refer to the “Care and Cleaning” section for instructions on cleaning the

surfaces in contact with food.

15. Always operate the Blender with cover in place.

16. When blending hot liquids or ingredients, Lid Centre Cap should remain in place

over the lid opening. Always start on lowest speed and slowly ramp to desired

speed when blending hot liquids or ingredients.

17. Do not blend hot liquids and ingredients in the Personal Jar or Small Batch Jar.

18. To reduce the risk of injury, never place blade assembly on the base without

Personal Jar or Small Batch Jar properly attached.

19. The use of attachments, including canning jars, not recommended or sold by the

manufacturer may cause a risk of injury to persons.

20. This appliance is intended to be used in household and similar applications such

as:

- staff kitchen areas in shops, ofces, or other working environments;

- farmhouses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

PRODUCT SAFETY

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

Voltage: 220-240 VAC

Frequency: 50-60 Hz

Wattage: 650 W

NOTE: If the plug does not fit in the

outlet, contact a qualified electrician. Do

not modify the plug in any way. Do not

use an adapter.

Do not use an extension cord. If the

power supply cord is too short, have a

qualified electrician or service technician

to install an outlet near the appliance.

The cord should be arranged so that it

will not drape over the countertop or

tabletop where it can be pulled on by

children or tripped over unintentionally.

ENGLISH

The Blender features 3 speeds and Ice Crush/Pulse function, allowing you to customise your

blend. Recipes can differ signiﬁcantly and might work best on speed that are not obvious.

We encourage you to ﬁnd the best speed match for your favourite recipes.

Accessories Capacity Speed Suggested Items to Blend

Blender Jar 1.4 L

Speed 1, 2, 3,

and Pulse/Ice

crush

Smoothies, Icy drinks, Shakes / Malts,

Dips, Spreads and more.

Glass Blender

Jar 1.4 L

Personal Jar 0.5 L Individual Smoothie, Icy drinks, Shakes /

Malts and lower volume recipes.

Small Batch Jar 0.2 L

Small volume recipes - Purées, Sauces,

Baby food, Dressings, Marinades, Pesto

and more.

Citrus Press 1 L Speed 1 Citrus juice, Grapefruit juice and more.

GETTING STARTED

BLENDER FUNCTION GUIDE

Setting Description

Blending

Time

(min:sec)

Suggested Items

to Blend

Pulse

Allows precise control of the

duration and frequency of

blending.

Manual

Salsa, crumb topping,

chopped nuts, fruits or

vegetables & more.

Speeds

1- 3

Manual speeds offer ultimate

control of the Blender. 3:00

Fruits, Soups, Sauces, Doughs,

Vegetables, Butters, Nuts,

Dips, Frozen desserts, Purees.

BLENDER ACCESSORY GUIDE

BLENDER USAGE

Before ﬁrst use, clean all parts and accessories (see Care and Cleaning section).

Be sure the countertop beneath the Blender and surrounding areas are dry and clean.

IMPORTANT:

When moving your Blender, always support/lift from the Blender base. The

Base will become disengaged from Jar if, carried by Blender Jar or Blender Jar handle only.

Turn the Control Dial from (O) to desired

speed for constant operation.

When ﬁnished, turn the Blender off by

returning the Control Dial to (O).

Unplug the Blender before removing the

Blender Jar.

IMPORTANT: Allow the Blender to fully stop before removing the Lid, Jar, or pouring out

your blended ingredients.

1.4 L

1.0 L

Add ingredients into Blender Jar OR

Glass Blender Jar (max. 1.4 L).

Secure the Lid and Lid Centre Cap.

Place the Blender Jar on the Base by

aligning with the Slot to ﬁt inside the jar

pad, so that the handle of the Jar will be

towards the Control Dial.

Plug the Blender into an earthed outlet.

Slot

WARNING

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove an earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

ENGLISH

BLENDER USAGE

Place ingredients or Ice cubes into the

Blender Jar.

Firmly secure the Lid with Lid Centre Cap

on Blender Jar.

Turn and hold the Control Dial from (O) to

(

) as per desired interval of time.

When ﬁnished, release the Control Dial to

stop the Blender.

TIP: Use half of standard ice cube tray or 7-8 standard ice cubes at a time for blending.

The

Pulse/Ice Crush (

) function

has been optimised to crush and chop ice without adding

any liquid ingredients.

PULSE /ICE CRUSH FUNCTION USAGE

Your Blender offers a "Pulse/Ice Crush (

)" function with a soft start to avoid ingredient

splatter. In this function, the Blender will operate at optimal speed to crush ice. This function

will continue until you release the Control Dial, returning to (O).

TIP: Use half of standard ice cube tray

or 7-8 standard ice cubes at a time for

blending.

The Pulse/Ice Crush (

) function has

been optimised to crush and chop ice

without adding any liquid ingredients.

Tamper Accessory: Remove the Lid Centre

Cap only. Stir or press contents down

towards the blade. Then, place the Lid

Centre Cap back before resuming blending.

NOTE: Blender will automatically stop when removing the Jar from Base.

USING THE SMALL BATCH JAR

The Small Batch Jars are perfect for smaller recipes like sauces, dressings, marinades and

more. Before ﬁrst use, clean all parts and accessories (see “Care and Cleaning” section).

Add ingredients into the Small Batch Jar

(max. 0.2 L).

Secure the Blade Assembly on Small Batch

Jar and rotate it clockwise until it is tight.

Place it on the Blender Base.

Slot

IMPORTANT: Do not blend hot liquids and ingredients in the Small Batch Jar.

Turn the Control Dial from (O) to desired

speed for constant operation.

When ﬁnished, turn the Blender off by

returning Control Dial to (O).

Always remove the Personal Jar with the

Blade Assembly from the Base.

IMPORTANT: Do not blend hot liquids and ingredients in the Personal Jar.

USING THE PERSONAL JAR

The Personal Jar is perfect in size for single servings or smaller recipes and handy to carry with

you on the go. Before ﬁrst use, clean all parts and accessories (see “Care and Cleaning” section).

Add ingredients (max. 0.5 L). Add ice or

frozen items, then leafy greens, then soft

foods and liquids at last.

Secure the Blade Assembly on the Personal

Jar and rotate it clockwise until it is tight.

Place it on the Blender Base.

Slot

ENGLISH

Hold down the halved citrus fruit on the

Reamer. Turn the Control Dial from (O) to

speed (1) to start juicing.

When ﬁnished juicing, turn the Blender off

by returning Control Dial to (O).

Unplug the Blender.

USING THE CITRUS PRESS

Before ﬁrst use, clean all parts and accessories (see “Care and Cleaning” section).

Place the Gear Assembly on the base.

Then, place the Juice Container on the

Gear Assembly and twist clockwise to lock

in place.

Place the Pulp Basket and then the Reamer

into the Juice Container by aligning them

with the Drive Shaft.

Drive

Shaft

Turn the Control Dial from (O) to desired

speed for constant operation.

When ﬁnished, turn the Blender off by

returning Control Dial to (O).

Always remove the Small Batch Jar with

Blade Assembly from the Base.

USING THE SMALL BATCH JAR

CARE AND CLEANING

48oz

OUNCES

8oz= 1 Cup

44oz

40oz

36oz

32oz

28oz

24oz

20oz

16oz

12oz

Unplug the Blender before cleaning. Wipe

clean the Base, Power Cord and the Gear

Assembly of the Citrus Press with a warm,

damp cloth and dry with a soft cloth.

Dishwasher-safe, top rack only: Personal

Jar, Small Batch Jar, Lids, Blade Assembly,

Reamer, Tamper, Juice Container, Pulp

Basket and Lid Centre Cap.

Blender Jar and Glass Blender Jar can be

washed in the bottom rack.

NOTE: To avoid damaging the Blender, do not immerse the Blender base or cord in

water. Do not use abrasive cleansers or scouring pads to avoid scratching the Blender.

Empty the Blender Jar. Fill half of the Jar

with warm water and add 1 or 2 drops of

dish-washing liquid.

Place the Blender Jar on the base. Secure

the Lid and Lid Centre Cap.

Turn the Control Dial to speed (3) and run

the Blender for 15-20 seconds.

Remove the Blender Jar, empty contents

and rinse with warm water and dry

thoroughly.

1 2

3 4

Twist the Juice Container counterclockwise

and lift it by using handle. Pour and enjoy!

USING THE CITRUS PRESS

Questo manuale è adatto per i seguenti modelli

Altri manuali KitchenAid Miscelatore

KitchenAid

KitchenAid KHBV53 Manuale utente

KitchenAid

KitchenAid 5KHB1231 Manuale utente

KitchenAid

KitchenAid KSB560AQ - Martha Stewart - Collection... Manuale utente

KitchenAid

KitchenAid 5KHBBV53 Manuale utente

KitchenAid

KitchenAid KHBRV00 Manuale utente

KitchenAid

KitchenAid Blender Manuale utente

KitchenAid

KitchenAid KSBR200 Manuale utente

KitchenAid

KitchenAid 5KHBV83 Manuale utente

KitchenAid

KitchenAid 5KSB1325 Manuale utente

KitchenAid

KitchenAid KHBRV00 Manuale utente

KitchenAid

KitchenAid KSB60 series Manuale utente

KitchenAid

KitchenAid KSB5000 Manuale utente

KitchenAid

KitchenAid Artisan Power Plus 5KSB8270 Manuale utente

KitchenAid

KitchenAid 5KSBR200 Manuale utente

KitchenAid

KitchenAid 5KSB6060 Manuale utente

KitchenAid

KitchenAid 5KSB7068 Manuale utente

KitchenAid

KitchenAid KSB1575 Manuale utente

KitchenAid

KitchenAid KHBV53IC Manuale utente

KitchenAid

KitchenAid KFPW760COB0 Manuale utente

KitchenAid

KitchenAid KSB540OB Manuale utente

KitchenAid

KitchenAid Pro Line KSB8270 Manuale utente

KitchenAid

KitchenAid KSB755 Manuale utente

KitchenAid

KitchenAid KSB580 Guida rapida

KitchenAid

KitchenAid KHBC412 Manuale utente

Manuali Miscelatore popolari di altre marche

ROTOR

ROTOR 1125.201 Manuale utente

Braun

Braun Multiquick 5 Vario series Manuale utente

ARENDO

ARENDO MIRA 305424 Manuale utente

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuale utente

Viconte

Viconte VC-4406 Manuale utente

Oster

Oster BLSTAB-CB0 Manuale utente

HOFFEN

HOFFEN MC-3005 Manuale utente

Black & Decker

Black & Decker BLC18750DM Manuale utente

Sunbeam

Sunbeam 4182 Manuale utente

Bialetti

Bialetti FMX35 Manuale utente

Black & Decker

Black & Decker BL8000 Manuale utente

Duronic

Duronic BL530 Manuale utente

Exquisit

Exquisit MS 3002 wes Manuale utente

Lumme

Lumme LU-KP1891A Manuale utente

Binatone

Binatone HB-735 Manuale utente

Moulinex

Moulinex LM936E10 Manuale utente

Oster

Oster VERSA Manuale di installazione e funzionamento

Ninja

Ninja NN210Q Manuale utente
