KitchenAid KSB4028PA Manuale utente

Stand Blender

KSB40**, 7KSB40**

W11435383B.indb 1W11435383B.indb 1 07-08-2020 19:03:1307-08-2020 19:03:13

* Accessories only included with Citrus Press models.

** Accessories only included with Personal Jar models.

*** Accessories only included with Small Batch Jar models.

****Accessories only included with Glass Jar Blender models.

1Lid Center Cap

2Lid with Vent Well

3Jar (56 oz / 1.6 L capacity)

3.1 Glass Jar**** (48 oz / 1.4 L capacity)

4Base

5Control Dial

6Reamer*

7Pulp Strainer/Basket*

8Juice Container* (32 oz / 1 L capacity)

9Gear Assembly*

10 Personal Jar**

(16 oz / 500 ml capacity)

11 Blade Assembly of Personal Jar**

12 Personal Jar Easy-Drink Lid**

13 Small Batch Jar*** (6 oz / 200 ml

capacity)

14 Blade Assembly of Small Batch Jar***

15 Small Batch Jar Lid***

16 Tamper

START/STOP button ( ) with LED

ring

48oz

OUNCES

8oz= 1 Cup

44oz

40oz

36oz

32oz

28oz

24oz

20oz

16oz

12oz

610

12 15

3.1

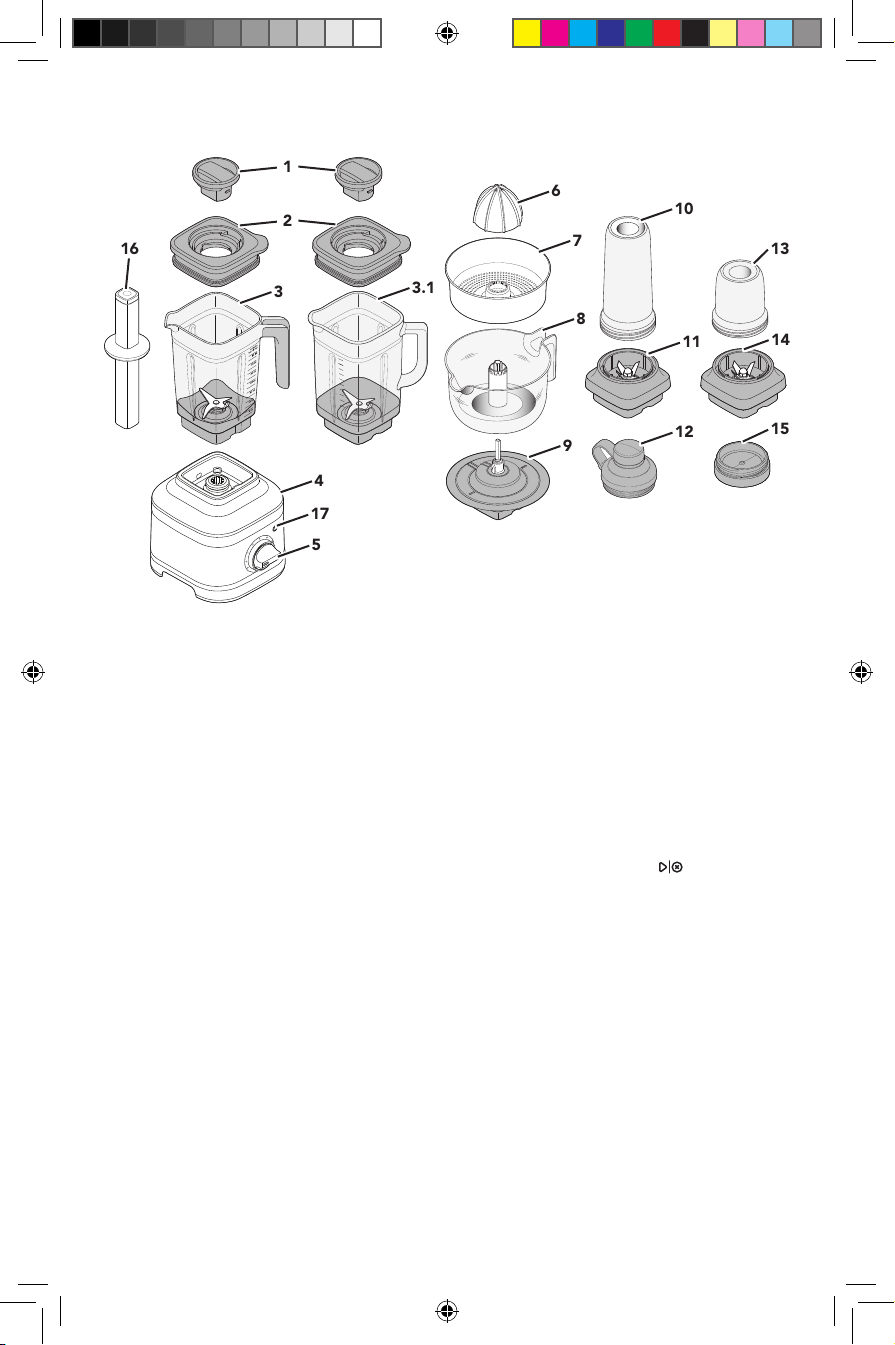

PARTS AND FEATURES

W11435383B.indb 2W11435383B.indb 2 07-08-2020 19:03:1407-08-2020 19:03:14

ENGLISH

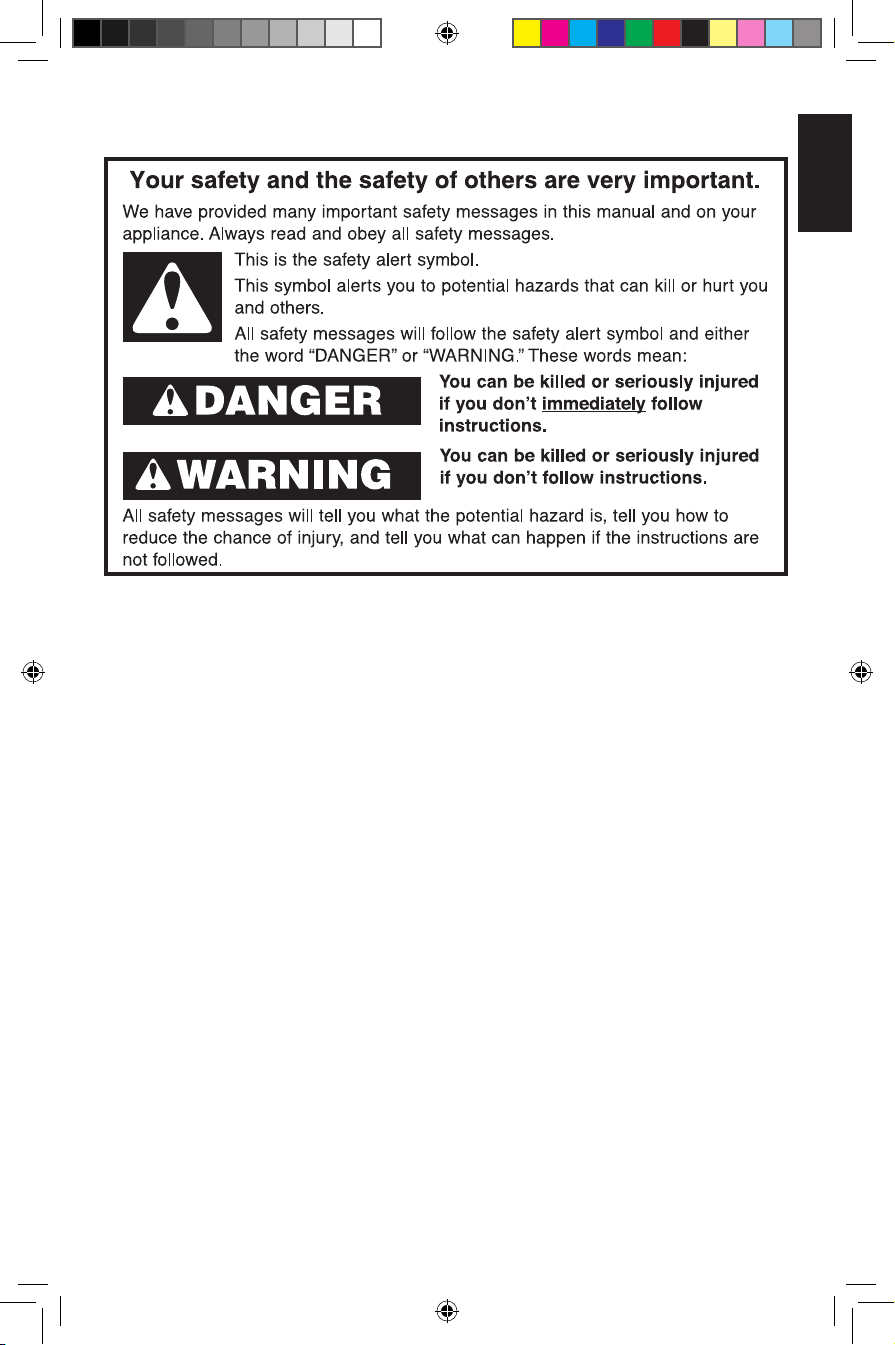

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock do not put Stand Blender base in water

or other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they are closely supervised and instructed concerning use

of the appliance by a person responsible for their safety. Close supervision is

necessary when any appliance is used by or near children. Children should be

supervised to ensure that they do not play with the appliance.

4. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts and before cleaning. To unplug, grasp the

plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or is dropped or damaged in any manner. Contact the

manufacturer at their customer service telephone number for information on

examination, repair or adjustment.

7. Do not use outdoors.

8. Do not let cord hang over edge of table or counter.

9. Keep hands and utensils, other than the Tamper provided, out of the container

while blending to reduce the risk of severe injury to persons or damage to the

Blender. The cover must remain in place when using the Tamper through the

cover opening. A scraper may be used but must be used only when the Blender

is not running.

W11435383B.indb 3W11435383B.indb 3 07-08-2020 19:03:1407-08-2020 19:03:14

PRODUCT SAFETY

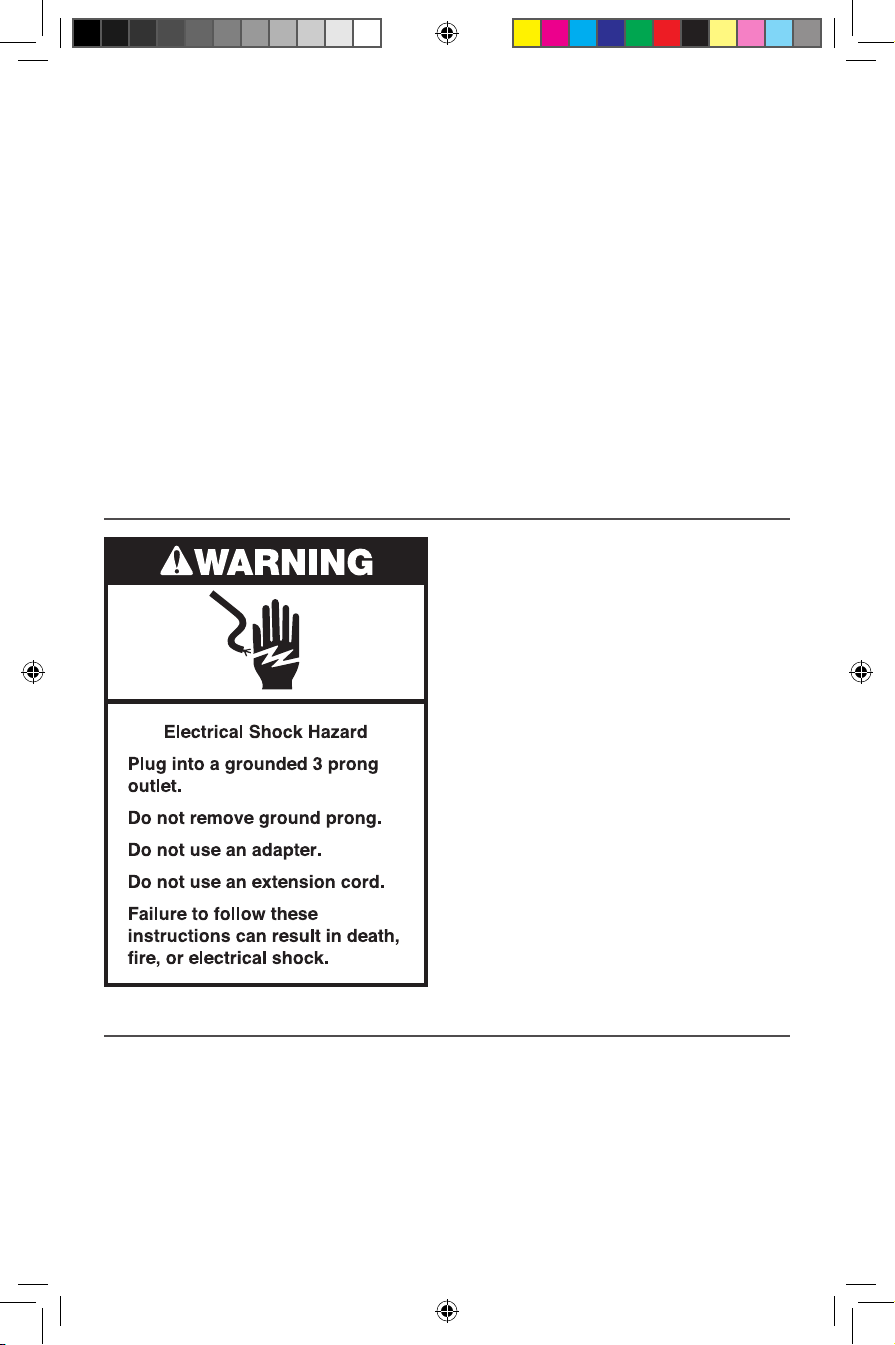

ELECTRICAL REQUIREMENTS

10. Blades are sharp. Handle carefully.

11. Always operate Blender with cover in place.

12. Do not blend hot liquids and ingredients in the Personal Jar or Small Batch Jar.

13. To reduce the risk of injury, never place cutter-assembly blades on base without

Personal Jar or Small Batch Jar properly attached.

14. The use of attachments, including canning jars, not recommended or sold by the

manufacturer may cause a risk of injury to persons.

15. Do not use appliance for other than intended use.

16. When blending hot liquids or ingredients, Lid Center Cap should remain in place

over the lid opening. Always start on lowest speed and slowly ramp to desired

speed when blending hot liquids or ingredients.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

Voltage: 120 VAC

Frequency: 60 Hz

NOTE: If the plug does not fit in the

outlet, contact a qualified electrician. Do

not modify the plug in any way. Do not

use an adapter.

Do not use an extension cord. If the

power supply cord is too short, have a

qualified electrician or serviceman install

an outlet near the appliance.

The power rating of your Stand Blender is

printed on the serial plate.

The maximum rating is based on the

attachment that draws the greatest

load (power). Other recommended

attachments may draw significantly less

power.

MOTOR HORSEPOWER

Motor horsepower for the blender motor was measured using a dynamometer, a machine

that laboratories routinely use to measure the mechanical power of motors. Our 1.5 peak

horsepower (HP) motor reference reﬂects the horsepower output of the motor itself and not

the Blender’s horsepower output in the Blender Jar. As with any Blender, the power output in

the jar is not the same as the horsepower of the motor itself.

W11435383B.indb 4W11435383B.indb 4 07-08-2020 19:03:1507-08-2020 19:03:15

ENGLISH

GET STARTED

BLENDER FUNCTION GUIDE

It features variable speeds (from 1to 5) and Pulse ( P) function to customize blending. Also,

pre-programmed recipe settings like, Ice Crush ( ), Icy Drink ( ) and, Smoothie ( ) are

designed to deliver optimal results. Use the self-cleaning cycle ( ) after blending for easy

clean up. We encourage you to experiment to ﬁnd the best speed for your favorite recipes.

Setting Description Blending

Time

(min:sec)

Suggested Items

to Blend

Pulse

Allows precise control of

the duration and frequency

of blending. Manual Salsa, crumb topping, chopped

nuts, fruits or vegetables &

more.

Variable

speeds

1- 5

Manual speeds offer

ultimate control of the

Blender. 3:00 Fruits, Soups, Sauces, Doughs,

Vegetables, Butters, Nuts, Dips,

Frozen desserts, Purees.

Ice Crush The Blender runs at optimal

speed to crush ice. 00:30 To crush and chop ice without

adding any liquid ingredients.

Icy Drink Gradually ramp up to full

power to blend hard foods. 00:30

Ice, whole fruits or vegetables,

or frozen fruits. Use for drinks

as Margaritas, Daiquiris, and

blended ice coffee drinks.

Smoothie The Blender will operate

at the high speed to

make puree of items or

ingredients.

00:45

Fruits, vegetables, ice cream

and yogurt into thick smoothie,

blended drinks and milkshakes,

etc.

Clean Quick pulses of power and

high speeds work to clean

the Blender jar. 00:13 Half of the Jar ﬁlled with warm

water and 1-2 drops of dish

soap.

Accessories Capacity Speed Suggested items to blend chart

Blender Jar 56 oz / 1.6 L

All Speeds,

Pulse, and

Preset

recipes

Full recipe smoothie, icy drinks, shakes

/ malts, dips, spreads and more.

Glass Blender Jar 48 oz / 1.4 L

Personal Jar 16 oz / 500 ml Individual smoothies, icy drinks, shakes

/ malts and lower volume recipes.

Small Batch Jar 6 oz / 200 ml Small volume recipes - Purees, sauces,

baby food, dressings, marinades, pesto

and more.

Citrus Press 32 oz / 1 L Speed 1 Citrus juice, Grapefruit juice and more.

BLENDER ACCESSORY GUIDE

W11435383B.indb 5W11435383B.indb 5 07-08-2020 19:03:1507-08-2020 19:03:15

First, clean all parts and accessories (see “Care and Cleaning” section).

Be sure the countertop beneath the Blender and surrounding areas are dry and clean.

IMPORTANT: When moving your Blender, always support/lift from the Blender base.

Base will become disengaged from jar if carried by Blender jar or Blender jar handle only.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

56 oz

48 oz

40 oz

Add ingredients into jar (max. 56 oz / 1.6 L

or max. 48 oz / 1.4 L for Glass Jar).

Secure the Lid and Lid Center Cap.

Place and align the Jar with the Slot to

ﬁt inside the jar pad, facing Jar handle

towards Control Dial. Plug the Blender into

a grounded 3 prong outlet.

Slot

USING THE BLENDER

345

Turn Dial from (O) to desired speed or

preset recipe program. Press ( ) to start.

See “Blender Function Guide” for more

details.

When ﬁnished, press ( ) to stop.

Unplug before removing the Blender Jar.

NOTE: For variable speeds (from 1to 5), the Blender will stop automatically after 3

minutes of run time. For preset recipe programs, the Blender will automatically stop

blending once the cycle is complete.

W11435383B.indb 6W11435383B.indb 6 07-08-2020 19:03:1707-08-2020 19:03:17

ENGLISH

USING THE BLENDER

NOTE: If blending hot liquids and ingredients, start on a low speed and then ramp up

to the desired speed. Use variable speed and run for 1-2 minutes.

345

Pulse mode: Press ( ). Turn and hold the

Control Dial from (O) to (P) as per desired

interval of time. When ﬁnished, release the

Dial to stop.

Tamper accessory: Remove the Lid Center

Cap only. Stir or press contents down

towards the blade. Then, place the Lid

Center cap back before resuming blending.

IMPORTANT: Allow the Blender to fully stop before removing the Lid, Jar, or pouring out

blended ingredients.

USING THE CITRUS PRESS

Place the Gear Assembly on Base. Place

the Juice Container on Gear Assembly and

twist clockwise to lock in place.

Place the Pulp Basket and then the Reamer

into the Juice Container by aligning them

with the Drive Shaft.

Drive

Shaft

345

Turn from (O) to speed (1 or 2). Hold down

the halved citrus fruit on the Reamer.

Press ( ) button to start.

Press ( ) button to stop the Blender.

Turn the Control Dial to (O).

Unplug the Blender.

W11435383B.indb 7W11435383B.indb 7 07-08-2020 19:03:1807-08-2020 19:03:18

NOTE: Do not blend hot liquids and ingredients in the Personal Jar or Small Batch Jar.

USING THE PERSONAL JAR/SMALL BATCH JAR

The Personal Jar is perfect in size for single servings or smaller recipes and handy to carry with

you on the go. And t

he Small Batch Jar is perfect for smaller recipes like sauces, dressings,

marinades and more.

Personal Jar: Add ingredients (max. 16 oz /

500 ml). Add ice or frozen items, then leafy

greens, then soft foods and liquids at last.

Small Batch Jar : Add ingredients

(max. 6 oz / 200 ml).

Secure the Blade Assembly on the Jar and

rotate it clockwise until it is tight. Place it

on the Base.

Slot

USING THE CITRUS PRESS

345

Turn from (O) to desired speed or preset

recipe program. Press ( ) to start. See

“Blender Function Guide” for more details.

Press ( ) to stop. Always remove the

Personal Jar or Small Batch Jar with Blade

Assembly from the Base.

Twist the Juice Container counterclockwise

and lift it by using handle. Pour and enjoy!

IMPORTANT: Allow the Blender to fully

stop before removing the Reamer, Juice

Container, or pouring out the juice.

W11435383B.indb 8W11435383B.indb 8 07-08-2020 19:03:2007-08-2020 19:03:20

ENGLISH

CARE AND CLEANING

NOTE: Do not immerse the Blender base or cord in water. Do not use abrasive

cleansers or scouring pads to avoid scratching.

USING THE CLEAN FUNCTION

Fill half of the Jar with warm water and

add 1 or 2 drops of dish-washing liquid.

Place the Jar on the base. Secure the Lid

and Lid Center Cap.

345

Turn from (O) to ( ). Press ( ) button

to start.

Remove and empty contents and rinse with

warm water and dry thoroughly.

FOR DETAILED INFORMATION ON USING AND CLEANING THE BLENDER

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes,

and tips on how to clean your Blender.

1 2

Unplug before cleaning. Wipe the Base,

Power Cord and the Gear Assembly of the

Citrus Press with a warm, damp cloth and

dry with a soft cloth.

Dishwasher-safe, top rack only: Personal

Jar, Small Batch Jar, Lids, Blade Assembly,

Reamer, Juice Container, Pulp Basket,

Tamper, and Lid Center Cap.

Blender Jar and Glass Jar can also be

washed in the bottom rack.

3 4

W11435383B.indb 9W11435383B.indb 9 07-08-2020 19:03:2107-08-2020 19:03:21

TROUBLESHOOTING GUIDE

Problem Solution

If Blender fails to start:

Check if the Blender is securely plugged into a grounded

3 prong outlet.

If you have a circuit breaker box, make sure the circuit is

closed.

If Blender stops after 3 minutes: It’s a part of the Blender operation to ensure lasting

durability. Turn the Control Dial to (O) and repeat the

process until desired consistency.

If Blender stops while blending:

When overloaded or jammed, it will automatically shut off

to prevent motor damage. Unplug the Blender. Remove

the Jar and use a spatula to rearrange ingredients.

Or, divide contents into smaller batches. For certain

recipes, adding liquid in the Jar may also reduce the load.

If ingredients are stuck or not

blending: Unplug the Blender. Remove the Jar and use a spatula to

rearrange ingredients in the Jar.

If Blender stops while blending

with Personal Jar or Small Batch

Jar:

Unplug the Blender. Remove the Personal Jar or Small

Batch Jar with the Blade Assembly from the base. Shake it

a little bit. Place it back on the base, plug in the Blender

and turn it back on to continue regular use.

If Blender stops while blending

and the white LED ring ﬂashes

rapidly:

An error is detected in the Blender. Contact an authorized

service center for assistance. Please see the “Warranty

and Service” sections.

If the white LED ring is off: 10 minutes of no activity will make the Blender go into

Sleep mode. To wake up the Blender, press () button.

If the problem is not due to one of the above items, see the “Warranty and Service” section.

Do not return the Blender to the retailer. Retailers do not provide service.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

W11435383B.indb 10W11435383B.indb 10 07-08-2020 19:03:2107-08-2020 19:03:21

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali KitchenAid Miscelatore

KitchenAid

KitchenAid 5KSB7068 Manuale utente

KitchenAid

KitchenAid KSB1585 Manuale utente

KitchenAid

KitchenAid KSB560 Manuale utente

KitchenAid

KitchenAid PROLINE KPCB148 Manuale utente

KitchenAid

KitchenAid 5KHB3581 Manuale utente

KitchenAid

KitchenAid KSB540 Manuale utente

KitchenAid

KitchenAid 5KHBL1321 Manuale utente

KitchenAid

KitchenAid KSB580CR0 Manuale utente

KitchenAid

KitchenAid KHB100OB - 8" Immersion Blender Manuale utente

KitchenAid

KitchenAid KSB755 Manuale utente

KitchenAid

KitchenAid ARTISAN 5KSB555 Manuale utente

KitchenAid

KitchenAid KHBRV00 Manuale utente

KitchenAid

KitchenAid KSB540 Manuale utente

KitchenAid

KitchenAid 5KSB13 A Series Manuale utente

KitchenAid

KitchenAid KSB550 Guida rapida

KitchenAid

KitchenAid 5KHBV53A Manuale utente

KitchenAid

KitchenAid 5KSB1585 Manuale utente

KitchenAid

KitchenAid 5KSB5080 Manuale utente

KitchenAid

KitchenAid KSBC1B0 Manuale utente

KitchenAid

KitchenAid KSB560AQ - Martha Stewart - Collection... Manuale utente

KitchenAid

KitchenAid 5KSB13 A Series Manuale utente

KitchenAid

KitchenAid KSB540WH0 Manuale utente

KitchenAid

KitchenAid 5KSB560 Guida rapida

KitchenAid

KitchenAid KSB465 Manuale utente

Manuali Miscelatore popolari di altre marche

ROTOR

ROTOR 1125.201 Manuale utente

Braun

Braun Multiquick 5 Vario series Manuale utente

ARENDO

ARENDO MIRA 305424 Manuale utente

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuale utente

Viconte

Viconte VC-4406 Manuale utente

Oster

Oster BLSTAB-CB0 Manuale utente

HOFFEN

HOFFEN MC-3005 Manuale utente

Black & Decker

Black & Decker BLC18750DM Manuale utente

Sunbeam

Sunbeam 4182 Manuale utente

Bialetti

Bialetti FMX35 Manuale utente

Black & Decker

Black & Decker BL8000 Manuale utente

Duronic

Duronic BL530 Manuale utente

Exquisit

Exquisit MS 3002 wes Manuale utente

Lumme

Lumme LU-KP1891A Manuale utente

Binatone

Binatone HB-735 Manuale utente

Moulinex

Moulinex LM936E10 Manuale utente

Oster

Oster VERSA Manuale di installazione e funzionamento

Ninja

Ninja NN210Q Manuale utente
