COOKTOP PARTS

For Models: KECC560BBL0, KECC560BWH0, KECC560BAL0

(Black) (White) (Almond)

1−95 Litho in U.S.A. (drs) Part No.4174471

36" ELECTRIC

BUILT−IN COOKTOP

COOKTOP PARTS

For Models: KECC560BBL0, KECC560BWH0, KECC560BAL0

(Black) (White) (Almond)

4174471

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

Trim Ring, Cooktop

3187820

Black

3187821

White

3187822

Almond

Cooktop, Glass

3187816

Black

3187817

White

3188897

Almond

3188308

Bracket, Switch

Mounting

3187707

Spring Locator (8)

246119

Screw (8)

Switch, Infinite

3188516

Use W/2200W/1000W

Left Rear Burner

3188516

Use W/2200W/1400w

Right Rear Burner

3189173

Use W/1400W

Right Front &

Center Rear Burner

3189171

Use W/1200 W

Left Front Burner

3183956

Seal, Switch Shaft

311865

Screw

3187750

Light, Indicator

Knob, Control (4)

9750372FF

Black

9750372FW

White

9750372FT

Almond

3188103

Box, Burner

3188533

Grommet

4159456

Screw

3182435

Seal, Switch (4)

Switch, Limiter

3188783

Use W/3188156

Element

3187528

Use W/3184952

Element

3187537

Use W/3187119

Element

3187536

Use W/3187188

Element

3188104

Plate, Backer

Seal, Silicone

3185589

Small (2)

3188854

Large (2)

3187753

Shield, Heat (Element)

4159456

Screw

Seal, Silicone

3188852

8 in.

3188853

11 in.

3188782

Lamp, Hot

Surface Indicator

4168863

Screw

3189152

Bracket, Stiffening

4159456

Screw

3189123

Shield, Heat (Exterior)

4159456

Screw

3188156

1200W Left Front

3184952

1400W Right Front &

Center Rear

3187119

2200W/1400W Right Rear

3187188

2400/1000W Left Rear

3188876

Shield, Heat Switch

4159456

Screw

3189175

Bracket, L

4159456

Screw

3188309

Shield, Heat Element

4159456

Screw

3188158

Plate, Interior

4159456

Screw

3189159

Plate, End

4159456

Screw

3189036

Plate Louver

4159456

Screw

3189273

Cover, Conduit

Insert

9751376

Black & White

Model

9751377

Almond Model

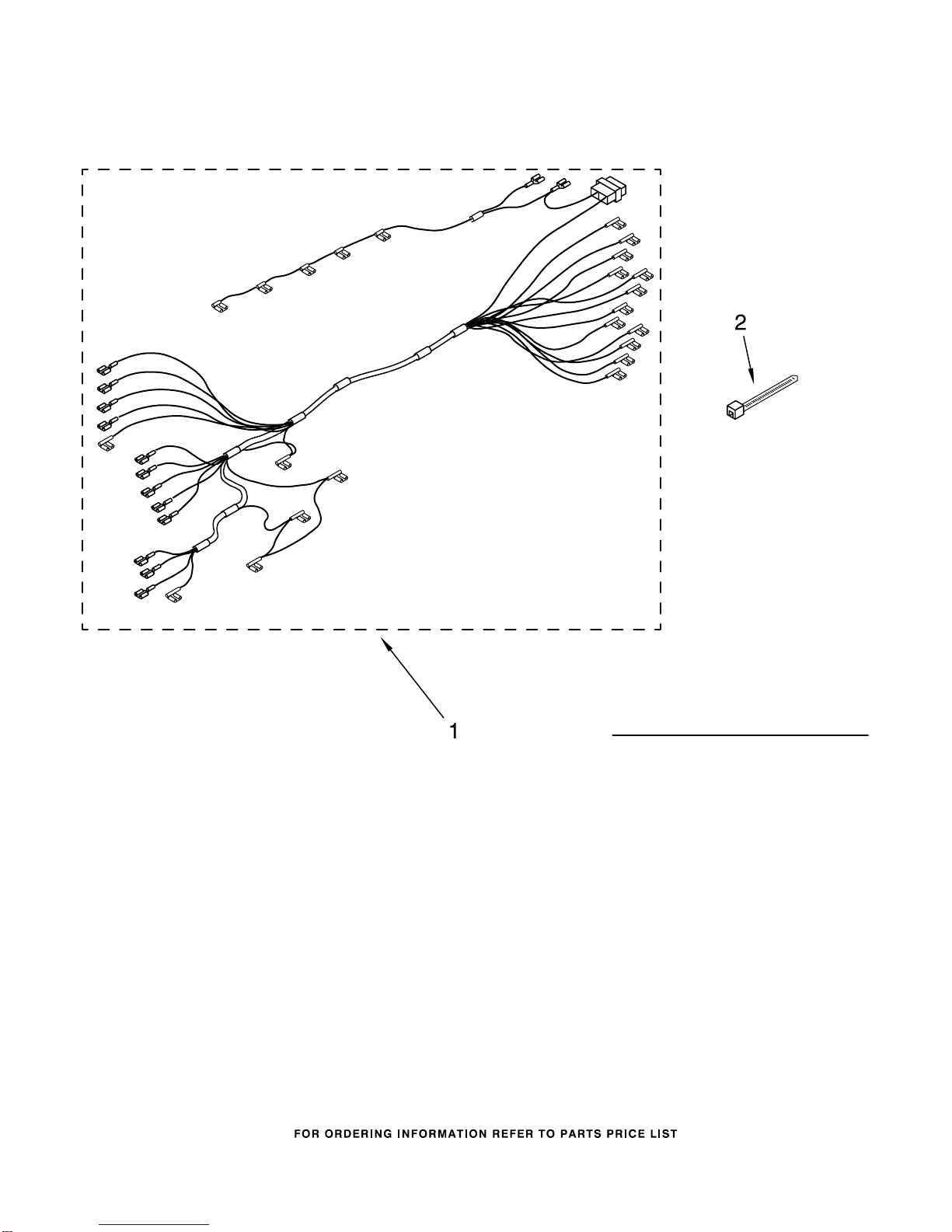

WIRING HARNESS PARTS

For Models: KECC560BBL0, KECC560BWH0, KECC560BAL0

(Black) (White) (Almond)

4174471

Illus. Part

No. No. DESCRIPTION

3189325

Wiring Harness

Surface Unit

3179589

Wire, Tie

OPTIONAL PARTS (NOT INCLUDED)

For Models: KECC560BBL0, KECC560BWH0, KECC560BAL0

(Black) (White) (Almond)

4174471

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3189330

Installation

Instructions

LIT3188880

Wiring Diagram

LIT3188107

Use & Care Guide

Miscellaneous

Mounting Screws

258644

10A X 2 (2)

3150320

Clamp (2)

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828

Wire, Black

12 Ga. 150 C

242820

Wire, Black

14 Ga. 150 C

242822

Wire, Blue

14 Ga. 150 C

242830

Wire, Brown

14 Ga. 200 C

242823

Wire, Green

14 Ga. 150 C

242824

Wire, Orange

14 Ga. 150 C

242829

Wire, Red

12 Ga. 150 C

242825

Wire, Red

14 Ga. 150 C

242831

Wire, Red

14 Ga. 200 C

242826

Wire, White

14 Ga. 150 C

242827

Wire, Yellow

14 Ga. 150 C

242832

Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3184477

Cleaner, Glass

3183488

Scraper, Window
