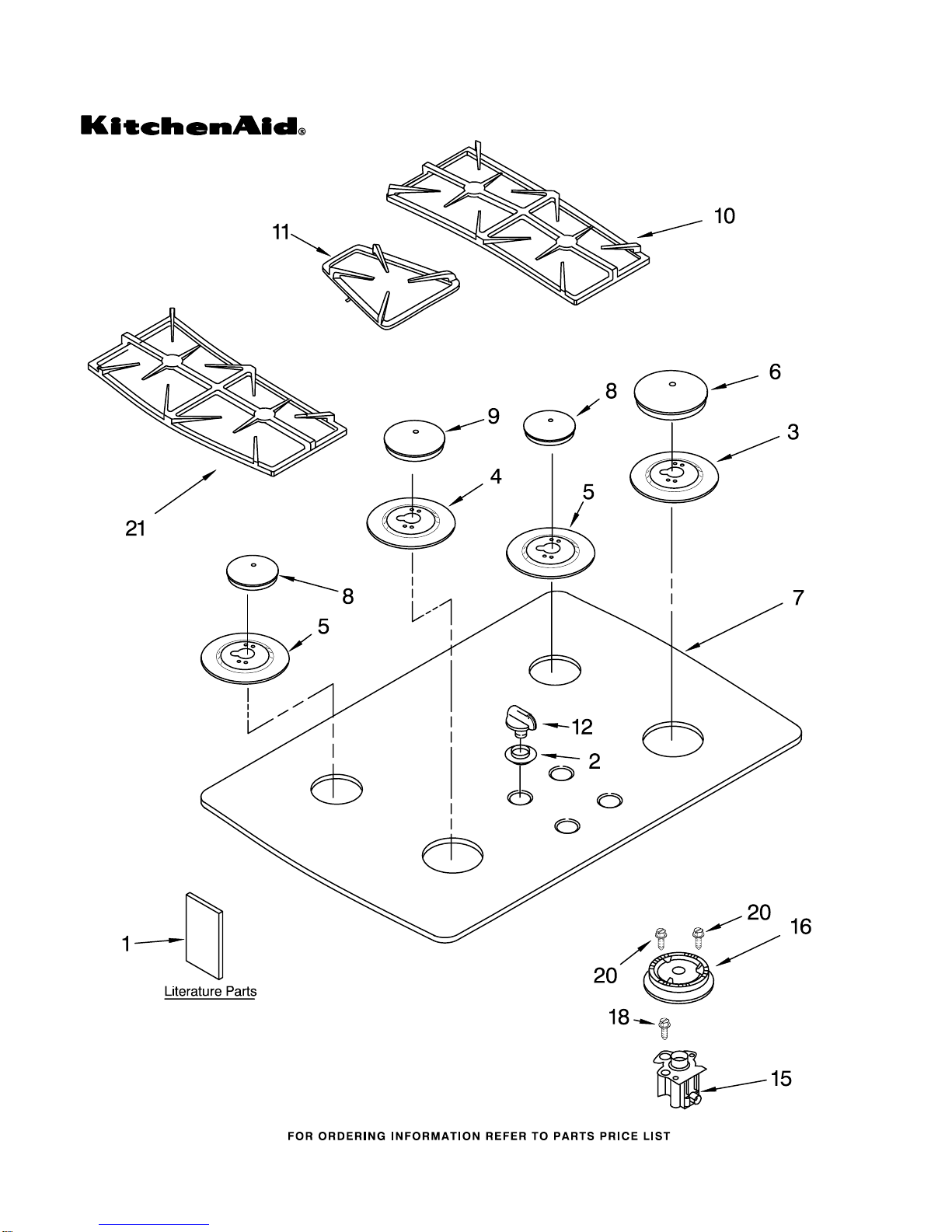

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL2, KGCC505HWH2, KGCC505HBT2

(Black) (White) (Biscuit)

7−01 Litho in U.S.A. (cre) Part No.8185880

30" GAS GLASS SURFACE COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL2, KGCC505HWH2, KGCC505HBT2

(Black) (White) (Biscuit)

8185880

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT4455834

Installation

Instructions

LIT3193071

Use & Care Guide

LIT3192098

Wiring Diagram

3192742 Conversion

Instructions

3191638 Safe Cooking Tips

2 Grommet, Glass

3180081 White

3180079 Black

3191817 Biscuit

3 Bezel, Cooktop

(RF)

9753601GS

Mouse Gray

9753601GB

Black

4 Bezel, Cooktop

(LF)

9753600GS

Mouse Gray

9753600GB

Black

5 Bezel, Cooktop

(LR,RR)

9753602GS

Mouse Gray

9753602GB

Black

6 Cap, (RF)

3191729 Mouse Gray

3191728 Black

3191730 Moleskin

7 Cooktop, Glass

4455579 White

4455577 Black

4455580 Honeycomb

8 Cap, (RR)(LR)

3191735 Mouse Gray

3191734 Black

3191736 Moleskin

9 Cap, (LF)

3191738 Mouse Gray

3191737 Black

3191739 Moleskin

10 Grate, Burner RH

3193017 Mouse Gray

3193016 Black

3193018 Moleskin

11 Grate, Filler

3193020 Mouse Gray

3193019 Black

3193021 Moleskin

12 Knob, Control (4)

3191923 White

3191922 Black

3191925 Biscuit

15 Holder, Orifice

9754182 RF − 6K

9754194 LR − 9K

9754187 RR − 12K

9754188 LF − 14K

16 Head, Burner

8273216 RF

8273214 LR − RR

4455849 LF

18 4449809 Screw

20 3368921 Screw, 7−18 X 3/4

21 Grate, Burner LH

3193014 Mouse Gray

3193013 Black

3193015 Moleskin

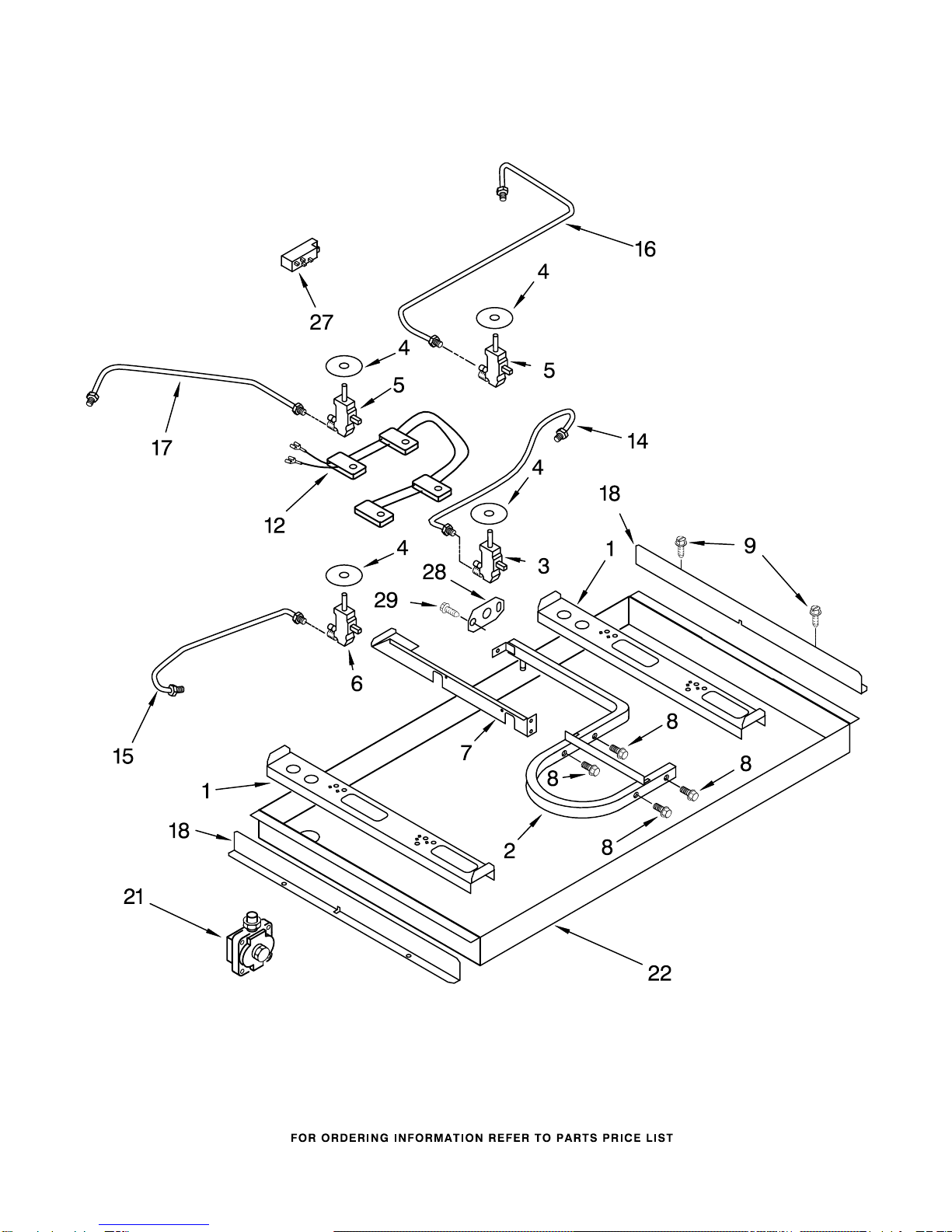

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC505HBL2, KGCC505HWH2, KGCC505HBT2

(Black) (White) (Biscuit)

8185880

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Models: KGCC505HBL2, KGCC505HWH2, KGCC505HBT2

(Black) (White) (Biscuit)

8185880

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3191557 Rail, Burner

2 6610011 Pipe, Manifold

3 3191292 Valve, Gas Burner

Burner, (RF)

4 3191387 Seal, Shaft

5 3191293 Valve, Gas Burner

(RR & LR)

6 3192157 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 3185829 Bolt, Gas Valve

9 3177991 Screw

12 3191334 Harness & Switches

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

21 3177120 Regulator, Pressure

22 4455820 Burner Box

27 8522423 Module Spark

28 3192491 Bracket, Support

29 3196160 Screw, 8−18 x 1/4

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

3183401 Bracket

4167077 Nut, Tinnerman

Miscellaneous

3188310 Hardware, Mounting

3192741 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

3192229 Harness,

Ignitor 15" (2)

3192230 Harness,

Ignitor 28" (2)
