KitchenAid KGCP462KSS05 Manuale utente

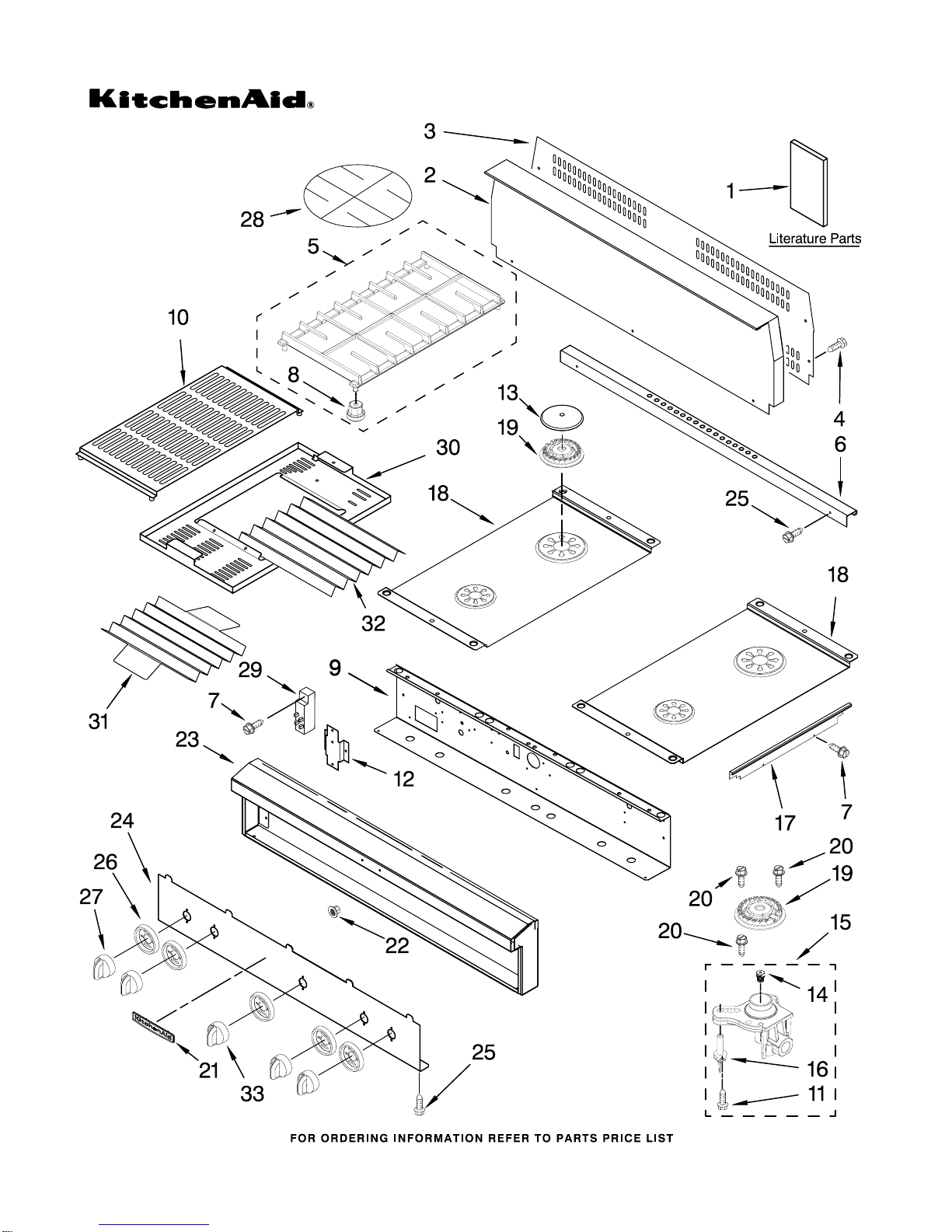

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS05

(Stainless)

05−08 Litho in U.S.A. (amd) (psw) Part No.W10207225 Rev. A

36" Stainless

Professional Cooktop

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS05

(Stainless)

W10207225

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285586 Wiring Diagram

W10162189

Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

W10157567

Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw

W10166700

Grate, Burner

W10157548

Trim, Island

7 3400843 Screw

8 8286695 Rubber, Foot

9 8285478 Support, Control

Panel

10 4457151 Grate, Grill

11 8273062 Screw

12 4457260 Bracket, Spark

13 Cap, Burner

8284669 LF,RF

4455243 LR,RR

14 Orifice

8286473 LF,RF

3192525 LR,RR

15 Holder, Orifice

W10128449

LF,RF

W10155786

LR,RR

16 9782116 Electrode

17 Trim, Side

W10157584

Right

W10157585

Left

18 9760863 Cooktop

4449040 Screw (2)

4449743 Screw (2)

19 Burner Head

4455979 LF,RF

4455849 LR,RR

20 3368921 Screw

21 2005292 Nameplate

22 2004333 Palnut

W10157522

Control Frame

W10199060

Panel, Control

25 3196176 Screw

W10018520

Bezel, Knob

W10078400

Knob, Burner

28 4455109 Plate, Simmer

W10110488

Module, Spark

W10157589

Frame, Wave Tray

W10157590

Plate, Wave

W10157588

Plate, Wave Tray

3177991 Screw

W10078410

Knob, Grill

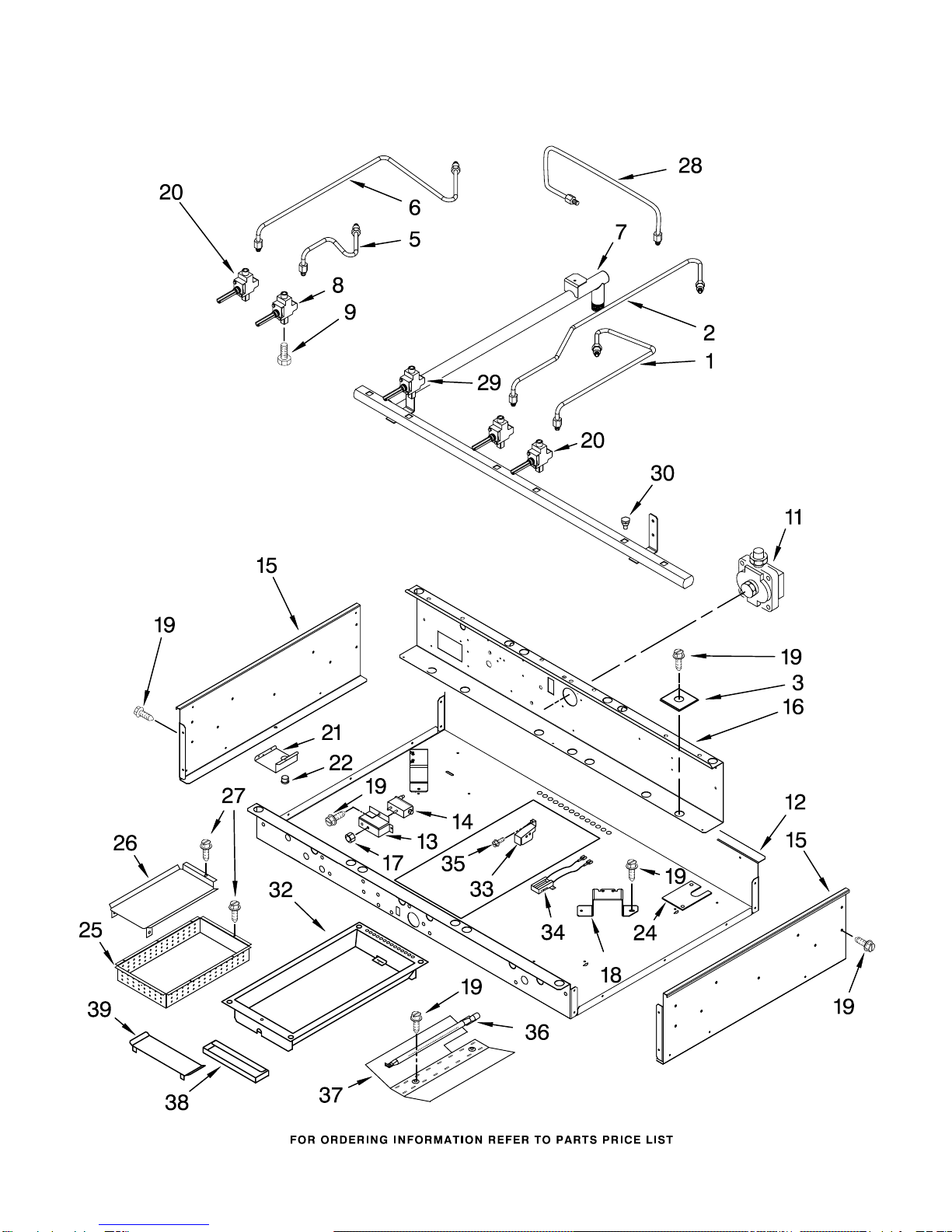

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP462KSS05

(Stainless)

W10207225

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP462KSS05

(Stainless)

W10207225

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455370 Square, Washer

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

(Includes Items

#9 & #30)

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

3192439 Seal, Switch

11 9759091 Regulator,Pressure

12 4457093 Burner Box

13 9760835 Bracket, Grill

Valve

14 8284858 Valve, Grill

15 Side, Burner Box

8285607 Right

8285606 Left

16 9759136 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

24 8285361 Cover, Panel

W10095290

Box, Burner

Lower

W10157552

Guard, Rear Spill

27 3400843 Screw

28 8284790 Tube, Grill

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

W10120890

Module, Grill

W10157553

Bracket, Grille

Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8285052 Log Burner, Grill

W10157550

Deflector, Grill

W10157581

Tray, Grille Drip

W10157554

Guard, Front Spill

OPTIONAL PARTS

For Model: KGCP462KSS05

(Stainless)

W10207225

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

8285527 Power Cord

4456627 Harness, Main

4456911 Harness, Switch

1129449 Bushing

4456628 Harness, Wire

Jumper

9760882 Harness, Grille

Switch

Miscellaneous

8285591 LP Conversion Kit
