KitchenAid KUDD03STPA10 Manuale utente
FRONT PANEL PARTS
1
Illus. Part
No. No. DESCRIPTION
For Model: KUDD03STPA10
(Panel−Ready)
04−08 Litho in U.S.A. (ebk) (eeb) Part No. W10203584 Rev. A
DRAWER
DISHWASHER
1 Literature Parts
W10118037
Instructions,
Installation
W10155587
Energy Guide
2 Y912620 Screw
3 Intermediate Panel
W10117988
Lower
W10117987
Upper
4
W10117977
Control Panel
(Includes User
Interface)
5 99003716 Trim, Toe Kick
6
W10117969
Harness, User
Interface

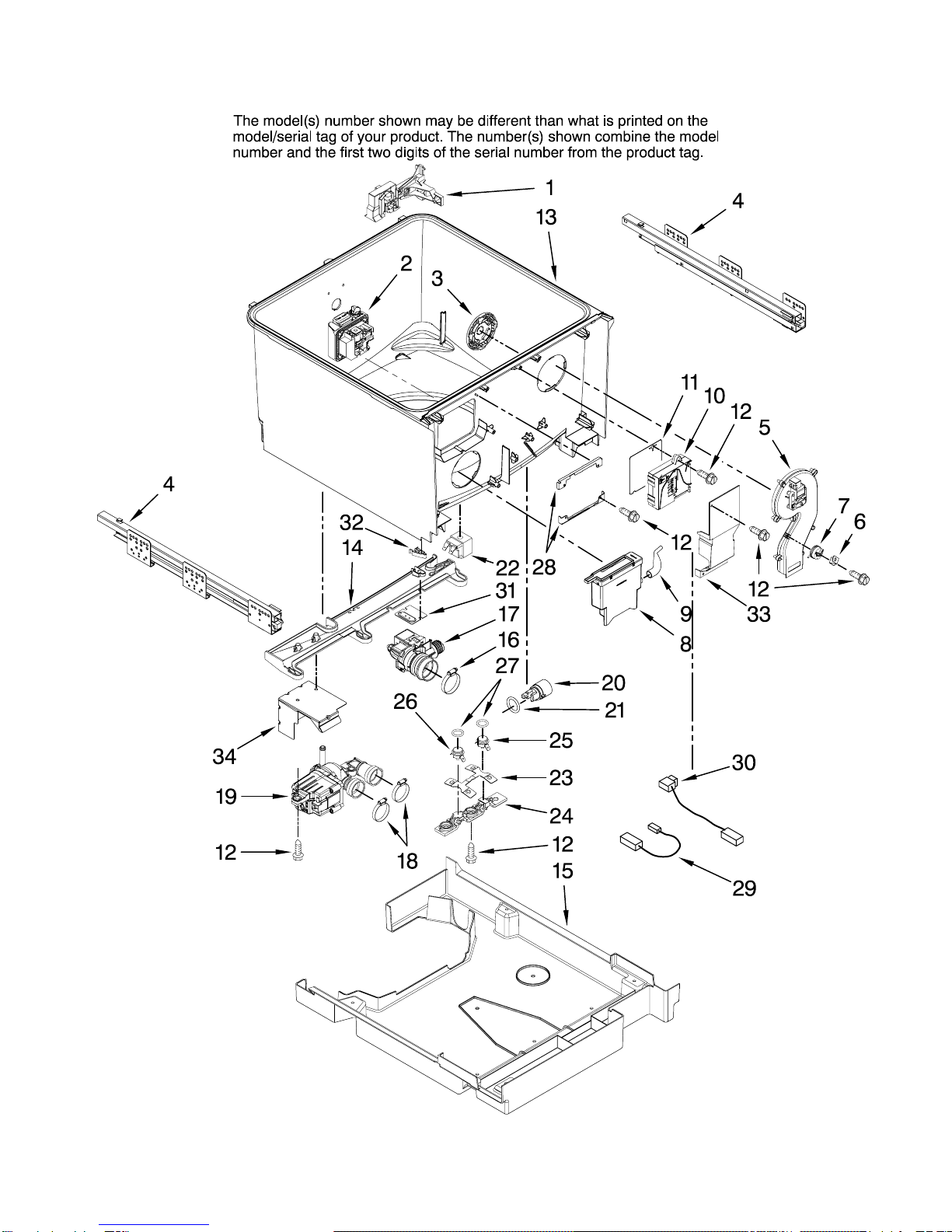

TUB PARTS
2
For Model: KUDD03STPA10
(Panel−Ready)
W10203584
TUB PARTS
3
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 99003763 Line Break
Assembly
2 99003698 Dispenser
3 99003605 Bezel,
Inlet/Outlet
4 Slide
99003760 Right Hand
99003759 Left Hand
5
W10155595
Fan Motor and
Housing Assembly
6 99003696 Bracket, Pressure
Switch
7 99003626 Switch, Pressure
8 99003781 Air Inlet Assembly
9 99003694 Hose, Pressure
Switch
10 99003733 Control Module
11 99003782 Plate, MCM
Enclosure
12 99003740 Screw
13
W10118026
Drawer, Tub
14 Y6919650 Shield, Drip
15 99003714 Cover, Bottom
16 99003631 Clamp, Drain
Suction
17
W10190553
Drain Pump Assy.
18 99003632 Clamp
19 99003730 Wash Pump
20
W10120019
Sensor, Turbidity
21 99002651 O−Ring, Turbidity
Sensor
22 99003773 Solenoid, Fine
Drain
23 99003727 H Bracket
24 99003701 Bracket,
Thermostat
25 99003624 Fuse, Thermal
26 99003623 Thermostat, High
Limit
27 99001979 O−Ring, Pump
Thermostat
28 99003699 Bracket, Dispenser
29 99003705 Wire Jumper,
Thermostat
30 99003708 Wire Jumper,
Heater
31
W10118491
Bracket, Drain
Pump
32
W10190274
Catch, Drawer
Release
33 99003758 Barrier, MCM
34
W10121259
Shield, Motor
WASH SYSTEM PARTS
4
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
WASH SYSTEM PARTS
5
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
Illus. Part
No. No. DESCRIPTION
1 99003689 Wash Arm Assembly
2 99003697 Cap, Wash Arm
3
W10190556
Filter Flowplate
Assembly
4 Y6918536 Screw
5 99003720 Compression Ring,
Fine Drain
6 99003692 Seal, Fine Drain
7 99003772 Armature, Fine
Drain
8 99003774 Spring, Fine Drain
9 99003775 Shaft, Fine Drain
10 99003625 Heater
11 Y6920320 O−Ring (EPDM)
12 99003777 Coarse Cup, Lower
13 99003776 Coarse Cup, Upper
14 99003778 Coarse Cup Cap
15 Y6920170 Inlet, Upper
(Manifold)
16 99003602 Seal, Inlet/Outlet
17 Y6920354 Bracket, Upper
Manifold Mtg
18 Y6920171 Cap, Manifold
Inlet
19 99003602 Seal,
Inlet/Outlet
20 99003683 Manifold, Upper
Assembly
21 99003771 Nut, Heater
22 99003704 Shield, Fine
Filter
23 99003634 Clamp, Manifold
24 99003697 Pivot, Wash Arm
UPPER AND LOWER DISHRACK PARTS
6
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
Illus. Part
No. No. DESCRIPTION
1
W10118023
Rack, Base
2
W10077844
Clip, No−Flip
3
W10154735
Rack, Insert
(Includes Item 2)
4
W10118019
Rack, Insert
(Small Tines)
5
W10118031
Basket, Silverware
Assembly
6
W10118032
Cover, Silverware
Basket
7
W10118001
Shelf, Rack
8
W10118010
Rack, Left
9 8519716 Basket, Small
Items
FRAME AND LID PARTS
7
6
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 99003677 Lid Assembly
(Seal Included)
2 Y6920305 Bracket, Lid
(Rear)
3 99003722 Bracket, Lid Assy.
(Side)
4 99003724 Roller, Lid Pin
5 Lid Slider Assy.
99003725 Right Hand
99003726 Left Hand
6 99003706 Harness, Drawer
7
W10188309
Brace, Top Side
(Undercounter
Mounting Bracket)
8
W10166505
Retainer, Flex
9 99003710 Harness, Upper
10 99003709 Harness, Lower
11
W10188315
Clip, Fill Valve
12
W10188316
Clip, Lid
13 99003732 Base, Utility Box
14 99003731 Cover, Utility Box
15 99003766 Hose, Fill
(Lower)
16 99003765 Hose, Fill
(Upper)
17
W10189242
Retainer, Valve
End
18 99003606 Valve, Water
19 99003597 Hose, Drain
20 Y6919906 Y− Connector
21 99003633 Clamp
22 99003635 Clamp
ACCESSORY PARTS
8
For Model: KUDD03STPA10
The model(s) number shown may be different than what is printed on the
model/serial tag of your product. The number(s) shown combine the model
(Panel−Ready)
W10203584
Illus. Part
No. No. DESCRIPTION
1
W10133725
Trim, Side
2 99003716 Trim, Toe Kick
(BlacK)
3 Toe Kick Base (LH)
Y6920293 Black
Y6920297 White
4 Toe Kick Base (RH)
Y6920295 Black
Y6920299 White
5 Toe Kick
Slide (LH)
Y6920294 Black
Y6920298 White
6 Toe Kick
Slide (RH)
Y6920296 Black
Y6920300 White
7 Y6920591 Bracket, Mounting
