KitchenAid KUDS03FSBL1 Manuale utente
DOOR AND PANEL PARTS
1
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
5−06 Litho in U.S.A. (ebk) Part No. 8194449
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8574116 Instructions,
Installation
8572292 Energy Guide
8574093 Guide, Use & Care
8572288 Guide, Consumer
Reference
8572216 Tech Sheet
8564958 DVD, Use & Care
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8542577 Insulation, Door
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 Panel, Full Front
(Includes Items
16 & 17)
W10021900
Black
W10021910
White
W10021920
Biscuit
W10021930
Stainless
8 Toe Panel
(Includes Item 11)
8558252 Black
8558253 White
8558254 Biscuit
9 Handle
W10021550
Black
W10021560
White
W10021570
Biscuit
W10021540
Stainless
10 8564951 Stud, Mounting
11 8268581 Insulation,
Toe Panel
12 302868 Screw
13 304392 Screw
14 8534008 Screw
15 3400071 Screw (2)
16 Nameplate
W10021860
Black
W10021870
White
W10021880
Biscuit
W10021850
Stainless
17 2004333 Nut

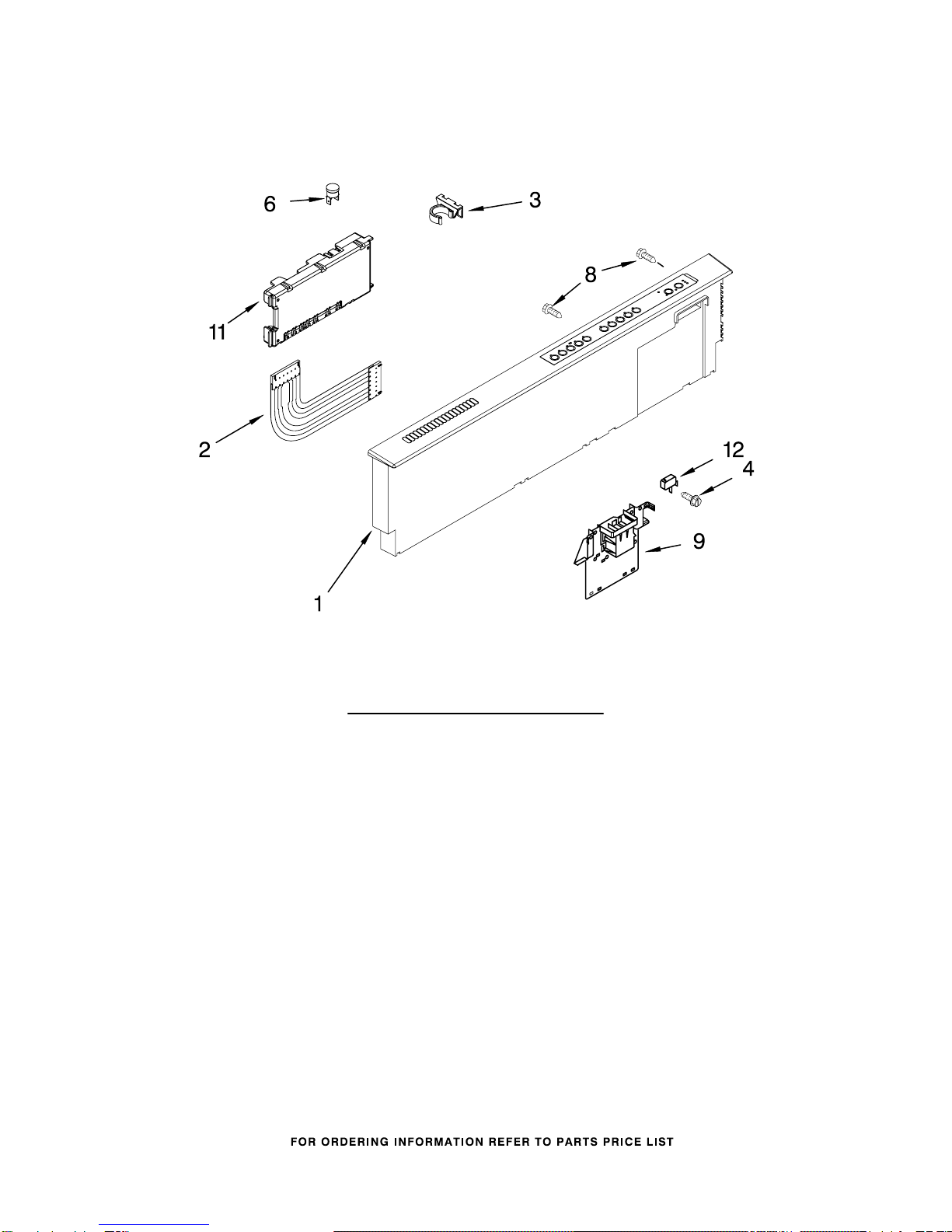

CONTROL PANEL PARTS
2
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
8574137 Black
8574138 White
W10021940
Biscuit
8574139 Stainless
2 8564960 Cable, Ribbon
3 8546546 Clip, BI−Metal
4 3400412 Screw
6 661663 Fuse, Thermal
Electronic
8 3369051 Screw (6)
9 8270175 Latch Assembly
11 8562996 Control,
Electronic
12 8269209 Switch, Door

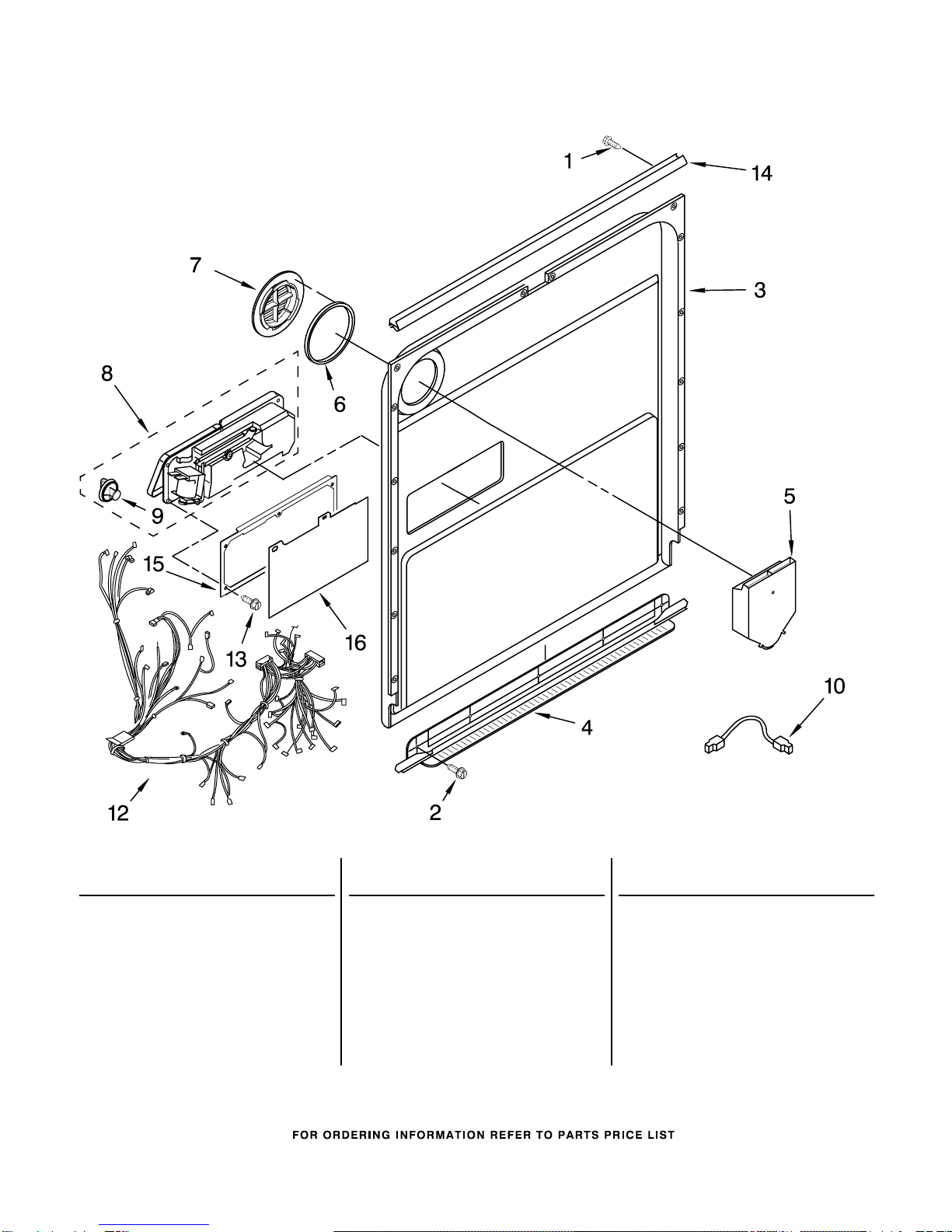

DOOR AND LATCH PARTS
3
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8268937 Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8545536 Deflector, Vent
(Also Order
Item 6)
8 8564772 Dispenser,
Assembly
9 8564929 Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
12 8574060 Wiring Harness
13 8281154 Screw (6)
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser

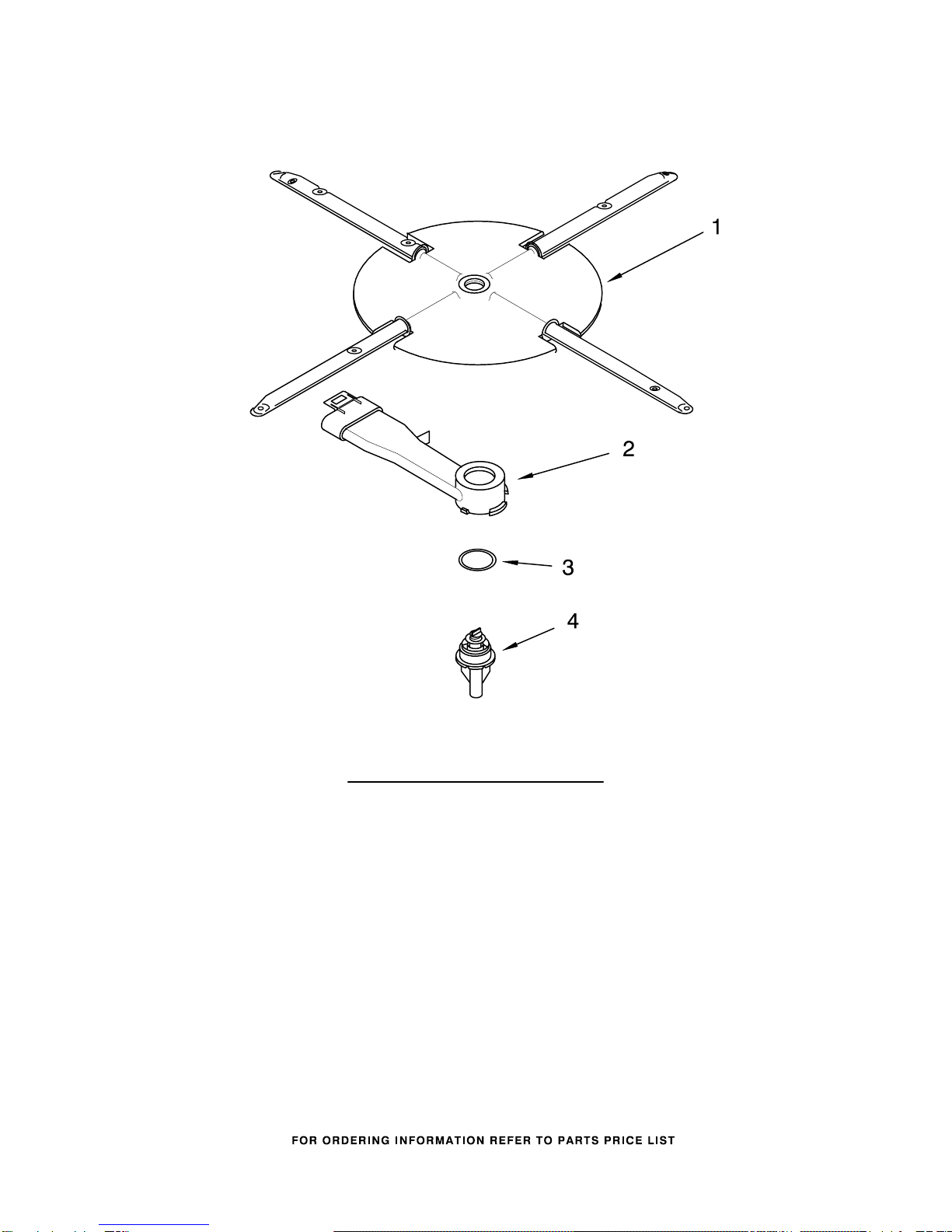

LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1 8572307 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1 8545946 Control, Overfil
Assembly
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8535151 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
11 8268909 Switch, Overfill
Control
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch

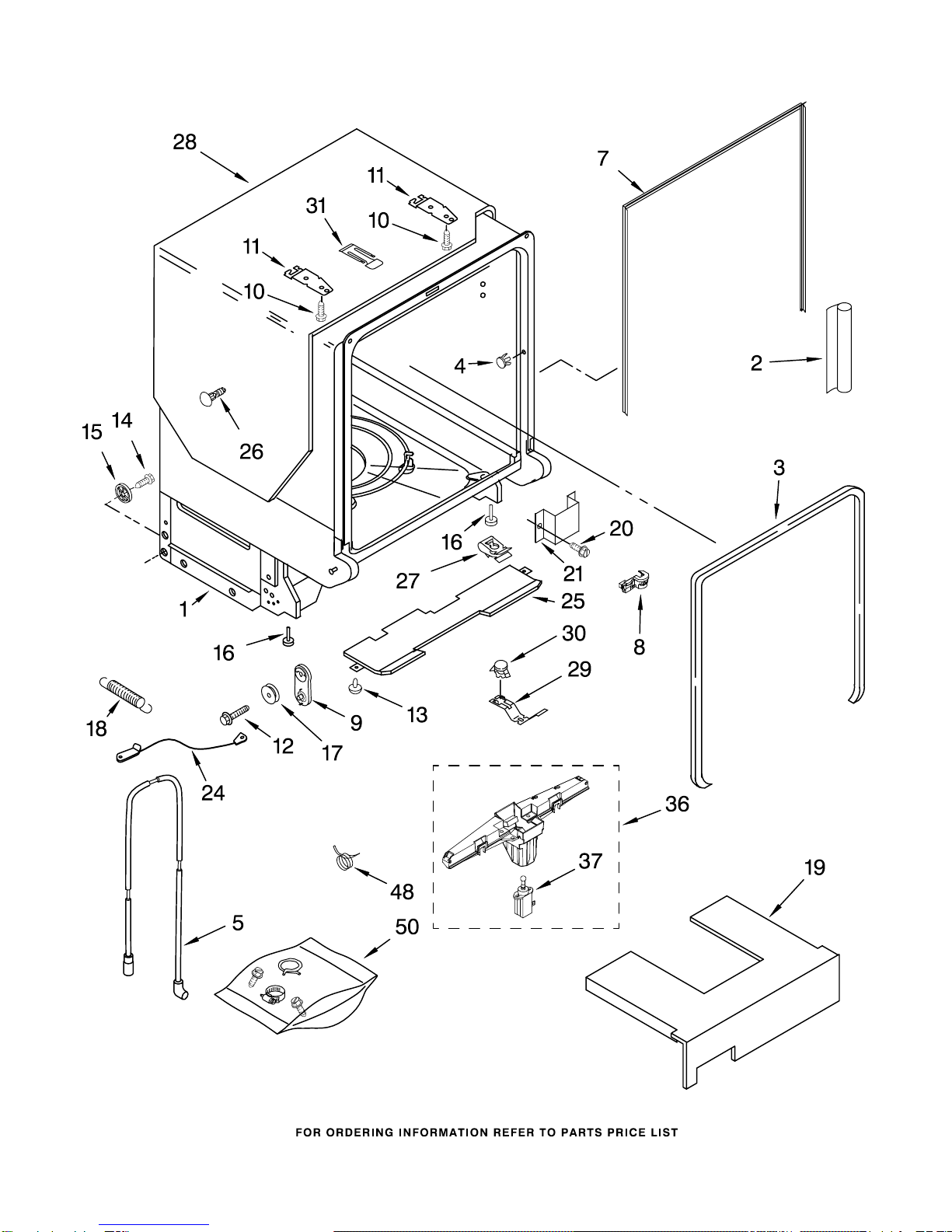

TUB AND FRAME PARTS
7
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
TUB AND FRAME PARTS
8
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1
W10041750
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3 8531629 Door Seal
4 8270119 Plug Tub (2)
5 8531022 Drain Loop
With Check Valve
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
13 3400924 Retainer, Push−in
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270182 Spring, Door
Balance
19 8545574 Absorber, Sound
20 3400892 Screw
21 8268991 Cover, Terminal
Box
24 8535568 Link, Door
Balance
25 8268587 Insulator, Sound
26 304666 Retainer, Push (2)
27 8269016 Clip, Grounding
28 8573239 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 8269426 Strike, Latch
36 8559845 Actuator Assembly
37 8559843 Motor, Wax
48 356138 Clamp, Hose (1)
50 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
PUMP AND MOTOR PARTS
9
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
PUMP AND MOTOR PARTS
10
For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1
(Black) (White) (Biscuit) (Stainless)
8194449
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8535760 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572617 Sump & Motor
Assembly
(Includes
Item 15)
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8535759 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25 8563432 Optical Water
Indicator
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
