DOOR AND PANEL PARTS
1
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
5−07 Litho in U.S.A. (els) Part No. 8194574 Rev. B
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8574116 Instructions,
Installation
W10102692
Energy Guide
8574093 Guide, Use & Care
W10077956
Guide, Consumer
Reference
W10082651
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8542577 Insulation, Door
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 Panel, Full Front
(Includes Items
4,10,16 & 17)
W10021900
Black
W10021910
White
W10021920
Biscuit
W10021930
Stainless
7 8269016 Clip, Ground
8 Toe Panel
(Includes Items
7 & 11)
8558252 Black
8558253 White
8558254 Biscuit
9 Handle
(Includes Item 14)
W10083936
Black
W10083937
White
W10083938
Biscuit
W10083935
Stainless
10 8564951 Stud, Mounting
11
W10073550
Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 304392 Screw
14 8534008 Screw
15 3400071 Screw
16 Nameplate
W10021860
Black
W10021870
White
W10021880
Biscuit
W10021850
Stainless
17 2004333 Nut
CONTROL PANEL PARTS
2
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10083825
Black
W10083826
White
W10083833
Biscuit
W10083827
Stainless
2 8546546 Clip, BI−Metal
3 3400412 Screw
4 661663 BI−Metal
5 3369051 Screw (6)
6
W10077984
Latch Assembly
7 8575276 Control,
Electronic
8 8269209 Switch, Door

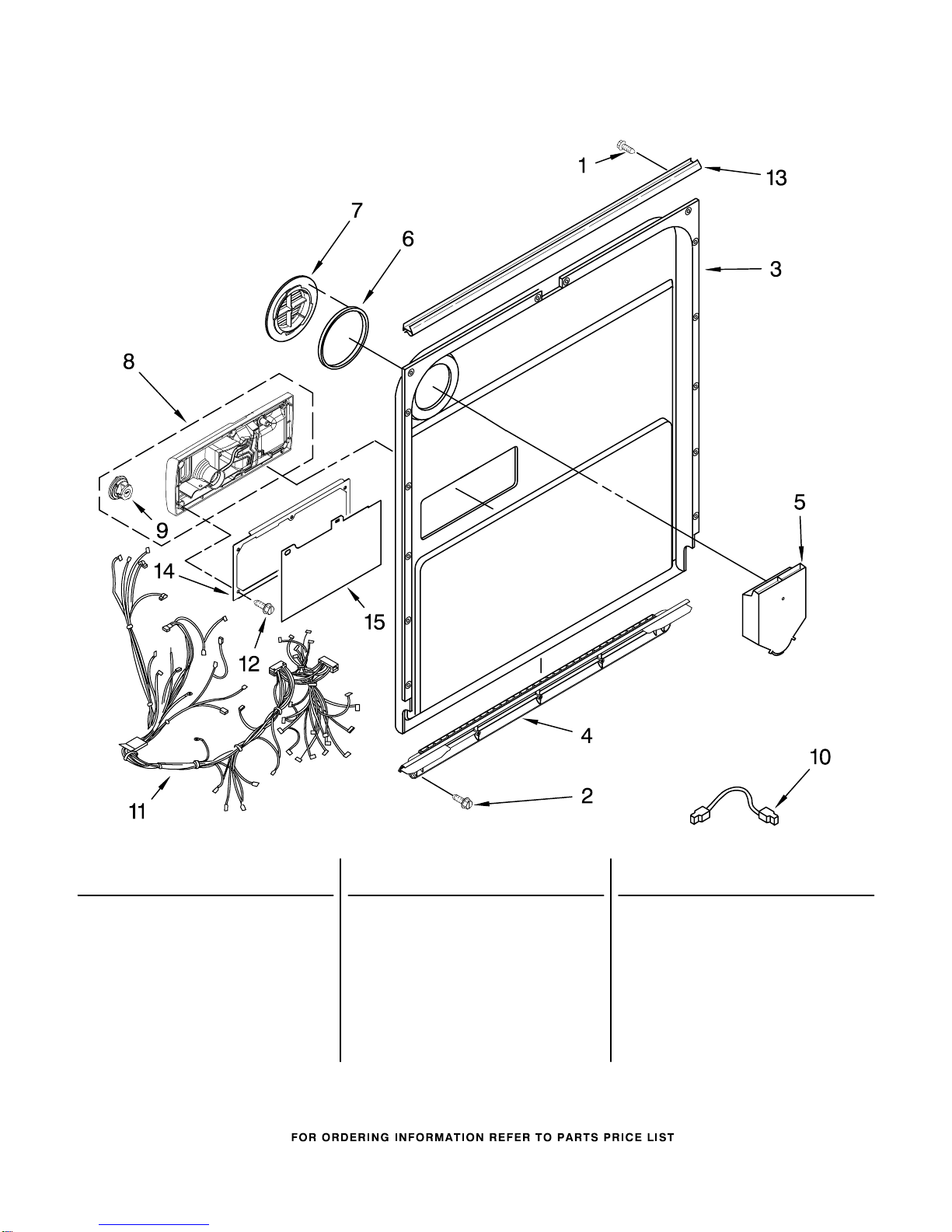

DOOR AND LATCH PARTS
3
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10071150
Wiring Harness
12 8281154 Screw (6)
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION
1 8572307 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
FILL, DRAIN, AND OVERFILL PARTS
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
68194574
Illus. Part
No. No. DESCRIPTION
1
W10070120
Wire, Jumper
2
W10041920
Hose, Inlet
3
W10041900
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
10 8531022 Drain Loop
with Check Valve
11 8268909 Switch, Overfill
12 8545946 Standpipe,
Overfill
(Also Includes
Item 13)
Control
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
17 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
18 356138 Clamp, Hose
TUB AND FRAME PARTS
7
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
TUB AND FRAME PARTS
8
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION
1
W10053130
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4 8270119 Plug Tub (2)
5 8269110 Seal, Cabinet
6 8573061 Strain Relief
7 8270021 Mount, Door
Balance
8 3367670 Screw
9 8269145 Bracket,
Undercounter
10 3400074 Screw (2)
11 3400924 Retainer, Push−in
12 3370389 Screw (2)
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
15 8524474 Wheel, door
Balance
16 8270020 Spring, Door
Balance
17 8545574 Absorber, Sound
18 3400892 Screw
19 8268991 Cover, Terminal
Box
20 8535568 Link, Door
Balance
21 8268587 Insulator, Sound
22 304666 Retainer, Push (2)
23 8573239 Shield, Sound
Tub
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26 8574157 Strike, Latch
27 8572661 Actuator Assembly
28 8559844 Motor, Wax
PUMP AND MOTOR PARTS
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
9
8194574
PUMP AND MOTOR PARTS
10
For Models: KUDS03FSBL3, KUDS03FSWH3, KUDS03FSBT3, KUDS03FSSS3
(Black) (White) (Biscuit) (Stainless)
8194574
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8535760 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572617 Sump & Motor
Assembly
(Includes
Item 15)
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8535759 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25
W10082647
Optical Water
Indicator
26 8535474 Capacitor
27 8534946 Shield,
Capacitor
28 8531018 Washer
