KitchenAid 5KSMSIA Manuale utente

W11499128A

SHAVE ICE ATTACHMENT

5KSMSIA

PRODUCT GUIDE

PARTS AND FEATURES

5 6

1. Detachable Ice Cup

2. Ice Cup Pusher

3. Main Upper Housing

4. Convenient Storage Box

5. Fine Shave Blade

6. Coarse Shave Blade

7. Ice Cup Sleeve

8. Plastic Ice Mold with Lid (x4)

PRODUCT SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you

and others.

All safety messages will follow the safety alert symbol and either

the word “DANGER” or “WARNING.” These words mean:

DANGER You can be killed or seriously injured

if you don't immediately follow

instructions.

WARNING You can be killed or seriously injured

if you don’t follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce

the chance of injury, and tell you what can happen if the instructions are not

followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

should always be followed, including the following:

1. Read all instructions. Misuse of appliance may result in

personal injury.

2. European Union Only: Appliances can be used by persons with

reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way

and understand the hazards involved.

3. European Union Only: This appliance shall not be used by

children. Keep the appliance and its cord out of reach of

children.

4. This appliance is not intended for use by persons, including

children, with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

5. This appliance can be used by children aged 8 years and

above and persons with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge if they have

been given supervision or instructions concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without

supervision.

6. Children should be supervised to ensure that they do not play

with the appliance.

7. Never leave the appliance unattended while it is in operation.

8. Turn the appliance off (OFF/0), unplug from outlet, and detach

the Shave Ice Attachment from appliance before cleaning and

when not in use. Turn the appliance off and make sure the

motor stops completely before putting on or taking off parts.

9. The use of accessories/attachments not recommended by the

appliance manufacturer may result in fire, electric shock or

injury to persons.

10. Do not use the appliance outdoors.

11. Avoid contacting moving parts. Keep fingers out of discharge

opening.

12. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions, or is dropped or damaged in

any manner. Return appliance to the nearest Authorised

Service Facility for examination, repair, or electrical or

mechanical adjustment.

13. Also see the Important Safeguards section included in the

Stand Mixer “Owner’s Manual”.

14. Allow the appliance to cool completely before putting on or

taking off parts, and before cleaning the appliance.

15. Blades are sharp. Handle Carefully.

16. Refer to the “Care and Cleaning” section for instructions on

cleaning the surfaces in contact with food.

17. This appliance is intended to be used in household and similar

applications such as:

■staff kitchen areas in shops, offices and other working

environments;

■farmhouses;

■by clients in hotels, motels and other residential type

environments;

■bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

For complete details on product information, instructions and

videos, including Guarantee information, visit

www.KitchenAid.co.uk or www.KitchenAid.eu. This may save

you the cost of a service call. To receive a free printed copy of the

information online, call 00 800 381 040 26.

GETTING STARTED

The Shave Ice Attachment is compatible with all household KitchenAid Stand Mixers. Set the

Blades to Shave Ice as per requirement.

NAME PART ICON INTENDED

USE SPEED

Coarse Shave

Blade

For coarser ice

shaving / ice

chips.

Fine Shave

Blade

For a fine, fluffy,

snow-like ice

shaving texture.

NOTE: For detailed instructions on swapping blades, please see “CHANGING THE BLADE”

section.

TEMPERING THE ICE PUCKS

Tempering Ice means allowing the ice to adjust at room temperature until it

develops a glossy, wet look and is clear from all sides. Tempering is an important

step for producing the lightest and fluffiest shave ice. Many factors determine the

amount of time it takes to temper. In most cases, your ice puck should be ready

to use in 10 minutes or less.

NOTE: Ice pucks made with plain water require tempering. For mixed base recipes, refer to

the recipe details for tempering instructions.

The Ice Molds are used for best performance for both coarse and fine shaving. It's easy to get

shave ice from tempered ice out of the molds.

TIP: For the fluffiest shave ice, we recommend tempering the ice puck for 10 minutes, and

then using the Fine Shaving Blade.

PRODUCT USAGE

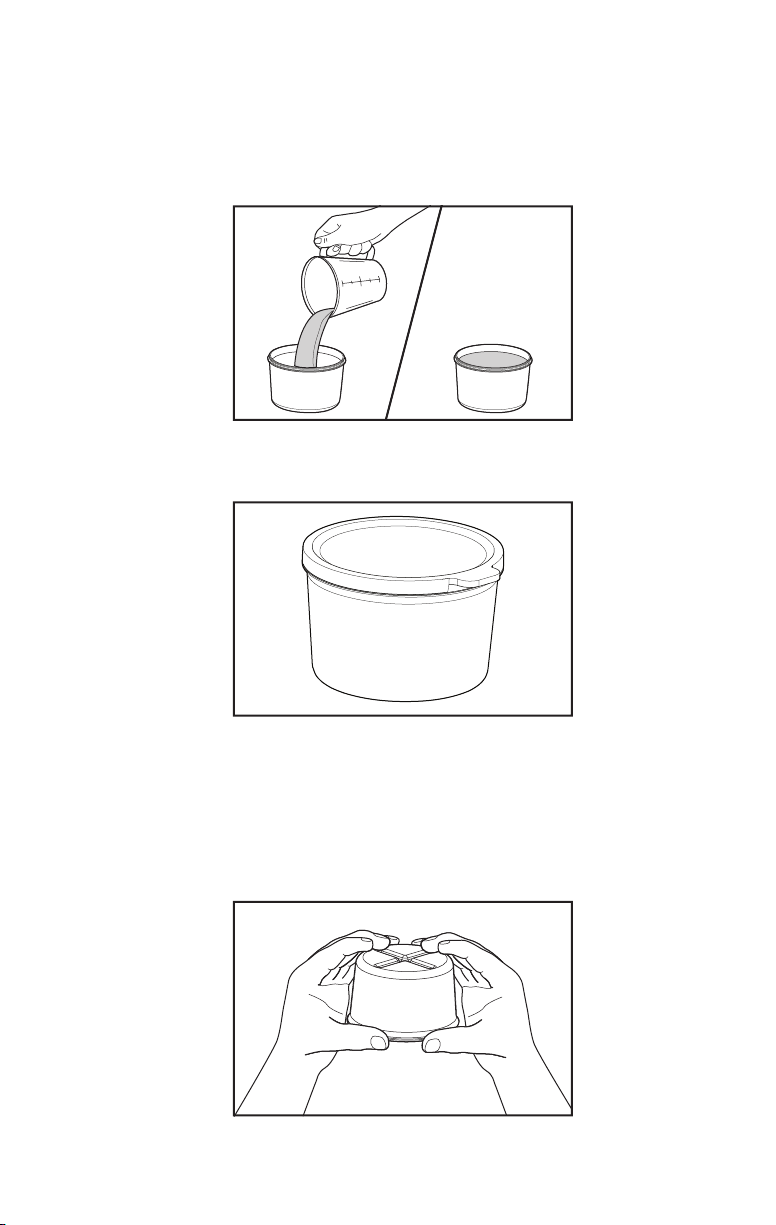

ICE PUCK PREPARATION

1. Fill the ice mold with water or flavored ice base mixture of your choice.

NOTE: To keep the mold from overflowing while freezing, be sure not to fill past the fill line

visible just below the rim of the mold.

2. Affix the lid to the top of the mold and place it in the freezer for 12 to 24 hours.

NOTE: Freezing time may vary and will depend both on the temperature of your freezer as

well as the sugar or alcohol content of your mixture.

NOTE: See “Tips for Great Results” section below for more details on Ice Puck

Preparation.

SET UP & ASSEMBLY - PREPARING TO MAKE SHAVE ICE

Before using your Shave Ice Attachment, clean it by following the detailed instructions in

“CARE & CLEANING” section.

1. After removing the ice molds from the freezer, press firmly on the bottom and sides to help

release the puck from the mold.

2. For Plain Ice recipes, allow ice to rest for up to 10 minutes - this is called “Tempering” and

is recommended to achieve ideal Shave Ice results.

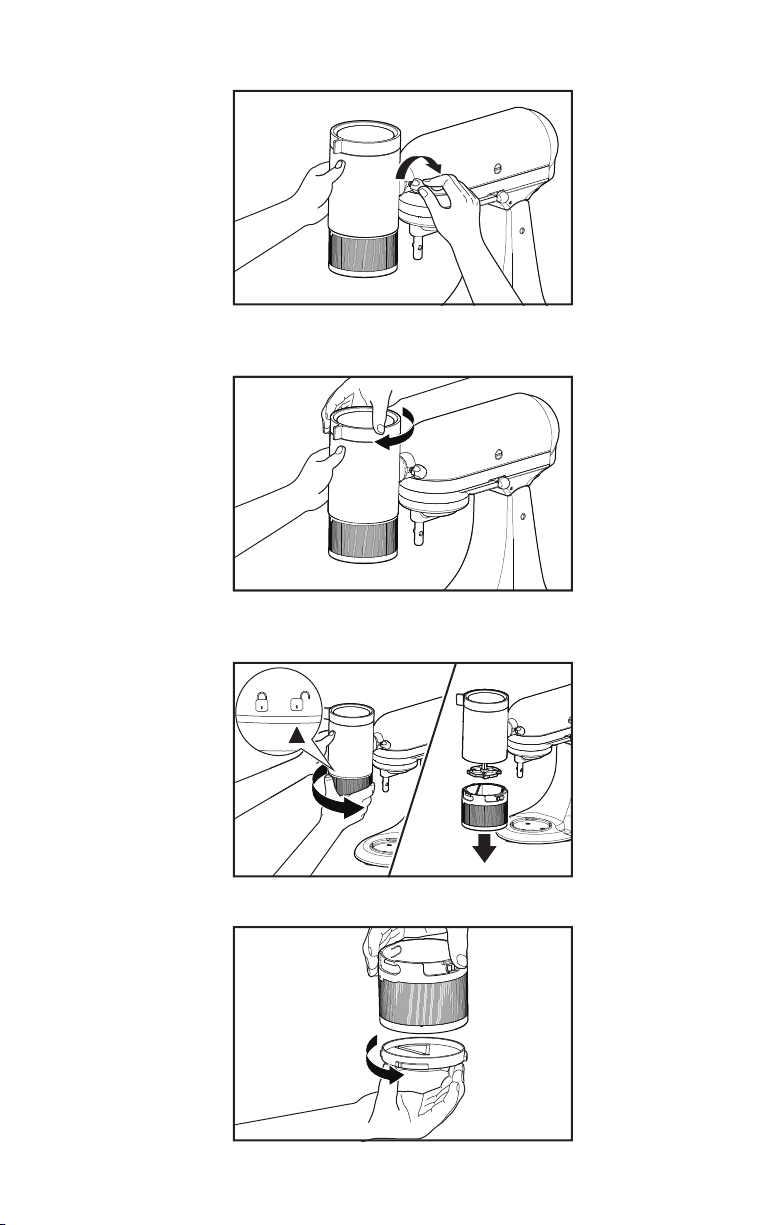

3. Turn the Stand Mixer off (OFF/0) and then unplug.

4. For Stand Mixer with a hinged attachment hub cover: Flip up to open.

For Stand Mixer with a removable attachment hub cover: Turn the attachment knob

counterclockwise to remove the attachment hub cover.

5. Insert the Main Housing into the attachment hub, make sure the power shaft fits into the

square hub socket. If necessary, rotate the attachment back and forth for proper fitment.

The pin on the attachment housing will fit into the notch of the hub rim when in the proper

position.

6. Tighten the Stand Mixer attachment hub knob clockwise until the attachment is completely

secured into the Stand Mixer.

7. Ensure that the upper lever of the housing is rotated all the way to the left. If not, rotate it to

the left until it clicks into place. This will ready the attachment for use and must be

completed before loading the Ice Puck into the Ice Cup and attaching it to the housing.

8. Remove the Ice Cup from the housing by rotating it to the right and pulling downward. Take

note of the small indicator arrow which must line up with the Lock and Unlock symbols on

the housing.

OPTIONAL: If you wish to change the blade, grip the blade from the bottom and rotate it to

right to unlock and remove.

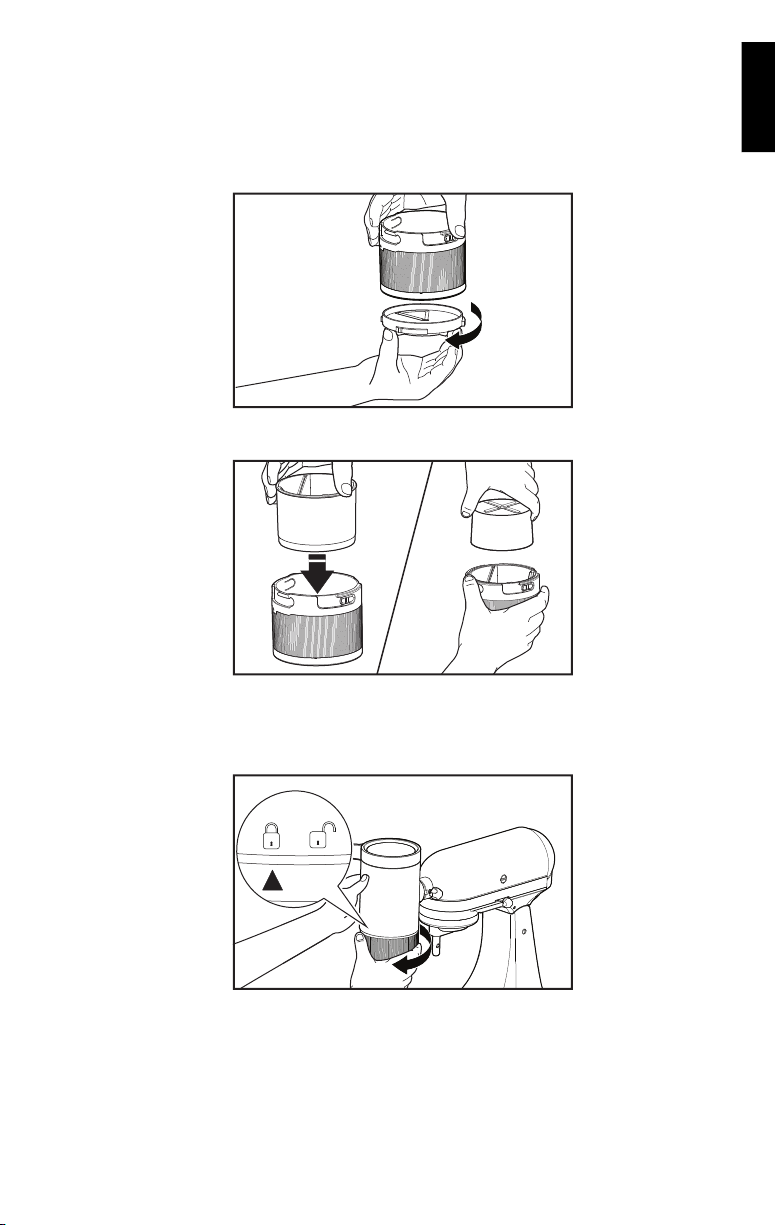

ASSEMBLY

1. Grip the blade from the bottom and slowly insert it into the bottom of the Ice Cup by

aligning the interlocking tabs. Once inserted, rotate the blade to the left until you hear a

“Click“, to properly lock the blade in place.

NOTE: Each of the interlocking tabs is a unique size, ensuring the blade can only be

installed in the correct position.

2. Insert the Ice Cup Sleeve into the Detachable Ice Cup, then insert a prepared Ice Puck. Be

sure to insert the ice puck with the cross hatches facing upward.

3. Attach the Detachable Ice Cup to the bottom side of the main housing, rotating it to the left

to lock it in place.

NOTE: The small indicator arrow on the Detachable Ice Cup should line up with the Lock

and Unlock symbols on the main housing.

4. Release the top lever by gently rotating it to the right. The spring will engage as the Ice

Pusher clamps down on the ice puck. The Shave Ice Attachment is properly loaded and

ready to use.

SHAVING ICE

1. Place a serving dish of your choice beneath the Shave Ice Attachment. Do this before

starting the mixer.
