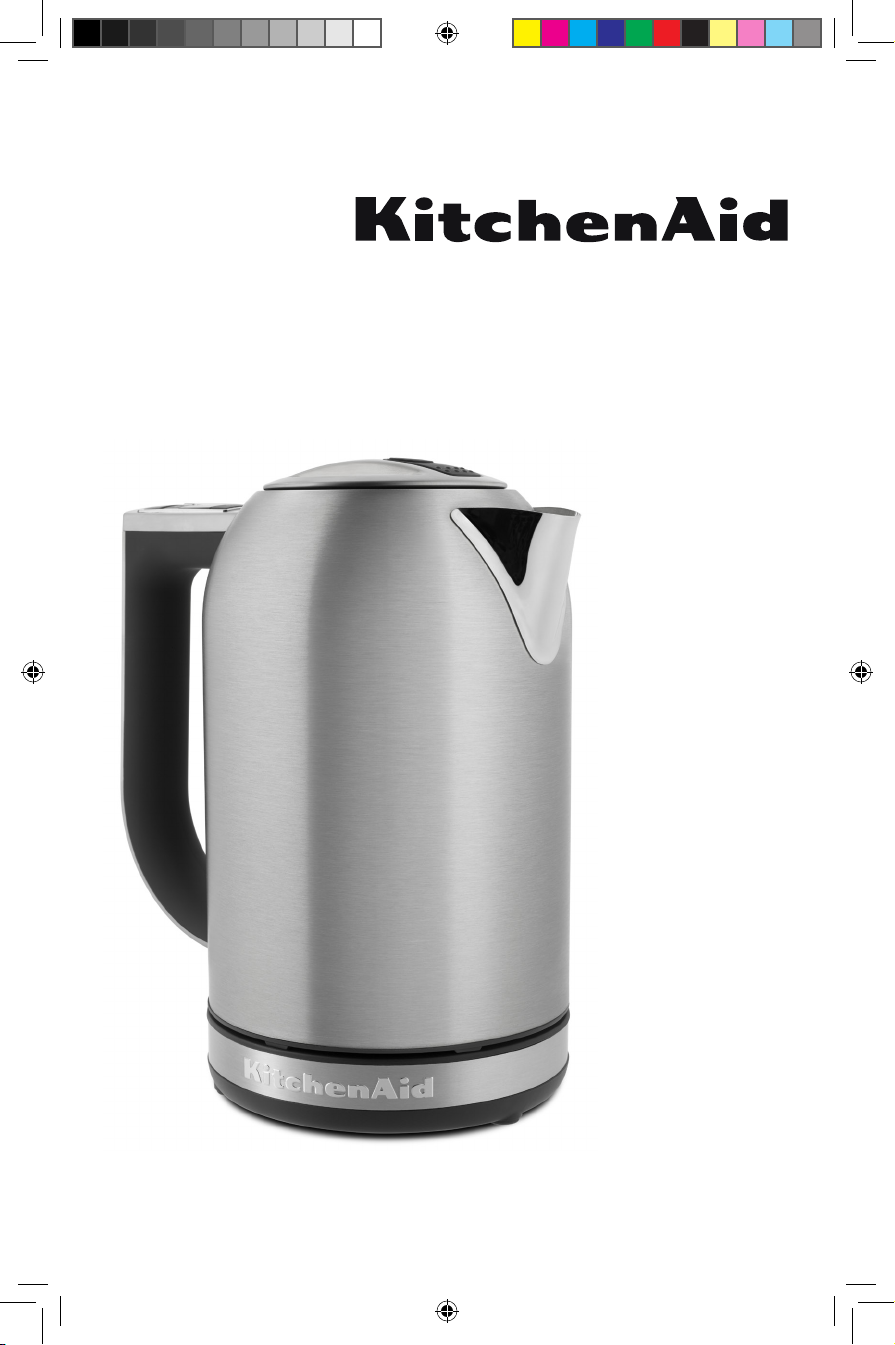

KitchenAid 5KEK1835A Manuale utente

5KEK1835A

W10597348C_EN.indd 1 12/18/2018 4:36:26 PM

2| PARTS AND FEATURES

PARTS AND FEATURES

PARTS AND ACCESSORIES

Water ﬁlter

1.7 L (7 cup)

Electric

Kettle

Underside of base

with power cord wrap

Water gauge

window

Lid release button Water ﬁll

location

Control panel

Base with power cord

W10597348C_EN.indd 2 12/18/2018 4:36:27 PM

ENGLISH

ELECTRIC KETTLE SAFETY | 3

ELECTRIC KETTLE SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety

precautions should always be followed, including the

following:

1. Read all instructions. Misuse of appliance may result

in personal injury.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against re, electric shock and injury to

persons do not immerse cord, plugs or appliance in

water or other liquid. Avoid spillage on the connector.

4. This appliance is not intended for use by persons

(including children) with reduced physical, sensory,

or mental capabilities, or lack of experience or

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

5. Children should be supervised to ensure that they do

not play with the appliance.

6. Close supervision is necessary when any appliance is

used by or near children.

W10597348C_EN.indd 3 12/18/2018 4:36:27 PM

4| ELECTRIC KETTLE SAFETY

ELECTRIC KETTLE SAFETY

7. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

8. Unplug Electric Kettle from outlet when not in use and

before cleaning. Allow to cool before putting on or

taking off parts, and before cleaning the appliance.

9. Do not operate any appliance with a damaged cord

or plug or after the appliance malfunctions, or has

been damaged in any manner. Return appliance to the

nearest Authorised Service Centre for examination,

repair, or adjustment.

10. Use of replacement parts not recommended by

manufacturer may result in re, shock, or injury to

persons.

11. Do not use outdoors.

12. Do not let cord hang over edge of table or counter, or

touch hot surfaces.

13. To disconnect, turn any control to “OFF”, then remove

plug from wall outlet.

14. Do not place on or near a hot gas or electric burner, or

in a heated oven.

15. The Electric Kettle should only be used to heat water.

16. Do not use Electric Kettle with loose or weakened

handle.

17. Do not use the appliance for other than intended use.

18. Do not clean Electric Kettle with abrasive cleaners,

steel wool, or other abrasive materials.

19. The Electric Kettle is only to be used with the stand

provided.

20. Do not overll kettle. If the kettle is overlled, boiling

water may be ejected.

21. The heating element surface is subject to residual heat

after use. Do not touch hot surface. Use handles.

22. Scalding may occur if the lid is removed during the

brewing cycles.

W10597348C_EN.indd 4 12/18/2018 4:36:27 PM

ENGLISH

ELECTRIC KETTLE SAFETY | 5

23. Refer to the “Care and Cleaning” section for

instructions on cleaning the surfaces in contact with

food.

24. This appliance is intended to be used in household and

similar applications such as:

- staff kitchen areas in shops, ofces or other working

environments;

- farmhouses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments.

25. The temperature of accessible surfaces may be high

when the appliance is operating.

26. CAUTION: Do not operate the kettle on an inclined

plane. Do not operate the kettle unless the element

is fully immersed. Do not move while the kettle is

switched on.

27. Visit www.KitchenAid.com.au or www.KitchenAid.co.nz

website to download this instruction manual.

SAVE THESE INSTRUCTIONS

ELECTRIC KETTLE SAFETY

W10597348C_EN.indd 5 12/18/2018 4:36:27 PM

6| ELECTRIC KETTLE SAFETY

BATTERY ACTIVATION (OPTIONAL)

ELECTRIC KETTLE SAFETY

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in death,

re, or electrical shock.

Volts: 220-240 V

Hertz: 50-60 Hz

Wattage: 2400 W

NOTE: If the plug does not ﬁt in the outlet,

contact a qualiﬁed electrician. Do not modify

the plug in any way.

Do not use an extension cord. If the power

supply cord is too short, have a qualiﬁed

electrician or service technician install an

outlet near the appliance.

A short power supply cord (or detachable

power supply cord) should be used to reduce

the risk resulting from becoming entangled in

or tripped over a longer cord.

NOTE: If batteries have been added and the Electric Kettle is off the base, the display

will show the current temperature of the water. Placing the Electric Kettle back on the

base will allow full functionality of the kettle to change the temperature, heat, and hold

temperature.

To provide power to the display when

the Electric Kettle is not on the base,

insert 2 AA batteries (not inlcuded) in

the battery housing on the underside of

the kettle.

W10597348C_EN.indd 6 12/18/2018 4:36:28 PM

ENGLISH

OPERATING THE ELECTRIC KETTLE | 7

BEFORE FIRST USEBEFORE FIRST USE

Open the lid of the Electric Kettle by

pressing the Lid Release Button.

Fill Electric Kettle. The water level is

displayed in .25 L increments. If there is

no water in the kettle, the water drop

icon will display and the alert tone will

sound for 6 seconds. Remove water if it

exceeds the “Max” line.

Push the lid down so it locks into the

closed position. You will hear a clicking

sound which indicates the lid is locked. 4

Place the Electric Kettle on the base.

OPERATING THE ELECTRIC KETTLE

Before ﬁrst use, ﬁll the Electric Kettle to the maximum level, then boil and discard the water.

The temperature can be displayed in Celsius (C) or Fahrenheit (F). To change setting, hold

the “-” and “+” buttons down at the same time.

NOTE: The Electric Kettle is designed for water only. Do not put any other liquids or

substances in the Electric Kettle.

FILLING THE ELECTRIC KETTLE WITH WATER

NOTE: There must be a minimum of .25 L of water for Electric Kettle to operate. Do

not exceed the “Max” fill line.

W10597348C_EN.indd 7 12/18/2018 4:36:30 PM

8| OPERATING THE ELECTRIC KETTLE

HEATING WATER

°C °F

50 122

55 131

60 140

65 149

70 158

75 167

80 176

85 185

90 194

95 203

100 212

Place the Electric Kettle on the base.

The display will show the default

temperature (100° C). Press the “+” or

“-” buttons to select your desired water

temperature. See the “Temperature

guide” for more information.

The Electric Kettle has eleven programmed

temperature settings.

OPERATING THE ELECTRIC KETTLE

Once the desired temperature has been

reached, three beeps will sound and the

word “Off” will show in the top corner

of the display.

If batteries have been added and the Electric

Kettle is off the base, push any button to

display the current temperature, and the

battery icon will display the battery charge

level.

NOTE: The temperature will blink 5 times and return to standby after 5 seconds. This

will continue until after the water temperature reduces below the desired temperature.

Press the start/cancel button to save

temperature and to begin heating the

water. “On” will be displayed on the

screen to indicate the Electric Kettle

is heating. The “Start/Cancel” button

does not function when the Electric

Kettle is off the base.

Once the water reaches 50° C, the

current temperature will show on the

main display, and continue heating until

the desired temperature is reached.

W10597348C_EN.indd 8 12/18/2018 4:36:32 PM

ENGLISH

OPERATING THE ELECTRIC KETTLE | 9

TEMPERATURE GUIDE

USING THE HOLD TEMP MODE

OPERATING THE ELECTRIC KETTLE

Use this guide for outstanding results from your KitchenAid Electric Kettle.

60° C 70° C 80° C 90° C 100° C

Delicate Tea Green Tea

Gyokuro

Sencha

Blooming Tea Black Tea

Earl Grey

English Breakfast

Boil Water

White Tea

Silver Needle

Chai

Green

White

Hot Chocolate Chai

Red

Green Tea

Bencha

Genmaicha

Oolong Tea Herbal Tea

Tisanes

Instant Soup

Oatmeal

Rooibos Tea

Yerba Maté

To activate the Hold Temp mode, leave

the Electric Kettle on the base after

reaching the selected temperature and

press the “Hold Temp” button. The

Electric Kettle will maintain the desired

temperature for up to 30 minutes.

The Hold Temp mode may be canceled

by pressing the Start/Cancel button.

NOTE: Hold Temp mode works for all temperatures. When using Hold Temp mode at

100° C, mode will activate at 92° C and 100° C depending on altitude.

W10597348C_EN.indd 9 12/18/2018 4:36:33 PM

10 | CARE AND CLEANING

TURNING OFF THE ELECTRIC KETTLE

CLEANING THE EXTERIOR

OPERATING THE ELECTRIC KETTLE

Press Start/Cancel while in heating

mode. Unplug cord when Electric Kettle

is not is use. 2

Press Start/Cancel while in Keep Warm

mode. Unplug cord when Electric Kettle

is not is use.

The Electric Kettle can be turned off in several ways:

IMPORTANT: Before cleaning, always disconnect the Electric Kettle from the electrical

outlet. Make sure the Electric Kettle has cooled completely.

The exterior of the Electric Kettle may

be cleaned with a damp cloth. Dry and

polish the Electric Kettle with a soft

cloth. Abrasives and scouring agents of

any kind are not recommended.

CARE AND CLEANING

W10597348C_EN.indd 10 12/18/2018 4:36:33 PM
