BUILT-IN MICROWAVE OVEN

INSTALLATION INSTRUCTIONS

24" (61.0 cm), 27" (68.6 cm), 30" (76.2 cm)

This product is suitable for use above electric or gas built-in ovens, and below non-vented electric or gas cooktops. This product is not

suitable for use below downdraft cooktops.

These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustrations in

these Installation Instructions.

Table of Contents

BUILT-IN MICROWAVEOVENSAFETY..........................................1

INSTALLATIONREQUIREMENTS...................................................2

Tools and PaCes...............................................................................2

Location Requirements...................................................................2

Minimum Dimensions.....................................................................3

Product Dimensions.......................................................................4

ElectricalRequirements..................................................................5

INSTALLATIONINSTRUCTIONS .....................................................6

Installthe Microwave Oven

(24"[61.0cm] InstallationOnly)......................................................6

Installthe Microwave Oven

(27"[68.6cm] or 30" [76.2cm] InstallationOnly)...........................7

Complete Installation......................................................................8

ASSISTANCE.....................................................................................8

BUILT-IN MICROWAVE OVEN SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

W10111676

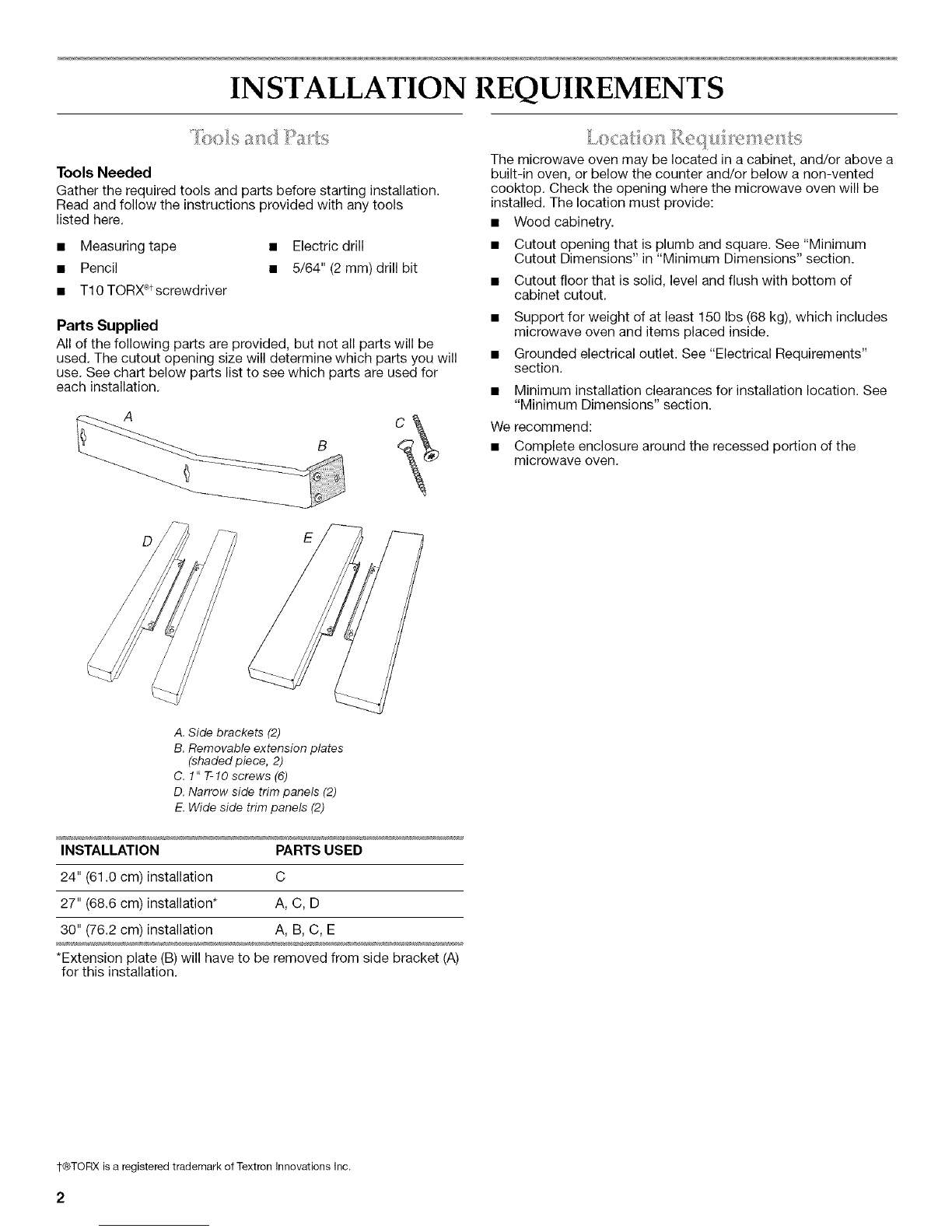

INSTALLATION REQUIREMENTS

Tools Needed

Gather the required tools and parts before starting installation.

Read and follow the instructions 3rovided with any tools

listed here.

• Measuring tape • Electric drill

• Pencil • 5/64" (2 mm) drill bit

• T10 TORX ®tscrewdriver

Parts Supplied

All of the following parts are provided, but not all parts will be

used. The cutout opening size will determine which parts you will

use. See chart below parts list to see which parts are used for

each installation.

The microwave oven may be located in a cabinet, and/or above a

built-in oven, or below the counter and/or below a non-vented

cooktop. Check the opening where the microwave oven will be

installed. The location must provide:

• Wood cabinetry.

• Cutout opening that is plumb and square. See "Minimum

Cutout Dimensions" in "Minimum Dimensions" section.

• Cutout floor that is solid, level and flush with bottom of

cabinet cutout.

• Support for weight of at least 150 Ibs (68 kg), which includes

microwave oven and items placed inside.

• Grounded electrical outlet. See "Electrical Requirements"

section.

• Minimum installation clearances for installation location. See

"Minimum Dimensions" section.

We recommend:

• Complete enclosure around the recessed portion of the

microwave oven.

D E

A. Side brackets (2)

B. Removable extension plates

(shaded piece, 2)

C. 1" T-lO screws (6)

D. Narrow side trim panels (2)

E. Wide side trim panels (2)

INSTALLATION PARTS USED

24" (61.0 cm) installation C

27" (68.6 cm) installation* A, C, D

30" (76.2 cm) installation A, B, C, E

*Extension plate (B) will have to be removed from side bracket (A)

for this installation.

1-®TORX is a registered trademark of Textron Innovations Inc.

5/( simuc_s, _}i_s_i_,essliess

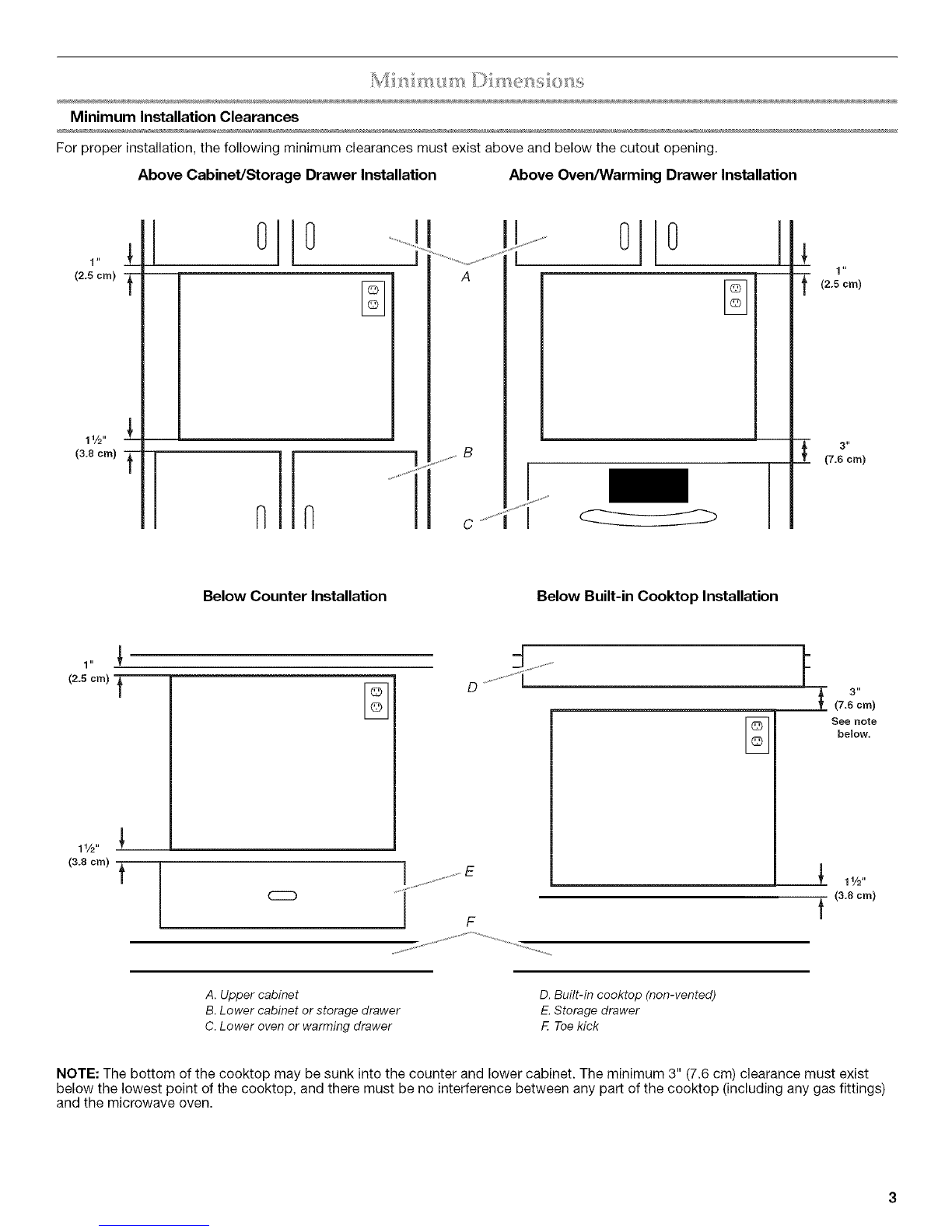

Minimum Installation Clearances

For proper installation, the following minimum clearances must exist above and below the cutout opening,

Above Cabinet/Storage Drawer Installation Above Oven/Warming Drawer Installation

1 "

(2.5era)

11/2"

(3.8 cm) !_

....j,, B

0 O

t(2.5 cm)

3I,

(7.6 cm)

Below Counter Installation Below Built-in Cooktop Installation

(2.8o__ _ _....................i..... 3"

(7.6 cm)

See note

below.

11/2"

(3.8 cm) t

CCC3 I ..................E_' _w'

....i" Ft (3.8cm)

A. Upper cabinet

B. Lower cabinet or storage drawer

C. Lower oven or warming drawer

D. Built-in cooktop (non-vented)

E.Storage drawer

F. Toe kick

NOTE: The bottom of the cooktop may be sunk into the counter and lower cabinet. The minimum 3" (7.6 cm) clearance must exist

below the lowest point of the cooktop, and there must be no interference between any part of the cooktop (including any gas fittings)

and the microwave oven.

Minimum Cutout Dimensions

NOTE: Depth dimension may be 213/4'' (55.2 cm) with non-flush

receptacle only if the receptacle is located in upper right or upper

left corner. See "Cutout Top View."

213/4" (55.2 cm)* _'__

261/4" (66.7 cm)** J q J Jl/ /1_

1 j

17%") 1 53/4"(5 4 : == I

*With flush receptacle, or with non-flush receptacle located in

upper right or upper left corner of cutout.

**With non-flush receptacle.

DIM. 24" (61.0 CM) 27" (68.6 CM) 30" (76.2 CM)

INSTALLATION INSTALLATION INSTALLATION

Width 22V4"(56.5 cm) 253/4'' (65.4 cm) Min. 25%"

+ 3/16" (4.8 mm) + 3/16" (4.8 mm) (65.4 cm)

Max. 283/4''

(73.0 cm)

Height 17%" (44.8 cm) for all installations

Depth 21%" (55.2 cm) with flush receptacle, or with non-flush

receptacle located in far corner;

26V4"(66.7 cm) with non-flush receptacle

Cutout Top View

A B C D

"=......... "[" "T .................... "=

A. Microwave oven

B. Non-flush receptacle

C. Flush receptacle

D. Non-flush receptacle located in upper right

or upper left corner

(45.7

*Measurements include front facing of microwave oven. Depth

measurement also includes door handle.

Electrical Shock Hazard

Plug into agrounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

[] A 120 Volt, 60 Hz, AC only, 15- or 20-amp electrical supply

with a fuse or circuit breaker.

Recommended:

[] A time-delay fuse or time-delay circuit breaker.

[] A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

[] For all cord connected appliances:

The microwave oven must be grounded. In the event of

an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric

current. The microwave oven is equipped with a cord

having a grounding wire with a grounding plug. The plug

must be plugged into an outlet that is properly installed

and grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified

electrician or serviceman if the grounding instructions are

not completely understood, or if doubt exists as to whether

the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is

too short, have a qualified electrician or serviceman install

an outlet near the microwave oven.

SAVE THESE iNSTRUCTiONS

INSTALLATION INSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install

microwave oven.

Failure to do so can result in back or other injury.

NOTE: For this microwave oven, the door handle may be used for

lifting. Do not use any other portion of the control panel, side

brackets, front frame or trim for lifting.

1. Empty microwave oven of any loose items.

2. Using 2 or more people, slide the microwave oven all the way

into the opening.

3. Center the microwave oven within the opening. Open the

microwave oven door.

Electrical Shock Hazard

Plug into a grounded 3prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,

fire, or electrical shock.

B............

7. With the microwave oven near the opening, plug the

microwave oven into the grounded 3-prong outlet.

8. Replace microwave oven in cutout opening.

g. Open the microwave oven door. The holes in the door facing

frame should align with the holes just drilled into the cabinet.

Fasten the microwave oven door facing to the cabinet using

four 1" T-10 screws.

10. Proceed to "Complete Installation" section.

A,Microwave oven door facingframe

B.Cabinet

C. 1" T-lO screws (4)

4. Mark 4 holes (2 on each side) in the door facing frame of the

microwave oven,

5. To avoid damage to the frame while drilling during the next

step, close the door and remove the microwave oven,

6. Drill the 4 holes using 5/64" (2 mm) drill,

"__ _"_ " "......1 '_C_l_ _ .... I ° _ _........

tl}_ ' 68_,> (};',:_J _,_ ::tl, ,) * y}

Excessive Weight Hazard

Use two or more people to move and install

microwave oven.

Failure to do so can result in back or other injury.

1. Empty microwave oven of any loose contents.

2. For 30" installation, skip this step.

For 27" installation, remove the extension plate from each of

the side brackets by removing the 2 screws,

3. Loosen the middle and rear screws on each side of microwave

oven, The screws are located at the same height as the door

handle.

4. Place the side bracket over the 2 screws, fitting the screw

heads through the keyholes on the bracket. Then slide the

side bracket down so that the upper portions of the keyholes

rest on the screws.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,

fire, or electrical shock.

7. With the microwave oven near the opening, plug the

microwave oven into the grounded 3 prong outlet.

8. Using 2 or more people, slide microwave oven all the way into

the opening, and center the microwave oven within the

opening.

NOTE: The screw holes on the winged ends of both side brackets

(or extension plates for 30" installation) must be fully over the

wood of the wall or cabinet, as shown.

A. Side bracket

B. Existing screws (middle and rear)

C. Proper side bracket attachment

5. Tighten screws to secure the side bracket to the microwave

oven.

6. Repeat steps 4 and 5 on the other side of the microwave

oven.

A. Door front facing

B. Screw hole for cabinet attachment

C. Cabinet front

9. Using 5/64" (2 mm) drill, drill pilot holes into the cabinet

through the screw holes on the side brackets (or extension

plates for 30" installation).

10. Install two 1" T-10 screws in the pilot holes to secure the

microwave oven in place.

NOTE: To ensure proper side trim panel fitting, do not overtighten

screws.

11. Open microwave oven door.

12.Positionthetabularportionofthesidetrimpanelbehindthe

doorfacingframe,thenfirmlypushtheoutsideedgeofthe

trimbehindthesidebracket,asshown.

Exploded View of Panel Placement

A B

A. Door facing frame

B. Side bracket

C. Side trim panel in place

13. Attach the side trim panel to the door facing frame using two

1" T-10 screws.

Install the turntable in the microwave oven.

Check the operation of microwave oven by placing 1 cup

(250 mL) of water on the turntable and programming cook

time of I minute at 100% power`

If the microwave oven does not operate:

• Check that a household fuse has not blown, or a circuit

breaker tripped. Replace the fuse or reset the circuit

breaker. If the problem continues, call an electrician.

• Check that the power supply cord is plugged into a

grounded 3 prong outlet.

• See the Use and Care Guide for troubleshooting

information.

Installation is now complete.

Save these Installation Instructions for future use

ASSISTANCE

Call your authorized dealer or service center. When you call, you

will need the microwave oven model number and serial number.

Both numbers can be found on the model and serial number

plate, which is located behind the microwave oven door on the

front frame of the microwave oven.

If you need additional assistance, call us at our toll free number or

visit our website listed in the Use and Care Guide.

B........ ill¸¸

-%./;/"

C............................................................................................................

A. Door facing frame

B. Trim panel

C. 1" T-IO screws (4)

14. Repeat steps 12 and 13 on other side.

W10111676

461969458071

11/06

Printed in Sweden

Questo manuale è adatto per i seguenti modelli

Altri manuali KitchenAid Forno a microonde

KitchenAid

KitchenAid KHHC2090SBL - Architect 2.0 Cu Ft Microwave... Manuale utente

KitchenAid

KitchenAid KMBS104 Manuale utente

KitchenAid

KitchenAid KMHC319ESS Manuale utente

KitchenAid

KitchenAid KCMS2055SSS - Architect Series II Manuale utente

KitchenAid

KitchenAid KBHV109 Manuale utente

KitchenAid

KitchenAid Electric Built-In Microwave/Oven Combination Manuale utente

KitchenAid

KitchenAid KHHC2090SSS - Architect II 2.0 cu. ft. 1200... Manuale utente

KitchenAid

KitchenAid KMHC319 Manuale utente

KitchenAid

KitchenAid KCMS1655BWH Manuale d'uso e manutenzione

KitchenAid

KitchenAid KHMS2056SBL0 Manuale utente

KitchenAid

KitchenAid KCMC155J Istruzioni utente

KitchenAid

KitchenAid YKHMS1850S Manuale utente

KitchenAid

KitchenAid MT4110RP Manuale utente

KitchenAid

KitchenAid YKMHC319EBS4 Manuale utente

KitchenAid

KitchenAid KHMS155LSS Manuale utente

KitchenAid

KitchenAid KBHS109B Manuale elenco delle parti

KitchenAid

KitchenAid KMCS324P Manuale utente

KitchenAid

KitchenAid KHHS179LBT1 Manuale utente

KitchenAid

KitchenAid KCMS2255 Manuale utente

KitchenAid

KitchenAid YKCMS1555R Manuale utente

KitchenAid

KitchenAid KHMS1850SWH1 Manuale utente

KitchenAid

KitchenAid KBMC140, KBMC147, KEMC308, KEM Manuale utente

KitchenAid

KitchenAid KEMS309BSP Manuale utente

KitchenAid

KitchenAid KMCC5015GBS Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente

Impecca

Impecca CM07M2 Manuale utente
