KitchenAid KBMS1454SBL0 Manuale utente

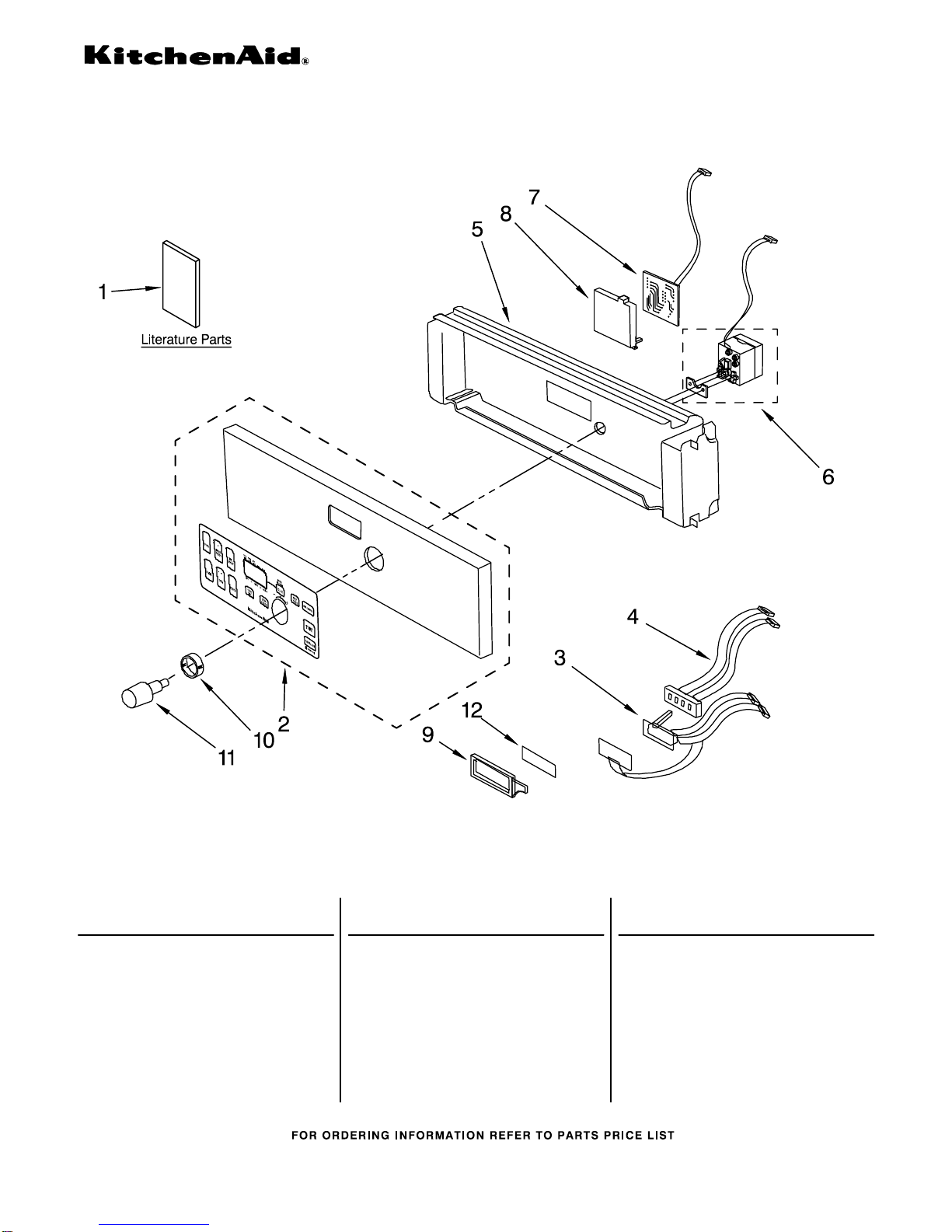

CONTROL PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

BUILT−IN MICROWAVE

3−09 Litho in U.S.A. (rek) (psw) Part No. W10141727 Rev. C

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10111676

Installation

Instructions

8205301 Use & Care Guide

W10141643

Cook Guide Label

8205302 Guide−Quick

Reference

8205304 Tech Sheet

2 Panel, Control

W10141639

Black

W10141638

White

W10141640

Biscuit

W10141637

Stainless

W10203481

Touch, Foil

W10124269

Board, Display

5 8205722 Support, Control

Panel

6 8205662 Board, Selector

7 8206313 Board, Interface

8 8205739 Holder, Control

Board

9 8205657 Holder, Display

Board

W10170864

Ring, Knob

W10170865

Knob

W10141641

Window (Display

Filter)

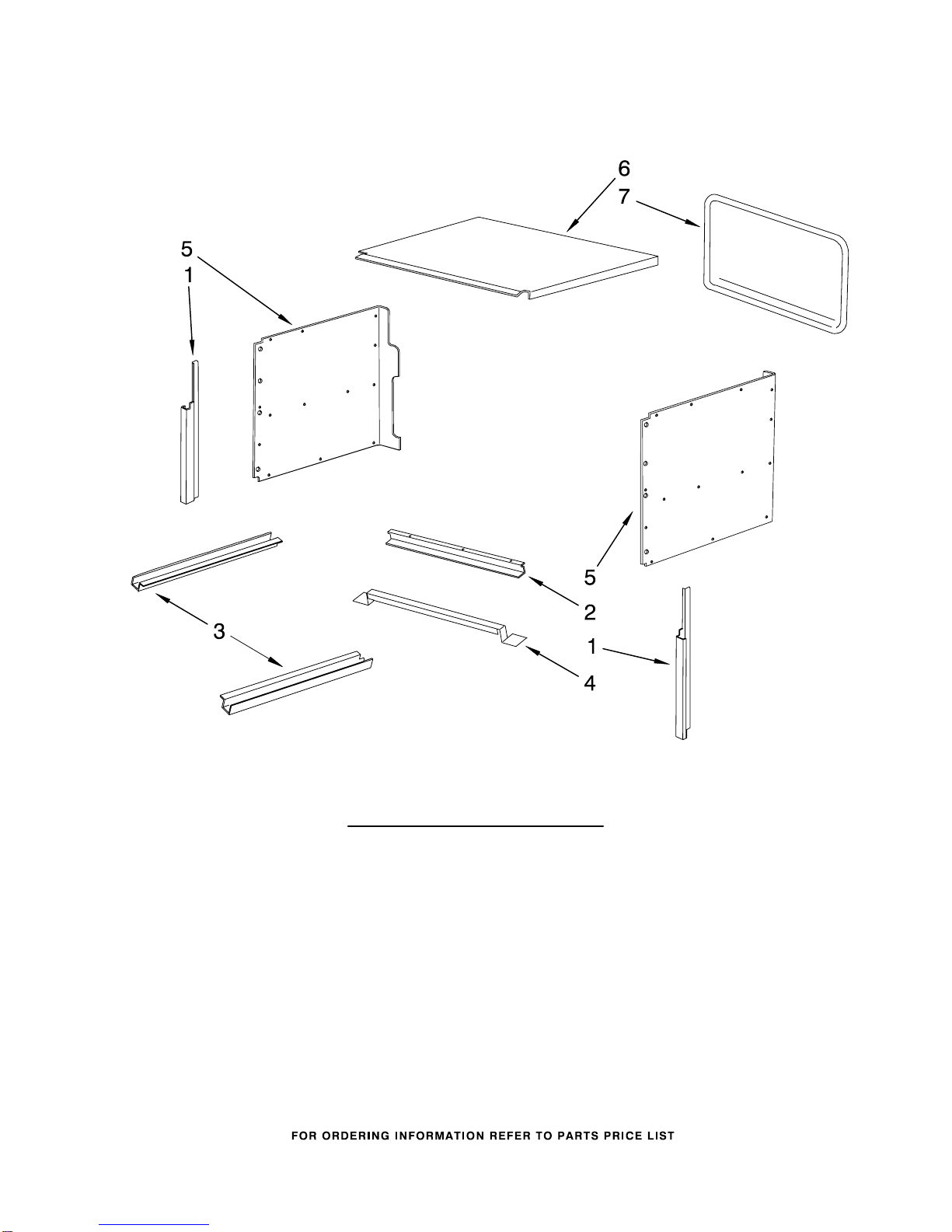

CABINET PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

W10141727

Illus. Part

No. No. DESCRIPTION

1 Trim, Side

8205715 RH Black

8205718 RH White

8205717 RH Biscuit

8205716 RH Stainless

8205712 LH Black

8205711 LH White

8205714 LH Biscuit

8205713 LH Stainless

2 8205720 Trim, Bottom

3 8205707 Support, Bottom

4 8205708 Bracket, Bottom

5 Chassis, Side

8205674 Left

8205680 Right

6 8205709 Top Plate

7 8205710 Back, Cover

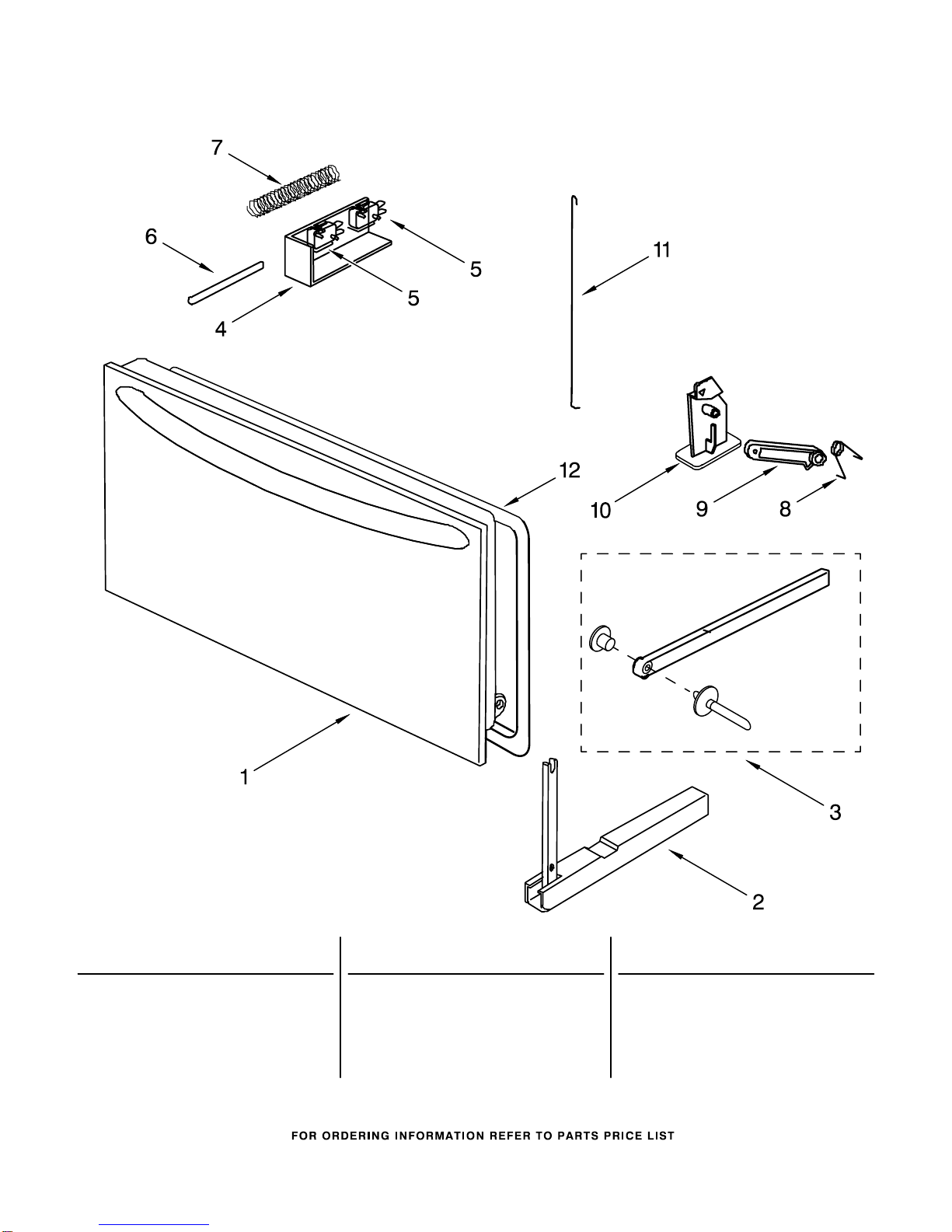

DOOR PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

W10141727

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door Assembly

W10141646

Black

W10141644

White

W10141647

Biscuit

W10141649

Stainless

2 8205733 Hinge Assembly (2)

3 8205687 Sliding Arm Assy

4 8205683 Switch Holder (2)

5 4375346 Switch (3)

6 8205684 Push−Rod (2)

7 8205685 Spring Cam

8 8205689 Spring

W10128850

Lift Arm & Spring

10 8205686 Support

11 8205704 Spring, Torsion

12 8205789 Gasket

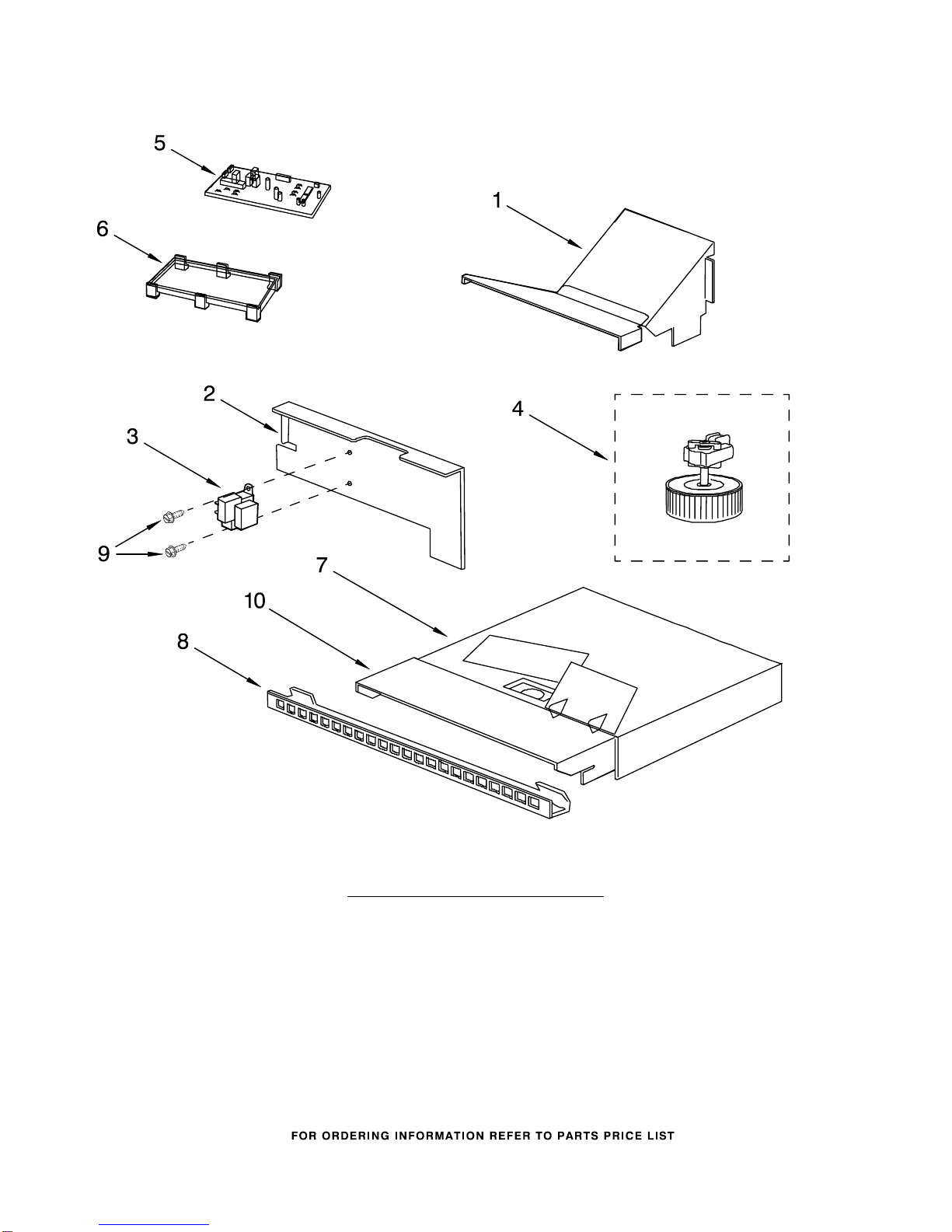

TOP VENTING PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

W10141727

Illus. Part

No. No. DESCRIPTION

W10141633

Air Duct

2 8205740 Air Guide

3 8205692 Transformer, Lamp

4 8205721 Motor, Fan Assy

5 8206312 Control,

Electronic

6 8205669 Holder, Control

7 8205705 Top Chassis

8 8205719 Vent, Control

Panel

9 4357202 Screw

W10141634

Cover−Plate

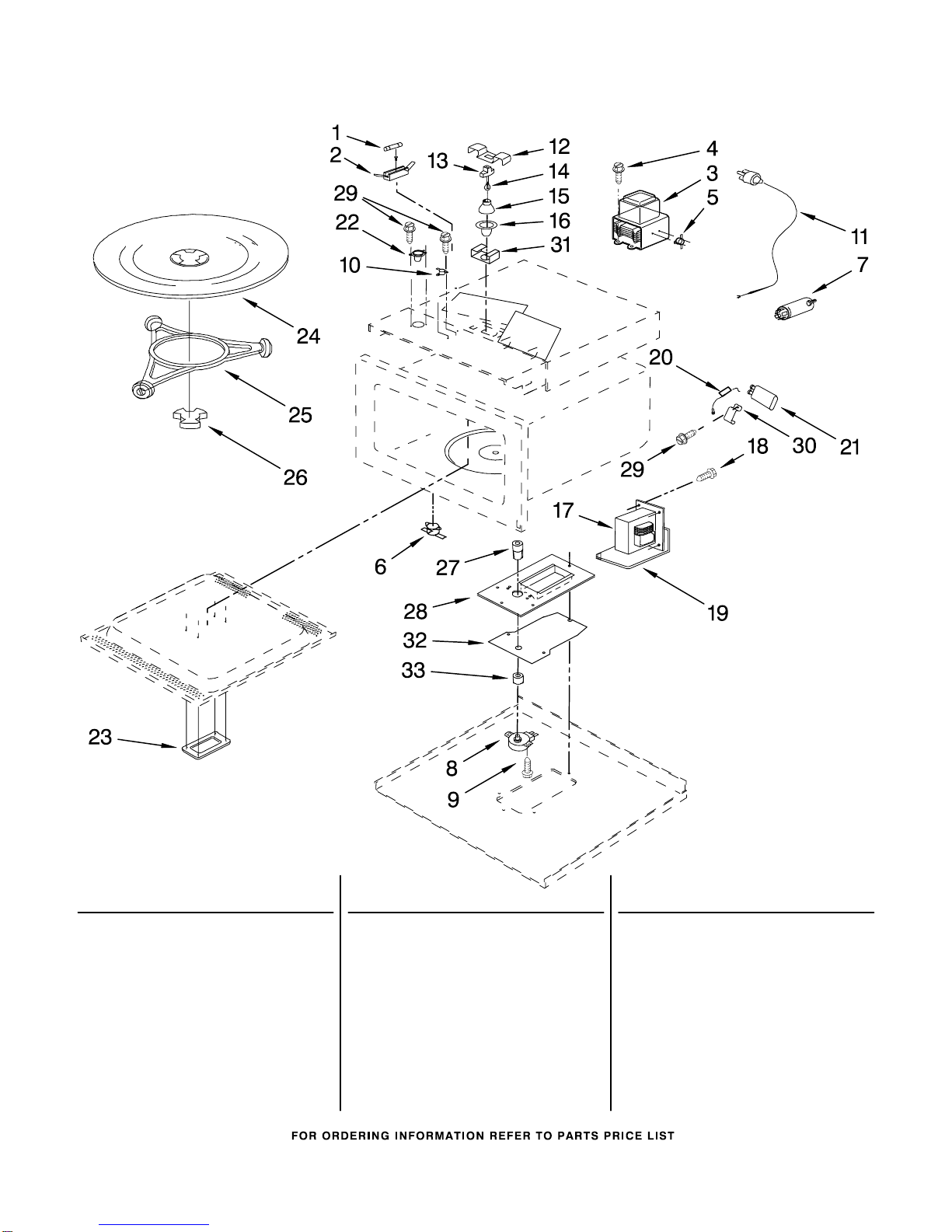

OVEN INTERIOR PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

W10141727

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375321 Fuse

2 4375231 Fuse Holder

3 8205650 Magnetron

4 8205651 Screw

5 8205652 Thermostat

W10141630

Thermostat

7 8205653 Mains Filter

8 8205655 Turntable Motor

9 8205656 Screw

10 8205659 Thermostat, Cavity

11 8205660 Power cord

12 8205679 Spring,

Lamp Holder

13 8205658 Socket, Lamp

14 4375348 Lamp

15 4375320 Reflector

16 4375318 Lens, Lamp

17 8205671 Transformer

18 8205672 Screw

19 8205673 Reducer, Humidity

20 4375349 H.V. Diode

W10141631

H.V. Capacitor

22 8205690 Sensor, Humidity

23 8205675 Cover, Inlet

24 8205676 Turntable, Glass

25 8205538 Ring, Turntable

26 8205539 Driver, Turntable

27 8205682 Shaft, Turntable

28 8205681 Holder, Motor

29 4375202 Screw

30 8205788 Holder, Capacitor

W10120231

Clip, Spring

W10120234

Cover, Motor

33 4375252 Gasket, Shaft

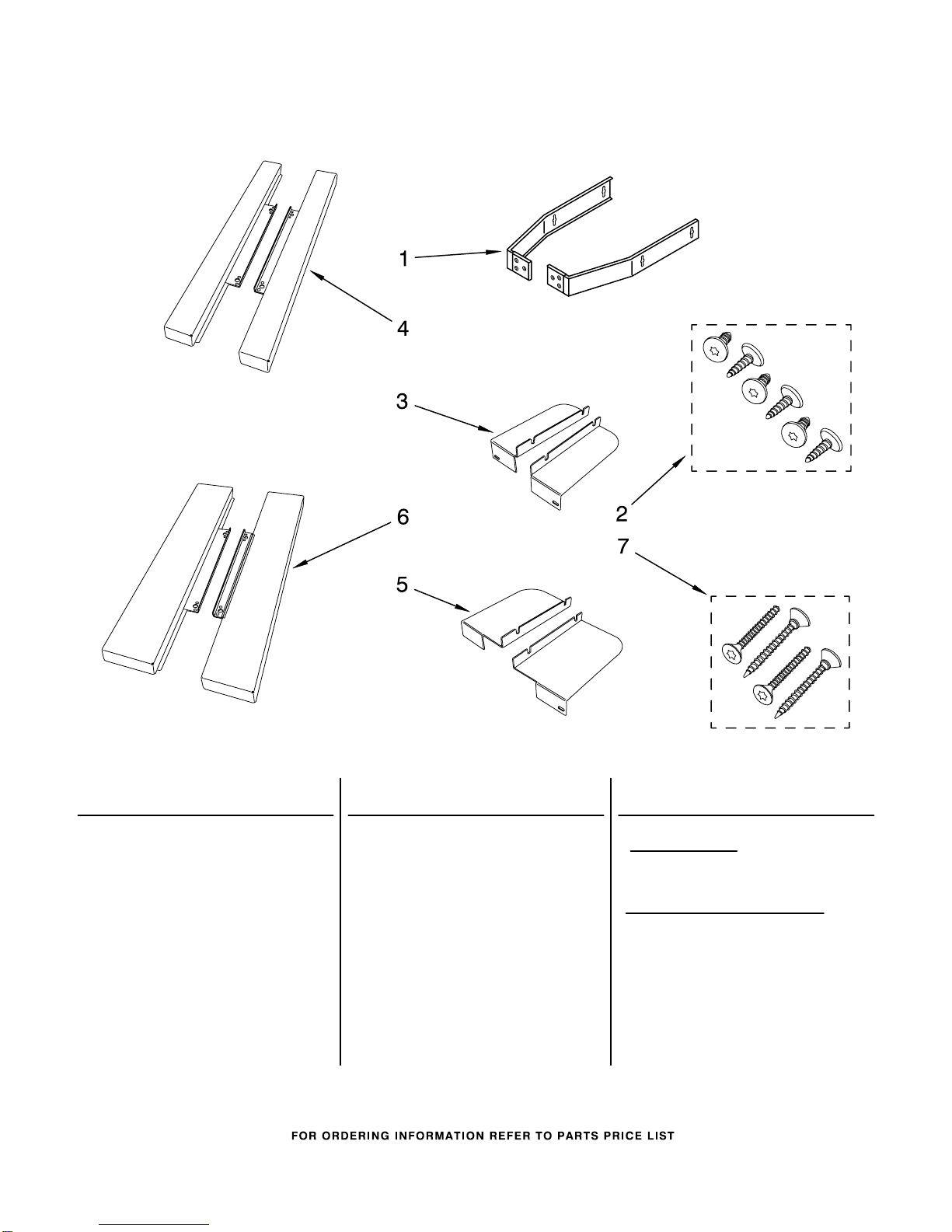

INSTALLATION PARTS

For Models: KBMS1454SBL0, KBMS1454SWH0, KBMS1454SBT0, KBMS1454SSS0

(BLACK) (WHITE) (BISCUIT) (STAINLESS)

W10141727

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10170866

Bracket, Mounting

2 8205755 6 pk. screws

3 Narrow Bracket

8205756 27" Left

8205757 27" Right

4 Narrow Trim

W10170867

27" White

W10170869

27" Black

W10170871

27" Biscuit

W10170873

27" Stainless

5 Wide Bracket

8205762 30" Left

8205763 30" Right

6 Wide Trim

W10170868

30" White

W10170870

30" Black

W10170872

30" Biscuit

W10170874

30" Stainless

7 4 pk. screws

8205768 White

8205769 Black

8205770 Biscuit

8205771 Stainless

Miscellaneous

W10141642

Mounting Kit

WIRING HARNESS PARTS

8205748 Harness, Main

8205749 Harness, Sensor

8205750 Harness, Lamp

8205751 Harness, Fan &

Turntable Motor

8205752 Cable, UI Board

Selector Board

8205753 Cable, UI Board

To Elec. Control
