KitchenAid KCMS1555SBL0 Manuale utente

DOOR PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

10−07 Litho IN U.S.A. (rek) Part No. W10169317 Rev. A

MICROWAVE OVEN

1.5 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

W10165700

Use & Care Guide

W10114101

Cook Guide Label

W10169262

Tech Sheet

8205554 Instructions,

Installation

(For Trim Kit)

W10169263

Front Screen

3 Frame Assembly

(Non−Serviceable)

W10169266

Choke Cover

W10169264

Tape,Seal

6 8184263 Latch

7 8171918 Spring, Latch

8 Panel, Door

W10169268

White

W10169301

Black

W10169314

Stainless

9 8184265 Cap, Choke Cover

10 Door Assembly

W10169267

White

W10169300

Black

W10169312

Stainless

CONTROL PANEL PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

W10169317

Illus. Part

No. No. DESCRIPTION

1 4358381 Screw

2 Release Button

W10169271

White

W10169304

Black

W10169315

Stainless

3 8184272 Spring, Button

4 Membrane

W10169269

White

W10169302

Black

5 8205816 Control Panel

W10169270

White

W10169303

Black

W10169316

Stainless

W10169272

Microcomputer

7 8205451 Lever, Release

OVEN CAVITY PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

W10169317

Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

2 Outer Case

8205453 White

8205801 Black

8205818 Stainless

W10143945

Tray, Glass

W10143947

Shaft, Turntable

W10143946

Ring, Rotating

W10169273

Motor, Synchronous

7 4358188 Screw

8 4358362 Screw

9 8171862 Screw

10 8183514 Sensor, Humidity

11 8205457 Guide, Sensor

12 4358376 Screw

13 4358192 Screw

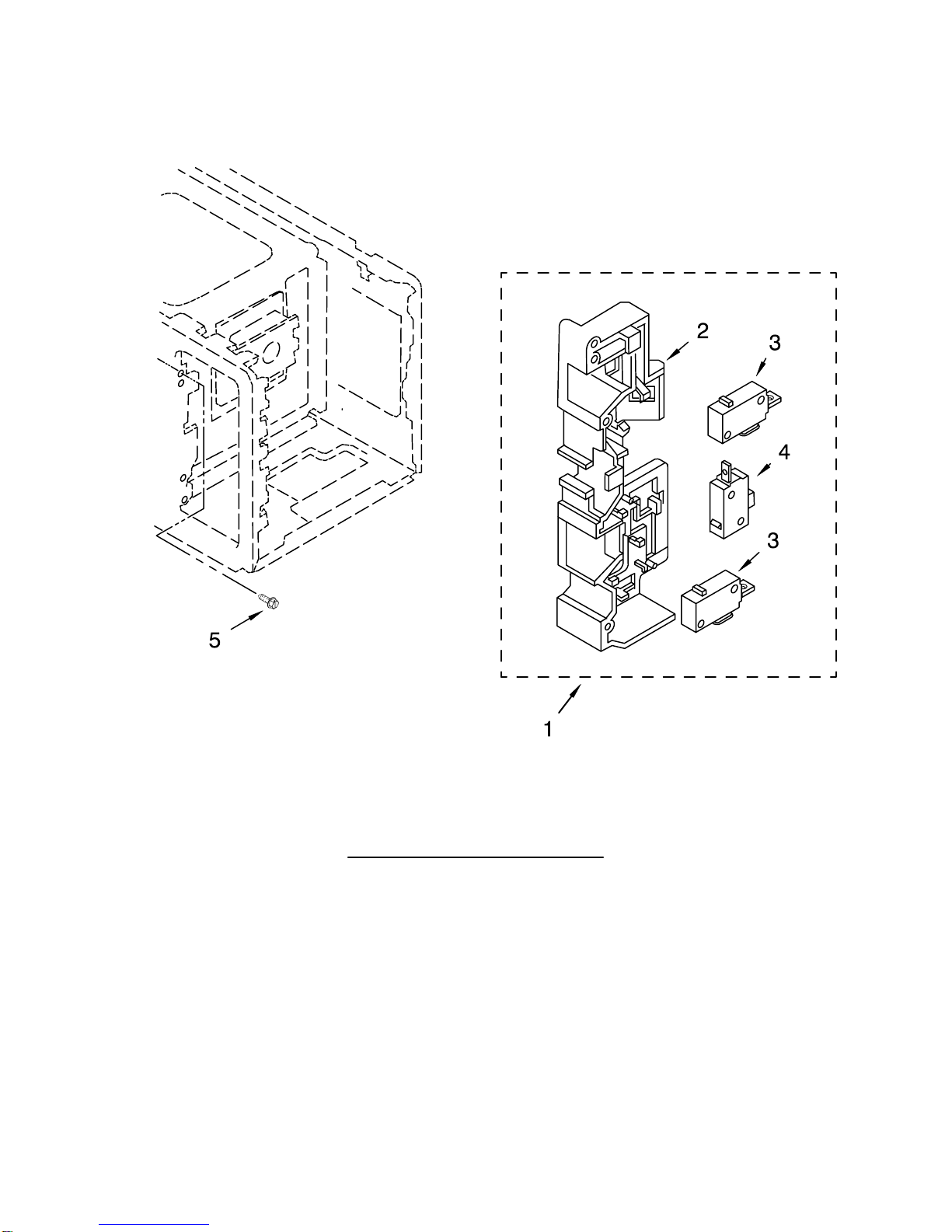

LATCH BOARD PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

W10169317

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8183561 Switch Micro

Primary/Secondary

4 8183562 Switch, Micro

Monitor

5 4358271 Screw

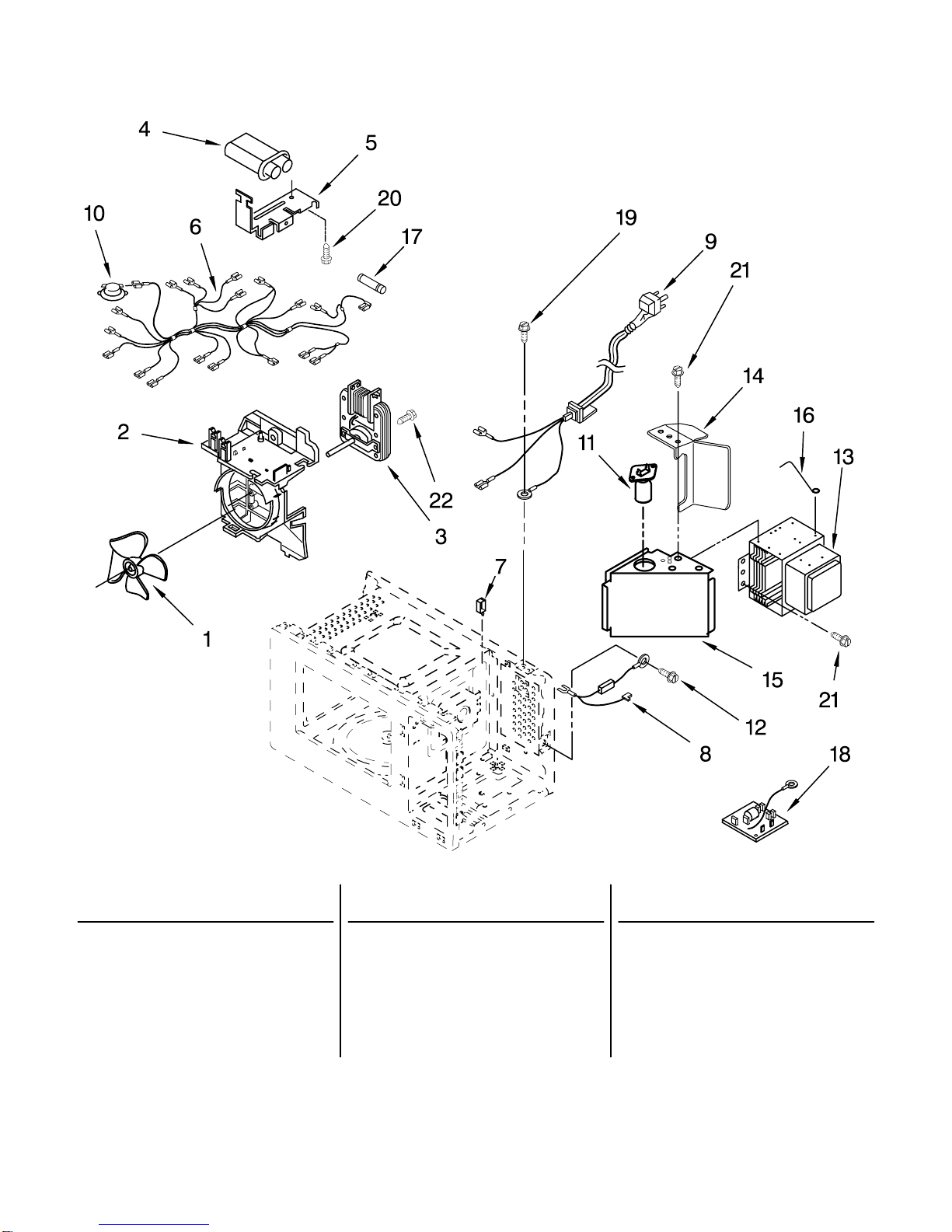

OVEN INTERIOR PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

W10169317

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Blade, Fan

W10169274

Guide, Suction

3 8205462 Motor, Fan

4 8184813 H.V. Capacitor

5 8184288 H.V.C Bracket

W10169276

Leadwire Assembly

7 4359794 Holder, Wire

W10160548

H.V. Diode Cable

9 8206281 Power Cord

W10169277

Thermostat

11 8171810 Lamp, Baseless

W10160553

Screw

13 8205460 Magnetron

14 8205509 Bracket

15 8204900 Duct, Air

16 8184290 Bracket, Support

17 8183507 Fuse

18 8206270 Filter, Noise

19 8204902 Screw

20 4358381 Screw

21 4358489 Screw

22 4358190 Screw

BASE PLATE PARTS

For Models: KCMS1555SWH0, KCMS1555SBL0, KCMS1555SSS0

(White) (Black) (Stainless Steel)

W10169317

Illus. Part

No. No. DESCRIPTION

1 8205464 Base Plate

2 8184385 Leg

W10169275

Transformer

4 4358192 Screw

5 4358489 Screw

ACCESSORY PARTS

Trim Kits

MK1154XPQ

24" White

MK1154XPB

24" Black

MK1154XPS

24" Stainless

MK1157XPQ

27" White

MK1157XPB

27" Black

MK1157XPS

27" Stainless

MK1150XPQ

30" White

MK1150XPB

30" Black

MK1150XPS

30" Stainless

8172131 Hardware Pack

(Incl in Trim Kit)
