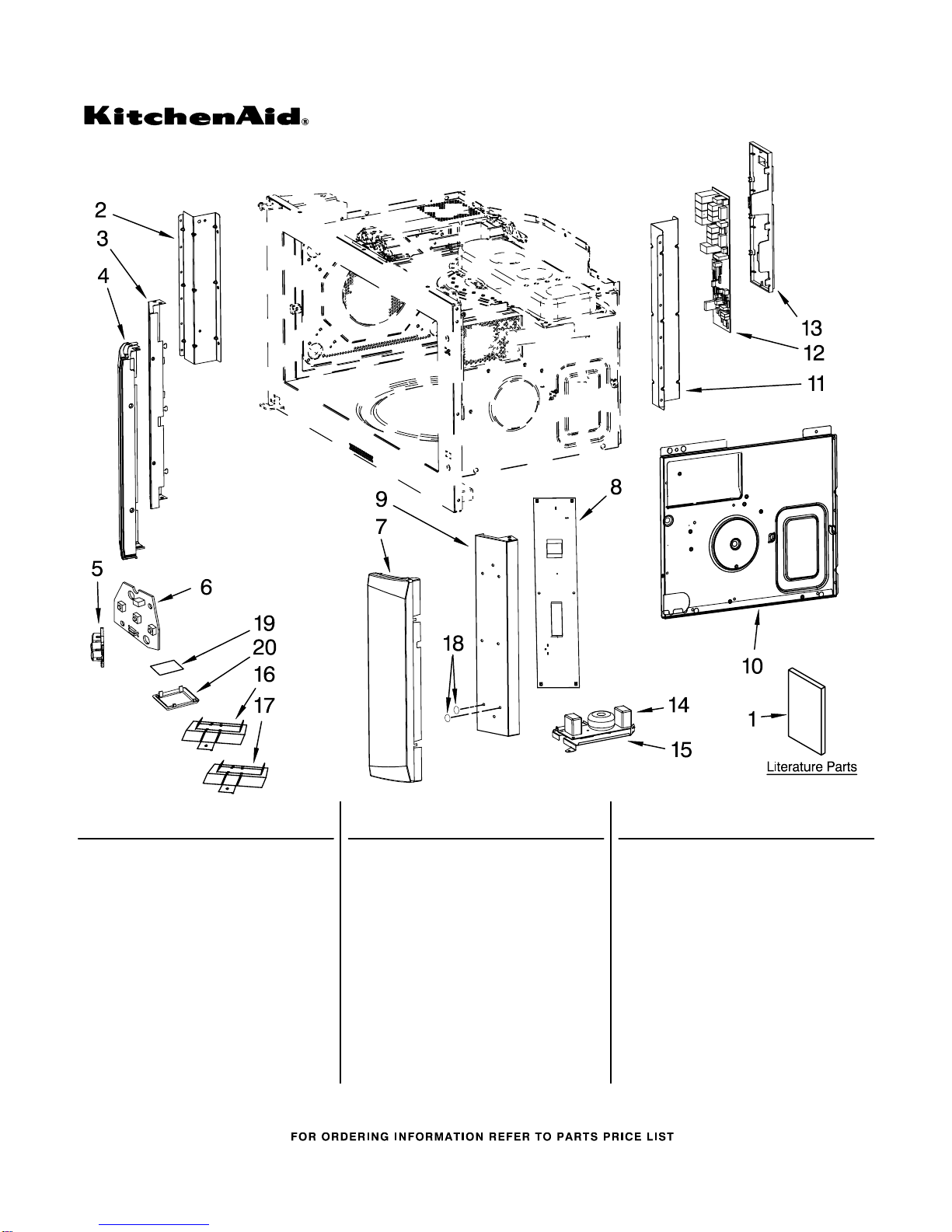

CONTROL BOARD PARTS
1
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
12−07 Litho In U.S.A. (rk) Part No. 8188450
MICROWAVE
HOOD
COMBINATION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8205291 Use & Care Guide
8205293 Tech Sheet
8205743 Quick Reference
2 8206039 Support, Cavity
(Left)
3 8206040 Plate, Protection
(Left)
4 Side Panel, Left
8206478 White
8206479 Black
8206480 Biscuit
8206481 Stainless Steel
5 Button
8206482 White
8206483 Black
8206484 Biscuit
8206485 Stainless Steel
6 8206486 Hood/Light Switch
Board
7 Side Panel, Right
8206489 White
8206490 Black
8206491 Biscuit
8206492 Stainless Steel
8 8206602 Control Board,
(Relay)
9 8206061 Plate, Protection
(Right)
10
W10113785
Plate, Chassis
11 8206065 Support, Cavity
(Right)
12 8206603 Board, Relay
13 8206053 Holder,
Microcomputer
14 8206062 AC Line Filter
15 8206060 Holder, Filter
16
W10113782
Resistor (50W)
17
W10113783
Resistor (25W)
18
W10113784
Spacer (6)
19 8169499 Glass, Lamp
20 8169646 Frame, Glass
DOOR PARTS
2
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Handle
8206501 White
W10110267
Black
8206503 Biscuit
W10116265
Stainless Steel
2 8206528 Outer Door Glass
3
W10116267
Control Panel
4 Outer Door Frame
8206518 White
8206519 Black
8206520 Biscuit
8206521 Stainless Steel
5
W10116269
LCD Frame
6
W10116268
Board, User
(Interface)
7
W10113793
LCD Module
8 8206511 Cntrl Panel Plate
9 8206512 Cntrl Panel Cover
10 8206527 Cable Cover, Door
11 Logo
8206514 White
8206515 Black
8206516 Biscuit
8206517 Stainless Steel
12 8206513 Screw (2)
13 Spacer, Side (6)
8206522 White
8206523 Black
8206524 Biscuit
8206525 Stainless Steel
14 8206215 Screw (6)
15 8206178 Spacer, Bottom (2)
16 8206179 Screw (2)
17 8206529 Cover, Choke
18
W10112215
Door Plate Assy
19 8206181 Hinge Screw
20 8206531 Dr Innr Frm Assy
VENTILATION PARTS
3
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
VENTILATION PARTS
4
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION
1 8206092 Housing, Blower
(Left)
2 8184194 Reflector, Lamp
3 8204670 Lamp (2)
4 8206033 Socket, Lamp (2)
(Left)
5 Frame, Glass
W10113788
Left
W10113789
Right
6 8206097 Plate, Separator
(Left)
7 8206497 Plate, Bottom
8 8184132 Reflector, Lamp
9 8206103 Cover, Terminal
10 8206104 Diffuser
11 8206105 Cover, Duct
12 8206106 Connector, Duct
13 8206107 Holder, Duct
14
W10115582
Shield
15 8206212 Support & Base
Thermostat Assy
16 8206263 Connector Shaft
17 8206499 Spring
18 8206112 Housing, Blower
(Right)
19 8205998 Filter, Charcoal
20 8205997 Filter, Grease
21
W10113792
Spring, Hook
22 8206020 Air Guide,
Center Hood
23 8206007 Plate, Insltn Top
24 8206099 Plate, Insltn Bttm

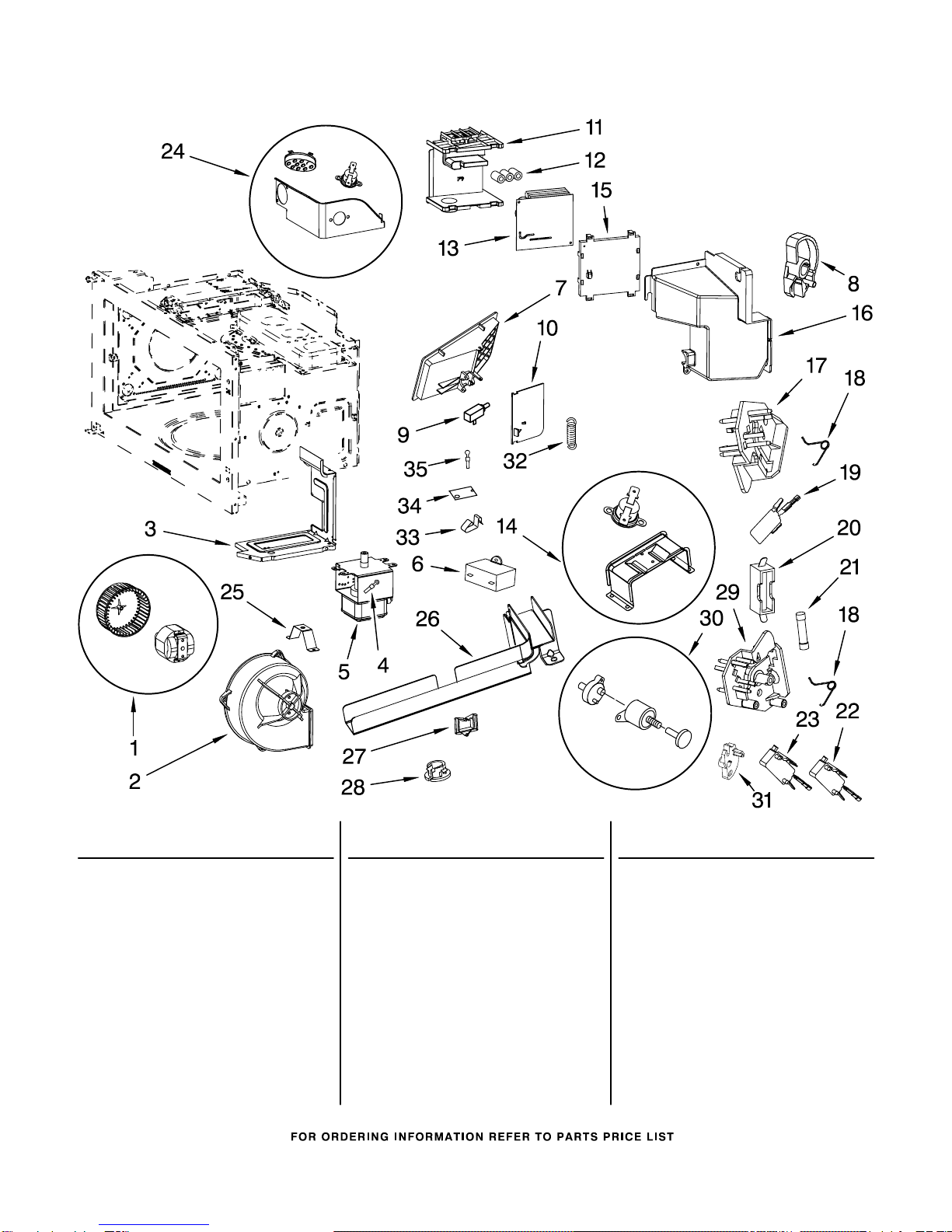

INTERIOR AND AIR FLOW PARTS
5
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206075 Fan Motor Assy
2 8206076 Housing, Fan
3 8206077 Plate, Divider
4
W10115577
Thermistor,
Magnetron
5 8206079 Magnetron
6 8206080 Motor, Capacitor
7 8206081 Housing, Valve
8
W10113786
Cam Plate (Upper)
9 8206082 Solenoid
10 8206083 Lid, Valve
11 8206085 Cover, Inverter
12 8206086 Ferrite Ring
13 8206087 Inverter
14 8206035 Thermostat,
Base Assembly
15 8206089 Holder, Inverter
16 8206494 Air Guide,
Magnetron
17 4393595 Support, Interlock
18 8206091 Spring, Interlock
19 8206345 Switch, Micro
(Secondary)
20 8184312 Holder, Fuse
21 4393308 Fuse
22 8206347 Switch, Micro
(Monitor)
23 8206352 Switch, Micro
(Primary)
24 8206026 Humidity Sensor
& Thermostat Assy
25 8206031 Support, Air Guide
26 8206477 Protector, Wire
27 8206037 Clip, Saddle
28 8206038 Clip, Round
29 8206209 Support, Interlock
30 8206210 Piston Assembly
31
W10113787
Cam Plate (Lower)
32 8206084 Spring, Valve
33 8206223 Clip, Sensor
34 8206224 Cover
35 8206023 Sensor, Temp

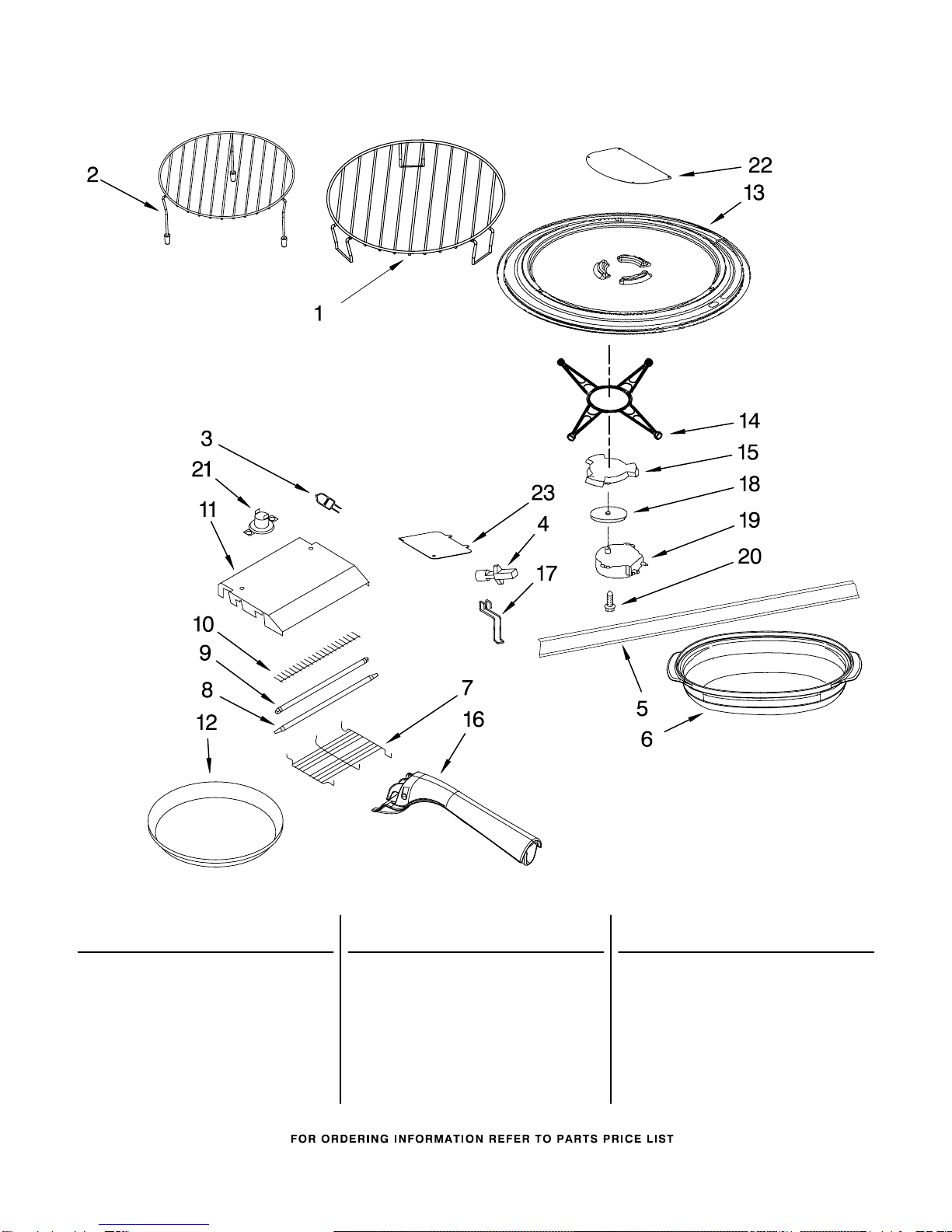

RACK AND TURNTABLE PARTS
6
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8205995 Rack, Convection
2 8206264 Rack, Grill
3 8204670 Lamp, Cavity
4
W10113781
Holder, Lamp
5 8205980 Deflector, Air
6 8206451 Steamer
7 8205239 Cover, Protector
8 8184839 Heater, Quartz
9 8184838 Quartz Tube,
Softstart
10 8184837 Browner, Halogen
11 8206024 Cover, Insulation
(Grill)
12 8205996 Plate, Crisp
13
W10113773
Turntable
14 8206222 Ring, Turntable
15 8205994 Driver, Turntable
16
W10106520
Handle, Crisp Plt
17 8206034 Clip, Cavity Lamp
18 8206101 Spacer
19 8206102 Motor, Turntable
20 4393832 Screw
21 8206025 Thermostat,
Grill
22 8206066 Cover, Inlet
23 8206476 Lid, Lamp
CABINET AND INSTALLATION PARTS
7
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Case, Outer
8206027 White
8206028 Black
8206029 Biscuit
W10116264
Stainless Steel
2 8206442 Damper
3 8184897 Lid, Power Cord
4 4393472 Screw
5 8206475 Vent Screen
(Middle)
6 Support,
Vent Screen
8206011 White
W10115568
Black
8206015 Biscuit
W10116263
Stainless Steel
7 8206207 Vent Screen
(Left)
8 8206051 Plate, Back
9 8206319 Plate, Mounting
10 8206182 Cord, Power
11 4393836 Screw
12 8206206 Vent Screen
(Right)
13
W10115570
Insulation Assy
14
W10107810
Mounting Nut (2)
Miscellaneous
8205979 Installation,
Magnetron
Hardware
8206487 Template, Upper
W10113776
Harns−Wire,#70 RCB
W10115594
Main Harness
8206185 Ground Wire
W10113777
Harns−Wire,
RCB − Inverter
8206189 Hood/Light Control
Harns−Wire #74
W10113778
Hood/Light Control
Harns−Wire #73
W10113779
Harns−Wire #75
P64 RCB
W10113780
Harns−Wire #76
P2 RCB
8206468 Harns−Wire #77
P3 LCD to UIB
8206186 Harns−Wire, HV
W10115595
Harns−Wire,
P56−P66

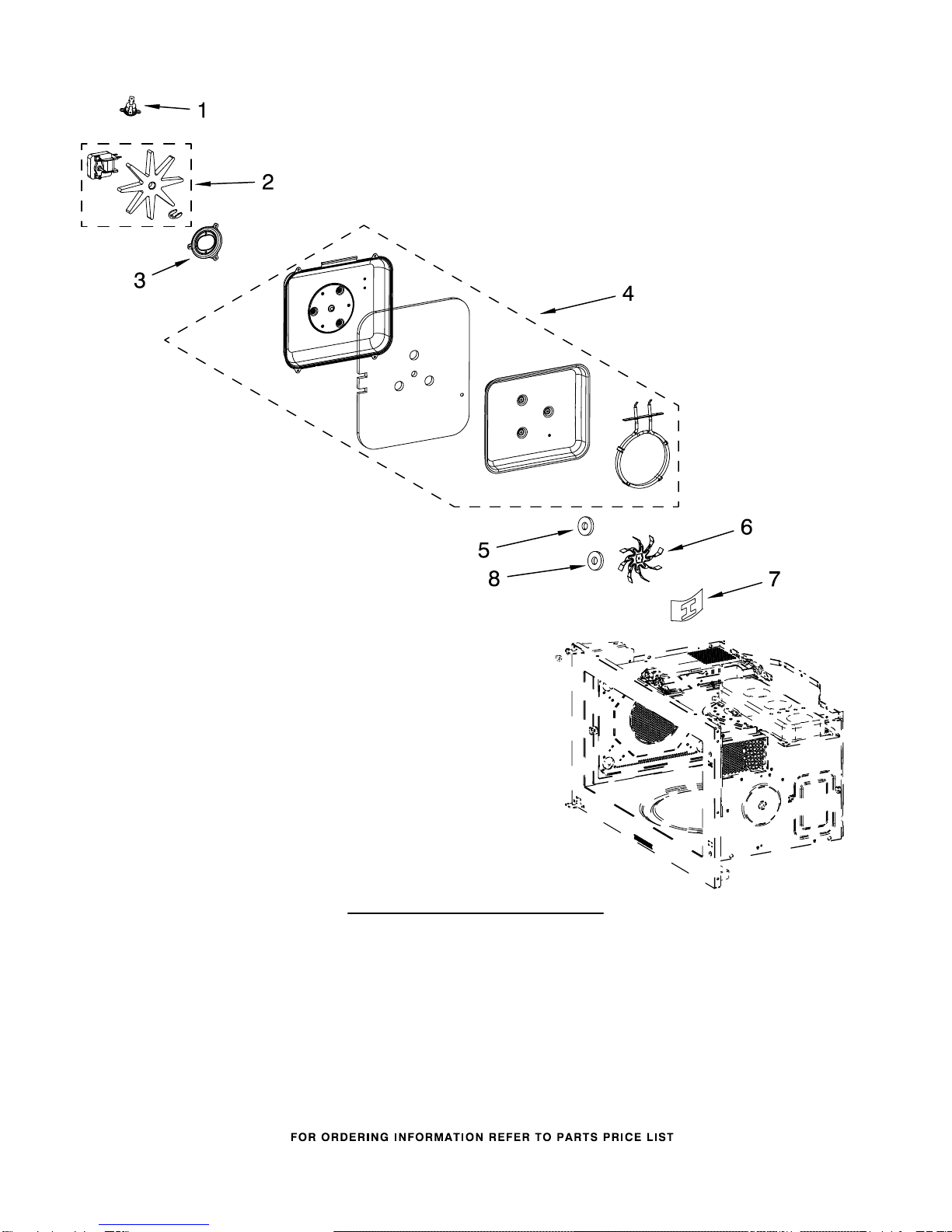

CONVECTION PARTS
8
For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0
(White) (Black) (Stainless Steel) (Biscuit)
8188450
Illus. Part
No. No. DESCRIPTION
1 8206068 Thermostat
2 8206069 Impeller Assy
3
W10115572
Bracket, Motor
4 8206071 Heater Assembly
5 8206073 Washer
6 8206074 Fan Wheel
7
W10115575
Plate, Spring Lock
8
W10115573
Washer, Adjustable
